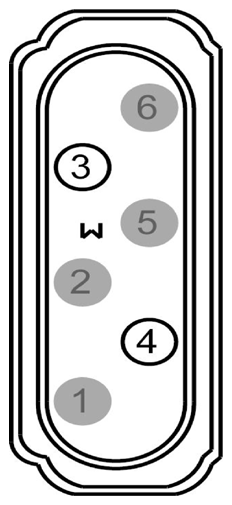

Brake Booster Solenoid Connector End View (C1602)

Fig 1: Identifying Brake Booster Solenoid Connector (C1602)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	*	*	Not Used
2	*	*	Not Used
3	CCA22 (GY-YE)	20	CTRL MOD. - SOLENOID IVD ACTIVE BOOSTER +
4	VCA22 (GN-BN)	20	CTRL MOD. - SOLENOID IVD ACTIVE BOOSTER -
5	*	*	Not Used
6	*	*	Not Used

Available Pigtail Kits

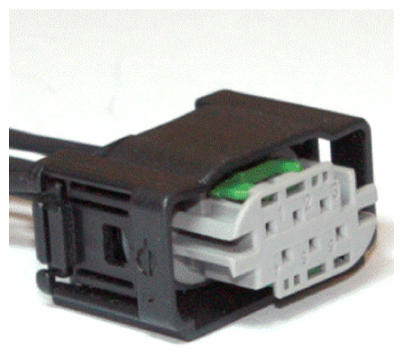

Pigtail Kit Part Number WPT-862	Service Part Number: 5U2Z-14S411-YA  Gauge: 18  Pin material: Tin  Cavities: 6  Vehicle Uses Processor - Radio Audio Signal Control Unit Sensor - Delta Pressure Feedback EGR Sensor - Power Steering Pressure

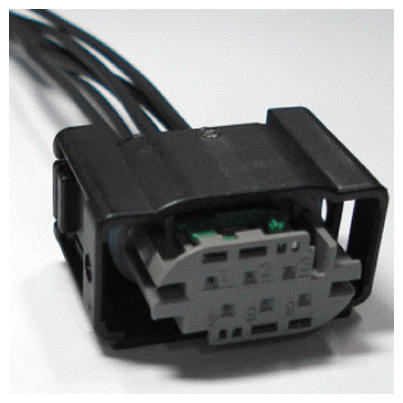

Pigtail Kit Part Number WPT-963	Service Part Number: 5U2Z-14S411-YB  Gauge: 20  Pin material: Tin  Cavities: 6  Vehicle Uses Sensor - Yaw
