Battery Junction Box (BJB) Connector End View (C1035B)

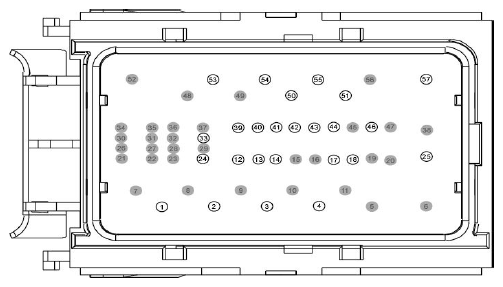

Fig 1: Identifying Battery Junction Box (BJB) Connector (C1035B)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	SBB85 (WH-RD)	10	FUSE - 85 OR CIRCUIT BREAKER
2	SBB81 (RD)	10	FUSE - 81 OR CIRCUIT BREAKER
3	SBB77 (GY-RD)	12	FUSE - 77 OR CIRCUIT BREAKER
4	SBB73 (RD)	12	FUSE - 73 OR CIRCUIT BREAKER
5	*	*	Not Used
6	*	*	Not Used
7	*	*	Not Used
8	*	*	Not Used
9	*	*	Not Used
10	*	*	Not Used
11	*	*	Not Used
12	CRW13 (GN)	18	SWITCH - REAR WIPER
13	CBB54 (VT-OG)	20	FUSE - 55 OR CIRCUIT BREAKER
14	CBB55 (BN-BU)	20	FUSE - 54 OR CIRCUIT BREAKER
15	*	*	Not Used
16	*	*	Not Used
17	CBB21 (BU-GY)	20	FUSE - 21 OR CIRCUIT BREAKER
18	CBB53 (GY-BN)	20	FUSE - 53 OR CIRCUIT BREAKER
19	*	*	Not Used
20	*	*	Not Used
21	*	*	Not Used
22	*	*	Not Used
23	*	*	Not Used
24	CLN09 (YE-GN)	20	RELAY - BATTERY SAVER (E.G. SWITCH OFF INTERIOR LIGHTING)
25	SBB65 (RD)	14	FUSE - 65 OR CIRCUIT BREAKER
26	*	*	Not Used
27	*	*	Not Used
28	*	*	Not Used
29	*	*	Not Used
30	*	*	Not Used
31	*	*	Not Used
32	*	*	Not Used
33	CE622 (BU-OG)	20	RELAY - REFUELING CONTROL
34	*	*	Not Used
35	*	*	Not Used
36	*	*	Not Used
37	*	*	Not Used
38	*	*	Not Used
39	CE613 (WH-VT)	20	RELAY - POWERTRAIN CONTROL MODULE 2ND
40	CBB23 (BN-YE)	20	FUSE - 23 OR CIRCUIT BREAKER
41	CBB29 (WH-VT)	18	FUSE - 29 OR CIRCUIT BREAKER
42	CBB24 (VT-GN)	20	FUSE - 24 OR CIRCUIT BREAKER
43	CPL18 (GY-VT)	20	RELAY - FUEL FLAP LOCK
44	CBB52 (GN-WH)	18	FUSE - 52 OR CIRCUIT BREAKER
45	*	*	Not Used
46	CBB51 (BN)	20	FUSE - 51 OR CIRCUIT BREAKER
47	*	*	Not Used
48	*	*	Not Used
49	*	*	Not Used
50	SBB36 (GN-RD)	18	FUSE - 36 OR CIRCUIT BREAKER
51	SBB17 (RD)	14	FUSE - 17 OR CIRCUIT BREAKER
52	*	*	Not Used
53	SBB80 (VT-RD)	12	FUSE - 80 OR CIRCUIT BREAKER
54	SBB76 (BN-RD)	14	FUSE - 76 OR CIRCUIT BREAKER
55	SBB72 (VT-RD)	10	FUSE - 72 OR CIRCUIT BREAKER
56	*	*	Not Used
57	SBB57 (RD)	10	FUSE - 57 OR CIRCUIT BREAKER
