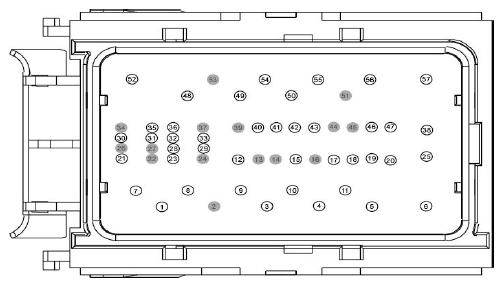

| 1 |
CRW03 (VT-WH) |
14 |
RELAY - FRONT WIPER |
|
| 2 |
* |
* |
Not Used |
|
| 3 |
CH402 (YE-GN) |
10 |
RELAY - FRONT BLOWER |
|
| 4 |
CRD06 (BN-YE) |
10 |
RELAY - HEATER REAR WINDOW |
|
| 5 |
CCB29 (WH-GN) |
10 |
RELAY - VACUUM PUMP |
|
| 6 |
SBB67 (BU-RD) |
8 |
FUSE - 67 OR CIRCUIT BREAKER |
|
| 7 |
GD120 (BK-GN) |
16 |
GROUND - FENDER FRONT LEFT |
|
| 8 |
CRW25 (BU-GY) |
14 |
RELAY - FRONT WIPER PARK |
|
| 9 |
SBB10 (YE-RD) |
16 |
FUSE - 10 OR CIRCUIT BREAKER |
|
| 10 |
CBB07 (GN-BU) |
14 |
FUSE - 7 OR CIRCUIT BREAKER |
|
| 11 |
CBK02 (GN) |
18 |
FUSE - 8 OR CIRCUIT BREAKER (VPWR 2) |
|
| 12 |
CCB41 (YE) |
20 |
CTRL MOD. - RELAY VACUUM PUMP 2 |
|
| 13 |
* |
* |
Not Used |
|
| 14 |
* |
* |
Not Used |
|
| 15 |
SBB47 (WH-RD) |
20 |
FUSE - 47 OR CIRCUIT BREAKER |
|
| 16 |
* |
* |
Not Used |
|
| 17 |
CBK04 (VT) |
14 |
FUSE - 11 OR CIRCUIT BREAKER (VPWR 4) |
|
| 18 |
CBK03 (GY) |
16 |
FUSE - 12 OR CIRCUIT BREAKER |
|
| 19 |
CBB19 (BN-WH) |
20 |
FUSE - 19 OR CIRCUIT BREAKER |
|
| 20 |
CBB26 (BU-WH) |
20 |
FUSE - 26 OR CIRCUIT BREAKER |
|
| 21 |
CE237 (BN-WH) |
20 |
CTRL MOD. - POWERTRAIN # HOLD PCM RELAY (PCM) |
|
| 22 |
* |
* |
Not Used |
|
| 23 |
CRD02 (BN-BU) |
20 |
CTRL MOD. - RELAY HEATER REAR WINDOW |
|
| 24 |
* |
* |
Not Used |
|
| 25 |
CEC05 (VT-GY) |
10 |
RELAY - ENGINE COOLING FAN |
|
| 26 |
* |
* |
Not Used |
|
| 27 |
* |
* |
Not Used |
|
| 28 |
CDC55 (BN-VT) |
20 |
RELAY - RUN, START |
|
| 29 |
CCB30 (GY-VT) |
20 |
CTRL MOD. - RELAY VACUUM PUMP |
|
| 30 |
CDC71 (YE-GY) |
20 |
CTRL MOD. - POWER OUTLET ENABLE OR SET |
|
| 31 |
CH123 (VT-GN) |
20 |
CTRL MOD. - BLOWER MOTOR RELAY |
|
| 32 |
CRH02 (BU-WH) |
20 |
SWITCH - HORN |
|
| 33 |
CE226 (YE-VT) |
20 |
CTRL MOD. - POWERTRAIN # FUEL PUMP ON/OFF (FP) + |
|
| 34 |
* |
* |
Not Used |
|
| 35 |
CDC72 (BN-WH) |
20 |
CTRL MOD. - POWER OUTLET DISABLE OR RESET |
|
| 36 |
CDC40 (VT-GY) |
20 |
RELAY - DELAY ACCESSORY |
|
| 37 |
* |
* |
Not Used |
|
| 38 |
SBB35 (BU-RD) |
18 |
FUSE - 35 OR CIRCUIT BREAKER |
|
| 39 |
* |
* |
Not Used |
|
| 40 |
CBB45 (YE) |
20 |
FUSE - 45 OR CIRCUIT BREAKER |
|
| 41 |
SBB46 (BN-RD) |
20 |
FUSE - 46 OR CIRCUIT BREAKER |
|
| 42 |
SBB18 (YE-RD) |
20 |
FUSE - 18 OR CIRCUIT BREAKER |
|
| 43 |
CBB20 (YE-VT) |
20 |
FUSE - 20 OR CIRCUIT BREAKER |
|
| 44 |
* |
* |
Not Used |
|
| 45 |
* |
* |
Not Used |
|
| 46 |
CRH04 (VT-GN) |
18 |
CTRL MOD. - RELAY HORN |
|
| 47 |
CBB25 (WH-OG) |
20 |
FUSE - 25 OR CIRCUIT BREAKER |
|
| 48 |
SBB05 (GY-RD) |
16 |
FUSE - 5 OR CIRCUIT BREAKER |
|
| 49 |
SBB16 (VT-RD) |
16 |
FUSE - 16 OR CIRCUIT BREAKER |
|
| 50 |
CE608 (VT-GN) |
12 |
RELAY - FUEL PUMP |
|
| 51 |
* |
* |
Not Used |
|
| 52 |
SBB82 (YE-RD) |
8 |
FUSE - 82 OR CIRCUIT BREAKER |
|
| 53 |
* |
* |
Not Used |
|
| 54 |
SBB74 (YE-RD) |
12 |
FUSE - 74 OR CIRCUIT BREAKER |
|
| 55 |
SBB70 (BN-RD) |
12 |
FUSE - 70 OR CIRCUIT BREAKER |
|
| 56 |
SBB69 (GY-RD) |
12 |
FUSE - 69 OR CIRCUIT BREAKER |
|
| 57 |
SBB62 (BN-RD) |
8 |
FUSE - 62 OR CIRCUIT BREAKER |
|
