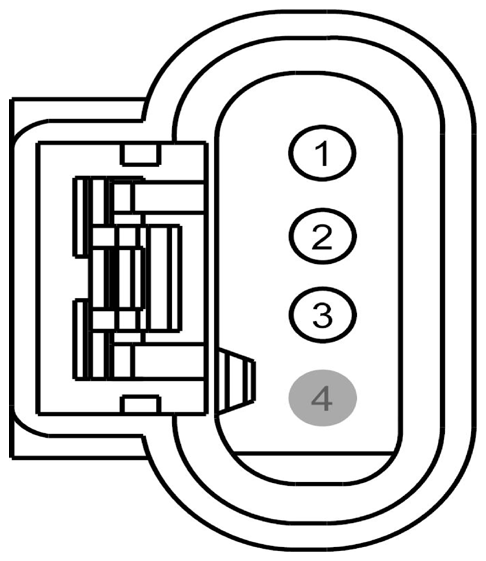

Active Grille Shutter Connector End View (C1651)

Fig 1: Identifying Active Grille Shutter Connector (C1651)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	GD120 (BK-GN)	18	GROUND - FENDER FRONT LEFT
2	VDN06 (WH-GN)	20	CTRL MOD. - LIN BUS # POWERTRAIN CONTROL MODULE 1
3	CBK03 (GY)	18	FUSE - 12 OR CIRCUIT BREAKER
4	*	*	Not Used

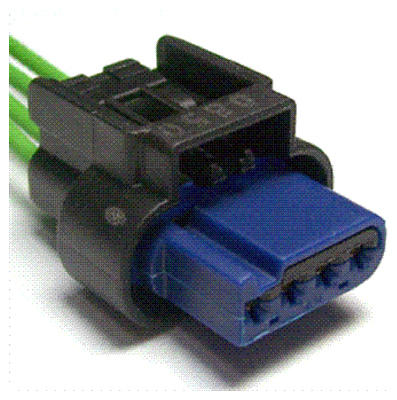

Available Pigtail Kits
Pigtail Kit Part Number WPT-1309	Service Part Number: CU2Z-14S411-AYA  Gauge: 18  Pin material: Silver  Cavities: 4  Vehicle Uses Motor - Active Grill Shutter
