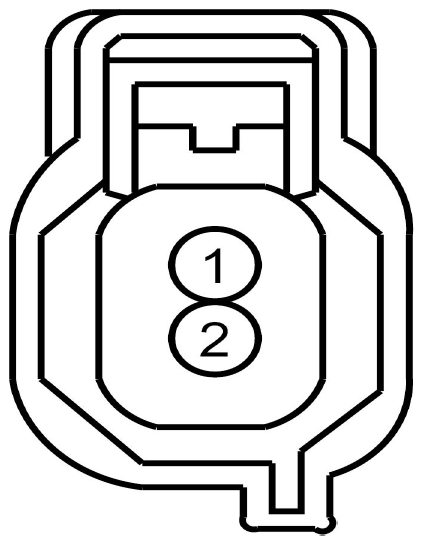

Subwoofer, Right Connector End View (C4446)

Fig 1: Identifying Subwoofer, Right Connector (C4446)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VME73 (WH-BN)	18	CTRL MOD. - AUDIO # SPEAKER SUBWOOFER RIGHT REAR 2 +
2	RME73 (VT-OG)	18	CTRL MOD. - AUDIO # SPEAKER SUBWOOFER RIGHT REAR 2 -

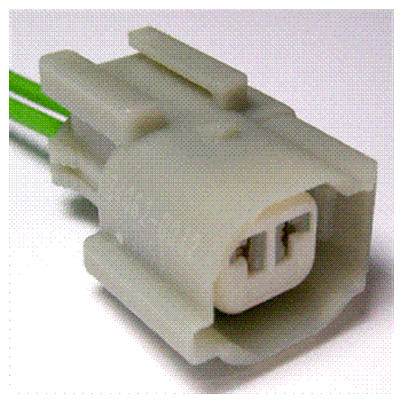

Available Pigtail Kits
Pigtail Kit Part Number WPT-1116	Service Part Number: AU2Z-14S411-BJA  Gauge: 16  Pin material: Silver  Cavities: 2  Vehicle Uses Lamp - Running Board Sensor - Knock Sensor - Speed Sensor - Water in Fuel
