Splice Block 59 Connector End View (C9230)

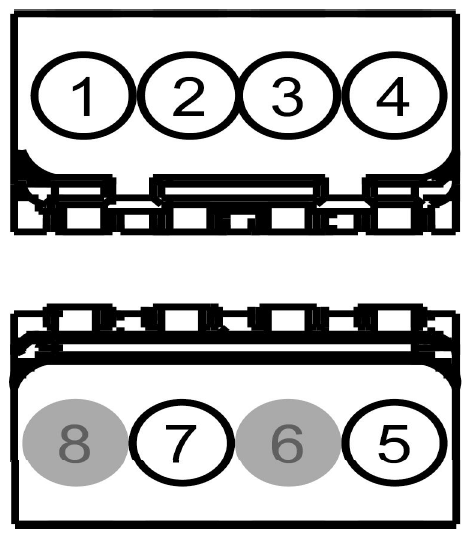

Fig 1: Identifying Splice Block 59 Connector (C9230)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VDB25 (GN)	26	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) HIGH
2	VDB25 (GN)	26	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) HIGH
3	VDB26 (GY)	26	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) LOW
4	VDB26 (GY)	26	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) LOW
5	VDB25 (GN-OG)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) HIGH	MKZ
5	VDB25 (GN)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) HIGH	FUSION
6	*	*	Not Used
7	VDB26 (GY-BU)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) LOW	MKZ
7	VDB26 (GY)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) LOW	FUSION
8	*	*	Not Used
