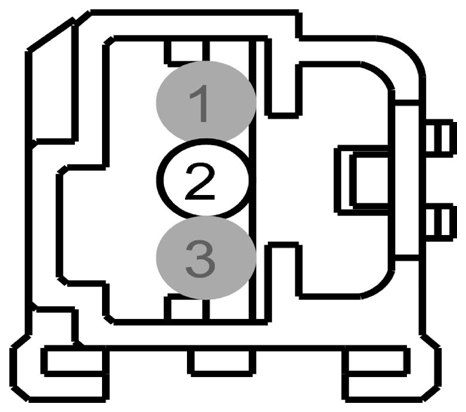

Satellite Radio Antenna Connector End View (C4461)

Fig 1: Identifying Satellite Radio Antenna Connector (C4461)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	*	*	Not Used
2	* (*) (*)	*	COAX CABLE
3	*	*	Not Used

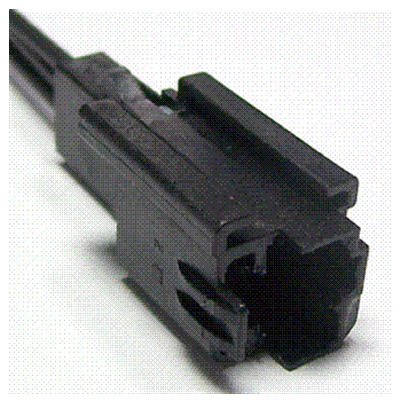

Available Pigtail Kits
Pigtail Kit Part Number WPT-1103	Service Part Number: 3U2Z-14S411-EXAB  Gauge: 18  Pin material: Tin (greased)  Cavities: 3  Vehicle Uses Lamp - PRNDL Indicator Module - Radio Power Antenna Switch - Overdrive Cancel
