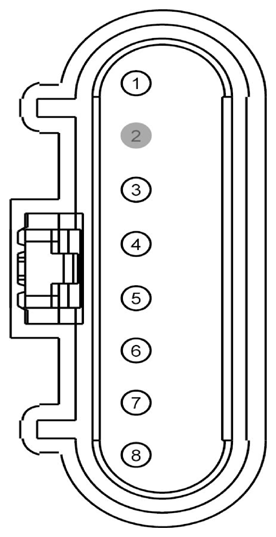

Power Striker Module Connector End View (C4824)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | SBB80 (VT-RD) | 14 | FUSE - 80 OR CIRCUIT BREAKER | |
| 2 | * | * | Not Used | |
| 3 | GD347 (BK-VT) | 14 | GROUND - PILLAR C OR QUARTER PANEL LEFT | |
| 4 | CPR65 (BU-GN) | 22 | LATCH - LIFTGATE # LATCH SWITCH FULL | |
| 5 | CPR72 (GN-BU) | 22 | CTRL MOD. - POWER LIFTGATE # MOTOR STRIKER (-) | |
| 6 | CLN13 (WH-BU) | 22 | SWITCH - TRUNK/CARGO LAMP | |
| 7 | CPR61 (BN) | 22 | CTRL MOD. - POWER LIFTGATE # CINCH + | |
| 8 | CPR71 (GY-BN) | 22 | CTRL MOD. - POWER LIFTGATE # MOTOR STRIKER (+) |
