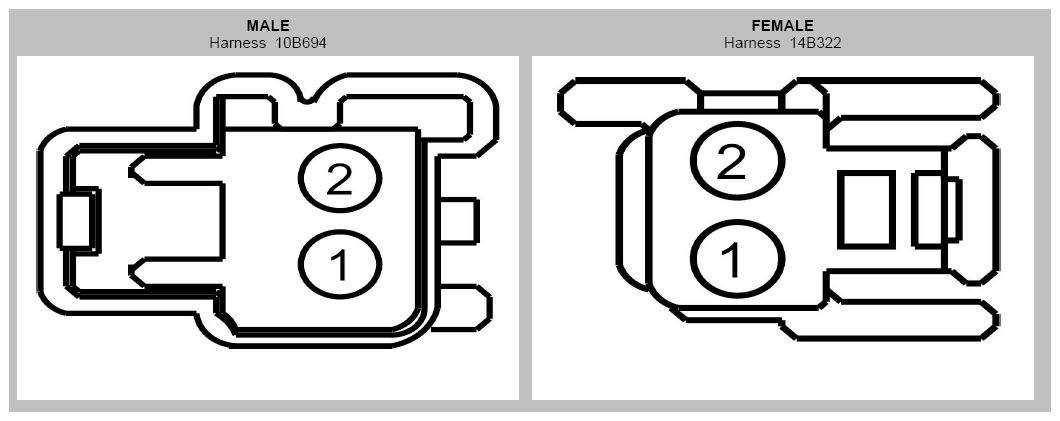

Inline Connector End View (C4002)

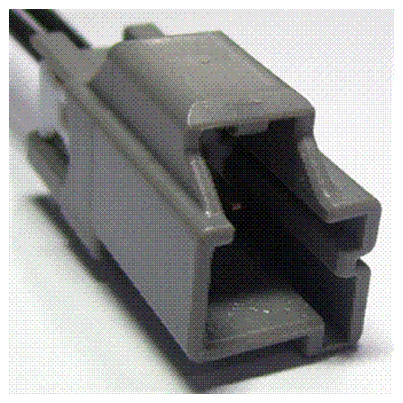

Fig 1: Identifying Inline Connector (C4002)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Qualifier
1	CYB03 (BN-YE)	20	PHEV
2	CYB04 (VT-BN)	20	PHEV

Available Pigtail Kits
Pigtail Kit Part Number WPT-1078	Service Part Number: 3U2Z-14S411-LAB Gauge: 14 Pin material: Tin (greased) Cavities: 2 Vehicle Uses: Connector - Inline Element - Heated Seat Lamp - PRNDL Indicator Speaker - Front Switch - Seat Lumbar
