Inline Connector End View (C4001)

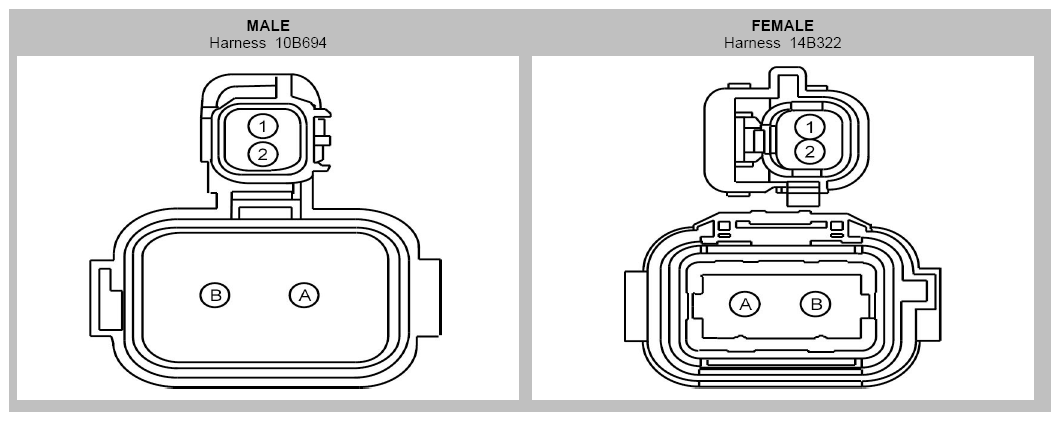

Fig 1: Identifying Inline Connector (C4001)
G08757115Courtesy of FORD MOTOR CO.
Pin Circuit Gauge Qualifier
1 CYB03 (BN-YE) 20 PHEV
2 CYB04 (VT-BN) 20 PHEV
A HYB20 (OG) 12 PHEV
B HYB21 (OG) 12 PHEV
