Steering Wheel Switch, LH Lower Connector End View (C2366)

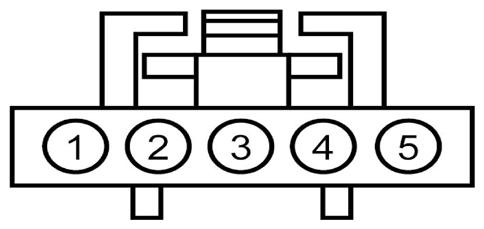

Fig 1: Identifying Steering Wheel Switch, LH Lower Connector (C2366)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	* (BK)	*	IP ILLUMINATION
2	* (GY)	*	CRUISE SIG 1
3	* (BN)	*	CRUISE SIG 2
4	* (VT)	*	CRUISE GND
5	* (GN)	*	PWR GND
