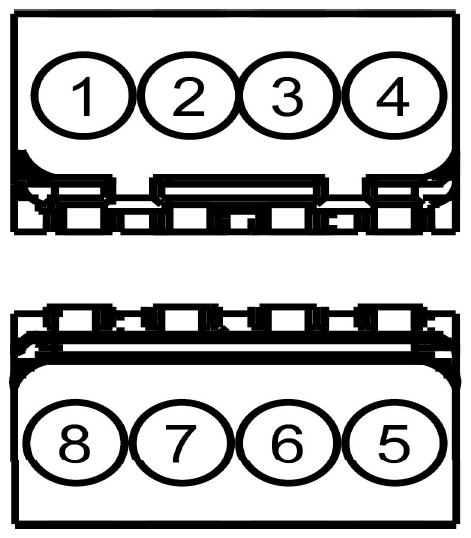

Splice Block 60 Connector End View (C3460)

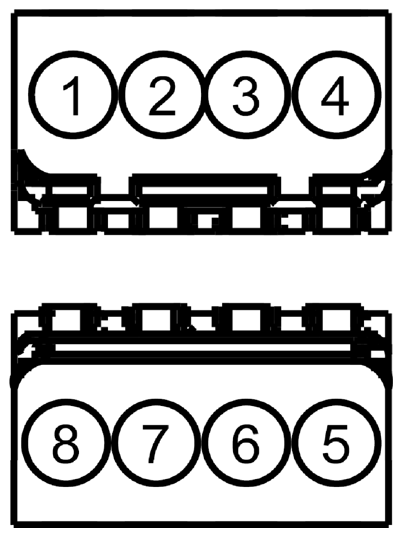

Fig 1: Identifying Splice Block 60 Connector (C3460)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VDB04 (WH-BU)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH	MKZ, PHEV
1	VDB04 (WH)	26	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH	FUSION HEV
2	VDB04 (WH-BU)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH
3	VDB05 (WH)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW MKZ, PHEV
3	VDB05 (BU)	26	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW FUSION HEV
4	VDB05 (WH)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW
5	VDB04 (WH-BU)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH	PHEV
5	VDB04 (BU)	26	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH	HEV
6	VDB04 (BU)	26	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH
7	VDB05 (WH)	26	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW HEV
7	VDB05 (WH)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW PHEV
8	VDB05 (WH)	26	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW
