Passenger Lower Airbag Connector End View (C2607)

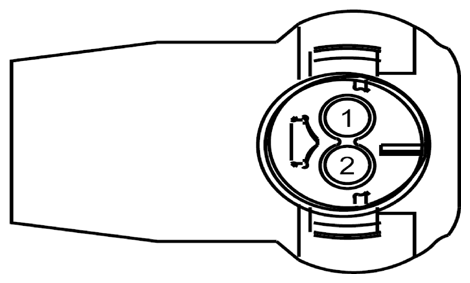

Fig 1: Identifying Passenger Lower Airbag Connector (C2607)
G08756931Courtesy of FORD MOTOR CO.
Pin Circuit Gauge Circuit Function Qualifier
1 CR169 (VT) 20 CTRL MOD. - AIR BAG PASSENGER KNEE +
2 RR169 (GY-VT) 20 CTRL MOD. - AIR BAG PASSENGER KNEE -
