Repair and Diagnosis
>>
Electrical
>>
Motors, Switches, Relays
>>
OEM Connector End Views - C2129 Through C3545 - (Hybrid)
>>
Inline Connector End View (C3050)
Inline Connector End View (C3050)

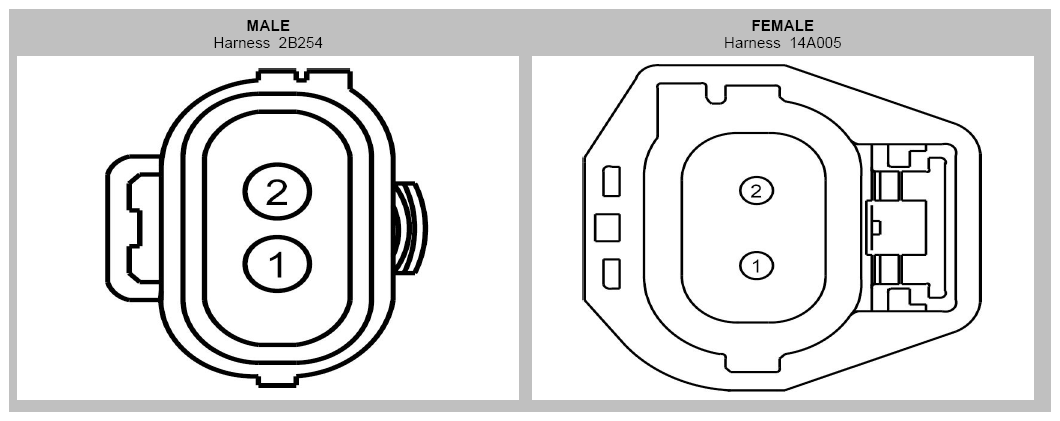

Fig 1: Identifying Inline Connector (C3050)
Courtesy of FORD MOTOR CO.
Pin
Circuit
Gauge
Qualifier
1
CCB16 (WH-VT)
12
2
CCB17 (BU-GN)
12
Courtesy of FORD MOTOR CO.
