Fuel Tank Pressure (Ftp) Sensor Connector End View (C3123)

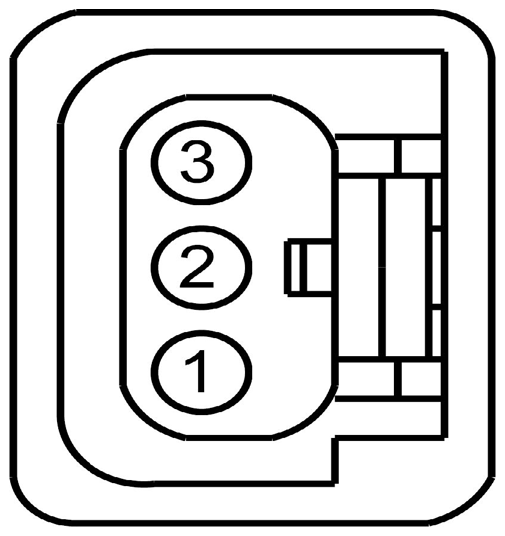

Fig 1: Identifying Fuel Tank Pressure (FTP) Sensor Connector (C3123)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	LE230 (BN-BU)	18	EVAP LEAK DETECTION PUMP PRESSURE SENSOR (VGEF)
2	RE230 (WH-VT)	18	CTRL MOD. - POWERTRAIN # FUEL TANK PRESSURE TRANSDUCER SIGRTN
3	VE922 (VT-GN)	18	TRANSDUCER - FUEL TANK PRESSURE VREF

Available Pigtail Kits

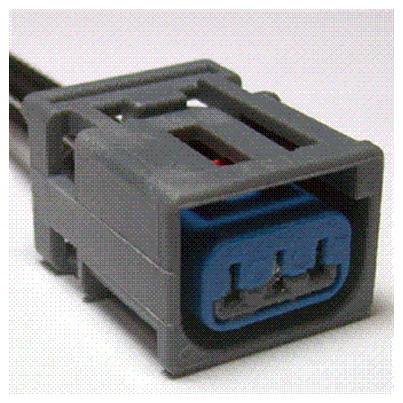

Pigtail Kit Part Number WPT-393	Service Part Number: 3U2Z-14S411-KMA  Gauge: 18  Pin material: Gold  Cavities: 3  Vehicle Uses Sensor - Delta Pressure Feedback EGR Sensor - Fuel Tank Pressure Transducer

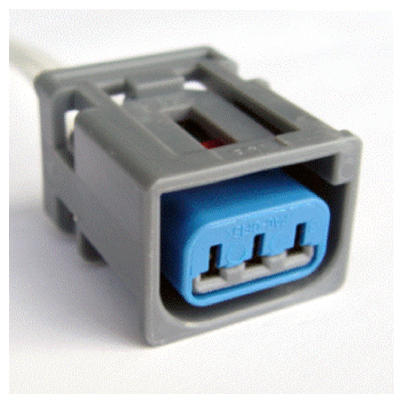

Pigtail Kit Part Number WPT-1205	Service Part Number: 3U2Z-14S411-KMB  Gauge: 16  Pin material: Tin (greased)  Cavities: 3  Vehicle Uses Sensor - Cam Shaft Position Sensor - Delta Pressure Feedback EGR Sensor - Fuel Tank Pressure Transducer
