Driver Lower Airbag Module Connector End View (C2432)

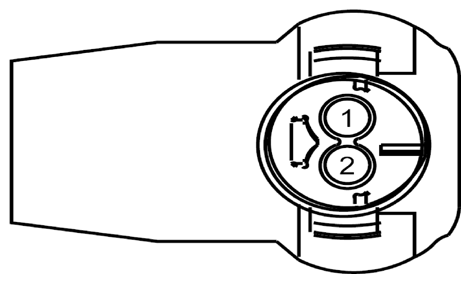

Fig 1: Identifying Driver Lower Airbag Module Connector (C2432)
G08756895Courtesy of FORD MOTOR CO.
Pin Circuit Gauge Circuit Function Qualifier
1 CR139 (VT-WH) 20 CTRL MOD. - AIR BAG DRIVER KNEE +
2 RR139 (YE) 20 CTRL MOD. - AIR BAG DRIVER KNEE -
