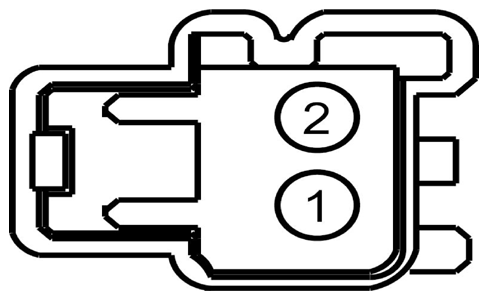

Active Motion Control Pump, Left Connector End View (C3383)

Fig 1: Identifying Active Motion Control Pump, Left Connector (C3383)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CPT05 (YE)	20	ACTION MOTION PUMP FEED
2	GD904 (BK-BU)	20	GROUND - DRIVER SEAT # SEAT SWITCH

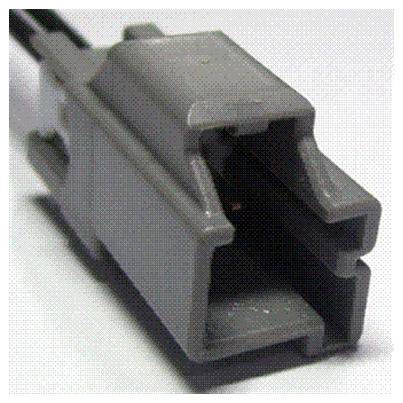

Available Pigtail Kits
Pigtail Kit Part Number WPT-1078	Service Part Number: 3U2Z-14S411-LAB  Gauge: 14  Pin material: Tin (greased)  Cavities: 2  Vehicle Uses Connector - Inline Element - Heated Seat Lamp - PRNDL Indicator Speaker - Front Switch - Seat Lumbar
