Passenger Airbag Connector End View (C256C)

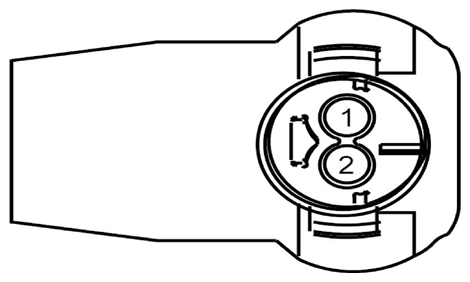

Fig 1: Identifying Passenger Airbag Connector (C256C)
G08756473Courtesy of FORD MOTOR CO.
Pin Circuit Gauge Circuit Function Qualifier
1 CR144 (GY-OG) 20 CTRL MOD. - AIR BAG FRONT PASSENGER ADAPTIVE VENTING +
2 RR144 (VT-GN) 20 CTRL MOD. - AIR BAG FRONT PASSENGER ADAPTIVE VENTING -
