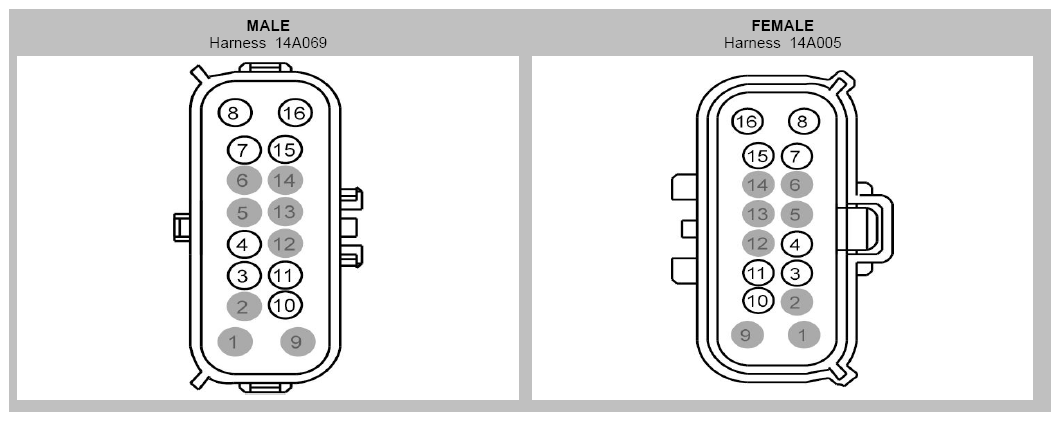

Inline Connector End View (C315)
| Pin | Circuit | Gauge | Qualifier |
|---|---|---|---|
| 1 | * | * | |
| 2 | * | * | |
| 3 | VMC11 (YE-VT) | 18 | 14A069 |
| 3 | VMC11 (YE-VT) | 22 | 14A005 |
| 4 | RMC32 (GN-BU) | 18 | 14A069 |
| 4 | RMC32 (GN-BU) | 22 | 14A005 |
| 5 | * | * | 14A069 |
| 5 | RMC33 (WH-VT) | 22 | 14A005 |
| 6 | * | * | 14A069 |
| 6 | VMC23 (GN-OG) | 22 | 14A005 |
| 7 | RE230 (WH-VT) | 18 | 14A069 |
| 7 | RE230 (WH-VT) | 22 | 14A005 - FUSION |
| 7 | RE407 (YE-VT) | 22 | 14A005 - MKZ |
| 8 | CE515 (YE-GY) | 12 | |
| 9 | * | * | |
| 10 | VE922 (VT-GN) | 18 | 14A069 |
| 10 | VE922 (VT-GN) | 22 | 14A005 |
| 11 | LE230 (BN-BU) | 18 | 14A069 |
| 11 | LE230 (BN-BU) | 22 | 14A005 |
| 12 | * | * | |
| 13 | * | * | |
| 14 | * | * | |
| 15 | DE515 (BK) | 18 | 14A069 |
| 15 | DE515 (BK) | 18 | 14A005 - FUSION |
| 15 | DE515 (BK) | 20 | 14A005 - MKZ |
| 16 | RE515 (WH-BN) | 12 |

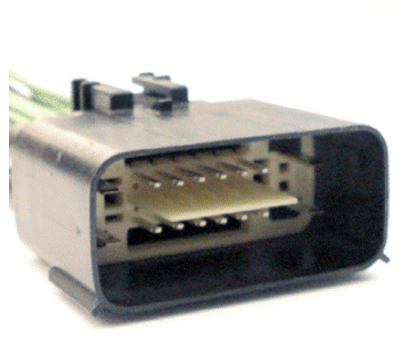

| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-892 | Service Part Number: 7U2Z-14S411-KA Gauge: 12 16 Pin material: Tin & Silver Cavities: 16 Vehicle Uses:
|
