OEM Connector End Views - C103 Through C525 - (Hybrid)
>>
Inline Connector End View (C268)
Inline Connector End View (C268)

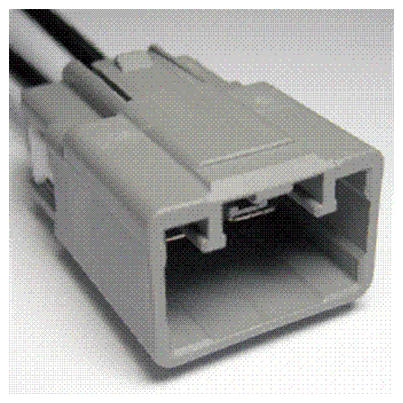

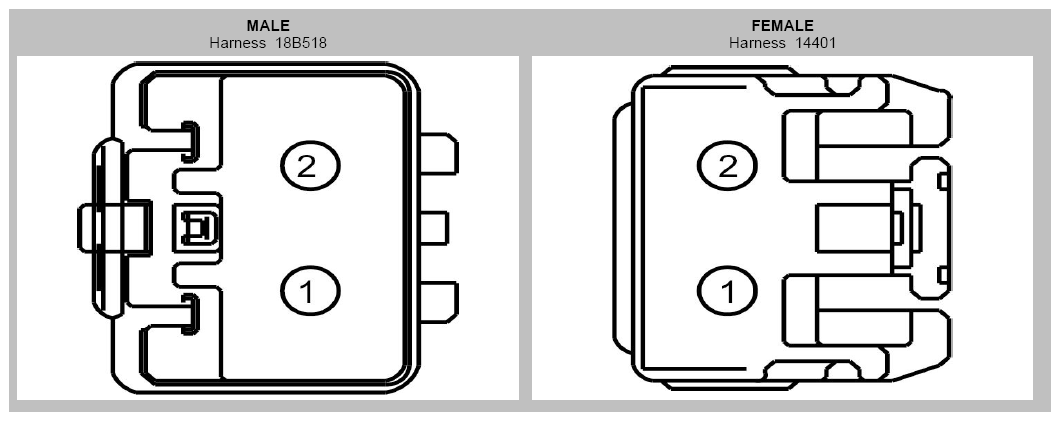

Fig 1: Identifying Inline Connector (C268)
Courtesy of FORD MOTOR CO.
Pin
Circuit
Gauge
Qualifier
1
CH402 (YE-GN)
10
2
GD216 (BK-VT)
10
Available Pigtail Kits
Pigtail Kit Part Number
WPT-1190
Service Part Number:
3U2Z-14S411-EFAB
Gauge:
10
Pin material:
Tin (greased)
Cavities:
2
Vehicle Uses:
Terminal - Rear Window Defroster Grid
