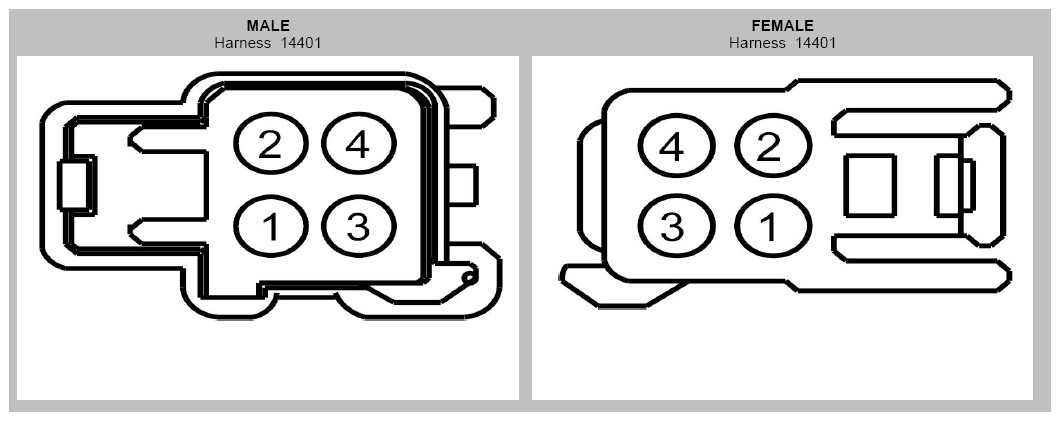

Inline Connector End View (C237)
| Pin | Circuit | Gauge | Qualifier |
|---|---|---|---|
| 1 | * (*) | * | 14401 - FEMALE |
| 1 | VDB29 (GN) | 26 | 14401 - MALE - MKZ |
| 1 | VDB29 (GN-BU) | 22 | 14401 - MALE - FUSION |
| 2 | * (*) | * | 14401 - FEMALE |
| 2 | VDB30 (WH) | 26 | 14401 - MALE - MKZ |
| 2 | VDB30 (WH-GN) | 22 | 14401 - MALE - FUSION |
| 3 | * (*) | * | 14401 - FEMALE |
| 3 | VDB06 (GY) | 22 | 14401 - MALE - MKZ |
| 3 | VDB06 (GY-OG) | 22 | 14401 - MALE - FUSION |
| 4 | * (*) | * | 14401 - FEMALE |
| 4 | VDB07 (VT) | 22 | 14401 - MALE - MKZ |
| 4 | VDB07 (VT-OG) | 22 | 14401 - MALE - FUSION |

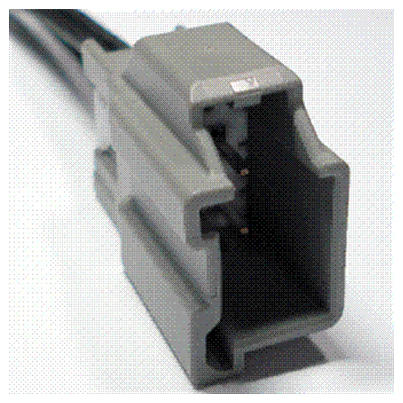

| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-1076 | Service Part Number: 3U2Z-14S411-BUB Gauge: 14 Pin material: Tin (greased) Cavities: 4 Vehicle Uses:
|
