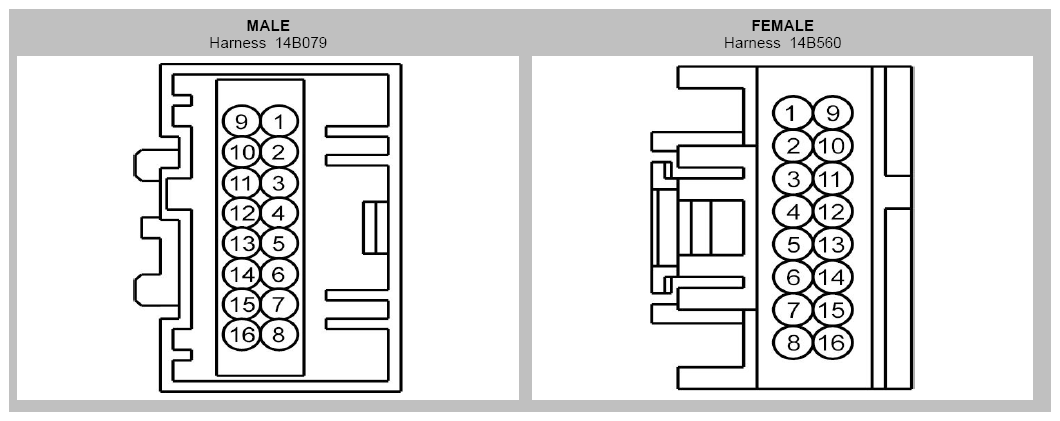

Inline Connector End View (C210)
| Pin | Circuit | Gauge | Qualifier |
|---|---|---|---|
| 1 | CCB21 (GN-VT) | 22 | |
| 2 | CBX07 (GN-RD) | 22 | 14B079 |
| 2 | CBX07 (RD) | 26 | 14B560 |
| 3 | CMP18 (GN-WH) | 26 | |
| 4 | CMP32 (GN) | 26 | |
| 5 | CCB22 (WH) | 26 | 14B079 |
| 5 | CCB22 (WH-BN) | 22 | 14B560 |
| 6 | CCB24 (OG) | 26 | 14B079 |
| 6 | CCB24 (WH-OG) | 22 | 14B560 |
| 7 | CE469 (BN) | 26 | 14B079 |
| 7 | CE499 (BN) | 26 | 14B560 |
| 8 | CCB20 (BU-WH) | 22 | |
| 9 | VLN04 (VT) | 26 | 14B560 - ambient lighting |
| 9 | VLN04 (VT-GY) | 22 | 14B079 |
| 9 | VLN04 (VT-GY) | 22 | 14B560 - without ambient lighting |
| 10 | VDN07 (WH) | 26 | 14B560 |
| 10 | VDN07 (WH-VT) | 22 | 14B079 |
| 11 | CMP02 (BU) | 26 | |
| 12 | CMP31 (VT-WH) | 26 | 14B079 |
| 12 | CMP31 (WH-VT) | 26 | 14B560 |
| 13 | CCB23 (VT) | 26 | 14B079 |
| 13 | CCB23 (VT-GN) | 22 | 14B560 |
| 14 | CCB25 (BN) | 22 | |
| 15 | CH253 (BN-WH) | 26 | |
| 16 | GD214 (BK) | 26 | ambient lighting |
| 16 | GD214 (BK-BU) | 22 | without ambient lighting |
