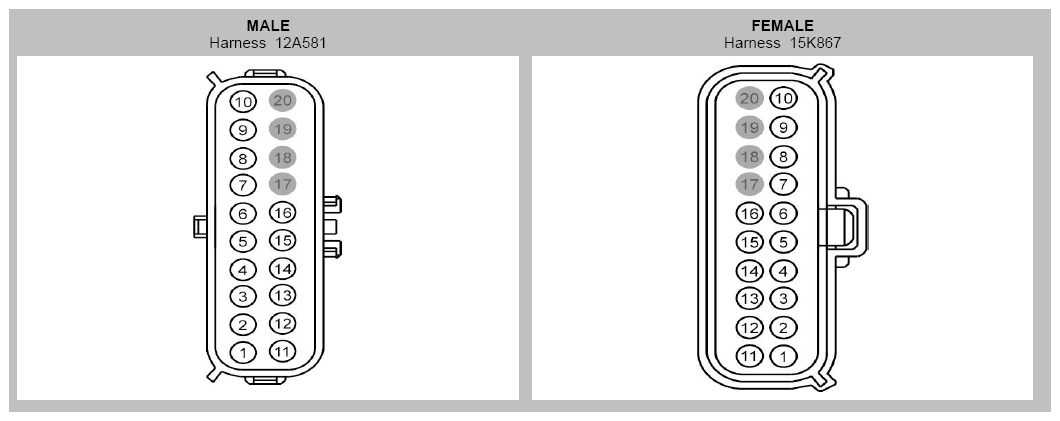

Inline Connector End View (C134)
| Pin | Circuit | Gauge | Qualifier |
|---|---|---|---|
| 1 | RMP06 (YE-OG) | 18 | 15K867 |
| 1 | RMP06 (YE-OG) | 22 | 12A581 |
| 2 | VMP21 (WH-BN) | 18 | 15K867 |
| 2 | VMP21 (WH-BN) | 22 | 12A581 |
| 3 | VMP10 (WH-BU) | 18 | 15K867 |
| 3 | VMP10 (WH-BU) | 22 | 12A581 |
| 4 | VMP11 (BU-GN) | 18 | 15K867 |
| 4 | VMP11 (BU-GN) | 22 | 12A581 |
| 5 | VMP12 (BU-GY) | 18 | 15K867 |
| 5 | VMP12 (BU-GY) | 22 | 12A581 |
| 6 | VMP13 (BU-OG) | 18 | 15K867 |
| 6 | VMP13 (BU-OG) | 22 | 12A581 |
| 7 | CLF29 (BN) | 18 | 15K867 |
| 7 | CLF29 (BN) | 22 | 12A581 |
| 8 | VMP20 (GY-OG) | 18 | 15K867 |
| 8 | VMP20 (GY-OG) | 22 | 12A581 |
| 9 | CLF34 (YE-OG) | 18 | 15K867 |
| 9 | CLF34 (YE-OG) | 20 | 12A581 |
| 10 | LMP06 (VT-GY) | 18 | 15K867 |
| 10 | LMP06 (VT-GY) | 22 | 12A581 |
| 11 | GD120 (BK-GN) | 14 | |
| 12 | RE335 (BN-VT) | 20 | 12A581 |
| 12 | RE407 (YE-VT) | 18 | 15K867 |
| 13 | VE750 (GN-BU) | 18 | 15K867 |
| 13 | VE750 (GN-BU) | 20 | 12A581 |
| 14 | VDN06 (WH-GN) | 18 | 12A581 |
| 14 | VDN06 (WH-GN) | 20 | 15K867 |
| 15 | CBK03 (GY) | 18 | |
| 16 | CPL25 (BU-OG) | 22 | |
| 17 | * | * | |
| 18 | * | * | |
| 19 | * | * | |
| 20 | * | * |

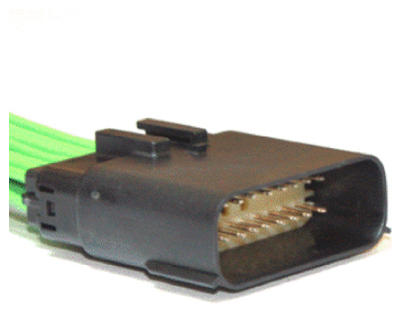

| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-890 | Service Part Number: 7U2Z-14S411-HA Gauge: 16 Pin material: Silver Cavities: 20 Vehicle Uses:
|
