Hf35 Transmission Connector End View (C168C)

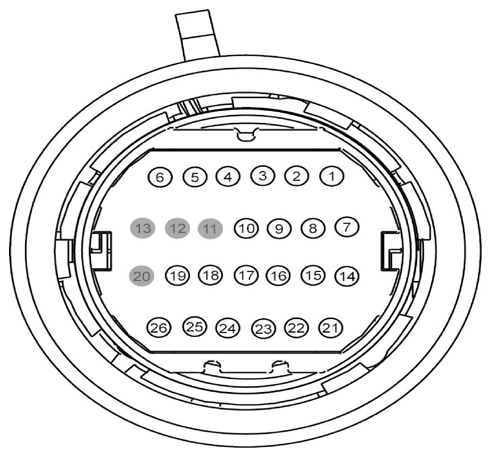

Fig 1: Identifying HF35 Transmission Connector (C168C)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VYT23 (WH)	20	CTRL MOD. - HYBRID TRANSAXLE # GENERATOR RESOLVER EXCITATION SIGNAL 1 (GR1)
2	VYT24 (BN-WH)	20	CTRL MOD. - HYBRID TRANSAXLE # GENERATOR RESOLVER EXCITATION SIGNAL 2 (GR2)
3	VYT25 (VT-BN)	20	TRANSAXLE - HYBRID # GENERATOR RESOLVER FEEDBACK SINE (GS1)
4	VYT26 (YE-BU)	20	TRANSAXLE - HYBRID # GENERATOR RESOLVER FEEDBACK SINE (GS3)
5	VYT27 (WH-BN)	20	TRANSAXLE - HYBRID # GENERATOR RESOLVER FEEDBACK COSINE (GS2)
6	VYT28 (BN-YE)	20	TRANSAXLE - HYBRID # GENERATOR RESOLVER FEEDBACK COSINE (GS4)
7	LET57 (WH-GN)	20	CTRL MOD. - POWERTRAIN # TRANSMISSION RANGE ANALOG 1 (TR-A1BVREF)
8	VET32 (VT)	20	SENSOR - TRANSMISSION RANGE # ANALOG 1 (TRA1)
9	RET57 (YE)	20	CTRL MOD. - POWERTRAIN # TRANSMISSION RANGE ANALOG 1 (TR-A1RTN)
10	VET56 (WH)	20	SENSOR - TRANSMISSION RANGE # ANALOG 2 (TRA2)
11	*	*	Not Used
12	*	*	Not Used
13	*	*	Not Used
14	VYT29 (VT-GN)	20	SENSOR - HYBRID TRANSAXLE GENERATOR COIL TEMPERATURE (TGCOIL) +
15	RYT29 (WH-BU)	20	SENSOR - HYBRID TRANSAXLE GENERATOR COIL TEMPERATURE (TGCOIL) -
16	VYT21 (BU-GN)	20	SENSOR - HYBRID TRANSAXLE MOTOR COIL TEMPERATURE (TMCOIL) +
17	RYT21 (GN-WH)	20	SENSOR - HYBRID TRANSAXLE MOTOR COIL TEMPERATURE (TMCOIL) -
18	VYT22 (GN-OG)	20	SENSOR - HYBRID TRANSMISSION OIL TEMPERATURE (TOIL) +
19	RYT22 (GY-OG)	20	SENSOR - HYBRID TRANSMISSION OIL TEMPERATURE (TOIL) -
20	*	*	Not Used
21	VYT19 (GN-BN)	20	TRANSAXLE - HYBRID # MOTOR RESOLVER FEEDBACK COSINE (MS2)
22	VYT20 (YE-VT)	20	TRANSAXLE - HYBRID # MOTOR RESOLVER FEEDBACK COSINE (MS4)
23	VYT17 (BN-BU)	20	TRANSAXLE - HYBRID # MOTOR RESOLVER FEEDBACK SINE (MS1)
24	VYT18 (BU-WH)	20	TRANSAXLE - HYBRID # MOTOR RESOLVER FEEDBACK SINE (MS3)
25	VYT16 (WH-GN)	20	CTRL MOD. - HYBRID TRANSAXLE # MOTOR RESOLVER EXCITATION SIGNAL 2 (MR2)
26	VYT15 (YE-GY)	20	CTRL MOD. - HYBRID TRANSAXLE # MOTOR RESOLVER EXCITATION SIGNAL 1 (MR1)
