Hf35 Transmission Connector End View (C168B)

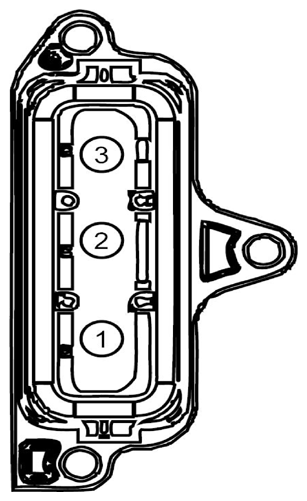

Fig 1: Identifying HF35 Transmission Connector (C168B)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	HYA07 (WH-LB)	20	CONTROLLER - INVERTER SYSTEM # GENERATOR W
2	HYA08 (WH-OG)	20	CONTROLLER - INVERTER SYSTEM # GENERATOR V
3	HYA09 (WH-BU)	20	CONTROLLER - INVERTER SYSTEM # GENERATOR U
