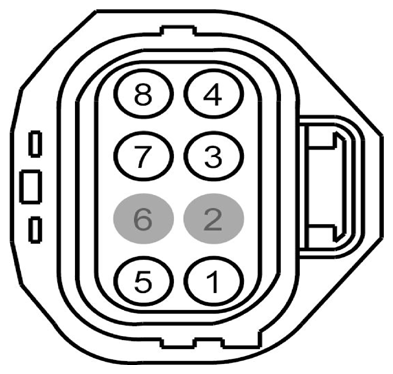

Fuel Pump Control Module Connector End View (C433)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | CE608 (VT-GN) | 12 | RELAY - FUEL PUMP | |
| 2 | * | * | Not Used | |
| 3 | VE225 (YE-OG) | 22 | CTRL MOD. - POWERTRAIN # FUEL PUMP MODULE COMMAND (FPC) | |
| 4 | GD304 (BK-YE) | 12 | GROUND - PILLAR C OR QUARTER PANEL LEFT # 4TH POINT | |
| 5 | CE515 (YE-GY) | 12 | DRIVER - FUEL PUMP MOTOR (FPDM) + | |
| 6 | * | * | Not Used | |
| 7 | VE518 (BN-WH) | 22 | MONITOR - FUEL PUMP (FPM) | |
| 8 | RE515 (WH-BN) | 12 | DRIVER - FUEL PUMP MOTOR (FPDM) - |
| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-1332 |
Service Part Number: DU2Z-14S411-CA Gauge: 14 Pin material: Tin Cavities: 8 Vehicle Uses
|
