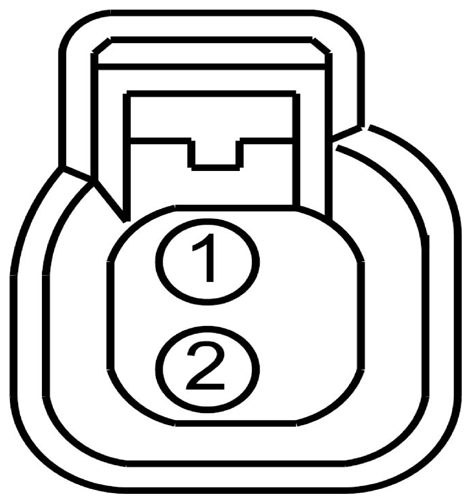

Fuel Injector 1 Connector End View (C181)

Fig 1: Identifying Fuel Injector 1 Connector (C181)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CE205 (GN-BU)	20	CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 1 (INJ) +
2	CBK01 (BU)	18	FUSE - 56 OR CIRCUIT BREAKER (VPWR F)

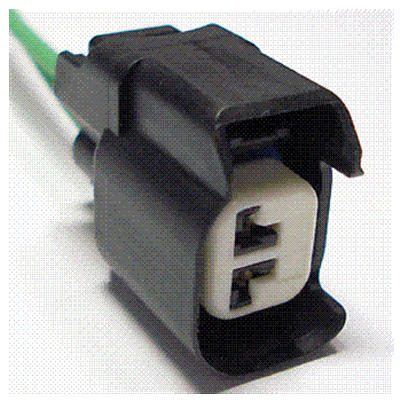

Available Pigtail Kits
Pigtail Kit Part Number WPT-1051	Service Part Number: 5U2Z-14S411-ZB  Gauge: 16  Pin material: Silver  Cavities: 2  Vehicle Uses Fuel Injector Horn Switch - Backup Lamp Switch - Hood Ajar
