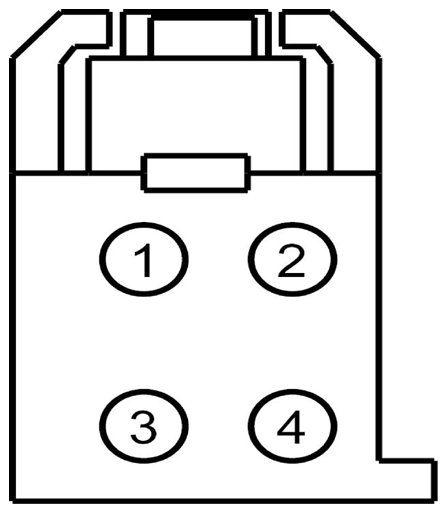

Driver Seat Horizontal Motor Connector End View (C362)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | CPS01 (GN-BU) | 14 | CTRL MOD. - DRIVER SEAT SLIDE FORWARD | memory |
| 1 | CPS23 (GN-VT) | 14 | SWITCH - SEAT ADJUST. DRIVER FORWARD | without memory |
| 2 | RPS12 (GN-OG) | 20 | CTRL MOD. - DRIVER SEAT SENSORS RECLINE - | |
| 3 | CPS06 (GN-WH) | 14 | CTRL MOD. - DRIVER SEAT SLIDE REARWARD | memory |
| 3 | CPS28 (GN) | 14 | SWITCH - SEAT ADJUST. DRIVER REARWARD | without memory |
| 4 | VPS09 (BN-BU) | 20 | SENSOR - DRIVER SEAT SLIDE FORWARD/REARWARD |
| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-1350 |
Service Part Number: DU2Z-14S411-UA Gauge: 16 20 Pin material: Tin Cavities: 4 Vehicle Uses
|
