Driver Seat Front Height Motor Connector End View (C382)

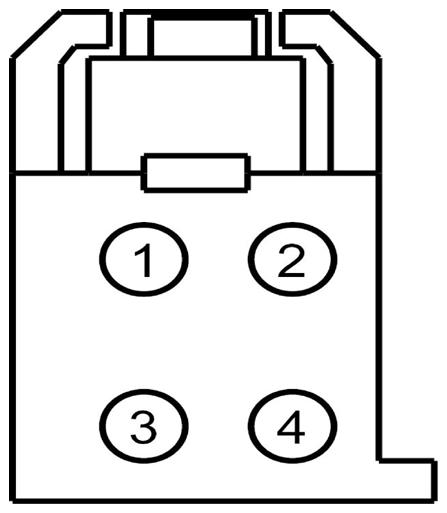

Fig 1: Identifying Driver Seat Front Height Motor Connector (C382)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CPS02 (GY-YE)	14	CTRL MOD. - DRIVER SEAT HEIGHT FRONT/TILT DOWN	memory
1	CPS24 (GY)	14	SWITCH - SEAT ADJUST. DRIVER FRONT HEIGHT (TILT) DOWN	without memory
2	RPS12 (GN-OG)	20	CTRL MOD. - DRIVER SEAT SENSORS RECLINE -
3	CPS03 (VT-GY)	14	CTRL MOD. - DRIVER SEAT HEIGHT FRONT/TILT UP	memory
3	CPS25 (WH-VT)	14	SWITCH - SEAT ADJUST. DRIVER FRONT HEIGHT (TILT) UP	without memory
4	VPS10 (BU-GN)	20	SENSOR - DRIVER SEAT HEIGHT FRONT/TILT

Available Pigtail Kits
Pigtail Kit Part Number WPT-1350	Service Part Number: DU2Z-14S411-UA  Gauge: 16 20  Pin material: Tin  Cavities: 4  Vehicle Uses Motor - Power Seat Track Motor - Seat Height (Front)
