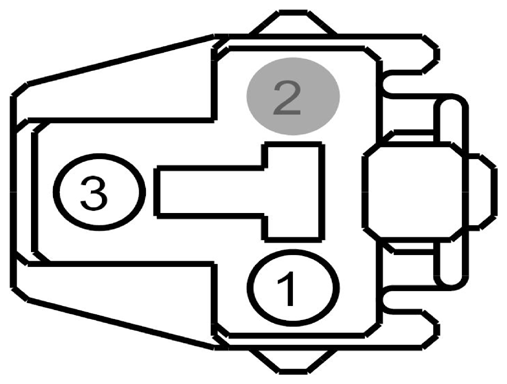

Cigar Lighter Connector End View (C319)

Fig 1: Identifying Cigar Lighter Connector (C319)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	SBB10 (YE-RD)	16	FUSE - 10 OR CIRCUIT BREAKER
2	*	*	Not Used
3	GD214 (BK-BU)	16	GROUND - INSTRUMENT PANEL STRUCTURE

Available Pigtail Kits

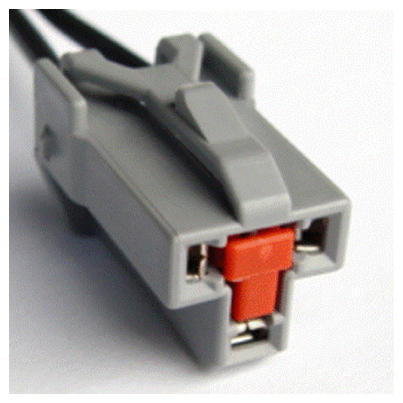

Pigtail Kit Part Number WPT-1160	Service Part Number: 3U2Z-14S411-SJB  Gauge: 12  Pin material: Tin  Cavities: 3  Vehicle Uses Cigar Lighter Lamp - Ash Tray Power Point

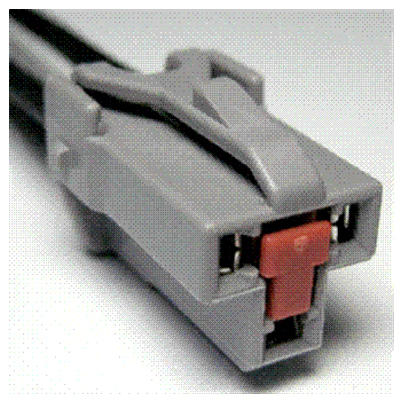

Pigtail Kit Part Number WPT-682	Service Part Number: 3U2Z-14S411-SJA  Gauge: 14  Pin material: Tin  Cavities: 3  Vehicle Uses Alternator Motor - Engine Cooling Fan
