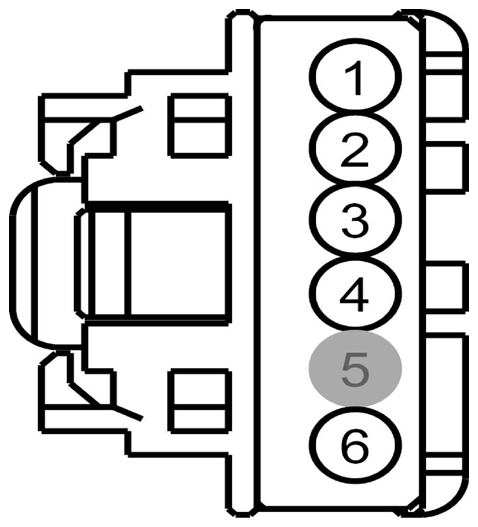

Air Distribution Door Actuator Connector End View (C236)

Fig 1: Identifying Air Distribution Door Actuator Connector (C236)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CH202 (BU-WH)	26	CTRL MOD. - CLIMATE # DOOR MOTOR PANEL/FLOOR COIL 1/FLOOR (IF PLUS)
2	RH111 (GY)	26	CTRL MOD. - CLIMATE # GENERIC VREF RETURN
3	LH111 (BN-WH)	22	CTRL MOD. - CLIMATE # GENERIC VREF
4	CH201 (BN)	26	CTRL MOD. - CLIMATE # DOOR MOTOR PANEL/FLOOR COMMON
5	*	*	Not Used
6	CH203 (GN)	26	CTRL MOD. - CLIMATE # DOOR MOTOR PANEL/FLOOR COIL 2/PANEL (IF PLUS)

Available Pigtail Kits
Pigtail Kit Part Number WPT-1249	Service Part Number: 3U2Z-14S411-BYAC  Gauge: 18  Pin material: Silver  Cavities: 6  Vehicle Uses Lamp - Dome Lamp - Storage Compartment - Cargo Motor - Heater A/C Mode Door Motor - Heater/AC Blend Door Motor - Heater/AC Inlet Door Switch - Hazard Warning Switch - Heated Seat Switch - Heater A/C Blower (Rear) Switch - Speed Control
Pigtail Kit Part Number WPT-956	Service Part Number: 3U2Z-14S411-BYAB  Gauge: 18  Pin material: Silver  Cavities: 6  Vehicle Uses Motor - Heater A/C Mode Door Motor - Heater/AC Blend Door Motor - Heater/AC Inlet Door Switch - Hazard Warning Switch - Heated Seat - LH - Front Switch - Heated Seat - LH - Rear Switch - Heated Seat - RH - Front Switch - Heated Seat - RH - Rear Switch - Heater A/C Blower (Rear)
