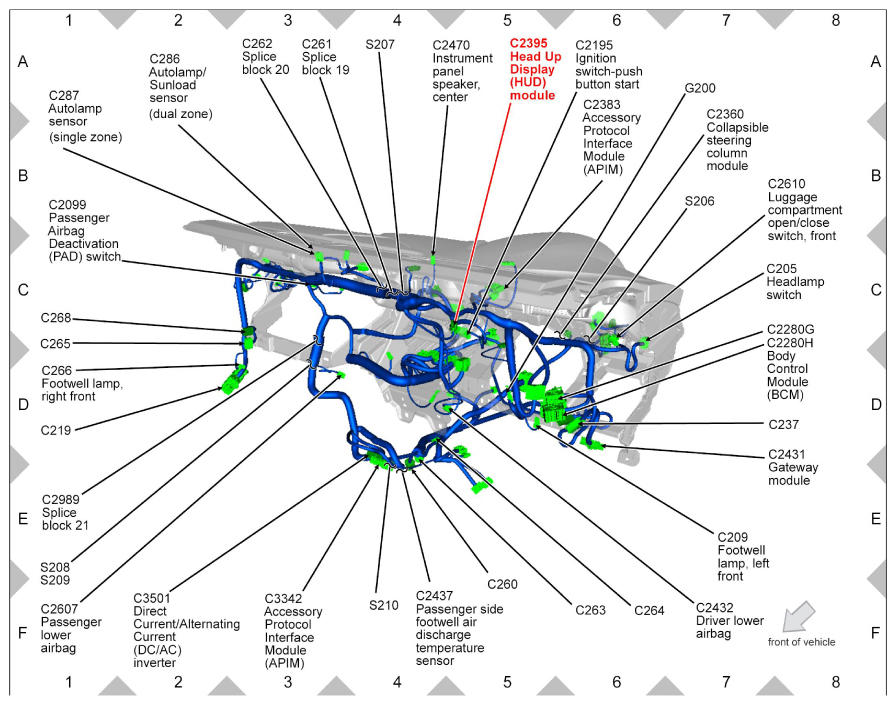

Component Location Charts

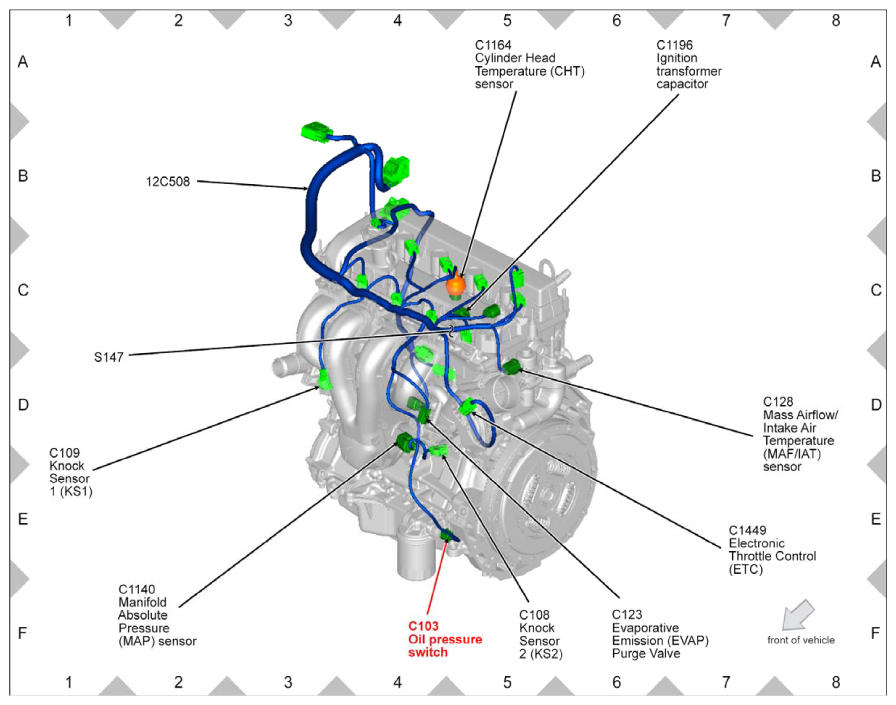

Fig 1: Identifying Connector C103 Oil Pressure Switch

Courtesy of FORD MOTOR CO.

Fig 2: Identifying Connector C108 Knock Sensor 2 (KS2)

Courtesy of FORD MOTOR CO.

Fig 3: Identifying Connector C109 Knock Sensor 1 (KS1)

Courtesy of FORD MOTOR CO.

Fig 4: Identifying Connector C110

Courtesy of FORD MOTOR CO.

Fig 5: Identifying Connector C123 Evaporative Emission (EVAP) Purge Valve

Courtesy of FORD MOTOR CO.

Fig 6: Identifying Connector C124 Low Brake Fluid Warning Indicator Switch

Courtesy of FORD MOTOR CO.

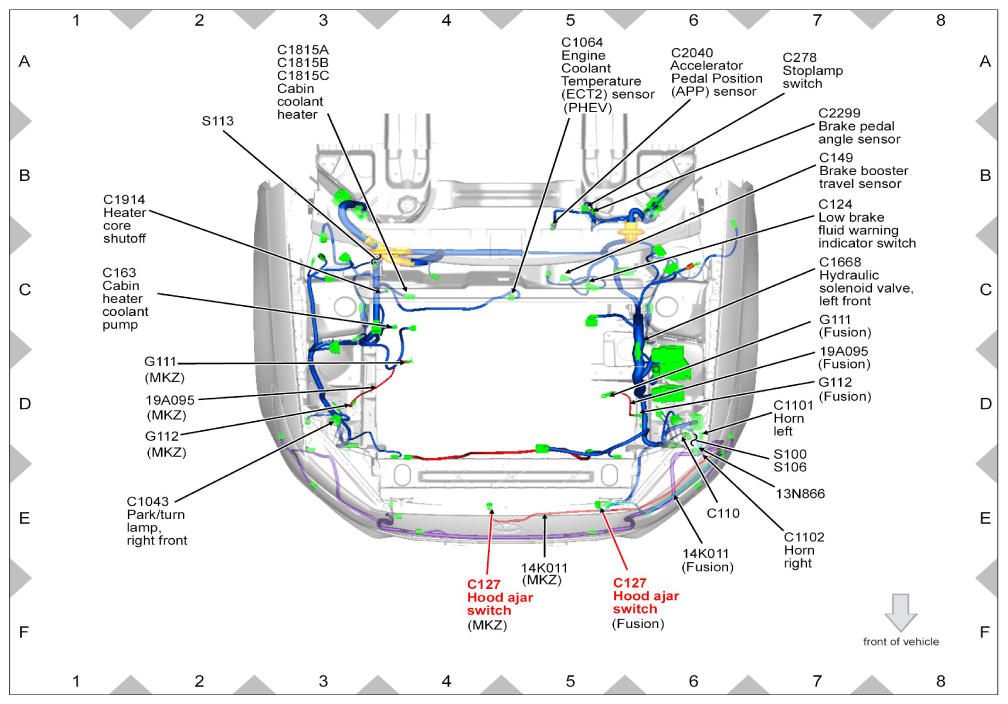

Fig 7: Identifying Connector C127 Hood Ajar Switch (MKZ) And C127 Hood Ajar Switch (Fusion)

Courtesy of FORD MOTOR CO.

Fig 8: Identifying Connector C127 Hood Ajar Switch (MKZ) And C127 Hood Ajar Switch (Fusion)

Courtesy of FORD MOTOR CO.

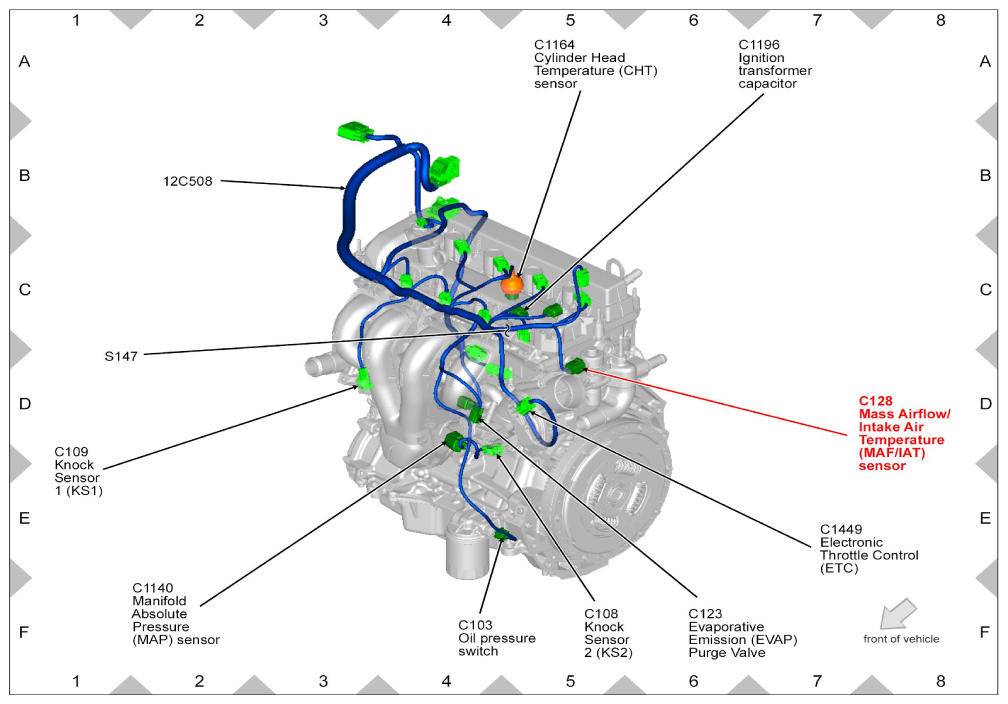

Fig 9: Identifying Connector C128 Mass Airflow/Intake Air Temperature (MAF/IAT) Sensor

Courtesy of FORD MOTOR CO.

Fig 10: Identifying Connector C132 Ambient Air Temperature (AAT) Sensor

Courtesy of FORD MOTOR CO.

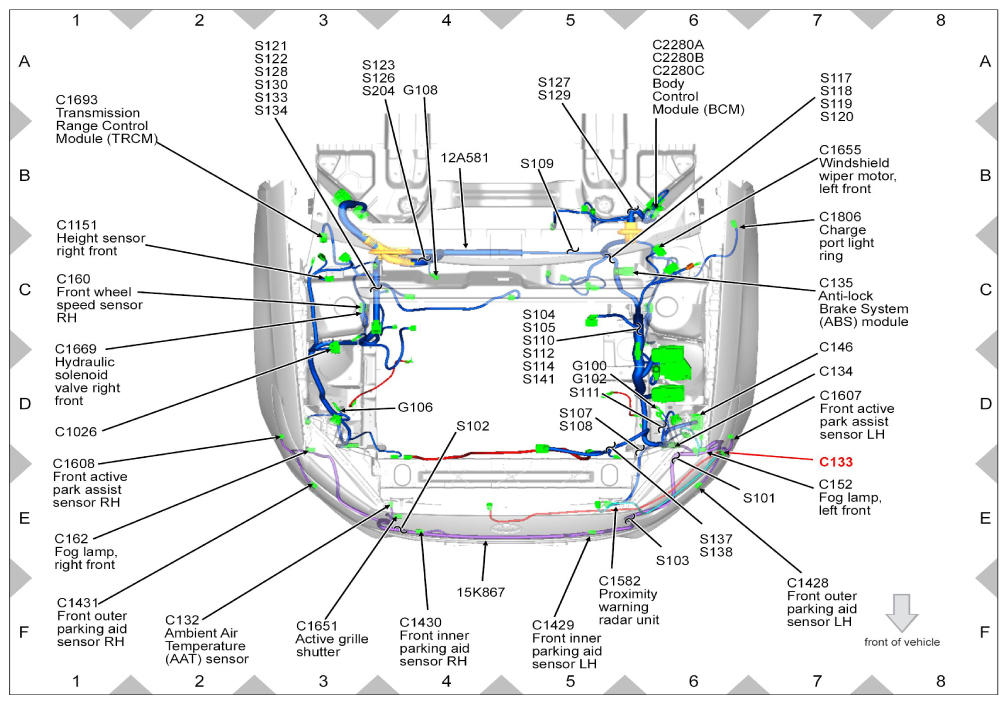

Fig 11: Identifying Connector C133

Courtesy of FORD MOTOR CO.

Fig 12: Identifying Connector C134

Courtesy of FORD MOTOR CO.

Fig 13: Identifying Connector C135 Anti-Lock Brake System (ABS) Module

Courtesy of FORD MOTOR CO.

Fig 14: Identifying Connector C137 Windshield Washer Pump

Courtesy of FORD MOTOR CO.

Fig 15: Identifying Connector C138 Low Washer Fluid Warning Indicator Switch

Courtesy of FORD MOTOR CO.

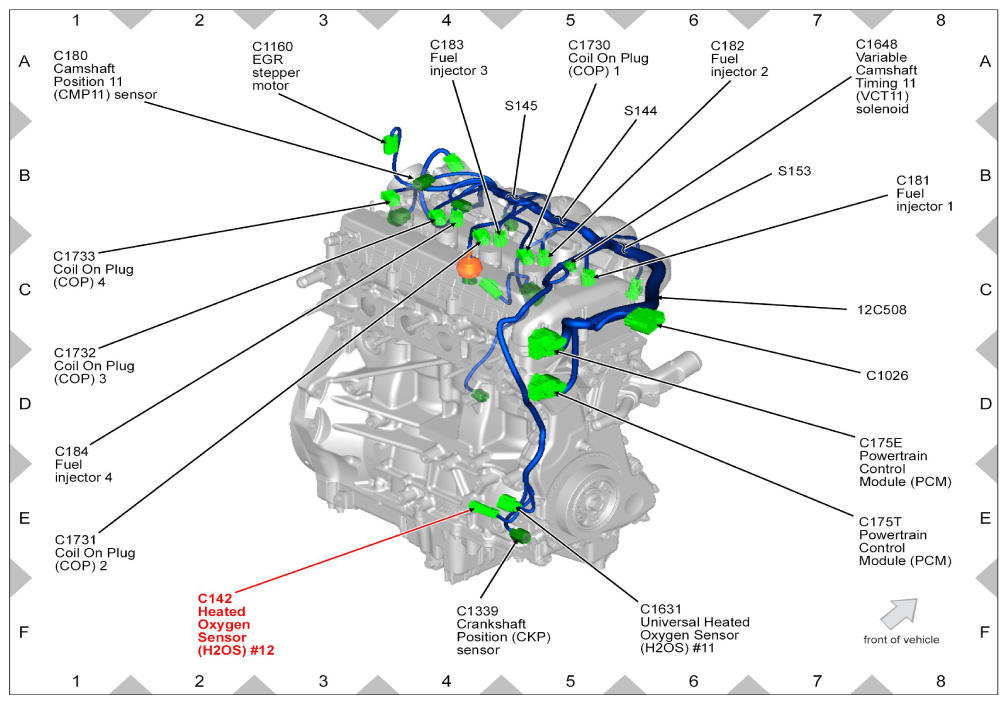

Fig 16: Identifying Connector C142 Heated Oxygen Sensor (H2OS) #12

Courtesy of FORD MOTOR CO.

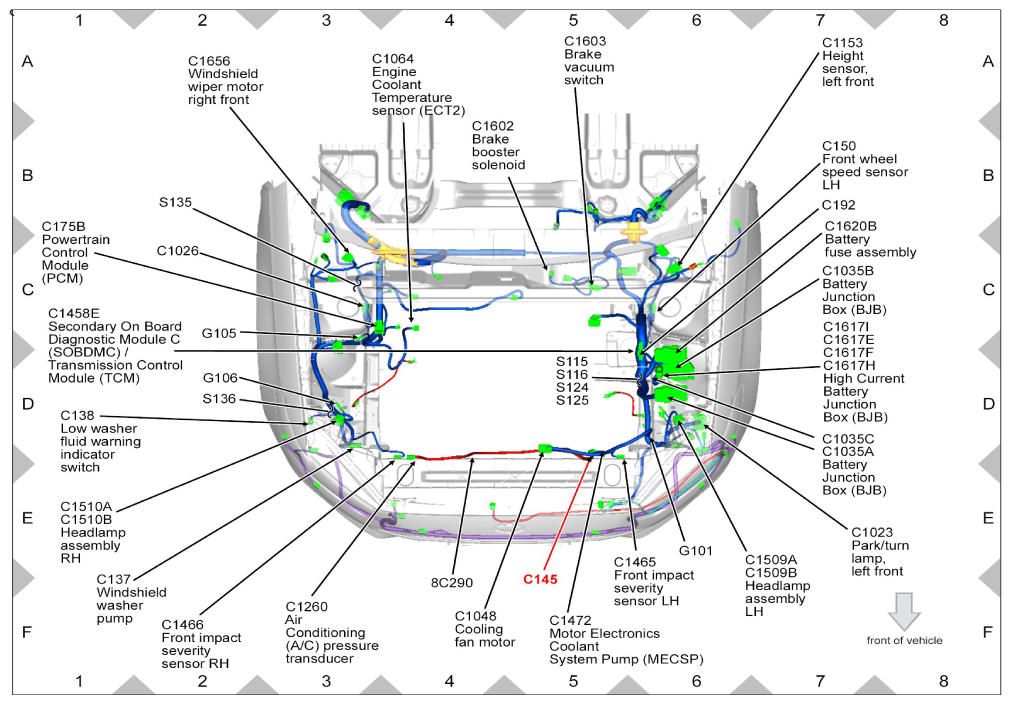

Fig 17: Identifying Connector C145

Courtesy of FORD MOTOR CO.

Fig 18: Identifying Connector C146

Courtesy of FORD MOTOR CO.

Fig 19: Identifying Connector C149 Brake Booster Travel Sensor

Courtesy of FORD MOTOR CO.

Fig 20: Identifying Connector C150 Front Wheel Speed Sensor LH

Courtesy of FORD MOTOR CO.

Fig 21: Identifying Connector C152 Fog Lamp, Left Front

Courtesy of FORD MOTOR CO.

Fig 22: Identifying Connector C160 Front Wheel Speed Sensor RH

Courtesy of FORD MOTOR CO.

Fig 23: Identifying Connector C162 Fog Lamp, Right Front

Courtesy of FORD MOTOR CO.

Fig 24: Identifying Connector C163 Cabin Heater Coolant Pump

Courtesy of FORD MOTOR CO.

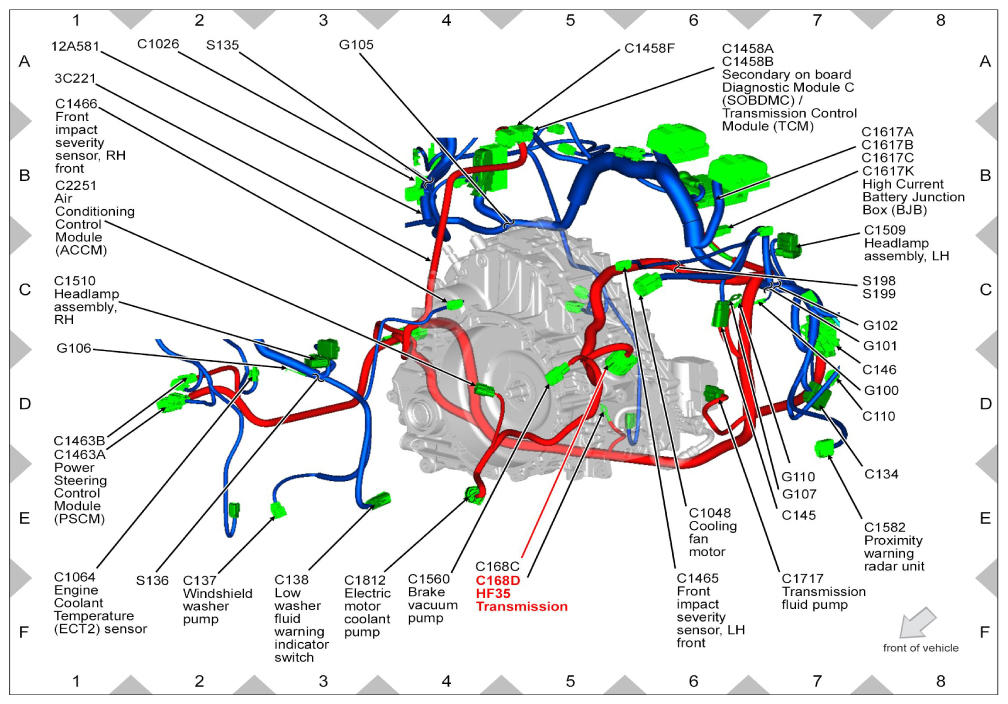

Fig 25: Identifying Connector C168A And C168C HF35 Transmission

Courtesy of FORD MOTOR CO.

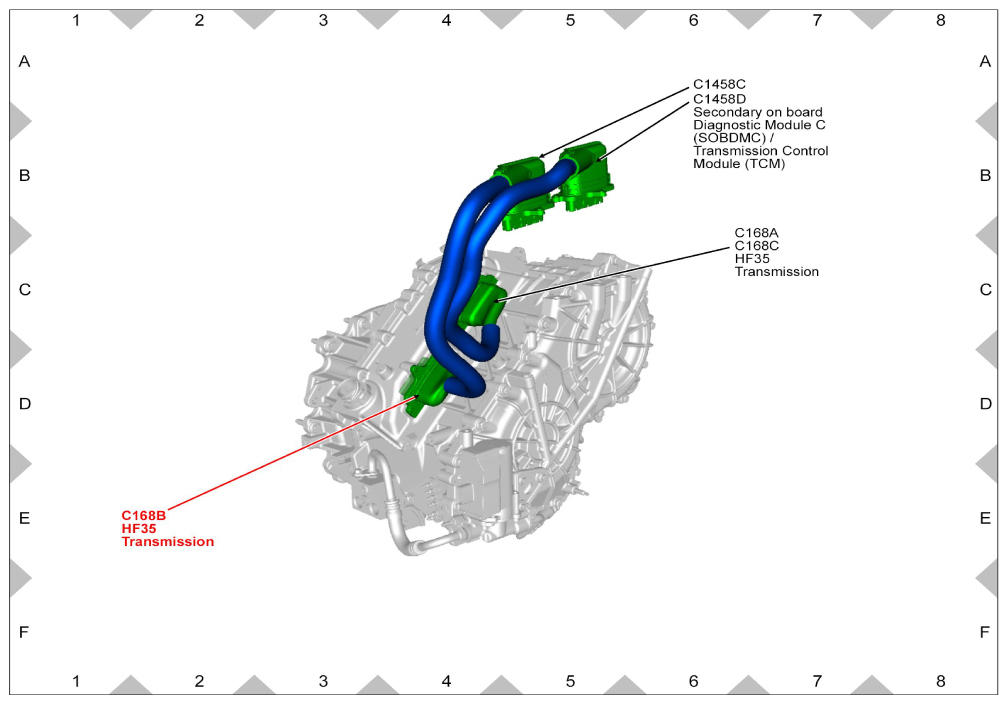

Fig 26: Identifying Connector C168B HF35 Transmission

Courtesy of FORD MOTOR CO.

Fig 27: Identifying Connector C168C

Courtesy of FORD MOTOR CO.

Fig 28: Identifying Connector C168D HF35 Transmission

Courtesy of FORD MOTOR CO.

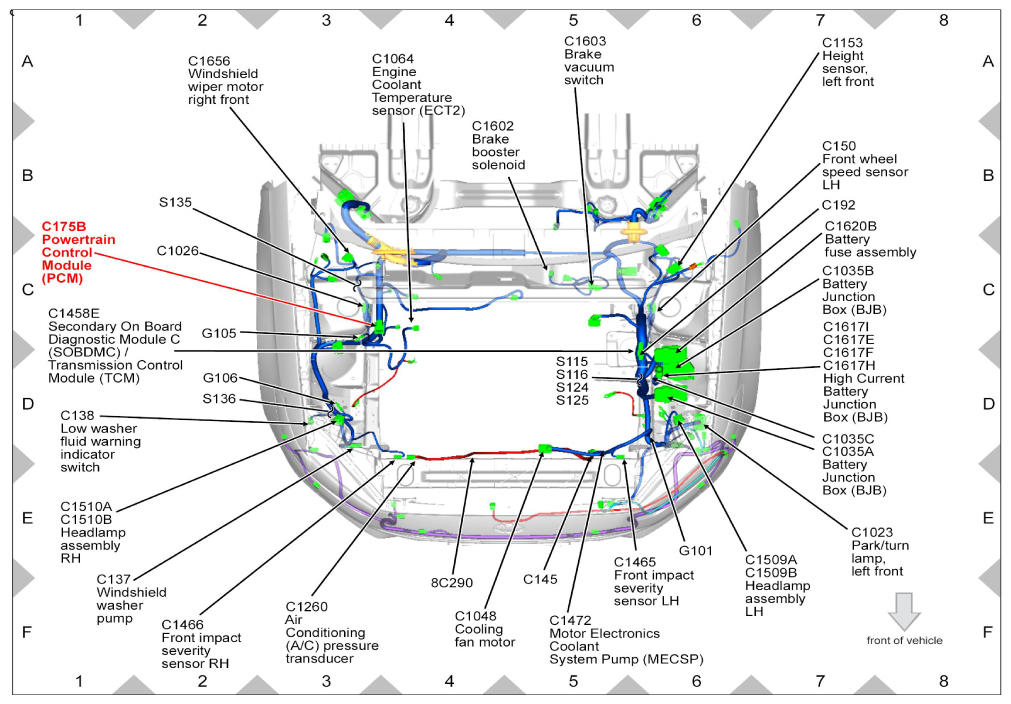

Fig 29: Identifying Connector C175B Powertrain Control Module (PCM)

Courtesy of FORD MOTOR CO.

Fig 30: Identifying Connector C175E Powertrain Control Module (PCM)

Courtesy of FORD MOTOR CO.

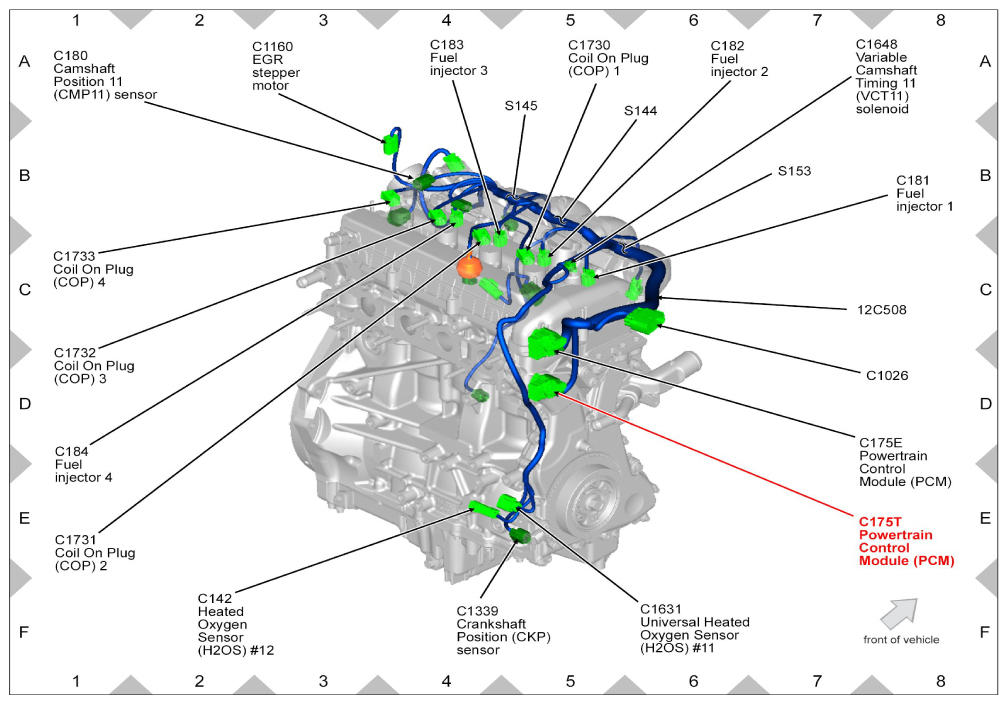

Fig 31: Identifying Connector C175T Powertrain Control Module (PCM)

Courtesy of FORD MOTOR CO.

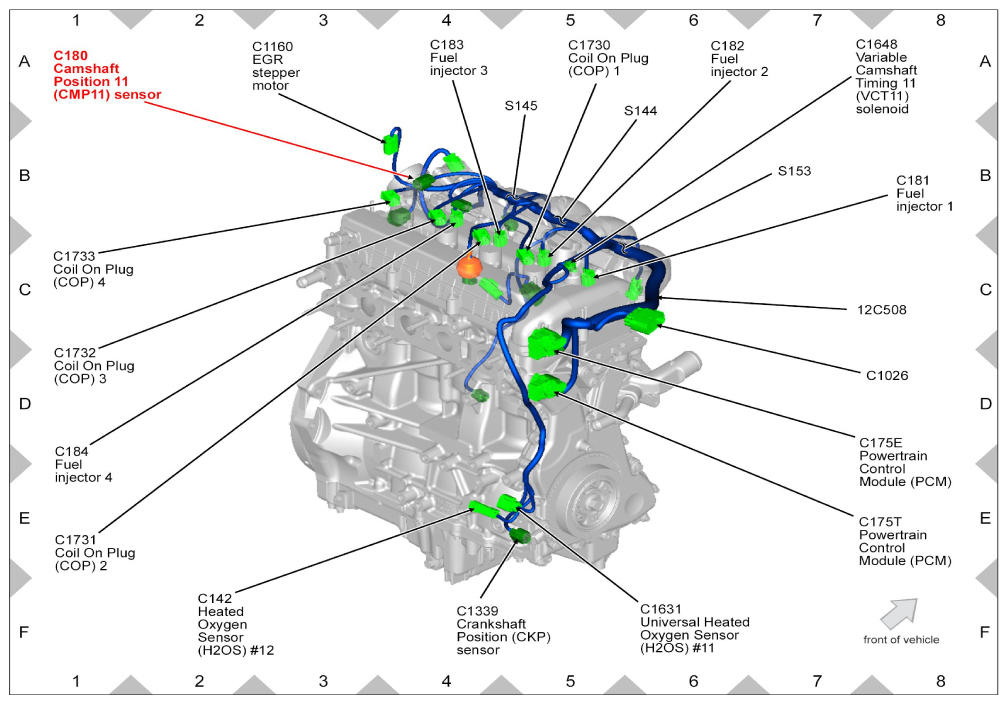

Fig 32: Identifying Connector C180 Camshaft Position 11 (CMP11) Sensor

Courtesy of FORD MOTOR CO.

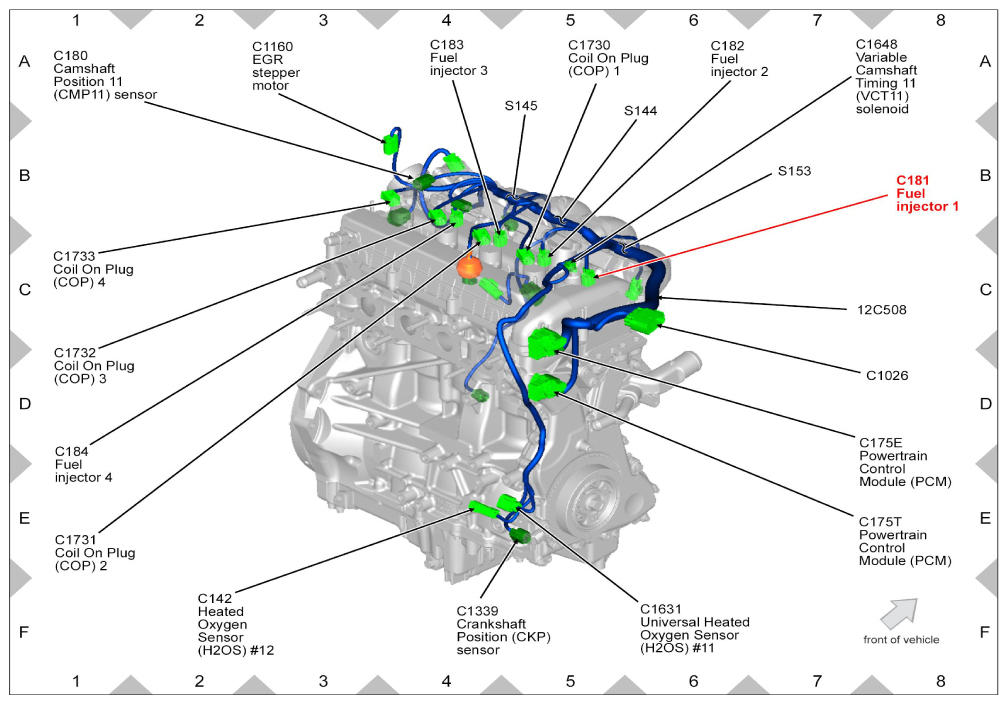

Fig 33: Identifying Connector C181 Fuel Injector 1

Courtesy of FORD MOTOR CO.

Fig 34: Identifying Connector C182 Fuel Injector 2

Courtesy of FORD MOTOR CO.

Fig 35: Identifying Connector C183 Fuel Injector 3

Courtesy of FORD MOTOR CO.

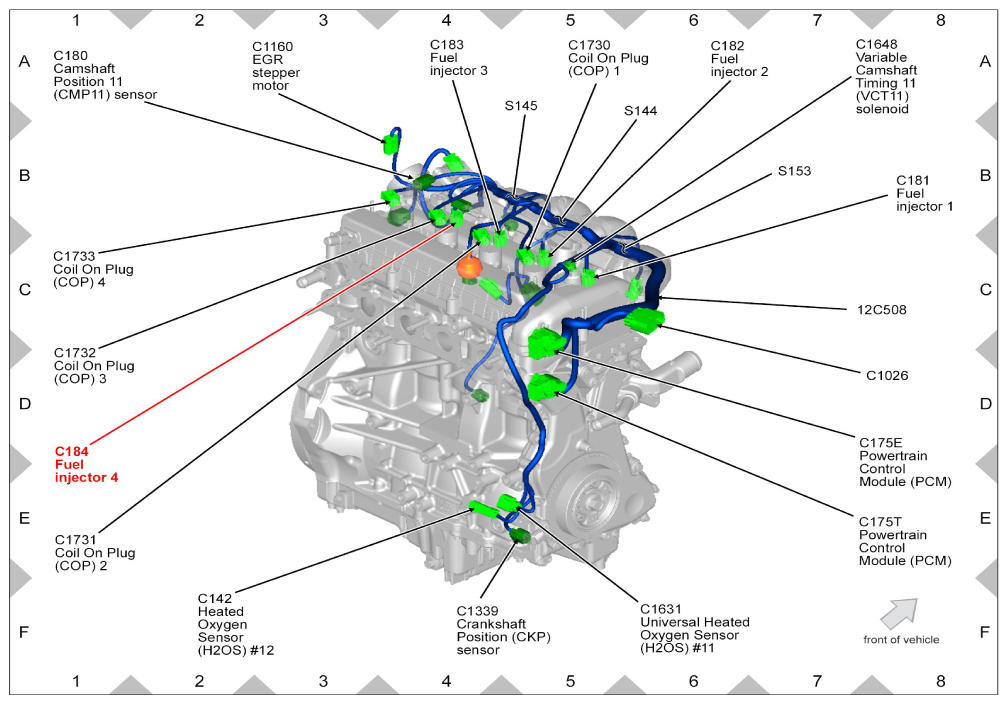

Fig 36: Identifying Connector C184 Fuel Injector 4

Courtesy of FORD MOTOR CO.

Fig 37: Identifying Connector C192

Courtesy of FORD MOTOR CO.

Fig 38: Identifying Connector C205 Headlamp Switch

Courtesy of FORD MOTOR CO.

Fig 39: Identifying Connector C205 Headlamp Switch

Courtesy of FORD MOTOR CO.

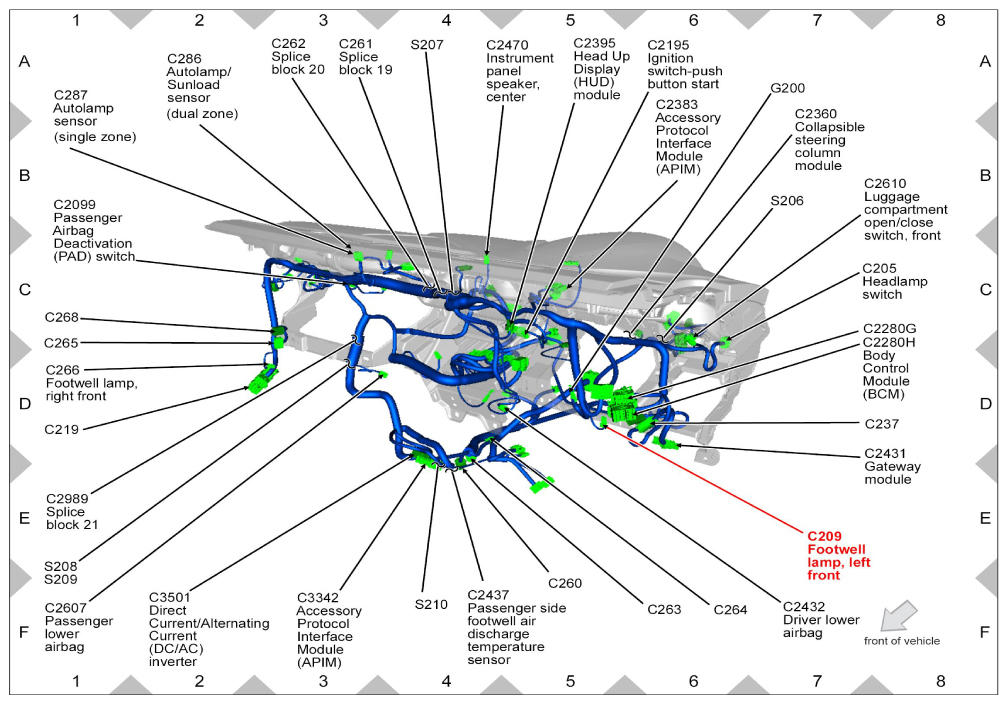

Fig 40: Identifying Connector C209 Footwell Lamp, Left Front

Courtesy of FORD MOTOR CO.

Fig 41: Identifying Connector C209 Footwell Lamp, Left Front

Courtesy of FORD MOTOR CO.

Fig 42: Identifying Connector C210

Courtesy of FORD MOTOR CO.

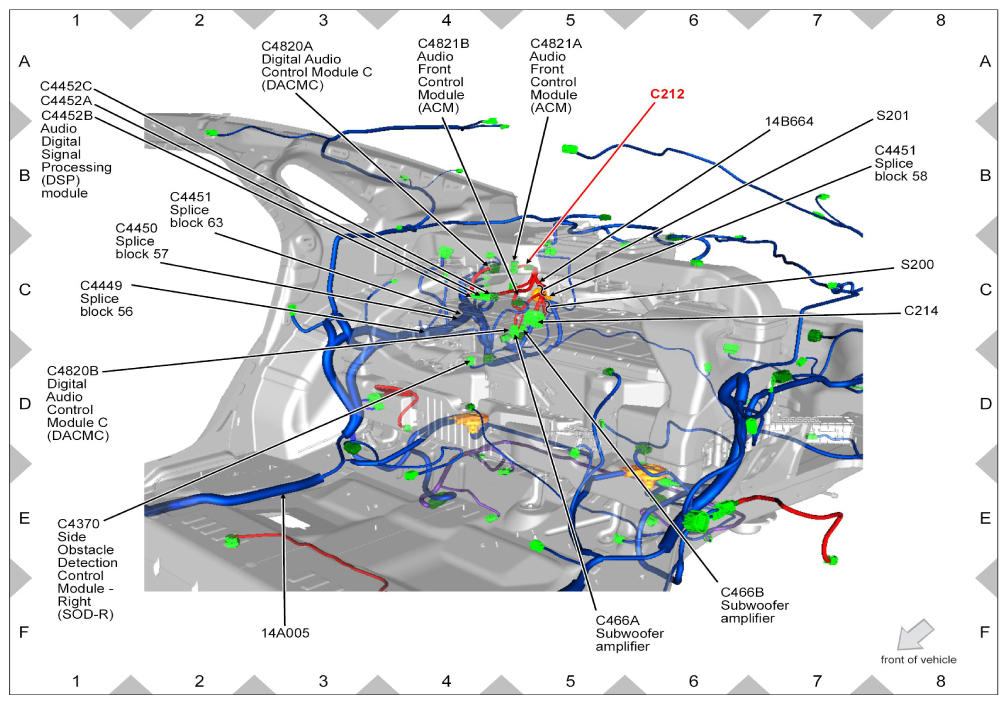

Fig 43: Identifying Connector C212

Courtesy of FORD MOTOR CO.

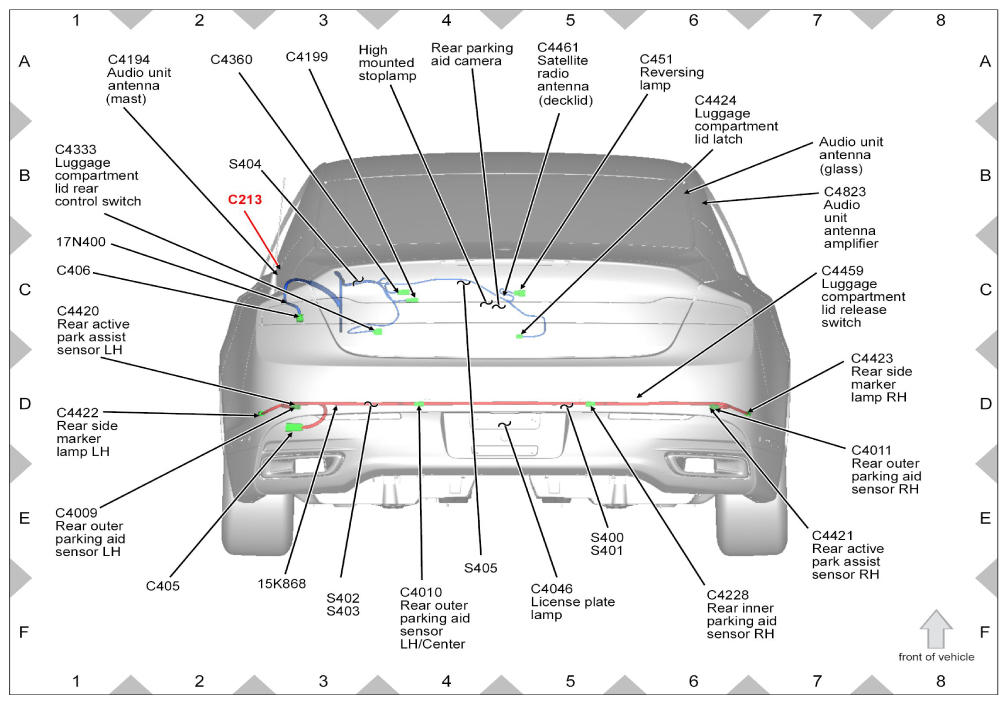

Fig 44: Identifying Connector C213

Courtesy of FORD MOTOR CO.

Fig 45: Identifying Connector C214

Courtesy of FORD MOTOR CO.

Fig 46: Identifying Connector C215

Courtesy of FORD MOTOR CO.

Fig 47: Identifying Connector C216A And C216B Driver Air Bag Module

Courtesy of FORD MOTOR CO.

Fig 48: Identifying Connector C216A And C216B Driver Air Bag Module

Courtesy of FORD MOTOR CO.

Fig 49: Identifying Connector C217 Horn Switch

Courtesy of FORD MOTOR CO.

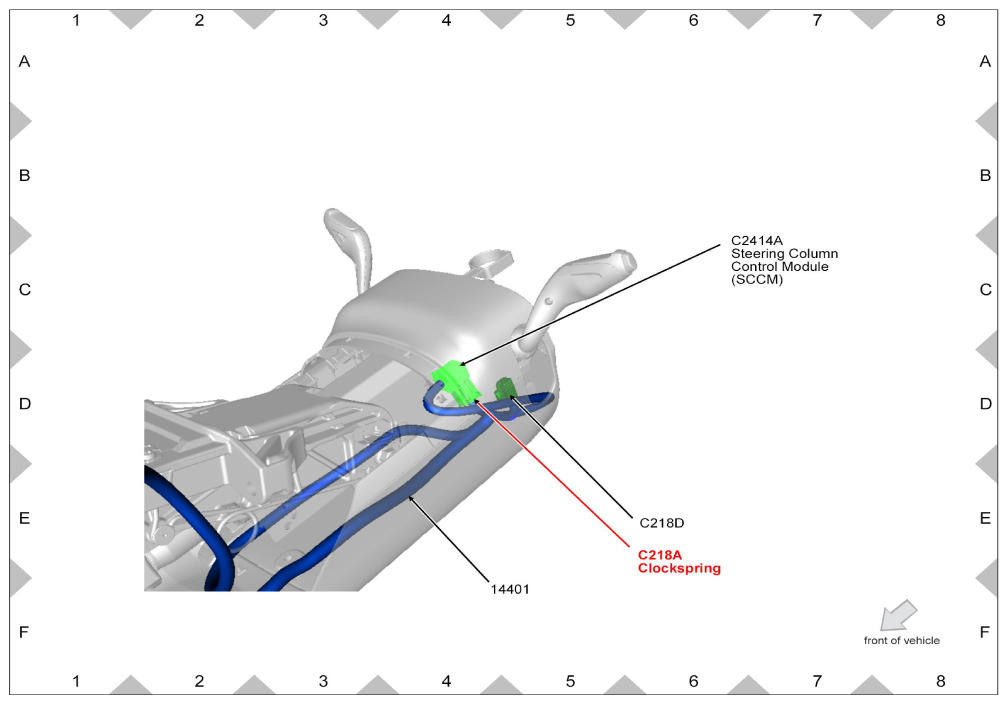

Fig 50: Identifying Connector C218A Clockspring

Courtesy of FORD MOTOR CO.

Fig 51: Identifying Connector C218A Clockspring

Courtesy of FORD MOTOR CO.

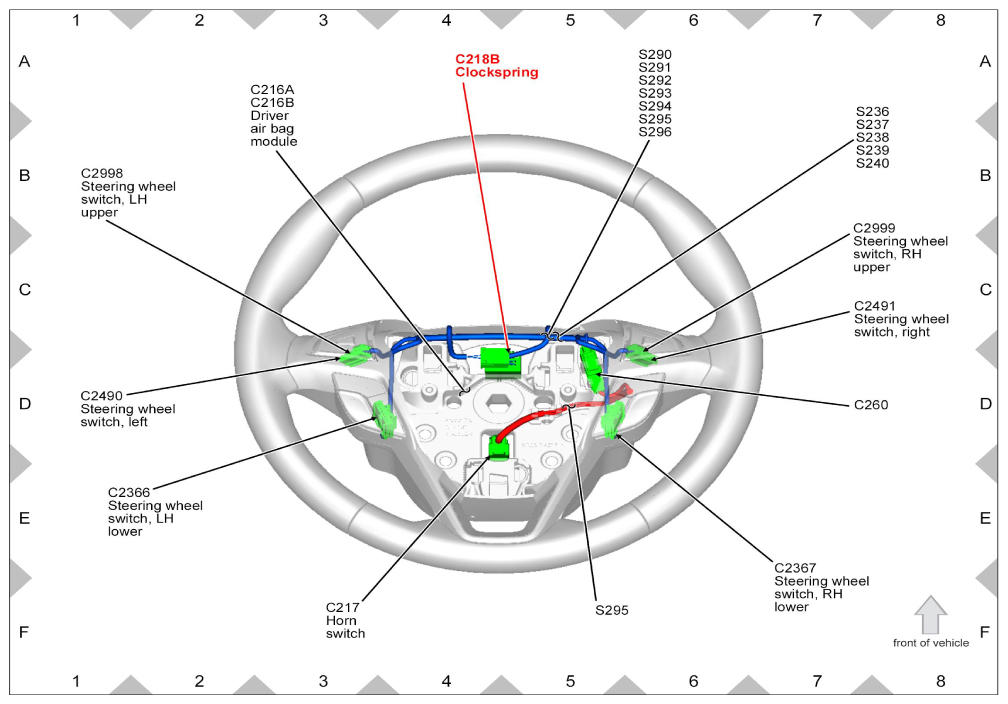

Fig 52: Identifying Connector C218B Clockspring

Courtesy of FORD MOTOR CO.

Fig 53: Identifying Connector C218C Clockspring

Courtesy of FORD MOTOR CO.

Fig 54: Identifying Connector C218D

Courtesy of FORD MOTOR CO.

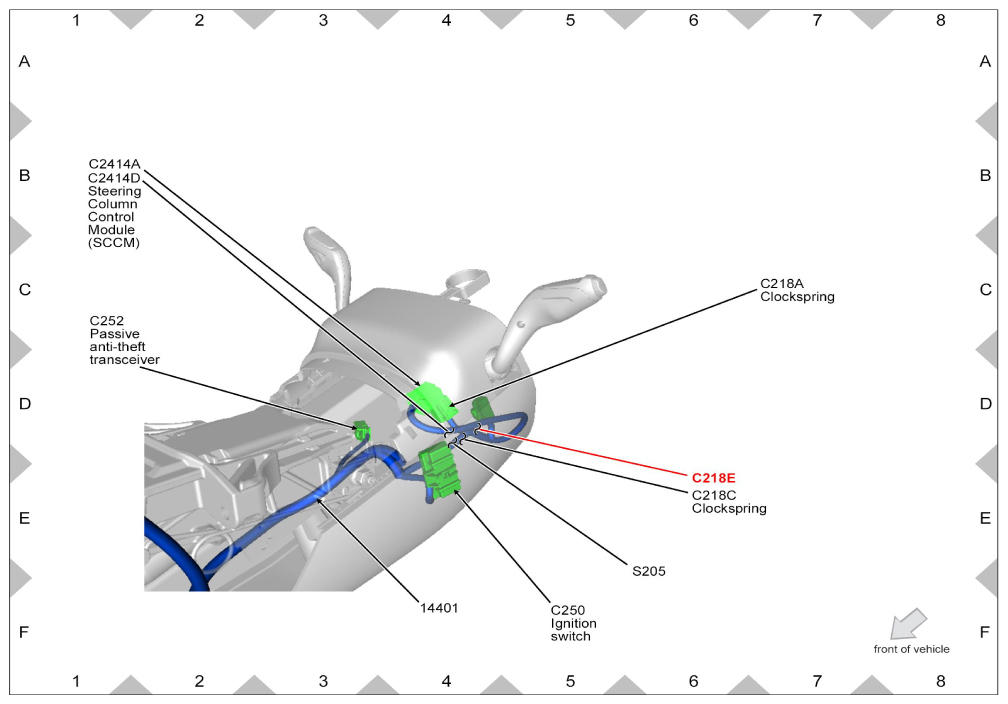

Fig 55: Identifying Connector C218E

Courtesy of FORD MOTOR CO.

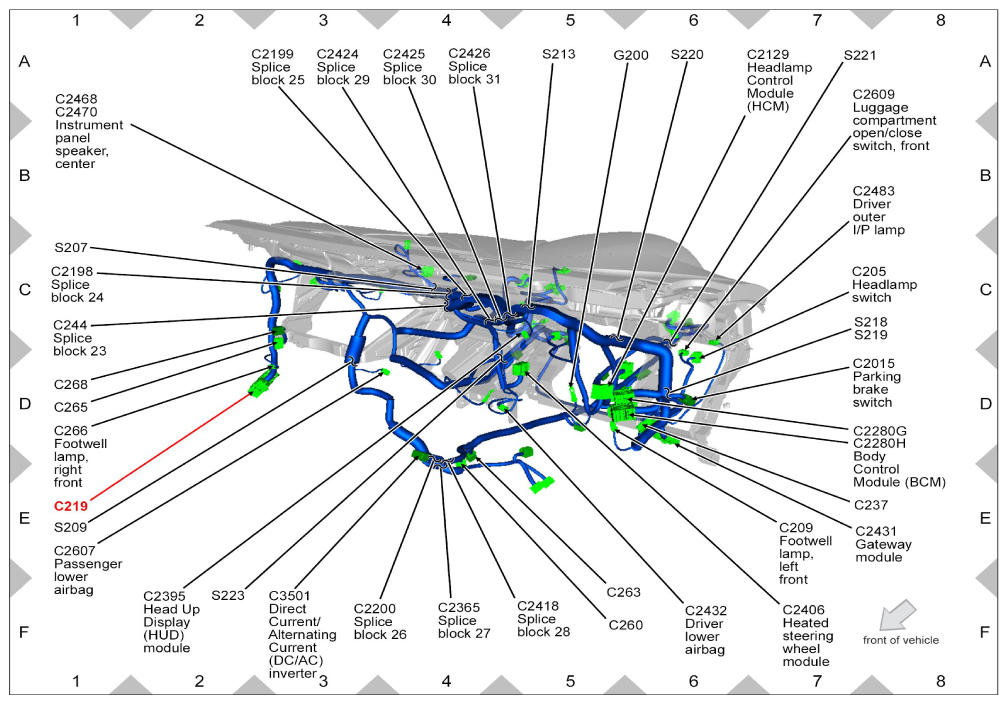

Fig 56: Identifying Connector C219

Courtesy of FORD MOTOR CO.

Fig 57: Identifying Connector C219

Courtesy of FORD MOTOR CO.

Fig 58: Identifying Connector C220 Instrument Panel Cluster (IPC)

Courtesy of FORD MOTOR CO.

Fig 59: Identifying Connector C220 Instrument Panel Cluster (IPC)

Courtesy of FORD MOTOR CO.

Fig 60: Identifying Connector C223 Splice Block 22

Courtesy of FORD MOTOR CO.

Fig 61: Identifying Connector C233 In-Vehicle Temperature And Humidity Sensor (Fusion)

Courtesy of FORD MOTOR CO.

Fig 62: Identifying Connector C233 In-Vehicle Temperature And Humidity Sensor (MKZ)

Courtesy of FORD MOTOR CO.

Fig 63: Identifying Connector C236 Air Distribution Door Actuator

Courtesy of FORD MOTOR CO.

Fig 64: Identifying Connector C237 (Fusion)

Courtesy of FORD MOTOR CO.

Fig 65: Identifying Connector C237 (MKZ)

Courtesy of FORD MOTOR CO.

Fig 66: Identifying Connector C238

Courtesy of FORD MOTOR CO.

Fig 67: Identifying Connector C238 (Fusion)

Courtesy of FORD MOTOR CO.

Fig 68: Identifying Connector C240A Audio Control Module (ACM)

Courtesy of FORD MOTOR CO.

Fig 69: Identifying Connector C240B

Courtesy of FORD MOTOR CO.

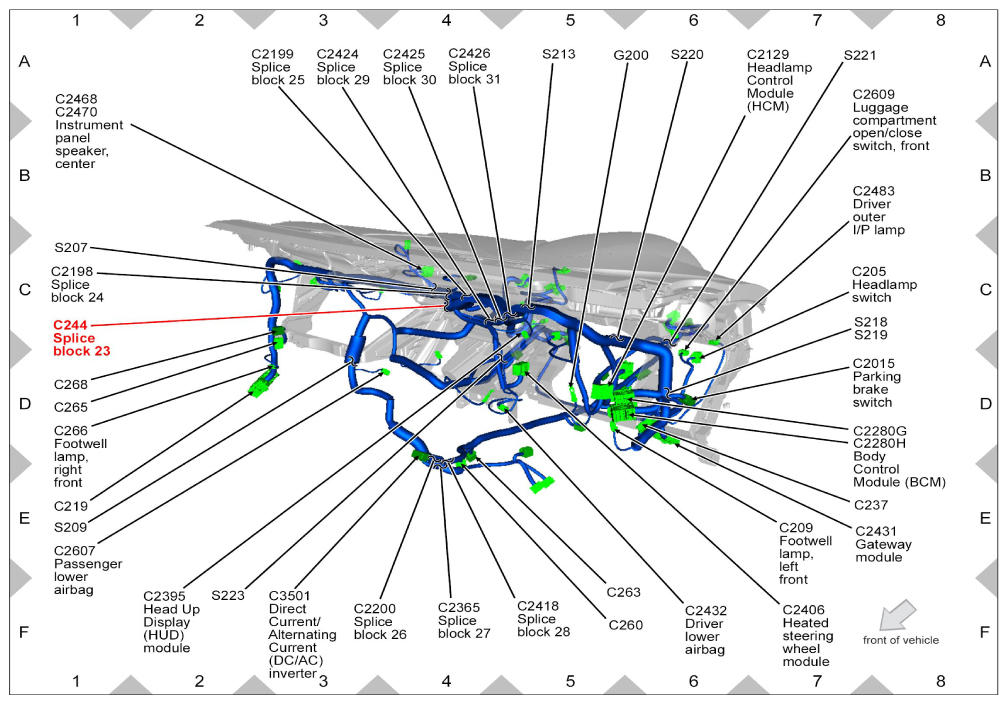

Fig 70: Identifying Connector C244 Splice Block 23

Courtesy of FORD MOTOR CO.

Fig 71: Identifying Connector C248

Courtesy of FORD MOTOR CO.

Fig 72: Identifying Connector C248 (Fusion)

Courtesy of FORD MOTOR CO.

Fig 73: Identifying Connector C248 (MKZ)

Courtesy of FORD MOTOR CO.

Fig 74: Identifying Connector C250 Ignition Switch

Courtesy of FORD MOTOR CO.

Fig 75: Identifying Connector C252 Passive Anti-Theft Transceiver

Courtesy of FORD MOTOR CO.

Fig 76: Identifying Connector C254 Glove Box Lamp (Fusion)

Courtesy of FORD MOTOR CO.

Fig 77: Identifying Connector C254 Glove Box Lamp (MKZ)

Courtesy of FORD MOTOR CO.

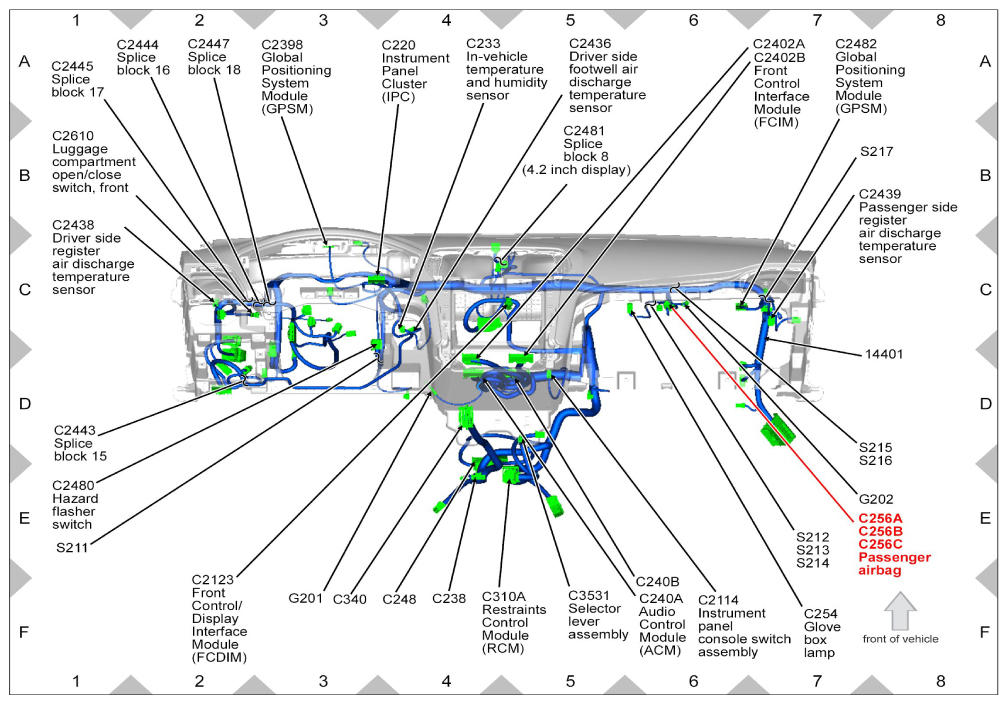

Fig 78: Identifying Connector C256A, C256B, C256C Passenger Airbag (Fusion)

Courtesy of FORD MOTOR CO.

Fig 79: Identifying Connector C256A, C256B, C256C Passenger Airbag (MKZ)

Courtesy of FORD MOTOR CO.

Fig 80: Identifying Connector C256A, C256B, C256C Passenger Airbag (Fusion)

Courtesy of FORD MOTOR CO.

Fig 81: Identifying Connector C256A, C256B, C256C Passenger Airbag (MKZ)

Courtesy of FORD MOTOR CO.

Fig 82: Identifying Connector C256A, C256B, C256C Passenger Airbag (Fusion)

Courtesy of FORD MOTOR CO.

Fig 83: Identifying Connector C256A, C256B, C256C Passenger Airbag (MKZ)

Courtesy of FORD MOTOR CO.

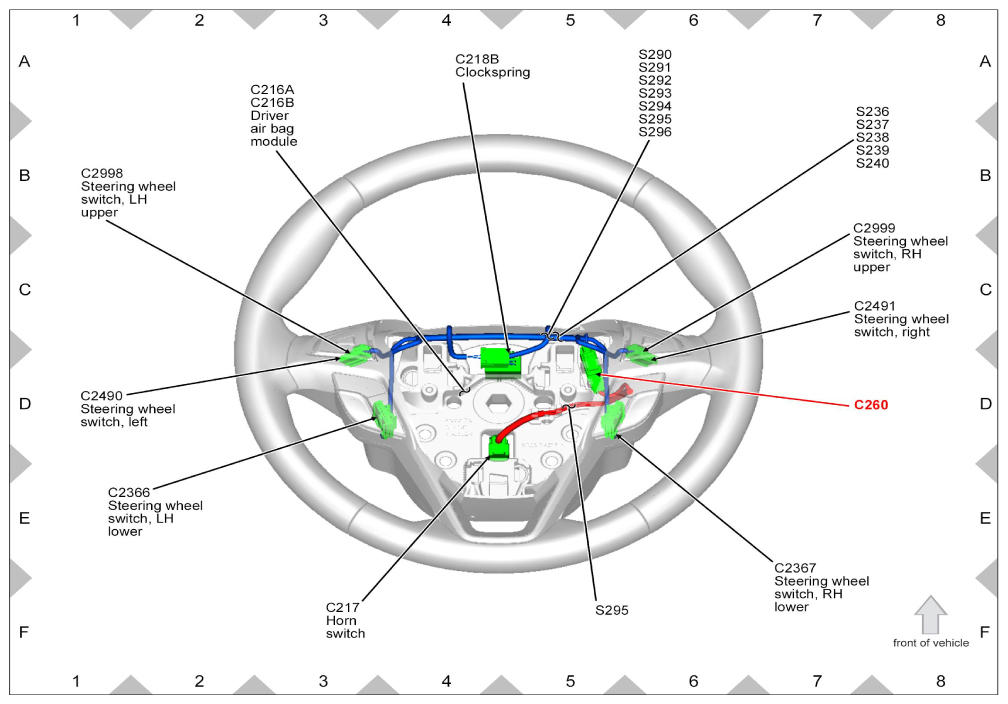

Fig 84: Identifying Connector C260

Courtesy of FORD MOTOR CO.

Fig 85: Identifying Connector C260 (Fusion)

Courtesy of FORD MOTOR CO.

Fig 86: Identifying Connector C260 (MKZ)

Courtesy of FORD MOTOR CO.

Fig 87: Identifying Connector C261 Splice Block 19

Courtesy of FORD MOTOR CO.

Fig 88: Identifying Connector C261 Splice Block 20

Courtesy of FORD MOTOR CO.

Fig 89: Identifying Connector C263

Courtesy of FORD MOTOR CO.

Fig 90: Identifying Connector C263 (Fusion)

Courtesy of FORD MOTOR CO.

Fig 91: Identifying Connector C263 (MKZ)

Courtesy of FORD MOTOR CO.

Fig 92: Identifying Connector C264

Courtesy of FORD MOTOR CO.

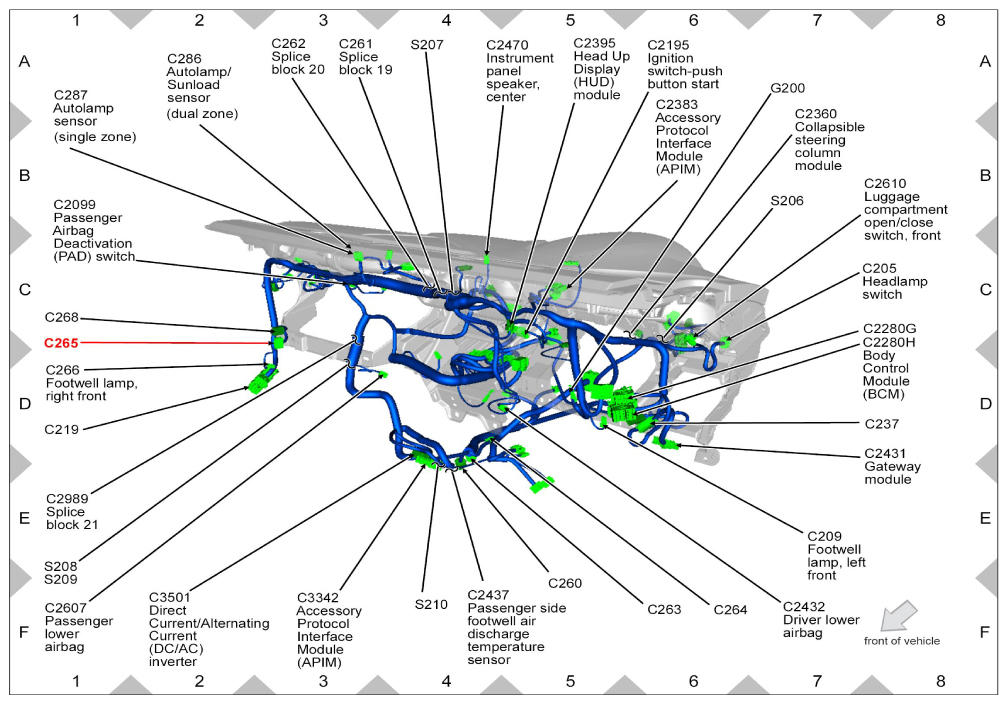

Fig 93: Identifying Connector C265

Courtesy of FORD MOTOR CO.

Fig 94: Identifying Connector C265 (Fusion)

Courtesy of FORD MOTOR CO.

Fig 95: Identifying Connector C265 (MKZ)

Courtesy of FORD MOTOR CO.

Fig 96: Identifying Connector C266 Footwell Lamp, Right Front (Fusion)

Courtesy of FORD MOTOR CO.

Fig 97: Identifying Connector C266 Footwell Lamp, Right Front (MKZ)

Courtesy of FORD MOTOR CO.

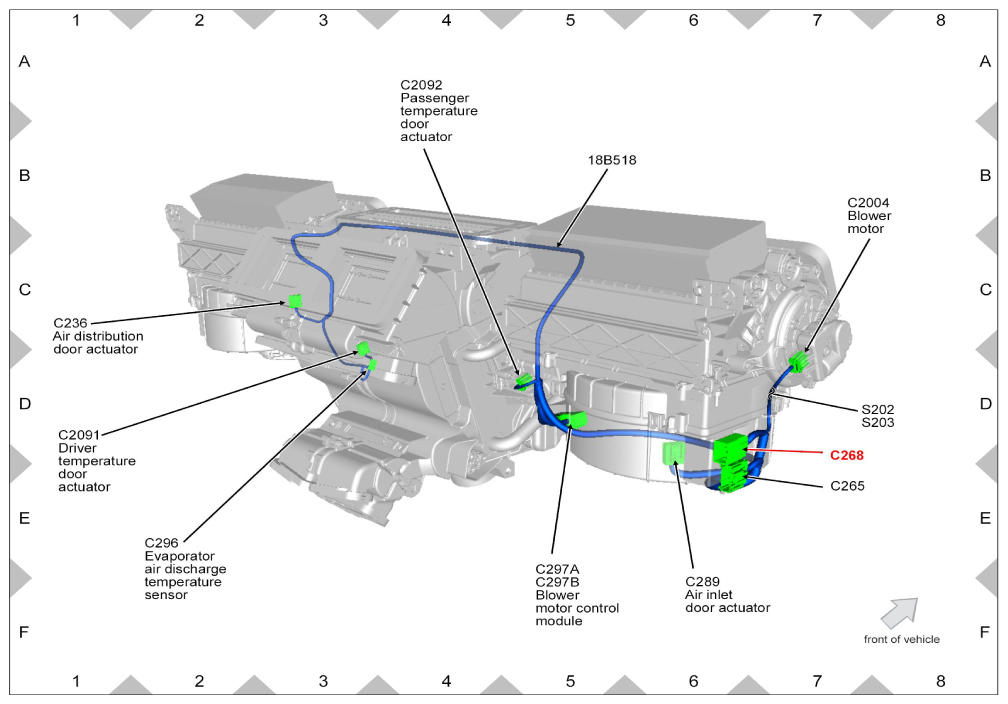

Fig 98: Identifying Connector C268

Courtesy of FORD MOTOR CO.

Fig 99: Identifying Connector C268 (Fusion)

Courtesy of FORD MOTOR CO.

Fig 100: Identifying Connector C268 (MKZ)

Courtesy of FORD MOTOR CO.

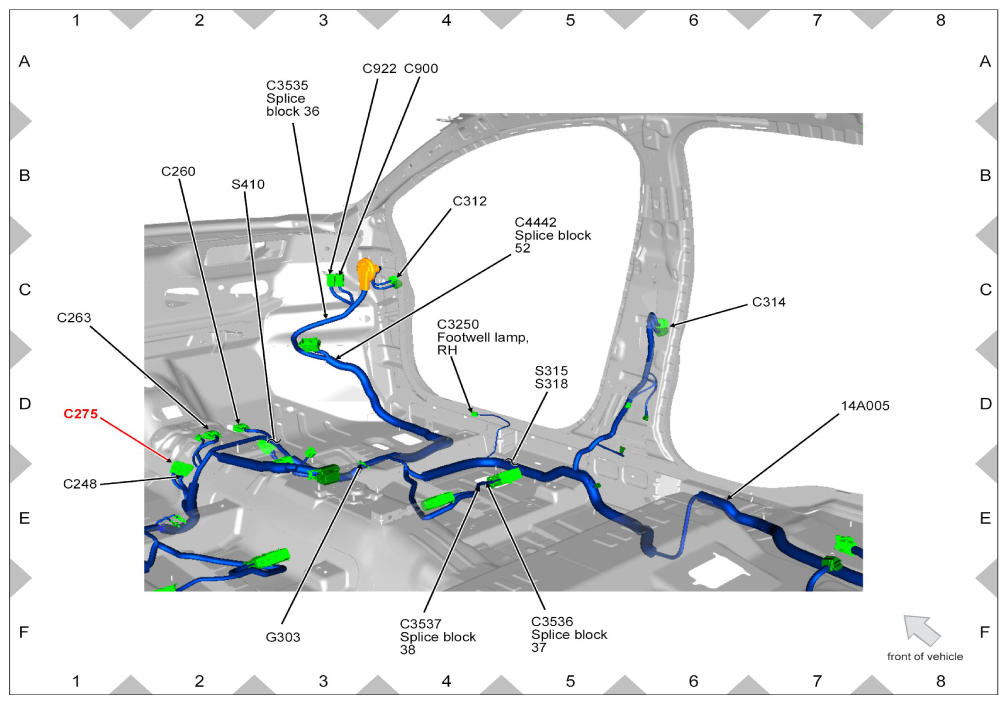

Fig 101: Identifying Connector C275

Courtesy of FORD MOTOR CO.

Fig 102: Identifying Connector C275 (MKZ)

Courtesy of FORD MOTOR CO.

Fig 103: Identifying Connector C278 Stoplamp Switch

Courtesy of FORD MOTOR CO.

Fig 104: Identifying Connector C286 Autolamp/Sunload Sensor (Dual Zone) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 105: Identifying Connector C286 Autolamp/Sunload Sensor (MKZ)

Courtesy of FORD MOTOR CO.

Fig 106: Identifying Connector C287 Autolamp Sensor (Single Zone)

Courtesy of FORD MOTOR CO.

Fig 107: Identifying Connector C289 Air Inlet Door Actuator

Courtesy of FORD MOTOR CO.

Fig 108: Identifying Connector C291

Courtesy of FORD MOTOR CO.

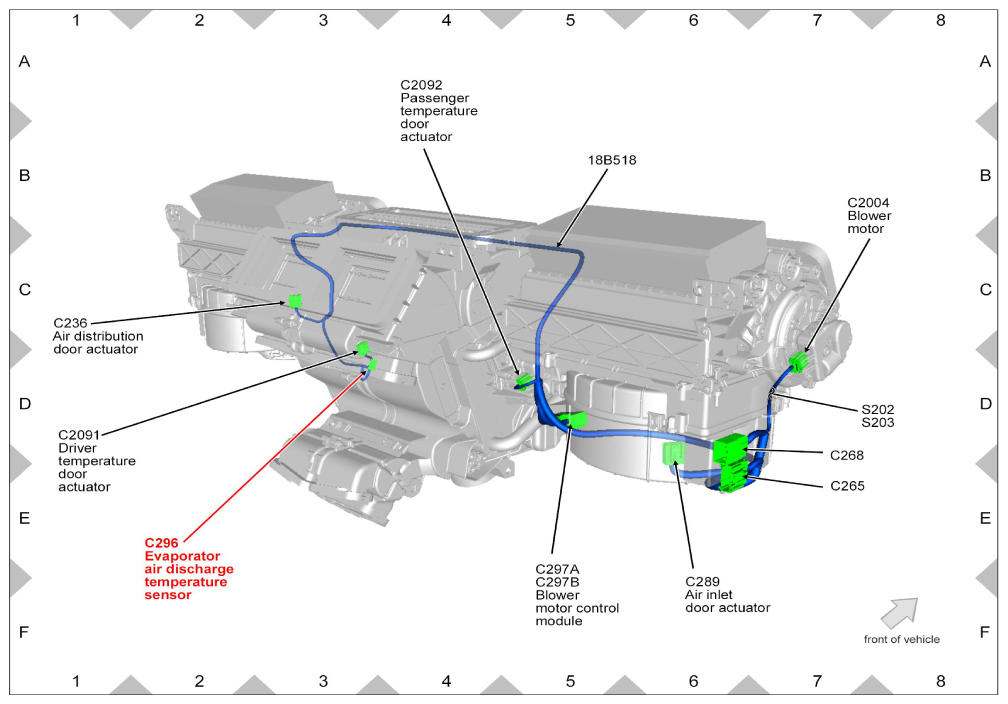

Fig 109: Identifying Connector C296 Evaporator Air Discharge Temperature Sensor

Courtesy of FORD MOTOR CO.

Fig 110: Identifying Connector C297A And C297B Blower Motor Control Module

Courtesy of FORD MOTOR CO.

Fig 111: Identifying Connector C297A And C297B Blower Motor Control Module

Courtesy of FORD MOTOR CO.

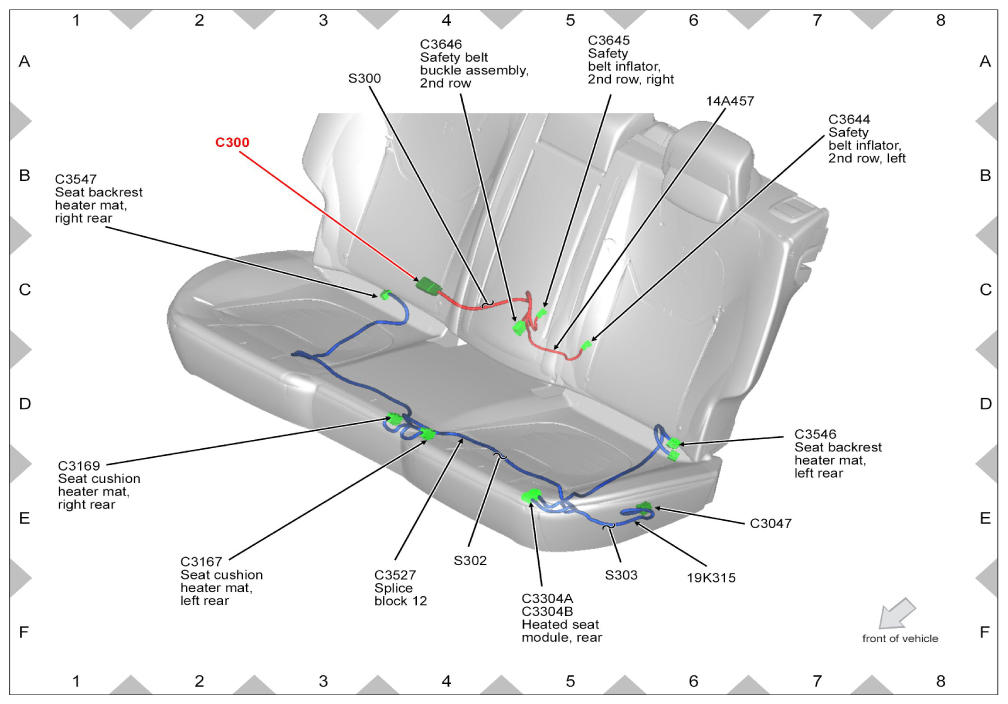

Fig 112: Identifying Connector C300

Courtesy of FORD MOTOR CO.

Fig 113: Identifying Connector C300 (MKZ)

Courtesy of FORD MOTOR CO.

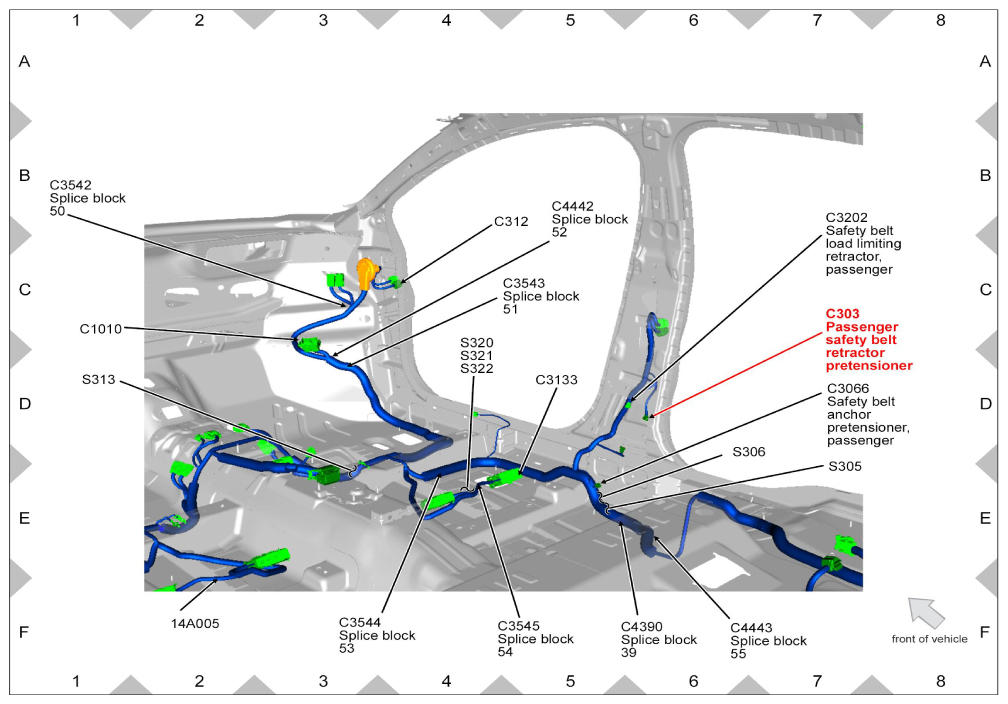

Fig 114: Identifying Connector C303 Passenger Safety Belt Retractor Pretensioner

Courtesy of FORD MOTOR CO.

Fig 115: Identifying Connector C306 Parking Brake Switch

Courtesy of FORD MOTOR CO.

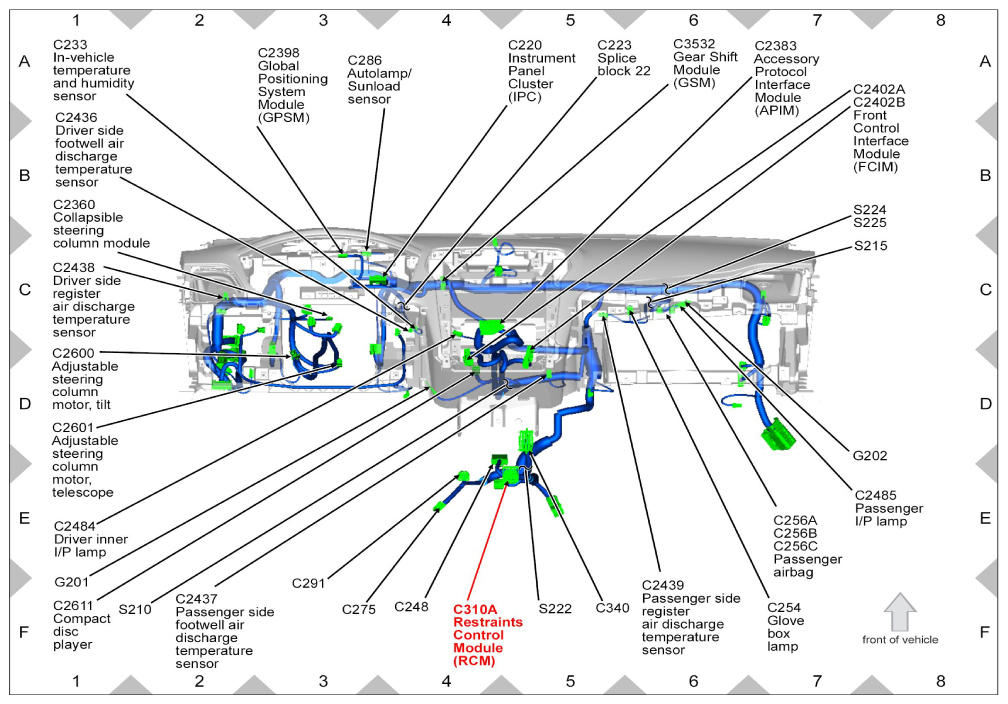

Fig 116: Identifying Connector C310A Restraints Control Module (RCM) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 117: Identifying Connector C310A Restraints Control Module (RCM) (MKZ)

Courtesy of FORD MOTOR CO.

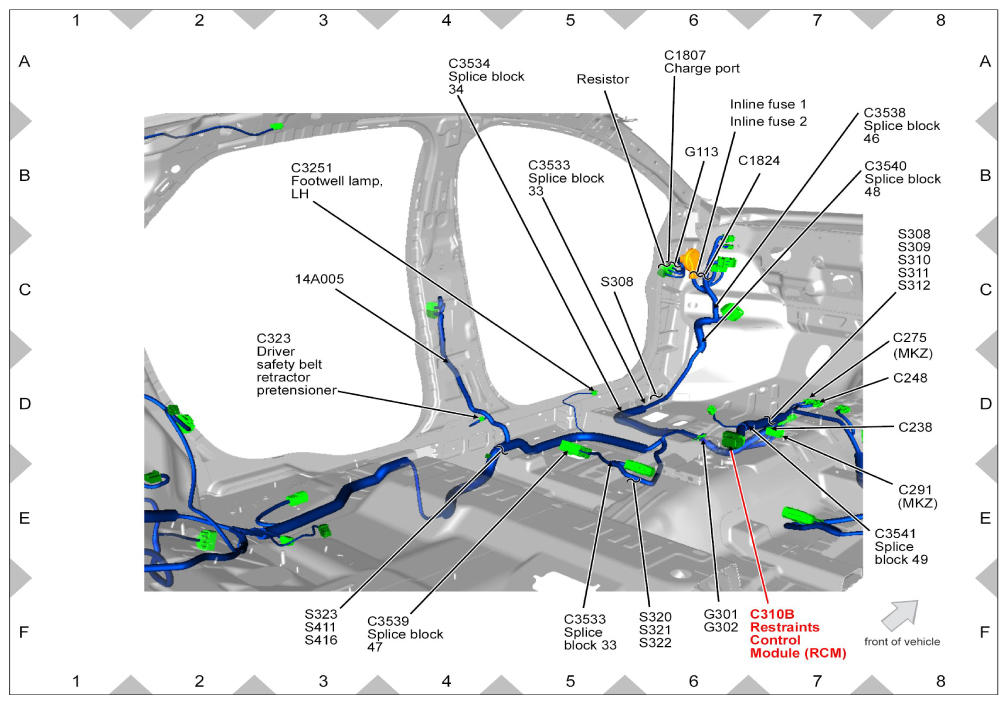

Fig 118: Identifying Connector C310B Restraints Control Module (RCM)

Courtesy of FORD MOTOR CO.

Fig 119: Identifying Connector C311

Courtesy of FORD MOTOR CO.

Fig 120: Identifying Connector C311 (Fusion)

Courtesy of FORD MOTOR CO.

Fig 121: Identifying Connector C311 (MKZ)

Courtesy of FORD MOTOR CO.

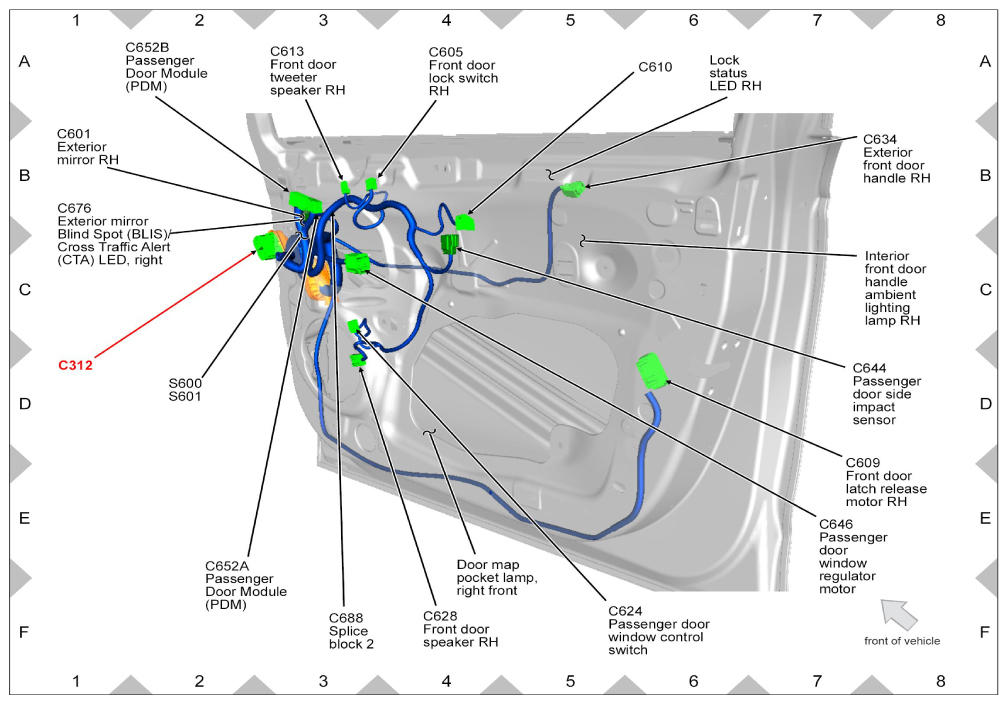

Fig 122: Identifying Connector C312

Courtesy of FORD MOTOR CO.

Fig 123: Identifying Connector C312 (Fusion)

Courtesy of FORD MOTOR CO.

Fig 124: Identifying Connector C312 (MKZ)

Courtesy of FORD MOTOR CO.

Fig 125: Identifying Connector C313

Courtesy of FORD MOTOR CO.

Fig 126: Identifying Connector C313 (MKZ)

Courtesy of FORD MOTOR CO.

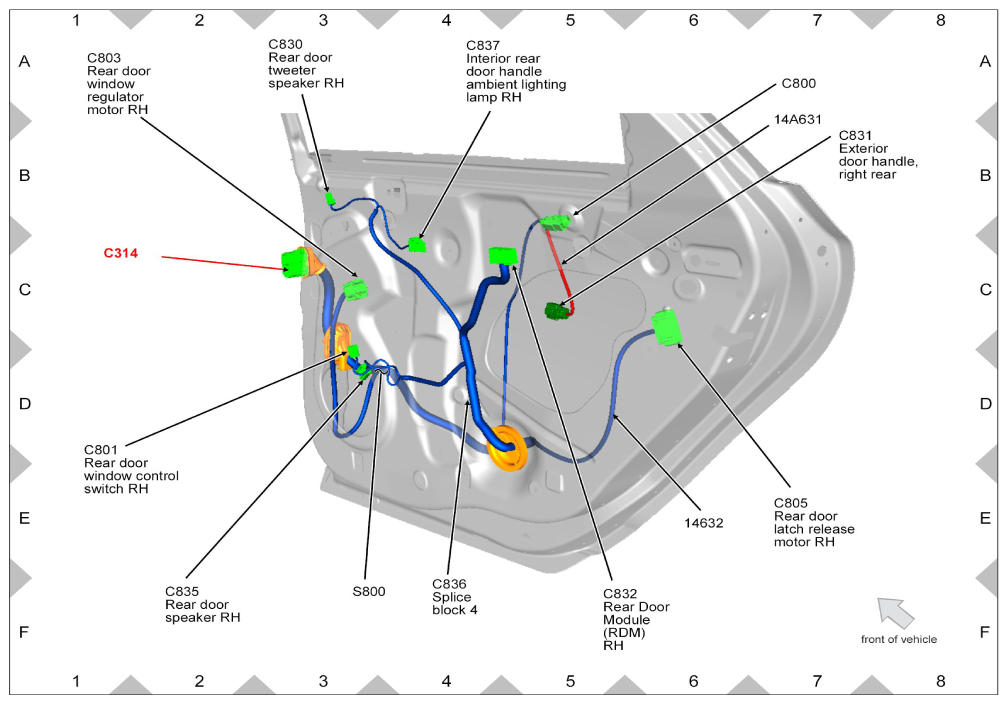

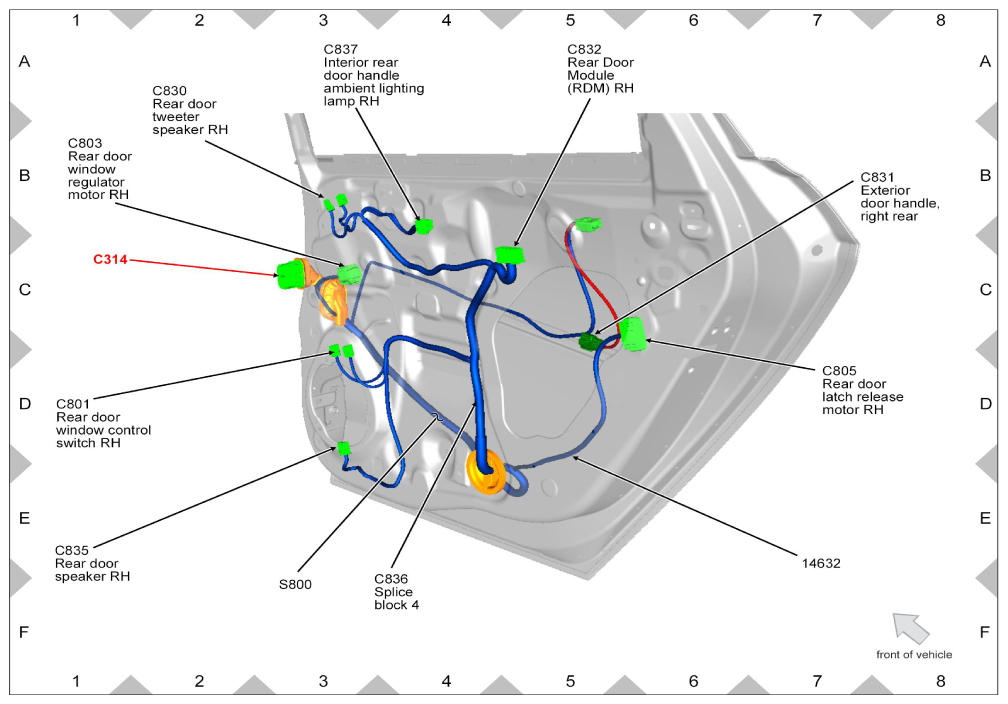

Fig 127: Identifying Connector C314

Courtesy of FORD MOTOR CO.

Fig 128: Identifying Connector C314 (MKZ)

Courtesy of FORD MOTOR CO.

Fig 129: Identifying Connector C315

Courtesy of FORD MOTOR CO.

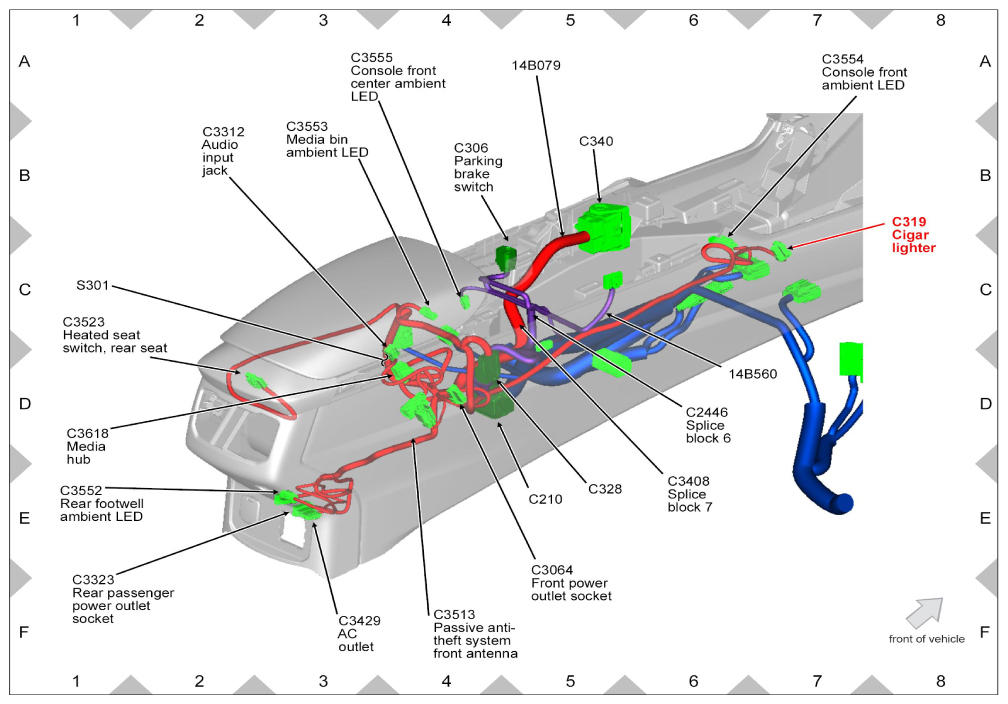

Fig 130: Identifying Connector C319 Cigar Lighter (Fusion)

Courtesy of FORD MOTOR CO.

Fig 131: Identifying Connector C319 Cigar Lighter (MKZ)

Courtesy of FORD MOTOR CO.

Fig 132: Identifying Connector C323 Driver Safety Belt Retractor Pretensioner

Courtesy of FORD MOTOR CO.

Fig 133: Identifying Connector C328 (Fusion)

Courtesy of FORD MOTOR CO.

Fig 134: Identifying Connector C328 (MKZ)

Courtesy of FORD MOTOR CO.

Fig 135: Identifying Connector C330 Passenger Seat Rear Height Motor

Courtesy of FORD MOTOR CO.

Fig 136: Identifying Connector C332 Passenger Seat Horizontal Motor

Courtesy of FORD MOTOR CO.

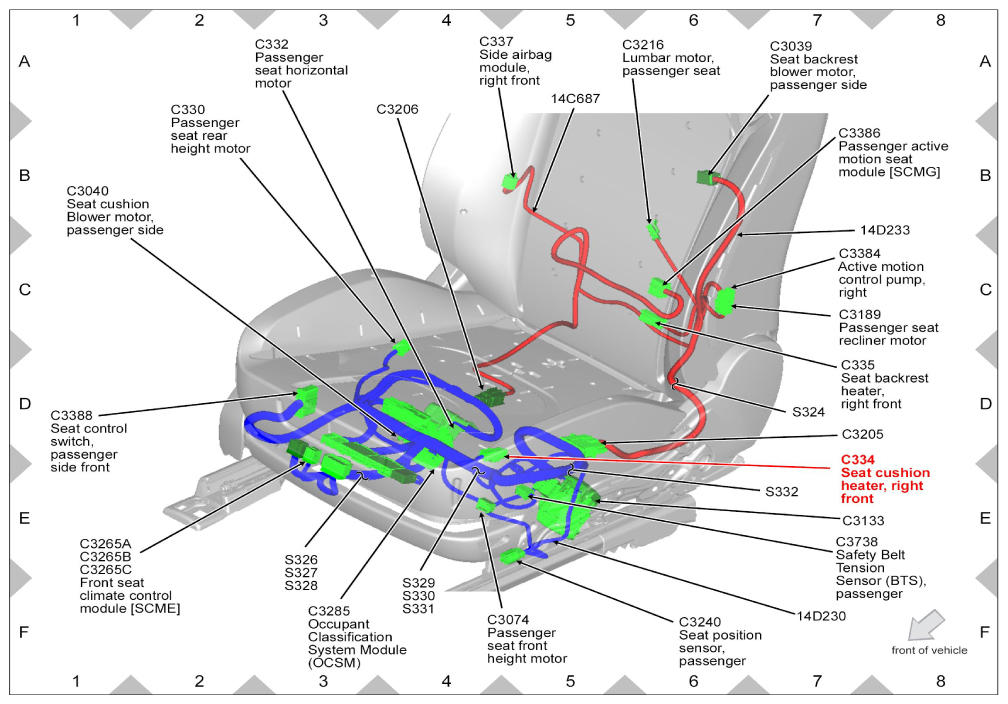

Fig 137: Identifying Connector C334 Seat Cushion Heater, Right Front

Courtesy of FORD MOTOR CO.

Fig 138: Identifying Connector C335 Seat Backrest Heater, Right Front

Courtesy of FORD MOTOR CO.

Fig 139: Identifying Connector C337 Side Airbag Module, Right Front

Courtesy of FORD MOTOR CO.

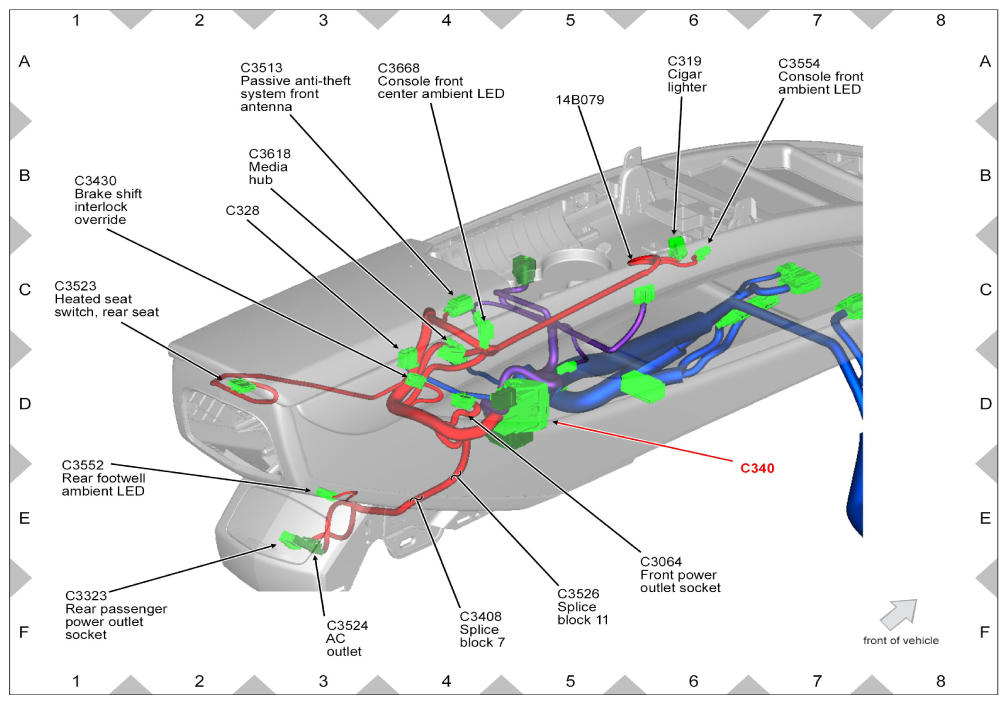

Fig 140: Identifying Connector C340

Courtesy of FORD MOTOR CO.

Fig 141: Identifying Connector C340 (Fusion)

Courtesy of FORD MOTOR CO.

Fig 142: Identifying Connector C340 (MKZ)

Courtesy of FORD MOTOR CO.

Fig 143: Identifying Connector C340 (MKZ)

Courtesy of FORD MOTOR CO.

Fig 144: Identifying Connector C341A, C341B, C341C, C341D Driver Seat Module (DSM)

Courtesy of FORD MOTOR CO.

Fig 145: Identifying Connector C341A, C341B, C341C, C341D Driver Seat Module (DSM)

Courtesy of FORD MOTOR CO.

Fig 146: Identifying Connector C341A, C341B, C341C, C341D Driver Seat Module (DSM)

Courtesy of FORD MOTOR CO.

Fig 147: Identifying Connector C341A, C341B, C341C, C341D Driver Seat Module (DSM)

Courtesy of FORD MOTOR CO.

Fig 148: Identifying Connector C356 And C358 Seat Position Sensor, Driver

Courtesy of FORD MOTOR CO.

Fig 149: Identifying Connector C356 And C358 Seat Position Sensor, Driver

Courtesy of FORD MOTOR CO.

Fig 150: Identifying Connector C362 Driver Seat Horizontal Motor

Courtesy of FORD MOTOR CO.

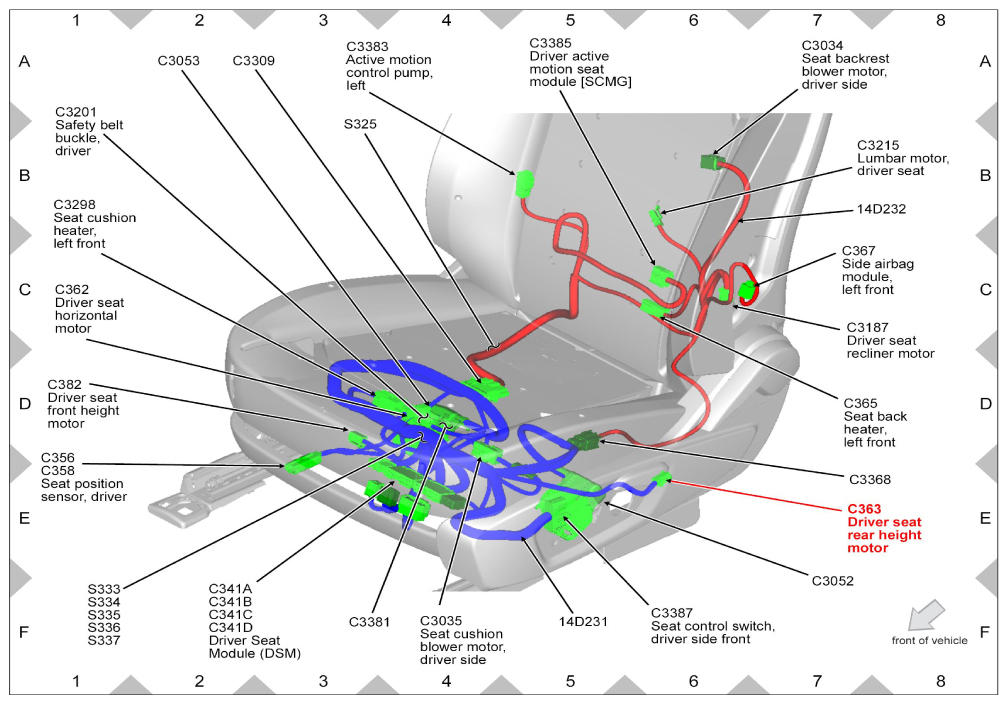

Fig 151: Identifying Connector C363 Driver Seat Rear Height Motor

Courtesy of FORD MOTOR CO.

Fig 152: Identifying Connector C365 Seat Back Heater, Left Front

Courtesy of FORD MOTOR CO.

Fig 153: Identifying Connector C367 Side Airbag Module, Left Front

Courtesy of FORD MOTOR CO.

Fig 154: Identifying Connector C382 Driver Seat Front Height Motor

Courtesy of FORD MOTOR CO.

Fig 155: Identifying Connector C402A Heated Rear Window Element (Fusion)

Courtesy of FORD MOTOR CO.

Fig 156: Identifying Connector C402A Heated Rear Window Element (MKZ)

Courtesy of FORD MOTOR CO.

Fig 157: Identifying Connector C402B Heated Rear Window Element

Courtesy of FORD MOTOR CO.

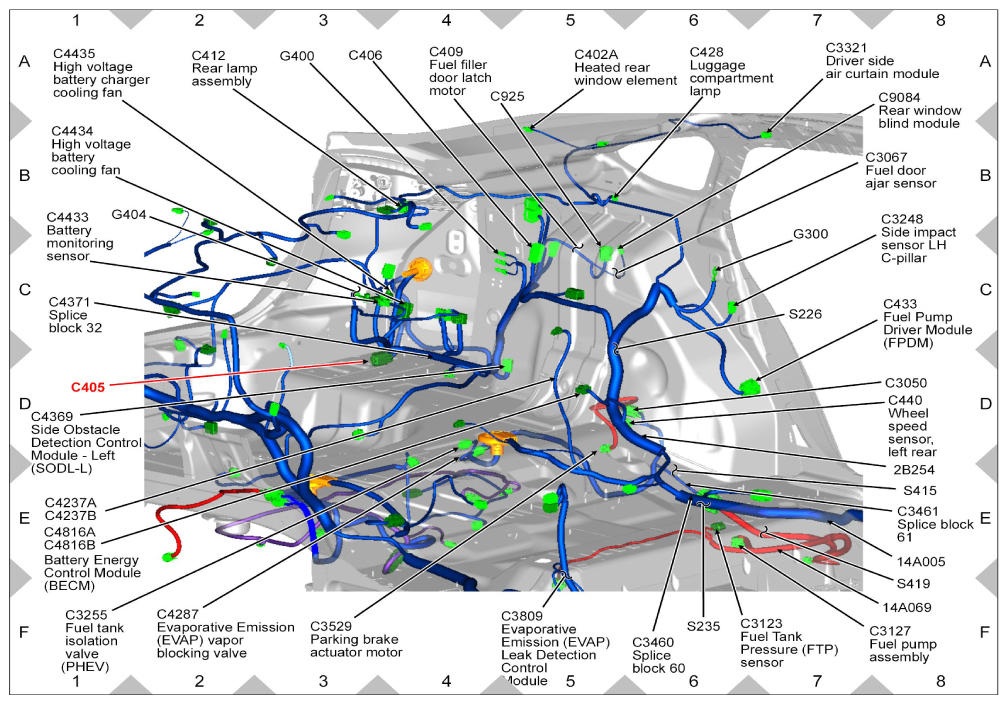

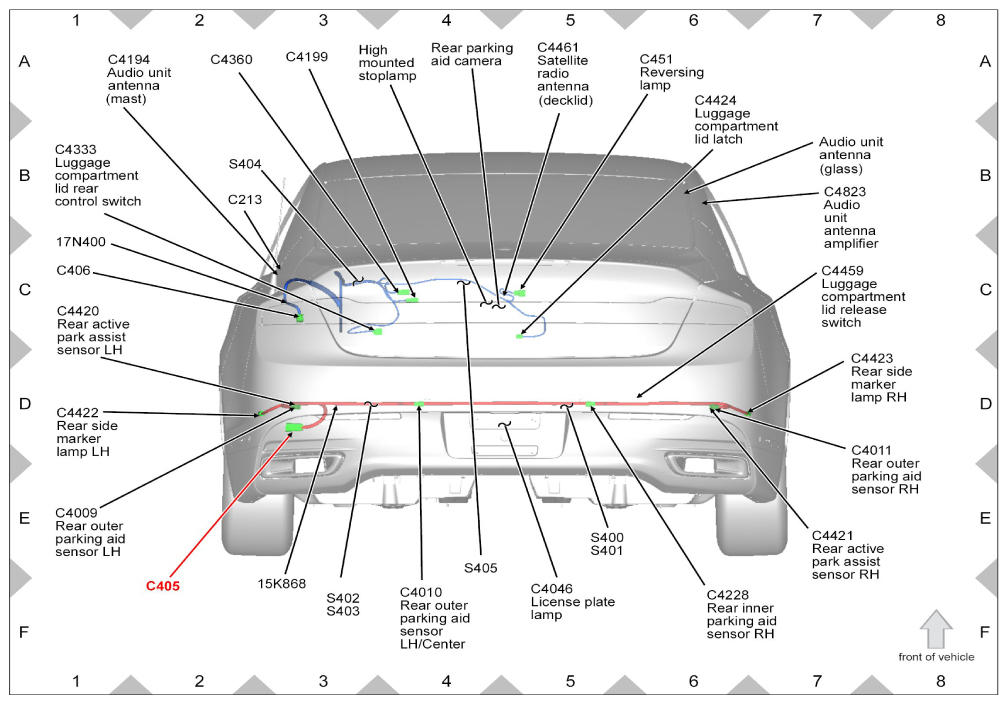

Fig 158: Identifying Connector C405 (Fusion)

Courtesy of FORD MOTOR CO.

Fig 159: Identifying Connector C405 (MKZ)

Courtesy of FORD MOTOR CO.

Fig 160: Identifying Connector C405 (MKZ)

Courtesy of FORD MOTOR CO.

Fig 161: Identifying Connector C406 (Fusion)

Courtesy of FORD MOTOR CO.

Fig 162: Identifying Connector C406 (MKZ)

Courtesy of FORD MOTOR CO.

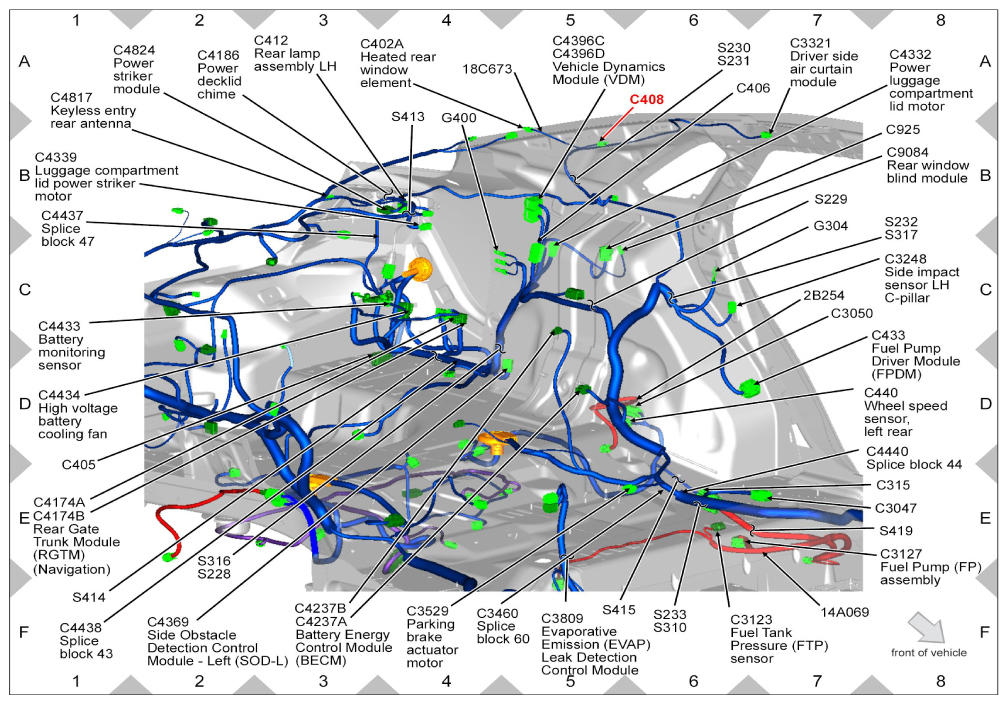

Fig 163: Identifying Connector C408

Courtesy of FORD MOTOR CO.

Fig 164: Identifying Connector C409 Fuel Filler Door Latch Motor

Courtesy of FORD MOTOR CO.

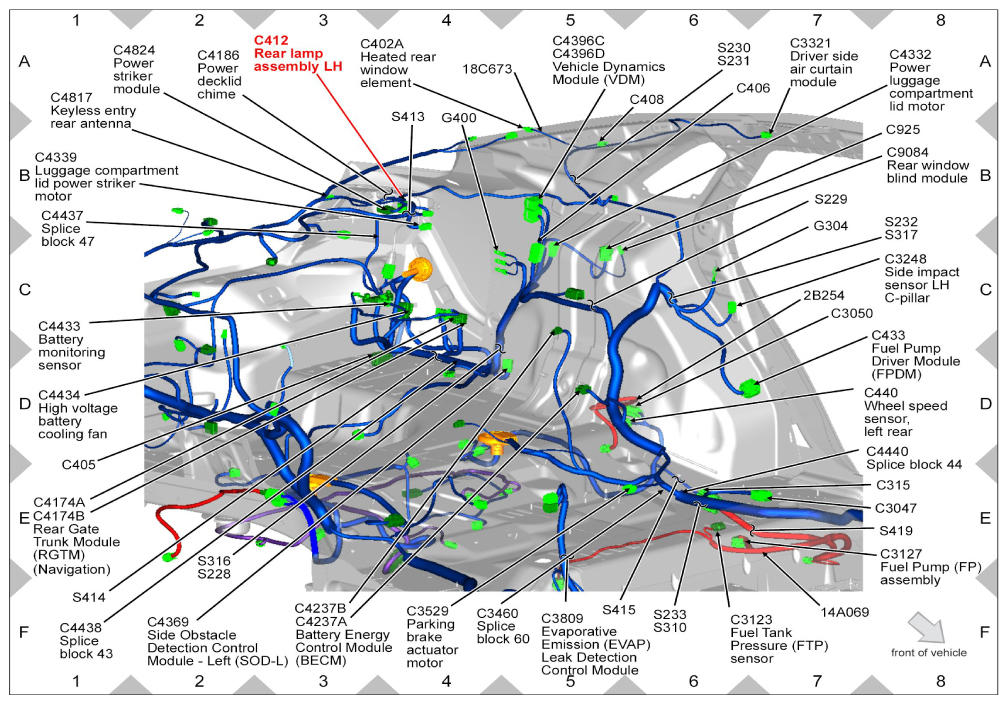

Fig 165: Identifying Connector C412 Rear Lamp Assembly (Fusion)

Courtesy of FORD MOTOR CO.

Fig 166: Identifying Connector C412 Rear Lamp Assembly LH (MKZ)

Courtesy of FORD MOTOR CO.

Fig 167: Identifying Connector C415 Rear Lamp Assembly RH (Fusion)

Courtesy of FORD MOTOR CO.

Fig 168: Identifying Connector C415 Rear Lamp Assembly RH (MKZ)

Courtesy of FORD MOTOR CO.

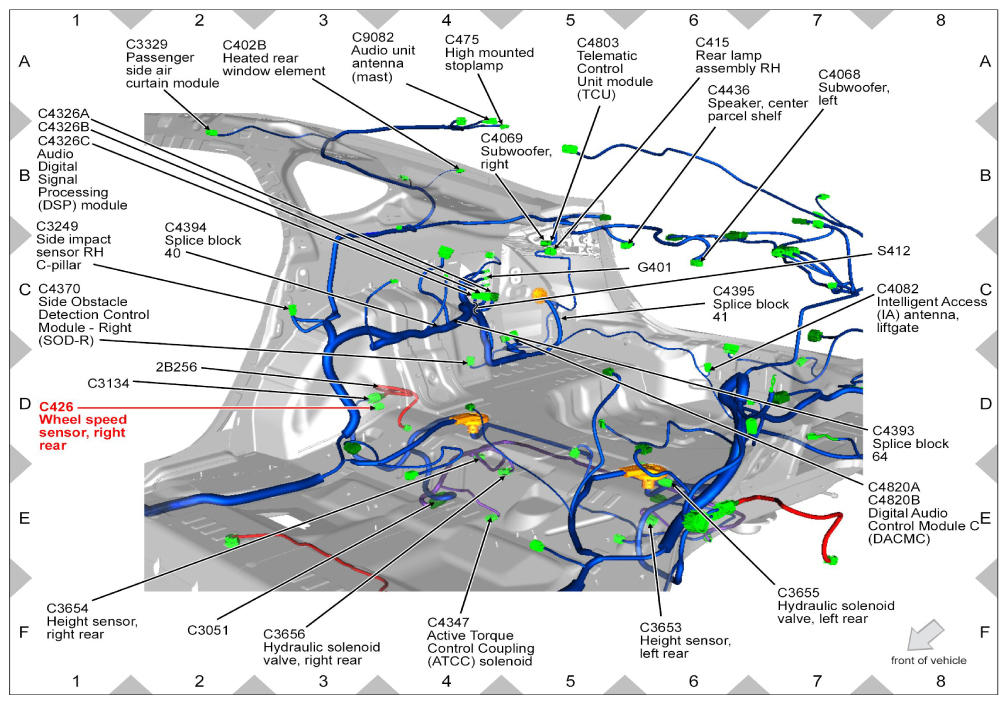

Fig 169: Identifying Connector C426 Wheel Speed Sensor, Right Rear (Fusion)

Courtesy of FORD MOTOR CO.

Fig 170: Identifying Connector C426 Wheel Speed Sensor, Right Rear (MKZ)

Courtesy of FORD MOTOR CO.

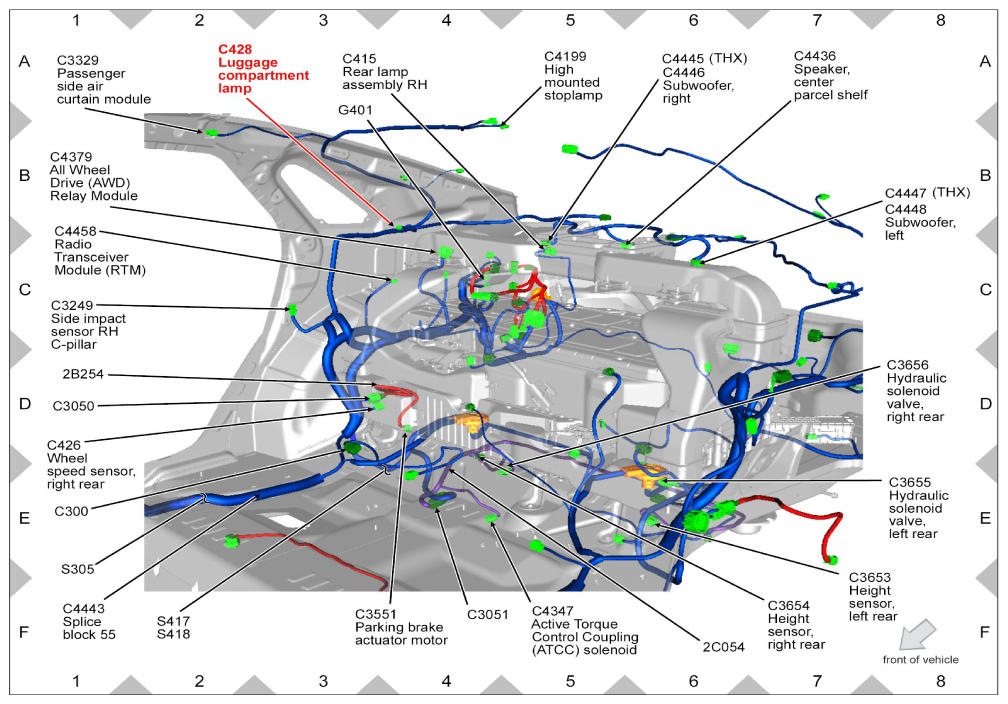

Fig 171: Identifying Connector C428 Luggage Compartment Lamp (Fusion)

Courtesy of FORD MOTOR CO.

Fig 172: Identifying Connector C428 Luggage Compartment Lamp (MKZ)

Courtesy of FORD MOTOR CO.

Fig 173: Identifying Connector C433 Fuel Pump Driver Module (FPDM) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 174: Identifying Connector C433 Fuel Pump Driver Module (FPDM) (MKZ)

Courtesy of FORD MOTOR CO.

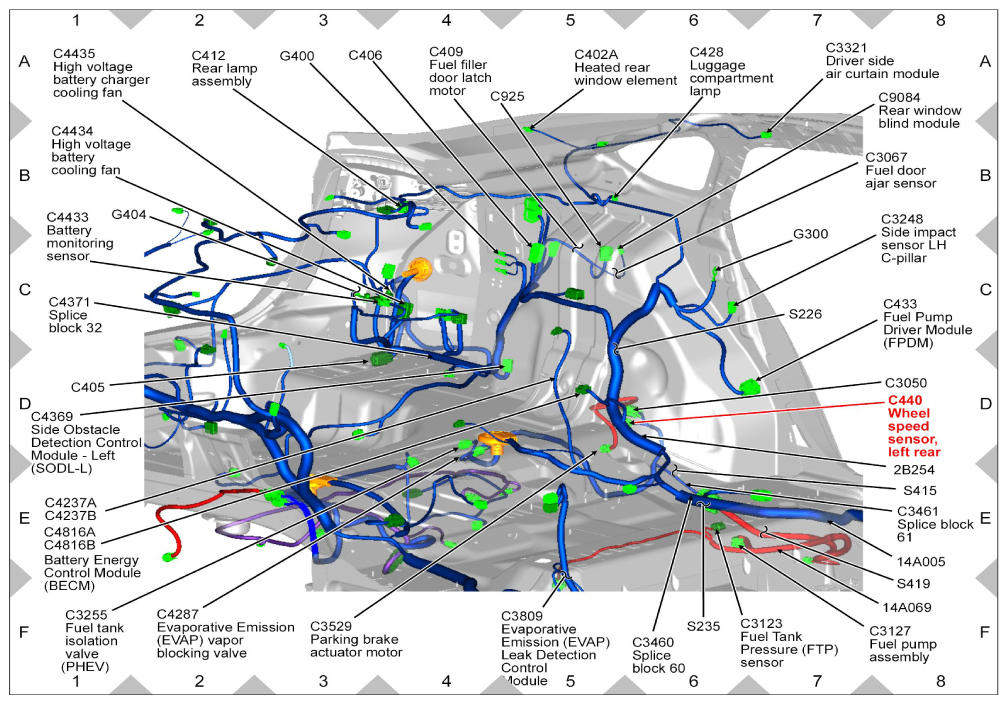

Fig 175: Identifying Connector C440 Wheel Speed Sensor, Left Rear (Fusion)

Courtesy of FORD MOTOR CO.

Fig 176: Identifying Connector C440 Wheel Speed Sensor, Left Rear (MKZ)

Courtesy of FORD MOTOR CO.

Fig 177: Identifying Connector C451 Reversing Lamp

Courtesy of FORD MOTOR CO.

Fig 178: Identifying Connector C466A Subwoofer Amplifier

Courtesy of FORD MOTOR CO.

Fig 179: Identifying Connector C466B Subwoofer Amplifier

Courtesy of FORD MOTOR CO.

Fig 180: Identifying Connector C475 High Mounted Stoplamp

Courtesy of FORD MOTOR CO.

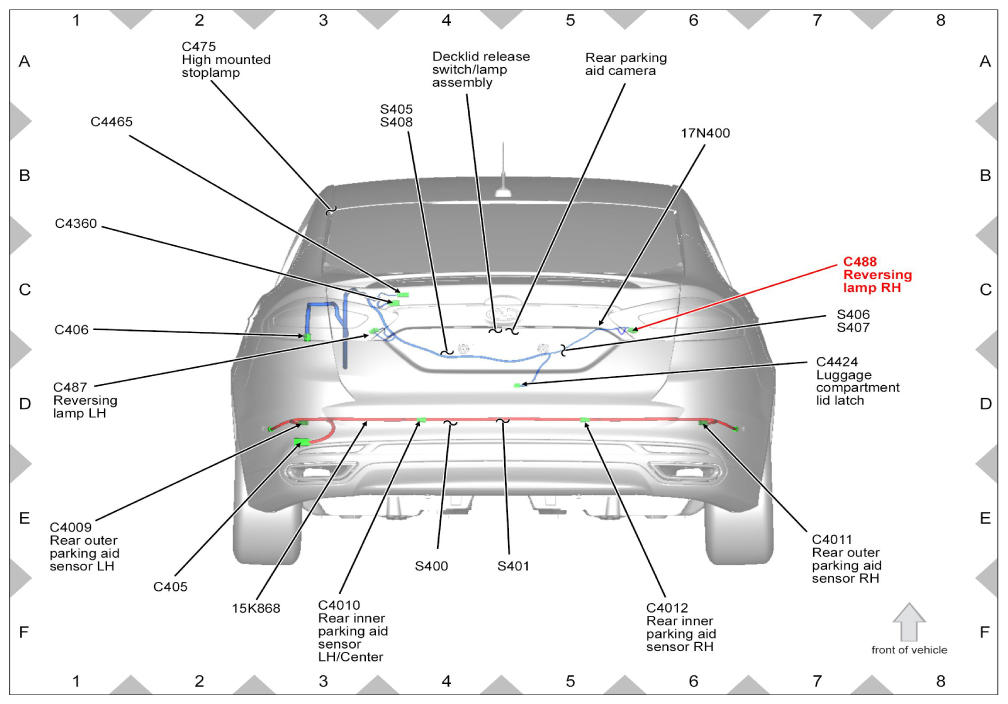

Fig 181: Identifying Connector C487 Reversing Lamp LH

Courtesy of FORD MOTOR CO.

Fig 182: Identifying Connector C488 Reversing Lamp RH

Courtesy of FORD MOTOR CO.

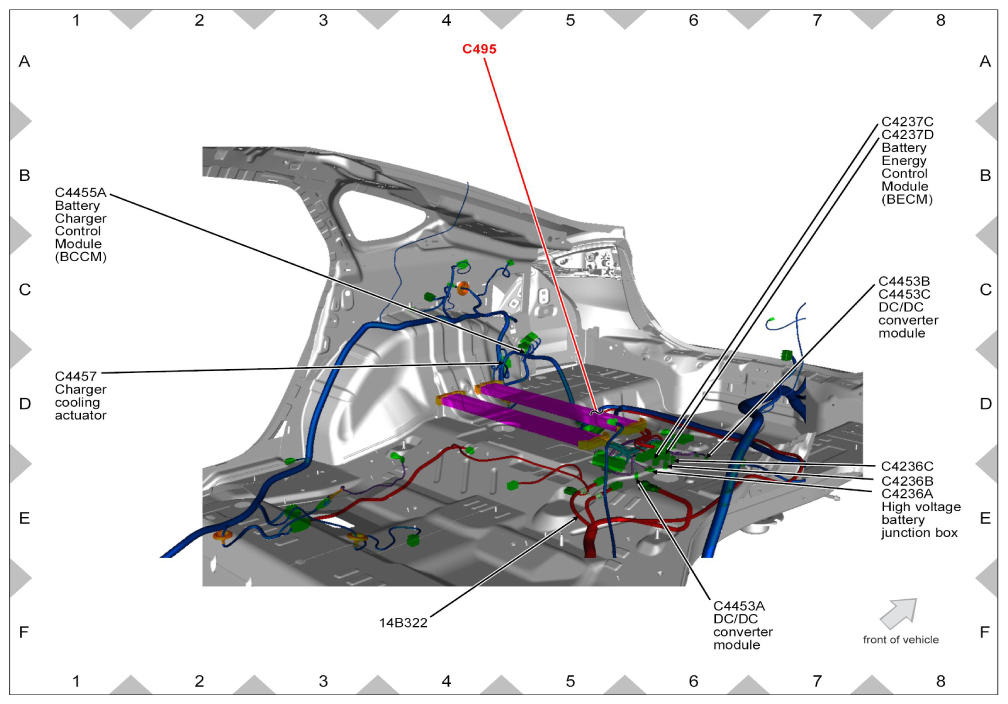

Fig 183: Identifying Connector C495

Courtesy of FORD MOTOR CO.

Fig 184: Identifying Connector C501A Driver Door Module (DDM) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 185: Identifying Connector C501A Driver Door Module (DDM) (MKZ)

Courtesy of FORD MOTOR CO.

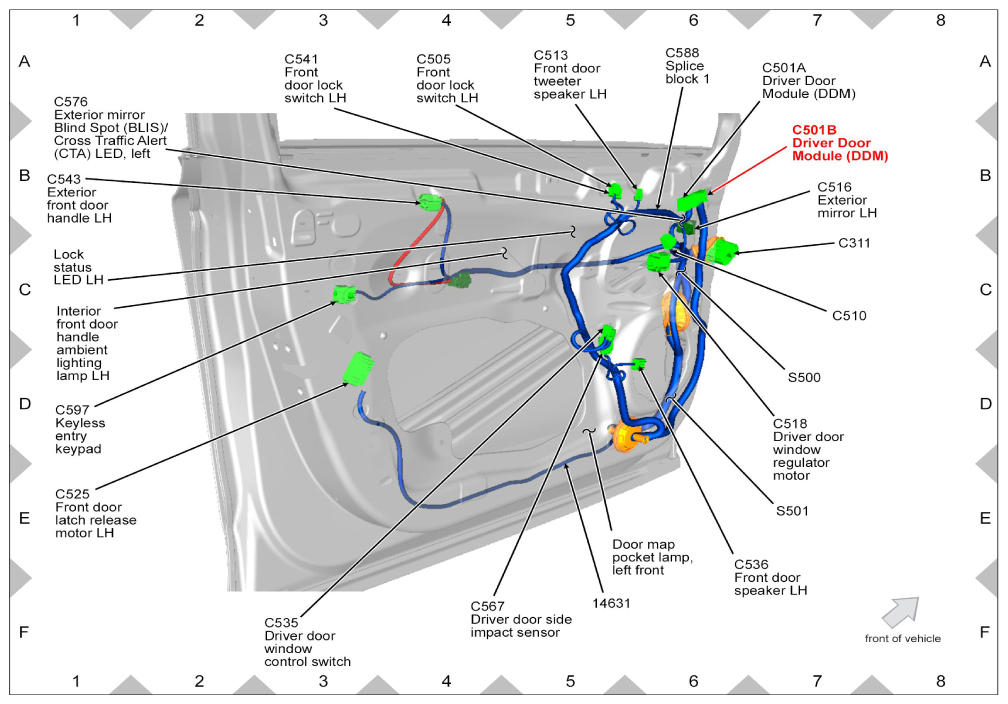

Fig 186: Identifying Connector C501B Driver Door Module (DDM) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 187: Identifying Connector C501B Driver Door Module (DDM) (MKZ)

Courtesy of FORD MOTOR CO.

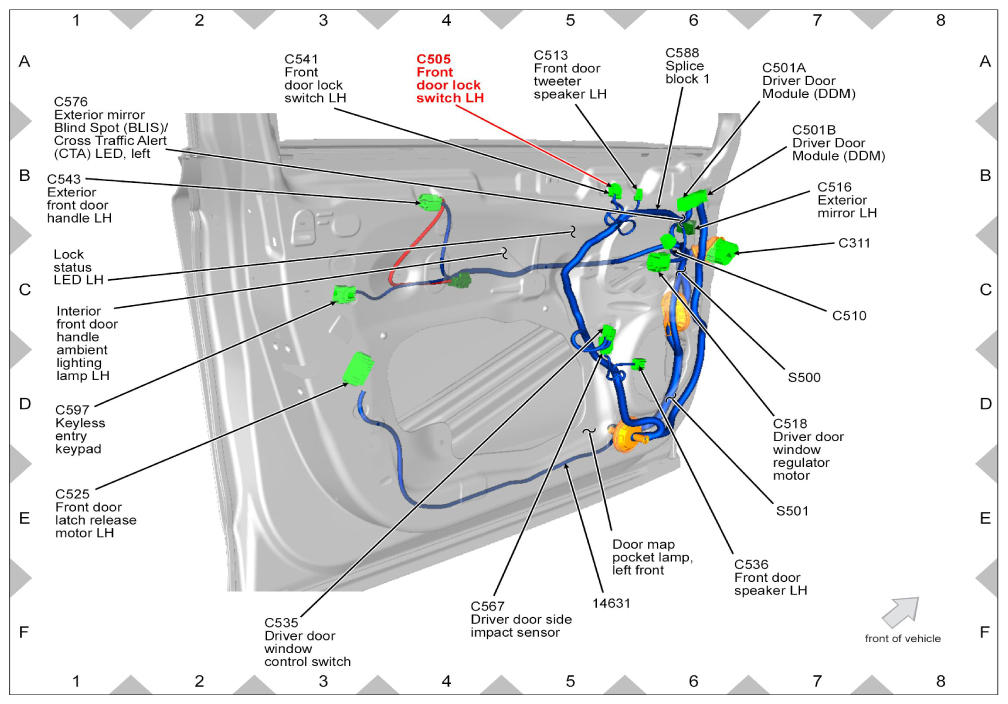

Fig 188: Identifying Connector C505 Front Door Lock Switch LH

Courtesy of FORD MOTOR CO.

Fig 189: Identifying Connector C510 (Fusion)

Courtesy of FORD MOTOR CO.

Fig 190: Identifying Connector C510 (MKZ)

Courtesy of FORD MOTOR CO.

Fig 191: Identifying Connector C513 Front Door Tweeter Speaker LH (Fusion)

Courtesy of FORD MOTOR CO.

Fig 192: Identifying Connector C513 Front Door Tweeter Speaker LH (MKZ)

Courtesy of FORD MOTOR CO.

Fig 193: Identifying Connector C516 Exterior Mirror LH (Fusion)

Courtesy of FORD MOTOR CO.

Fig 194: Identifying Connector C516 Exterior Mirror LH (MKZ)

Courtesy of FORD MOTOR CO.

Fig 195: Identifying Connector C518 Driver Door Window Regulator Motor (Fusion)

Courtesy of FORD MOTOR CO.

Fig 196: Identifying Connector C518 Driver Door Window Regulator Motor (MKZ)

Courtesy of FORD MOTOR CO.

Fig 197: Identifying Connector C525 Front Door Latch Release Motor LH (Fusion)

Courtesy of FORD MOTOR CO.

Fig 198: Identifying Connector C525 Front door latch release motor LH (MKZ)

Courtesy of FORD MOTOR CO.

Fig 199: Identifying Connector C535 Driver Door Window Control Switch (Fusion)

Courtesy of FORD MOTOR CO.

Fig 200: Identifying Connector C535 Driver Door Window Control Switch (MKZ)

Courtesy of FORD MOTOR CO.

Fig 201: Identifying Connector C536 Front Door Speaker LH (Fusion)

Courtesy of FORD MOTOR CO.

Fig 202: Identifying Connector C536 Front Door Speaker LH (MKZ)

Courtesy of FORD MOTOR CO.

Fig 203: Identifying Connector C541 Front Door Lock Switch LH (Fusion)

Courtesy of FORD MOTOR CO.

Fig 204: Identifying Connector C541 Front Door Lock Switch LH (MKZ)

Courtesy of FORD MOTOR CO.

Fig 205: Identifying Connector C543 Exterior Front Door Handle LH (Fusion)

Courtesy of FORD MOTOR CO.

Fig 206: Identifying Connector C543 Exterior Front Door Handle LH (MKZ)

Courtesy of FORD MOTOR CO.

Fig 207: Identifying Connector C567 Driver Door Side Impact Sensor (Fusion)

Courtesy of FORD MOTOR CO.

Fig 208: Identifying Connector C567 Driver Door Side Impact Sensor (MKZ)

Courtesy of FORD MOTOR CO.

Fig 209: Identifying Connector C576 Exterior Mirror Blind Spot (BLIS)/Cross Traffic Alert (CTA) Led, Left (Fusion)

Courtesy of FORD MOTOR CO.

Fig 210: Identifying Connector C576 Exterior Mirror Blind Spot (BLIS)/Cross Traffic Alert (CTA) Led, Left (MKZ)

Courtesy of FORD MOTOR CO.

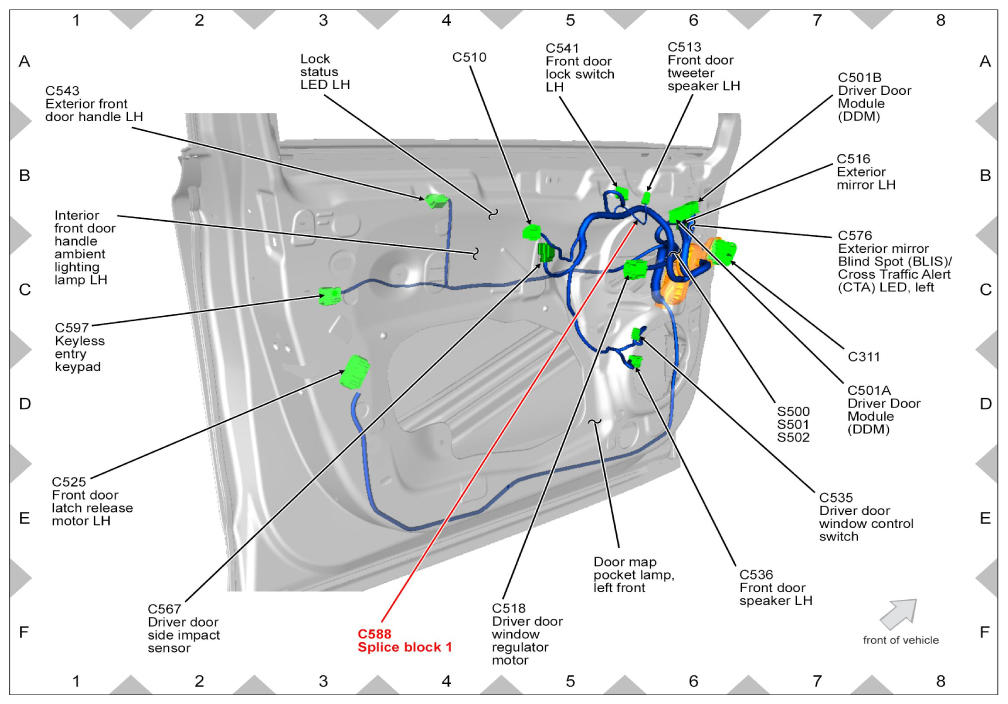

Fig 211: Identifying Connector C588 Splice Block 1(Fusion)

Courtesy of FORD MOTOR CO.

Fig 212: Identifying Connector C588 Splice Block 1 (MKZ)

Courtesy of FORD MOTOR CO.

Fig 213: Identifying Connector C597 Keyless Entry Keypad (Fusion)

Courtesy of FORD MOTOR CO.

Fig 214: Identifying Connector C597 Keyless Entry Keypad (MKZ)

Courtesy of FORD MOTOR CO.

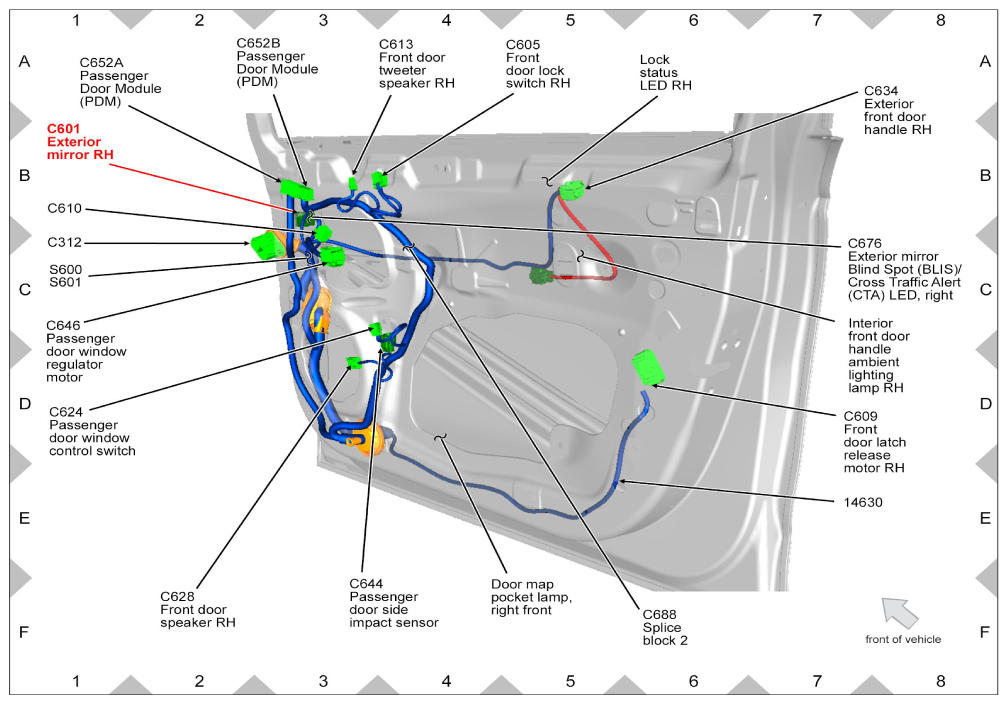

Fig 215: Identifying Connector C601 Exterior Mirror RH (Fusion)

Courtesy of FORD MOTOR CO.

Fig 216: Identifying Connector C601 Exterior Mirror RH (MKZ)

Courtesy of FORD MOTOR CO.

Fig 217: Identifying Connector C605 Front Door Lock Switch RH (Fusion)

Courtesy of FORD MOTOR CO.

Fig 218: Identifying Connector C605 Front Door Lock Switch RH (MKZ)

Courtesy of FORD MOTOR CO.

Fig 219: Identifying Connector C609 Front Door Latch Release Motor RH (Fusion)

Courtesy of FORD MOTOR CO.

Fig 220: Identifying Connector C609 Front Door Latch Release Motor RH (MKZ)

Courtesy of FORD MOTOR CO.

Fig 221: Identifying Connector C610 (Fusion)

Courtesy of FORD MOTOR CO.

Fig 222: Identifying Connector C610 (MKZ)

Courtesy of FORD MOTOR CO.

Fig 223: Identifying Connector C613 Front Door Tweeter Speaker RH (Fusion)

Courtesy of FORD MOTOR CO.

Fig 224: Identifying Connector C613 Front Door Tweeter Speaker RH (MKZ)

Courtesy of FORD MOTOR CO.

Fig 225: Identifying Connector C624 Passenger Door Window Control Switch (Fusion)

Courtesy of FORD MOTOR CO.

Fig 226: Identifying Connector C624 Passenger Door Window Control Switch (MKZ)

Courtesy of FORD MOTOR CO.

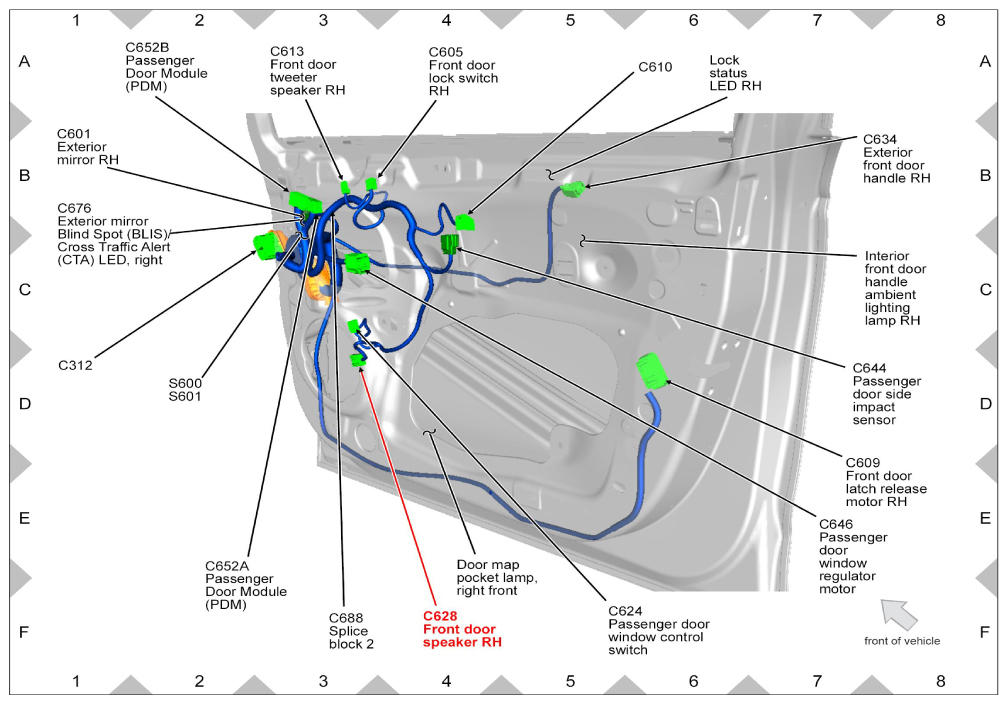

Fig 227: Identifying Connector C628 Front Door Speaker RH (Fusion)

Courtesy of FORD MOTOR CO.

Fig 228: Identifying Connector C628 Front Door Speaker RH (MKZ)

Courtesy of FORD MOTOR CO.

Fig 229: Identifying Connector C634 Exterior Front Door Handle RH (Fusion)

Courtesy of FORD MOTOR CO.

Fig 230: Identifying Connector C634 Exterior Front Door Handle RH (MKZ)

Courtesy of FORD MOTOR CO.

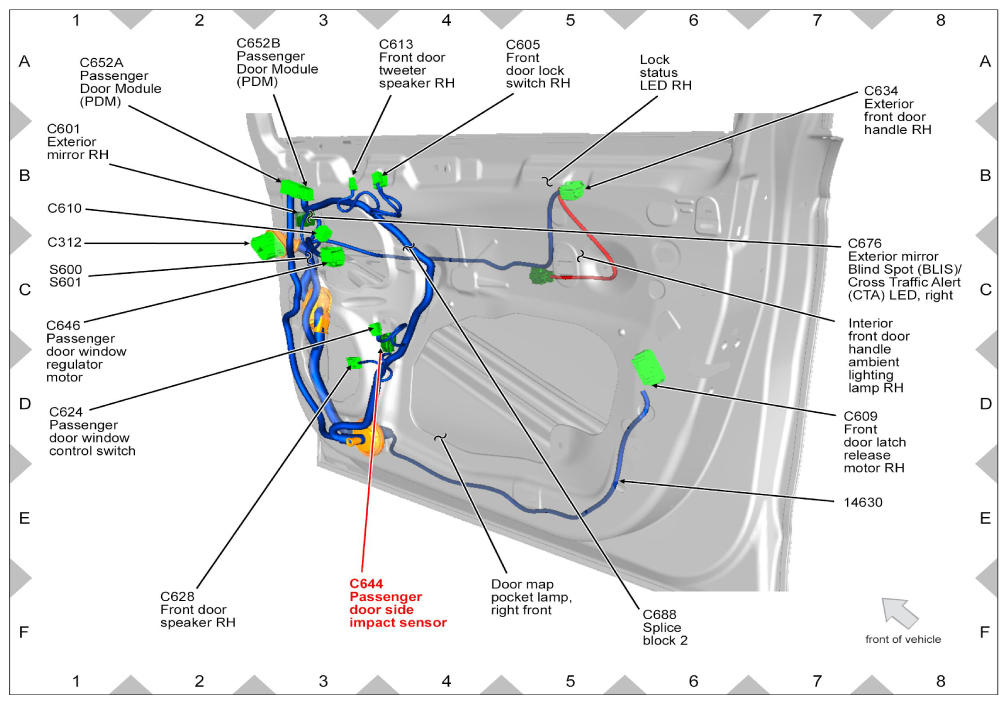

Fig 231: Identifying Connector C644 Passenger Door Side Impact Sensor (Fusion)

Courtesy of FORD MOTOR CO.

Fig 232: Identifying Connector C644 Passenger Door Side Impact Sensor (MKZ)

Courtesy of FORD MOTOR CO.

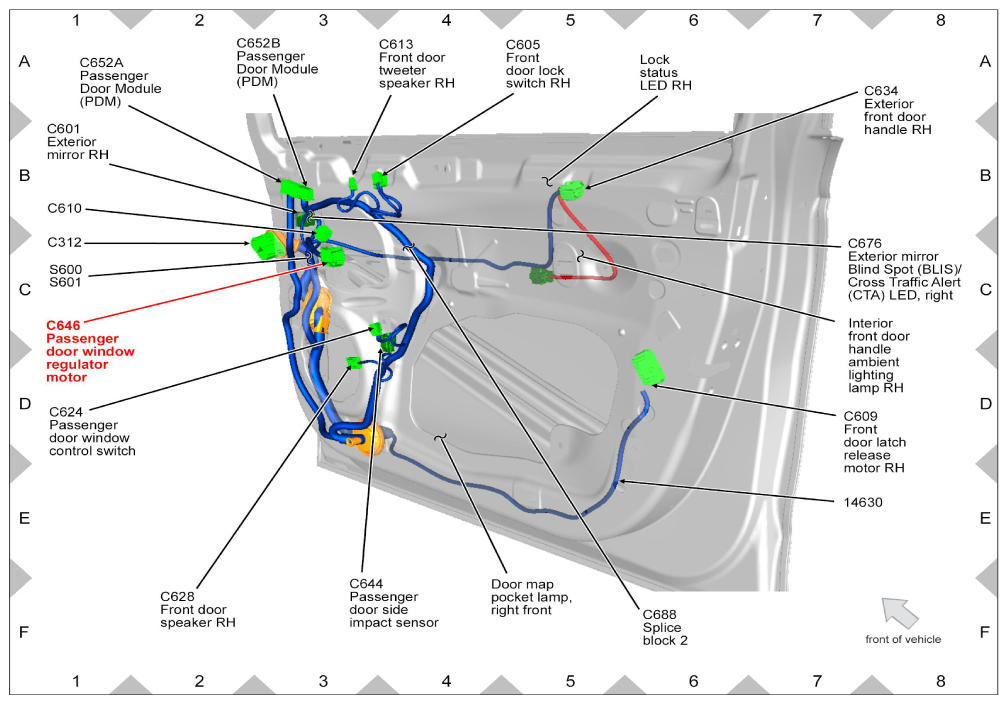

Fig 233: Identifying Connector C646 Passenger Door Window Regulator Motor (Fusion)

Courtesy of FORD MOTOR CO.

Fig 234: Identifying Connector C646 Passenger Door Window Regulator Motor (MKZ)

Courtesy of FORD MOTOR CO.

Fig 235: Identifying Connector C652A Passenger Door Module (PDM) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 236: Identifying Connector C652A Passenger Door Module (PDM) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 237: Identifying Connector C652B Passenger Door Module (PDM) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 238: Identifying Connector C652B Passenger Door Module (PDM) (MKZ)

Courtesy of FORD MOTOR CO.

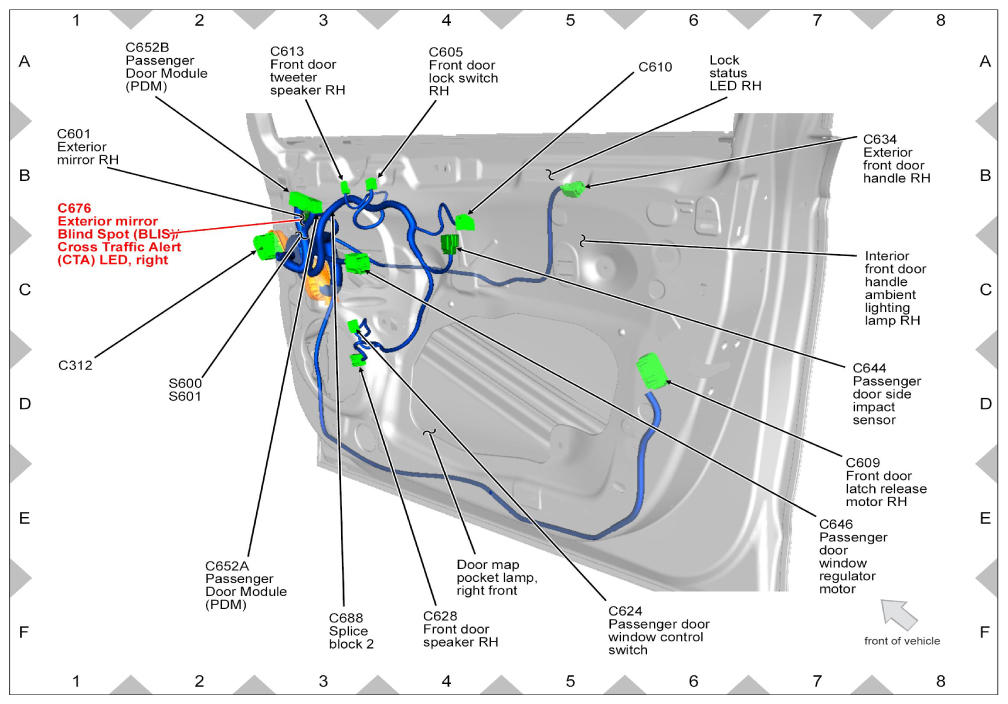

Fig 239: Identifying Connector C676 Exterior Mirror Blind Spot (BLIS)/Cross Traffic Alert (CTA) Led, Right (Fusion)

Courtesy of FORD MOTOR CO.

Fig 240: Identifying Connector C676 Exterior Mirror Blind Spot (BLIS)/Cross Traffic Alert (CTA) Led, Right (MKZ)

Courtesy of FORD MOTOR CO.

Fig 241: Identifying Connector C688 Splice Block 2 (Fusion)

Courtesy of FORD MOTOR CO.

Fig 242: Identifying Connector C688 Splice Block 2 (MKZ)

Courtesy of FORD MOTOR CO.

Fig 243: Identifying Connector C700

Courtesy of FORD MOTOR CO.

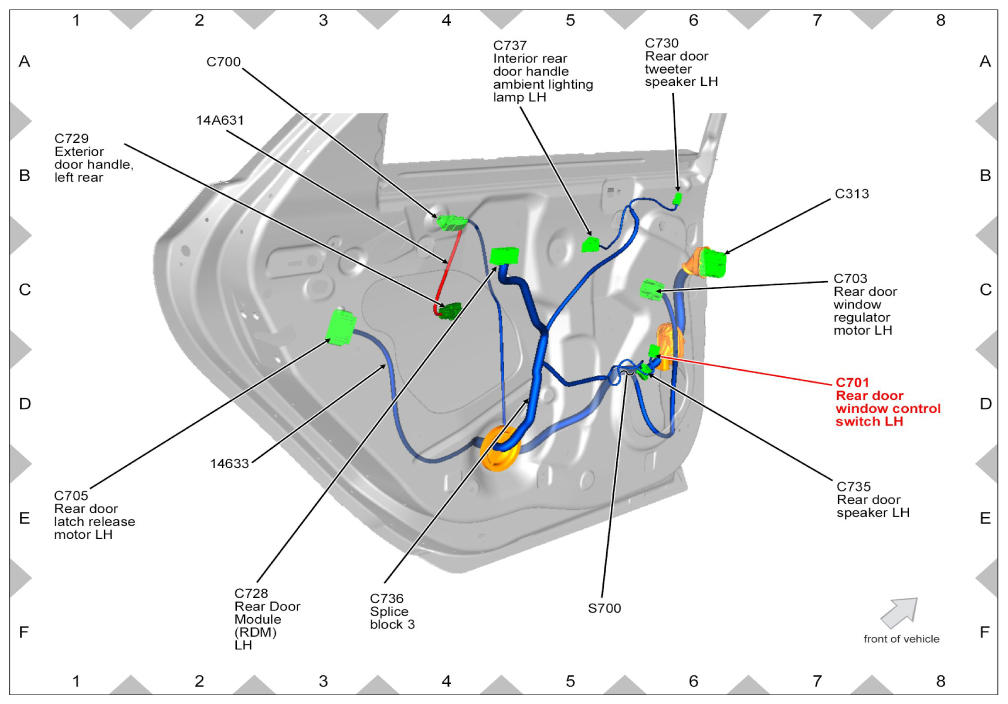

Fig 244: Identifying Connector C701 Rear Door Window Control Switch LH (Fusion)

Courtesy of FORD MOTOR CO.

Fig 245: Identifying Connector C701 Rear Door Window Control Switch LH (MKZ)

Courtesy of FORD MOTOR CO.

Fig 246: Identifying Connector C703 Rear Door Window Regulator Motor LH (Fusion)

Courtesy of FORD MOTOR CO.

Fig 247: Identifying Connector C703 Rear Door Window Regulator Motor LH (MKZ)

Courtesy of FORD MOTOR CO.

Fig 248: Identifying Connector C705 Rear Door Latch Release Latch Motor LH (Fusion)

Courtesy of FORD MOTOR CO.

Fig 249: Identifying Connector C705 Rear Door Latch Release Latch Motor LH (MKZ)

Courtesy of FORD MOTOR CO.

Fig 250: Identifying Connector C728 Rear Door Module (RDM) LH (Fusion)

Courtesy of FORD MOTOR CO.

Fig 251: Identifying Connector C728 Rear Door Module (RDM) LH (MKZ)

Courtesy of FORD MOTOR CO.

Fig 252: Identifying Connector C729 Exterior Door Handle, Left Rear (Fusion)

Courtesy of FORD MOTOR CO.

Fig 253: Identifying Connector C729 Exterior Door Handle, Left Rear (MKZ)

Courtesy of FORD MOTOR CO.

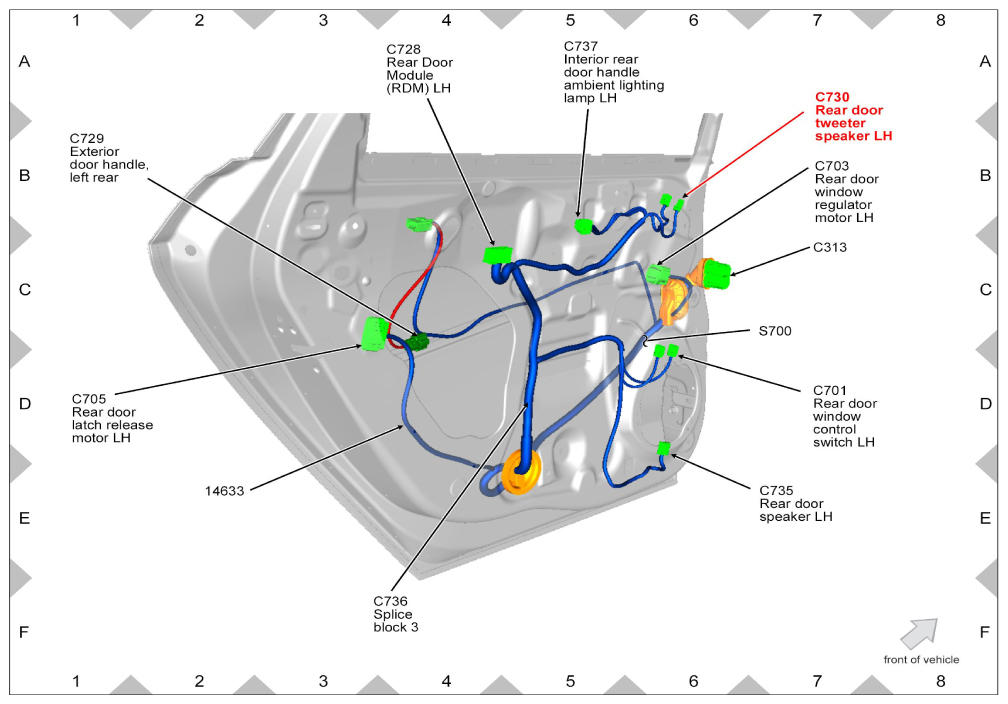

Fig 254: Identifying Connector C730 Rear Door Tweeter Speaker LH (Fusion)

Courtesy of FORD MOTOR CO.

Fig 255: Identifying Connector C730 Rear Door Tweeter Speaker LH (MKZ)

Courtesy of FORD MOTOR CO.

Fig 256: Identifying Connector C735 Rear Door Speaker LH (Fusion)

Courtesy of FORD MOTOR CO.

Fig 257: Identifying Connector C735 Rear Door Speaker LH (MKZ)

Courtesy of FORD MOTOR CO.

Fig 258: Identifying Connector C736 Splice Block 3 (Fusion)

Courtesy of FORD MOTOR CO.

Fig 259: Identifying Connector C736 Splice Block 3 (MKZ)

Courtesy of FORD MOTOR CO.

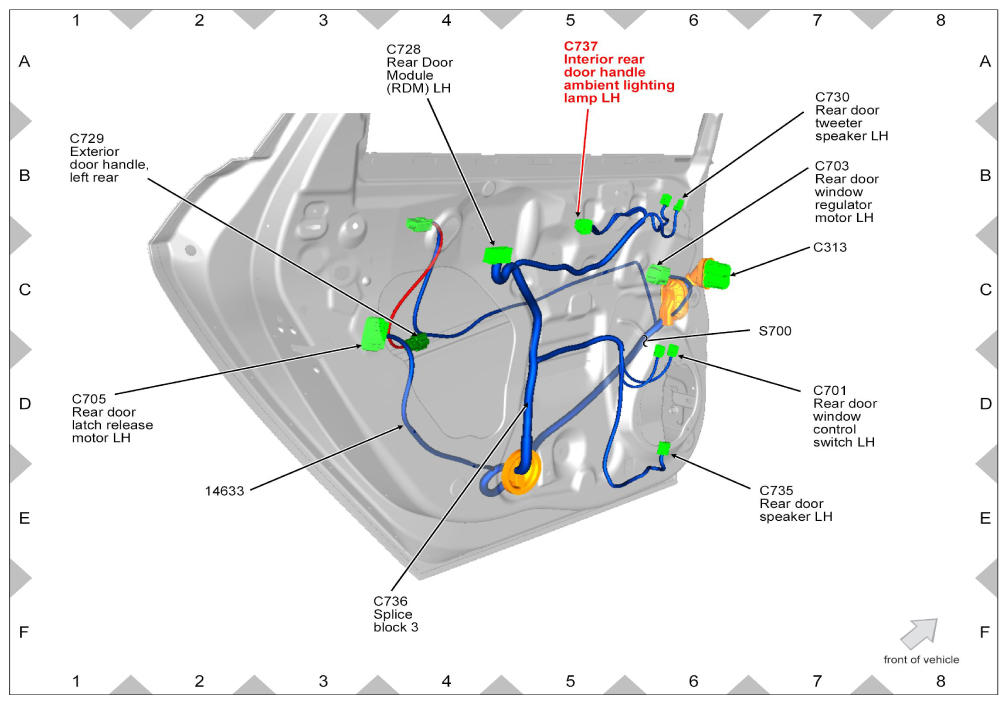

Fig 260: Identifying Connector C737 Interior Rear Door Handle Ambient Lighting Lamp LH (Fusion)

Courtesy of FORD MOTOR CO.

Fig 261: Identifying Connector C737 Interior Rear Door Handle Ambient Lighting Lamp LH (MKZ)

Courtesy of FORD MOTOR CO.

Fig 262: Identifying Connector C800

Courtesy of FORD MOTOR CO.

Fig 263: Identifying Connector C801 Rear Door Window Control Switch RH (Fusion)

Courtesy of FORD MOTOR CO.

Fig 264: Identifying Connector C801 Rear Door Window Control Switch RH (MKZ)

Courtesy of FORD MOTOR CO.

Fig 265: Identifying Connector C803 Rear Door Window Regulator Motor RH (Fusion)

Courtesy of FORD MOTOR CO.

Fig 266: Identifying Connector C803 Rear Door Window Regulator Motor RH (MKZ)

Courtesy of FORD MOTOR CO.

Fig 267: Identifying Connector C805 Rear Door Latch Release Motor RH (Fusion)

Courtesy of FORD MOTOR CO.

Fig 268: Identifying Connector C805 Rear Door Latch Release Motor RH (MKZ)

Courtesy of FORD MOTOR CO.

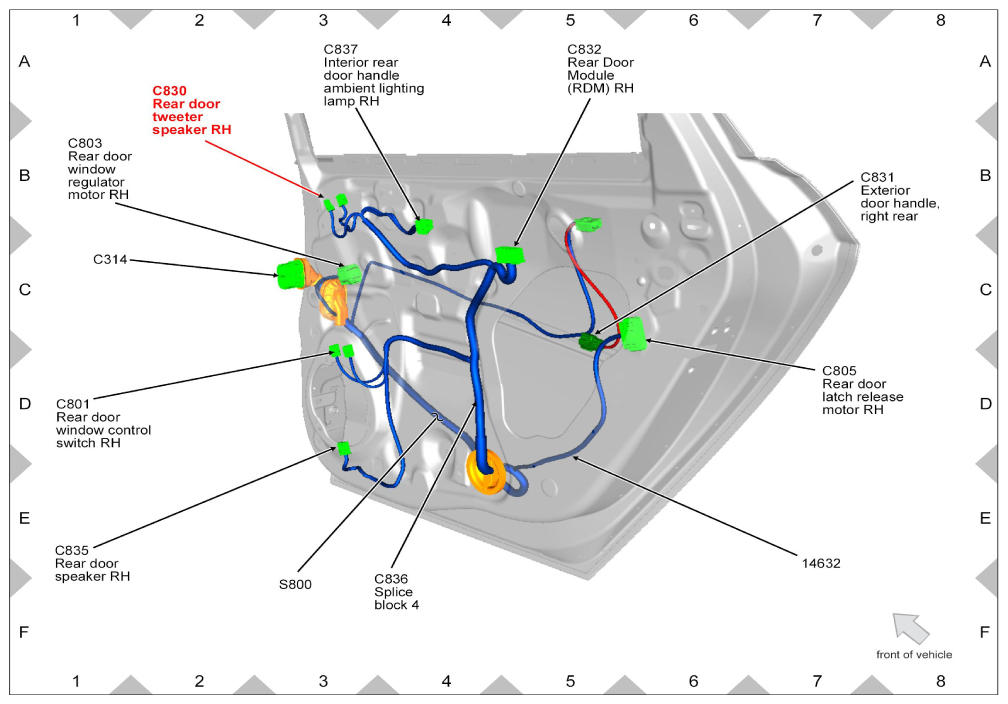

Fig 269: Identifying Connector C830 Rear Door Tweeter Speaker RH (Fusion)

Courtesy of FORD MOTOR CO.

Fig 270: Identifying Connector C830 Rear Door Tweeter Speaker RH (MKZ)

Courtesy of FORD MOTOR CO.

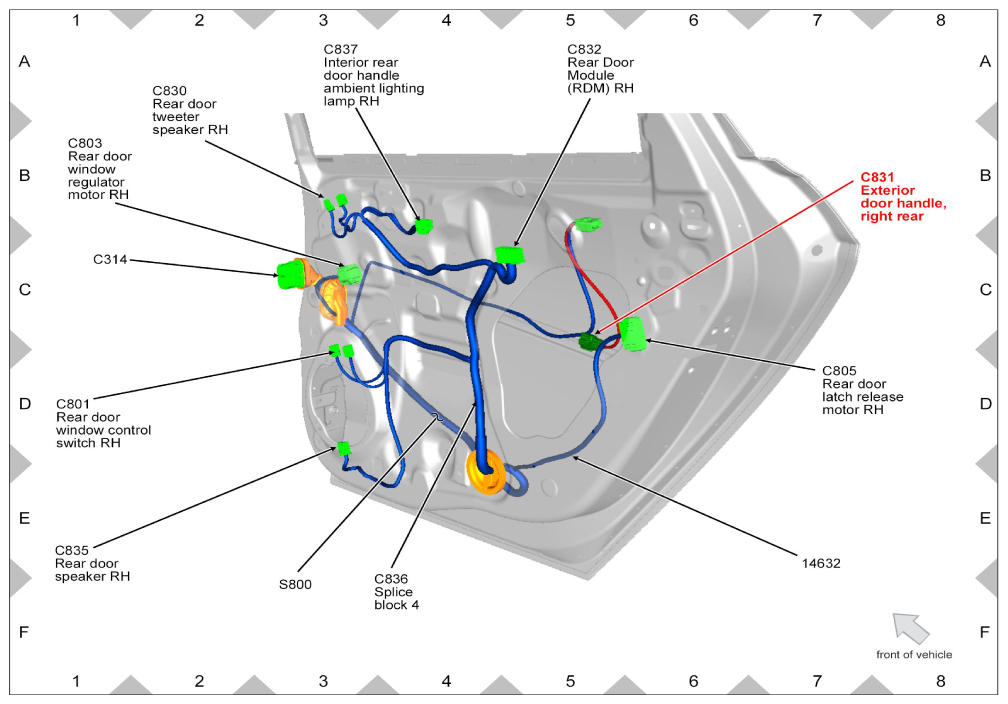

Fig 271: Identifying Connector C831 Exterior Door Handle, Right Rear (Fusion)

Courtesy of FORD MOTOR CO.

Fig 272: Identifying Connector C831 Exterior Door Handle, Right Rear (MKZ)

Courtesy of FORD MOTOR CO.

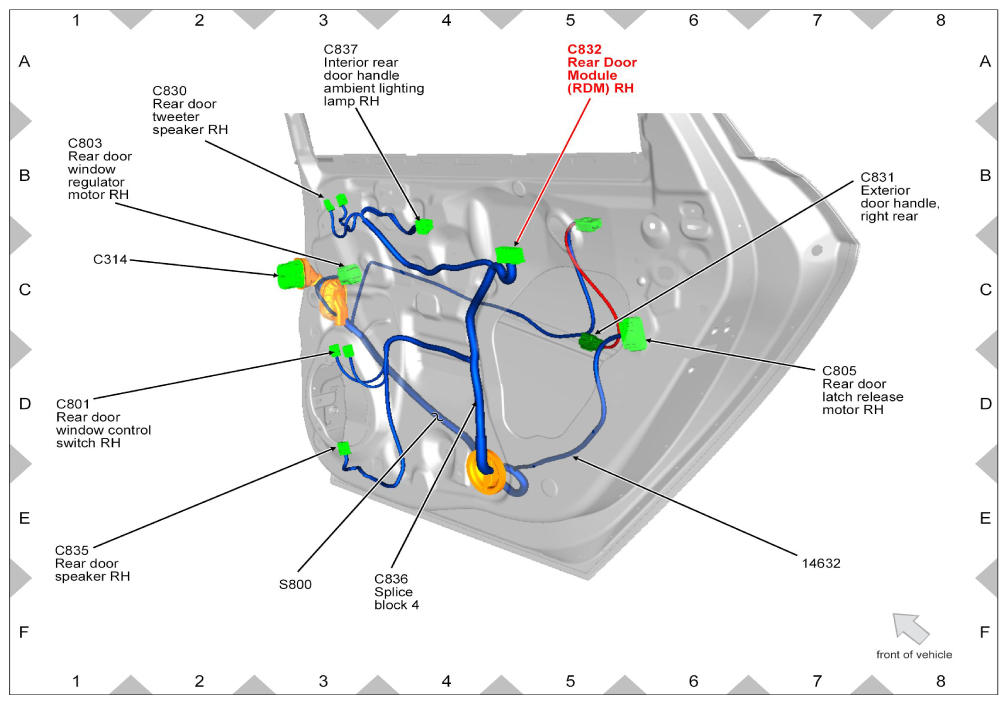

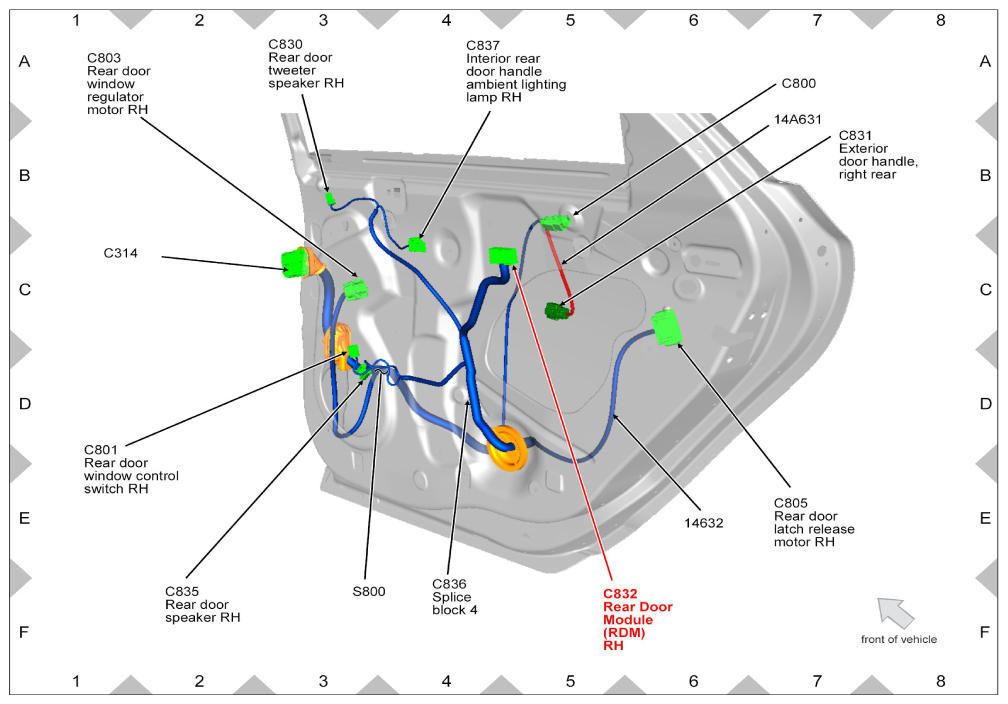

Fig 273: Identifying Connector C832 Rear Door Module (RDM) RH (Fusion)

Courtesy of FORD MOTOR CO.

Fig 274: Identifying Connector C832 Rear Door Module (RDM) RH (MKZ)

Courtesy of FORD MOTOR CO.

Fig 275: Identifying Connector C835 Rear Door Speaker RH (Fusion)

Courtesy of FORD MOTOR CO.

Fig 276: Identifying Connector C835 Rear Door Speaker RH (MKZ)

Courtesy of FORD MOTOR CO.

Fig 277: Identifying Connector C836 Splice Block 4 (Fusion)

Courtesy of FORD MOTOR CO.

Fig 278: Identifying Connector C836 Splice Block 4 (MKZ)

Courtesy of FORD MOTOR CO.

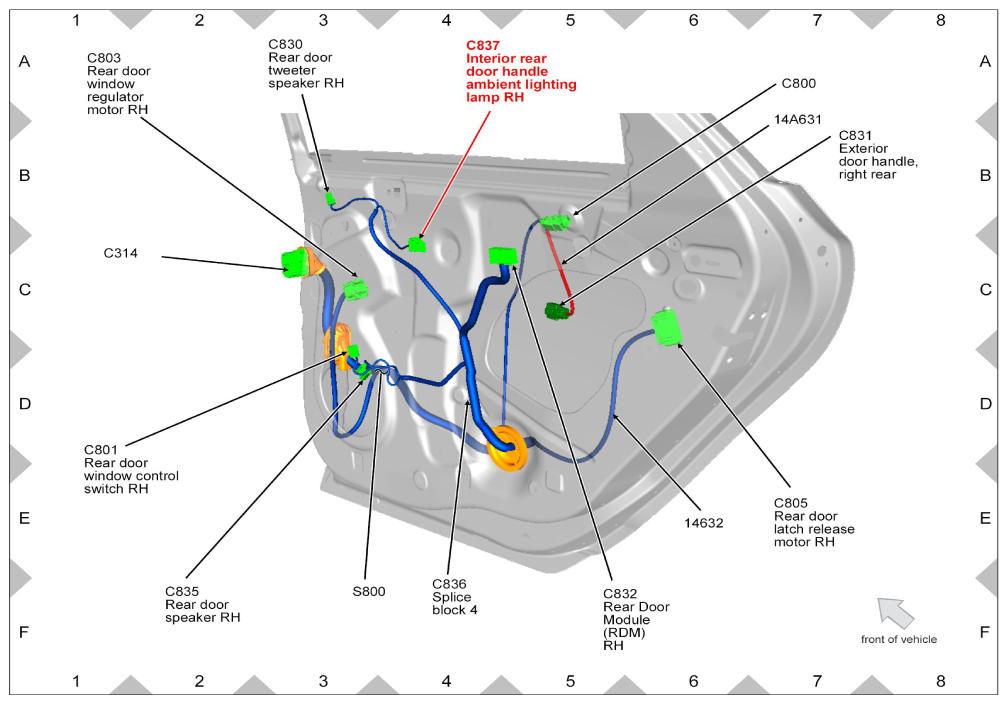

Fig 279: Identifying Connector C837 Interior Rear Door Handle Ambient Lighting Lamp RH (Fusion)

Courtesy of FORD MOTOR CO.

Fig 280: Identifying Connector C837 Interior Rear Door Handle Ambient Lighting Lamp RH (MKZ)

Courtesy of FORD MOTOR CO.

Fig 281: Identifying Connector C900

Courtesy of FORD MOTOR CO.

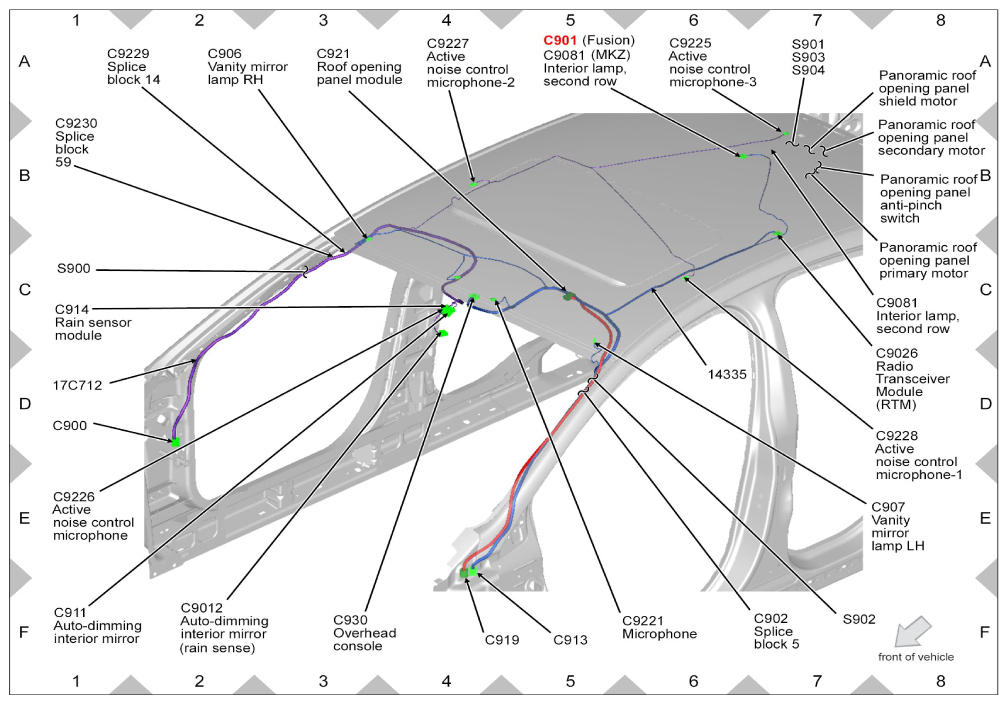

Fig 282: Identifying Connector C901

Courtesy of FORD MOTOR CO.

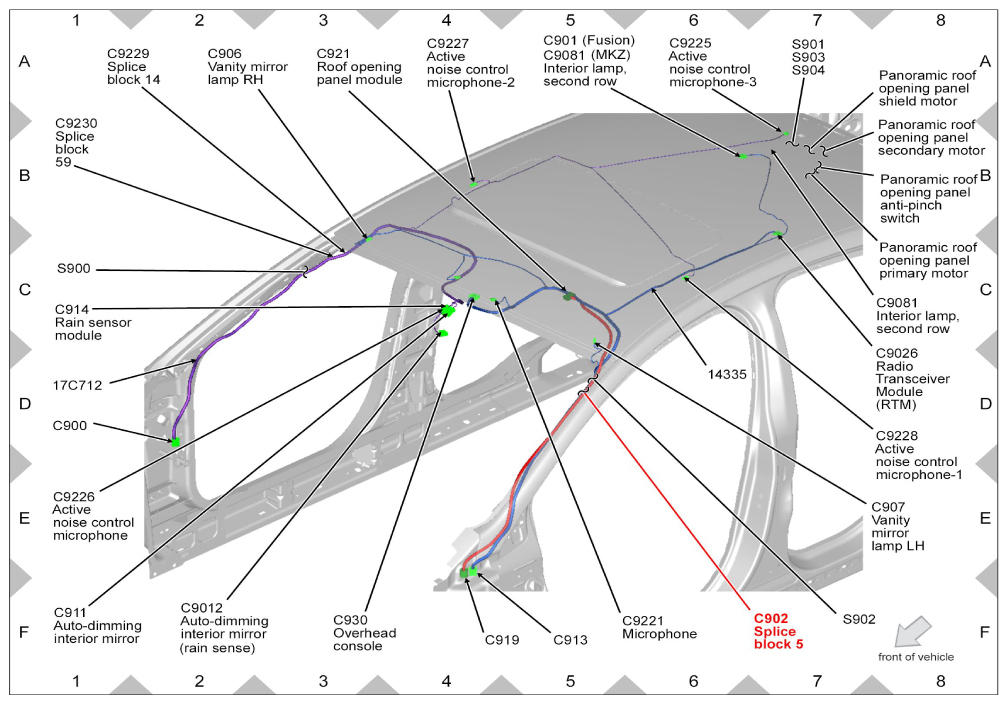

Fig 283: Identifying Connector C902 Splice Block 5

Courtesy of FORD MOTOR CO.

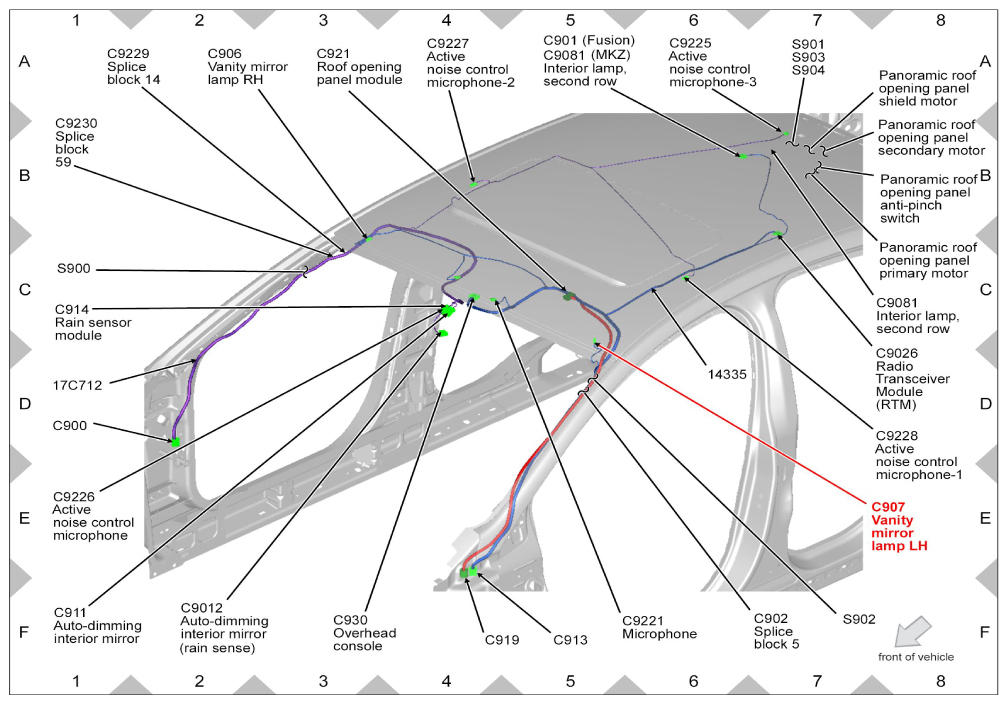

Fig 284: Identifying Connector C906 Vanity Mirror Lamp RH

Courtesy of FORD MOTOR CO.

Fig 285: Identifying Connector C907 Vanity Mirror Lamp LH

Courtesy of FORD MOTOR CO.

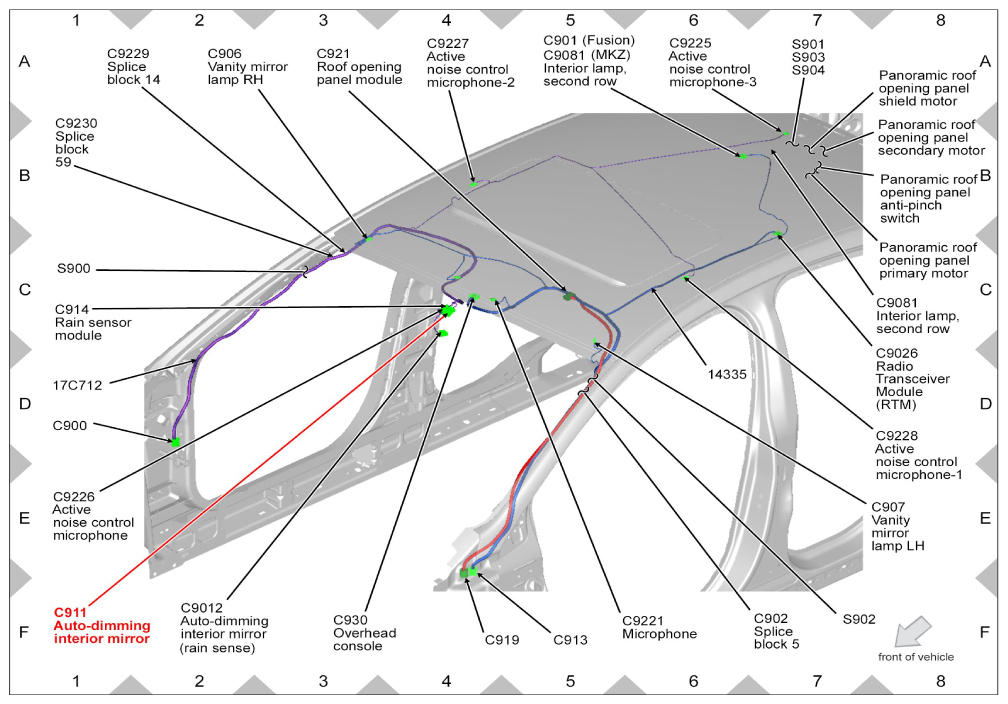

Fig 286: Identifying Connector C911 Auto-Dimming Interior Mirror

Courtesy of FORD MOTOR CO.

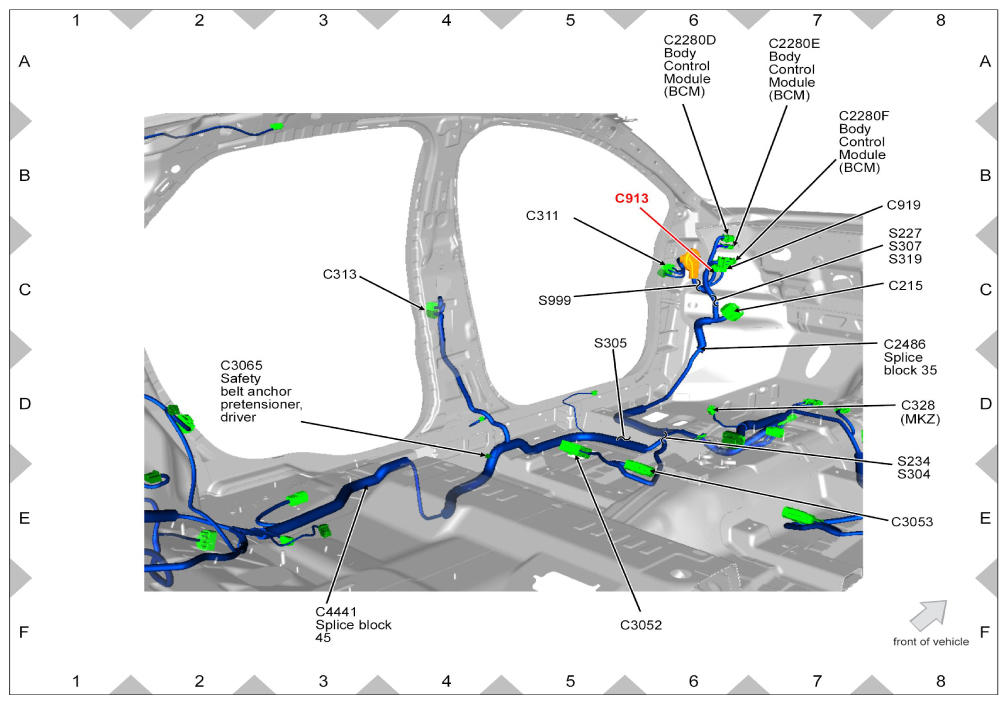

Fig 287: Identifying Connector C913

Courtesy of FORD MOTOR CO.

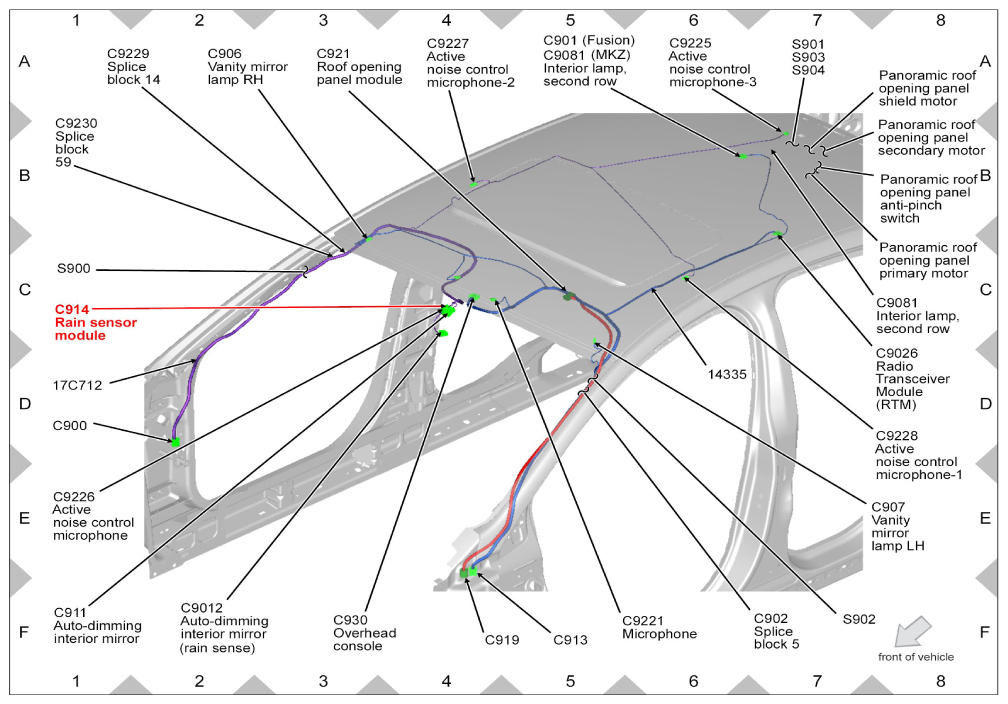

Fig 288: Identifying Connector C914 Rain Sensor Module

Courtesy of FORD MOTOR CO.

Fig 289: Identifying Connector C919

Courtesy of FORD MOTOR CO.

Fig 290: Identifying Connector C921 Roof Opening Panel Module

Courtesy of FORD MOTOR CO.

Fig 291: Identifying Connector C922

Courtesy of FORD MOTOR CO.

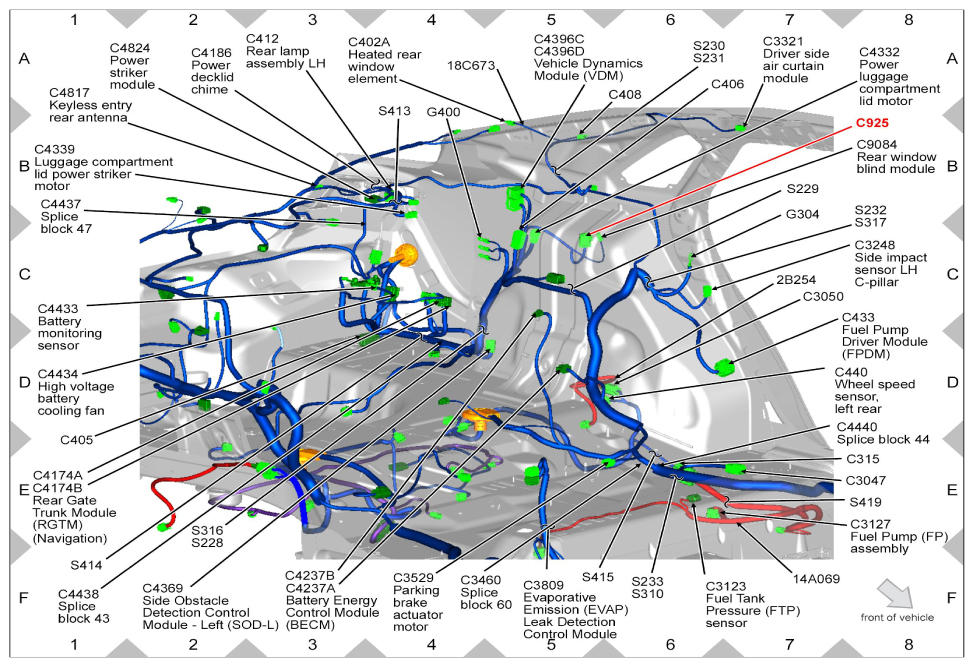

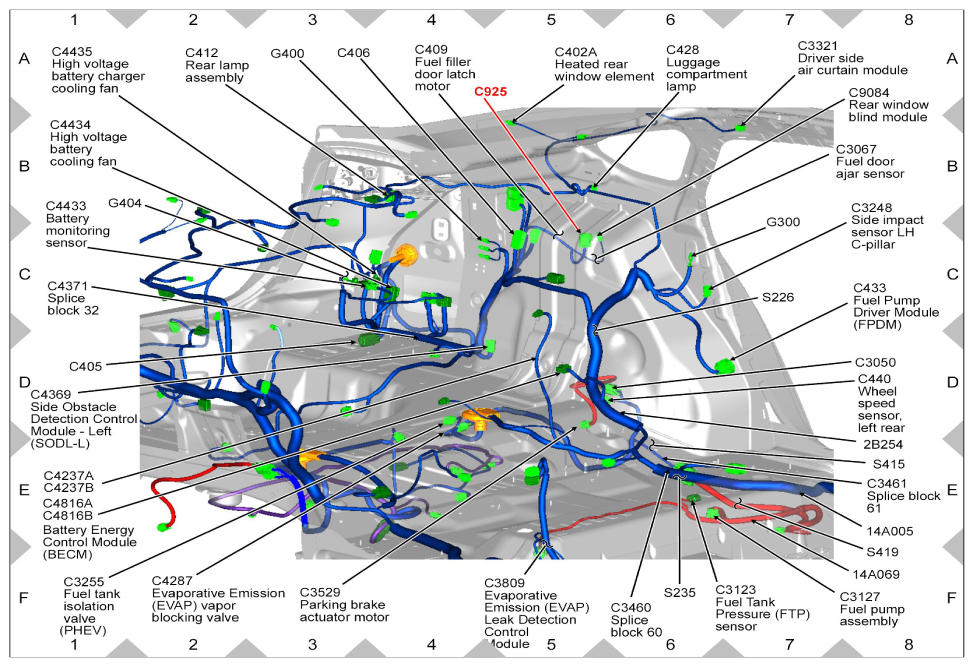

Fig 292: Identifying Connector C925

Courtesy of FORD MOTOR CO.

Fig 293: Identifying Connector C925

Courtesy of FORD MOTOR CO.

Fig 294: Identifying Connector C930 Overhead Console

Courtesy of FORD MOTOR CO.

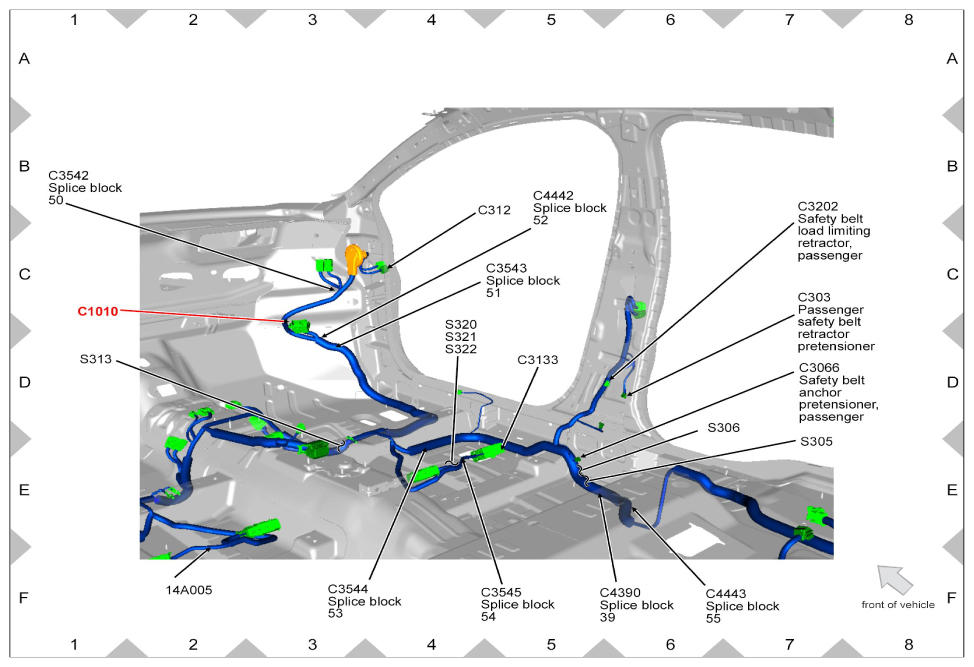

Fig 295: Identifying Connector C1010

Courtesy of FORD MOTOR CO.

Fig 296: Identifying Connector C1023 Park/Turn Lamp, Left Front

Courtesy of FORD MOTOR CO.

Fig 297: Identifying Connector C1026

Courtesy of FORD MOTOR CO.

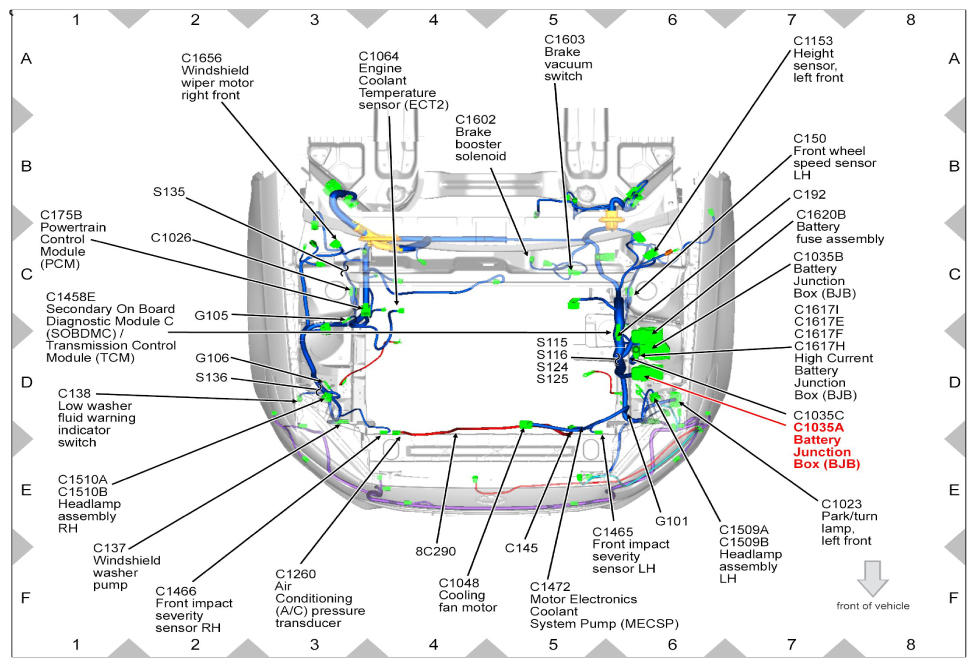

Fig 298: Identifying Connector C1035A Battery Junction Box (BJB)

Courtesy of FORD MOTOR CO.

Fig 299: Identifying Connector C1035B Battery Junction Box (BJB)

Courtesy of FORD MOTOR CO.

Fig 300: Identifying Connector C1035C

Courtesy of FORD MOTOR CO.

Fig 301: Identifying Connector C1043 Park/Turn Lamp, Right Front

Courtesy of FORD MOTOR CO.

Fig 302: Identifying Connector C1048 Cooling Fan Motor

Courtesy of FORD MOTOR CO.

Fig 303: Identifying Connector C1064 Engine Coolant Temperature (ECT2) Sensor

Courtesy of FORD MOTOR CO.

Fig 304: Identifying Connector C1064 Engine Coolant Temperature (ECT2) Sensor (PHEV)

Courtesy of FORD MOTOR CO.

Fig 305: Identifying Connector C1101 Horn Left

Courtesy of FORD MOTOR CO.

Fig 306: Identifying Connector C1102 Horn Right

Courtesy of FORD MOTOR CO.

Fig 307: Identifying Connector C1140 Manifold Absolute Pressure (MAP) Sensor

Courtesy of FORD MOTOR CO.

Fig 308: Identifying Connector C1151 Height Sensor Right Front

Courtesy of FORD MOTOR CO.

Fig 309: Identifying Connector C1153 Height Sensor, Left Front

Courtesy of FORD MOTOR CO.

Fig 310: Identifying Connector C1160 EGR Stepper Motor

Courtesy of FORD MOTOR CO.

Fig 311: Identifying Connector C1164 Cylinder Head Temperature (CHT) Sensor

Courtesy of FORD MOTOR CO.

Fig 312: Identifying Connector C1196 Ignition Transformer Capacitor

Courtesy of FORD MOTOR CO.

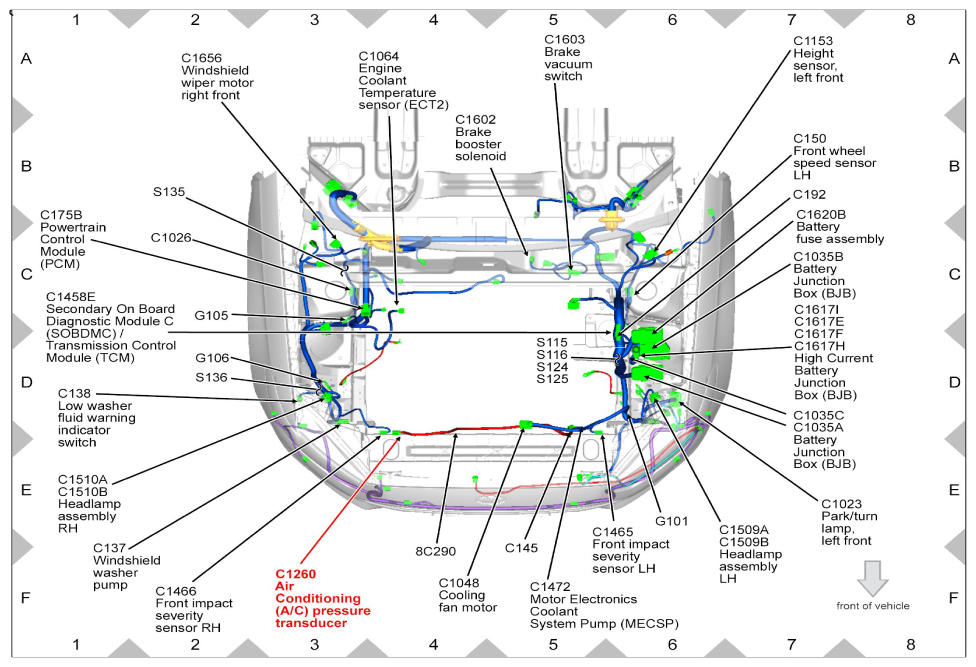

Fig 313: Identifying Connector C1260 Air Conditioning (A/C) Pressure Transducer

Courtesy of FORD MOTOR CO.

Fig 314: Identifying Connector C1339 Crankshaft Position (CKP) Sensor

Courtesy of FORD MOTOR CO.

Fig 315: Identifying Connector C1428 Front Outer Parking Aid Sensor LH

Courtesy of FORD MOTOR CO.

Fig 316: Identifying Connector C1429 Front Inner Parking Aid Sensor LH

Courtesy of FORD MOTOR CO.

Fig 317: Identifying Connector C1430 Front Inner Parking Aid Sensor RH

Courtesy of FORD MOTOR CO.

Fig 318: Identifying Connector C1431 Front Outer Parking Aid Sensor RH

Courtesy of FORD MOTOR CO.

Fig 319: Identifying Connector C1449 Electronic Throttle Control (ETC)

Courtesy of FORD MOTOR CO.

Fig 320: Identifying Connector C1458A And C1458B Secondary On Board Diagnostic Module C (SOBDMC)/Transmission Control Module (TCM)

Courtesy of FORD MOTOR CO.

Fig 321: Identifying Connector C1458A And C1458B Secondary On Board Diagnostic Module C (SOBDMC)/Transmission Control Module (TCM)

Courtesy of FORD MOTOR CO.

Fig 322: Identifying Connector C1458C

Courtesy of FORD MOTOR CO.

Fig 323: Identifying Connector C1458D Secondary On Board Diagnostic Module C (SOBDMC)/Transmission Control Module (TCM)

Courtesy of FORD MOTOR CO.

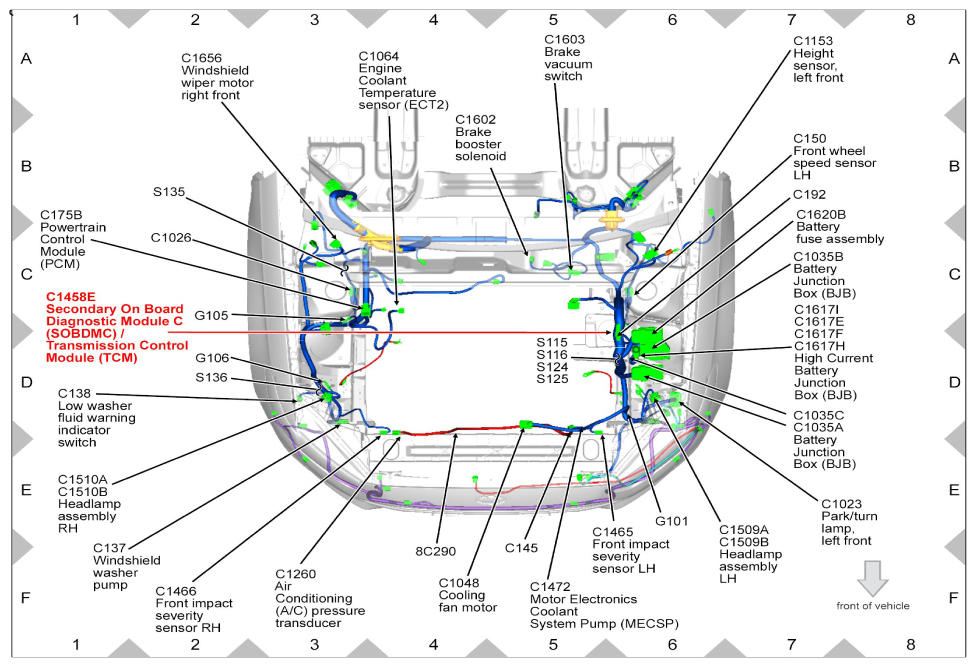

Fig 324: Identifying Connector C1458E Secondary On Board Diagnostic Module C (SOBDMC)/Transmission Control Module (TCM)

Courtesy of FORD MOTOR CO.

Fig 325: Identifying Connector C1458F

Courtesy of FORD MOTOR CO.

Fig 326: Identifying Connector C1463A Power Steering Control Module (PSCM)

Courtesy of FORD MOTOR CO.

Fig 327: Identifying Connector C1463B

Courtesy of FORD MOTOR CO.

Fig 328: Identifying Connector C1465 Front Impact Severity Sensor, LH Front

Courtesy of FORD MOTOR CO.

Fig 329: Identifying Connector C1466 Front Impact Severity Sensor, RH Front

Courtesy of FORD MOTOR CO.

Fig 330: Identifying Connector C1472 Motor Electronics Coolant System Pump (MECSP)

Courtesy of FORD MOTOR CO.

Fig 331: Identifying Connector C1509 Headlamp Assembly, LH

Courtesy of FORD MOTOR CO.

Fig 332: Identifying Connector C1509A And C1509B Headlamp Assembly, LH

Courtesy of FORD MOTOR CO.

Fig 333: Identifying Connector C1509A And C1509B Headlamp Assembly, LH

Courtesy of FORD MOTOR CO.

Fig 334: Identifying Connector C1510 Headlamp Assembly, RH

Courtesy of FORD MOTOR CO.

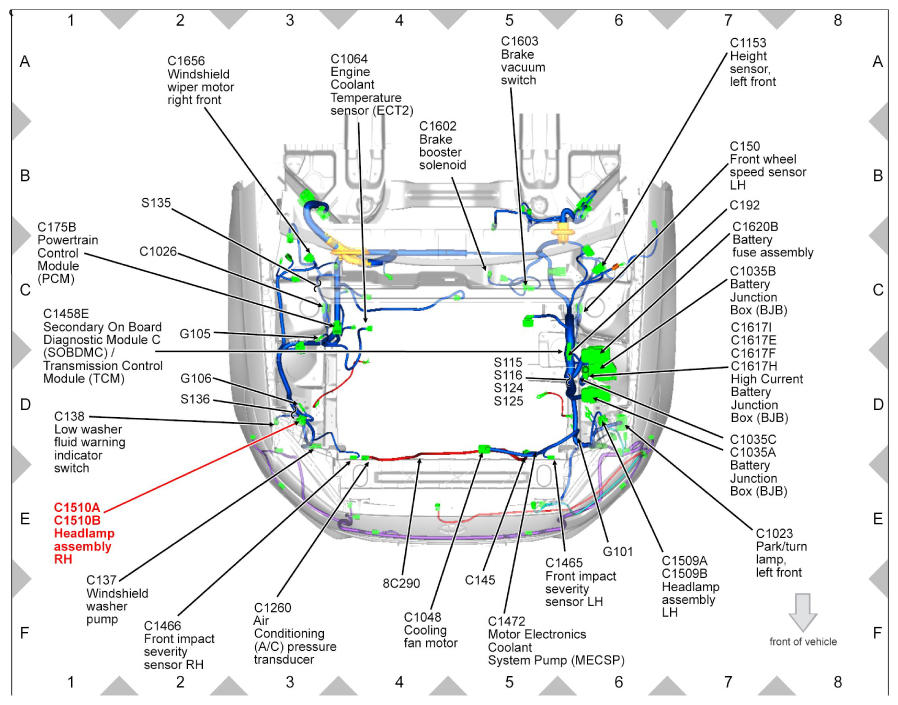

Fig 335: Identifying Connector C1510A And C1510B Headlamp Assembly RH

Courtesy of FORD MOTOR CO.

Fig 336: Identifying Connector C1510A And C1510B Headlamp Assembly RH

Courtesy of FORD MOTOR CO.

Fig 337: Identifying Connector C1560 Brake Vacuum Pump

Courtesy of FORD MOTOR CO.

Fig 338: Identifying Connector C1582 Proximity Warning Radar Unit

Courtesy of FORD MOTOR CO.

Fig 339: Identifying Connector C1602 Brake Booster Solenoid

Courtesy of FORD MOTOR CO.

Fig 340: Identifying Connector C1603 Brake Vacuum Switch

Courtesy of FORD MOTOR CO.

Fig 341: Identifying Connector C1607 Front Active Park Assist Sensor LH

Courtesy of FORD MOTOR CO.

Fig 342: Identifying Connector C1608 Front Active Park Assist Sensor RH

Courtesy of FORD MOTOR CO.

Fig 343: Identifying Connector C1617A, C1617B And C1617C

Courtesy of FORD MOTOR CO.

Fig 344: Identifying Connector C1617A, C1617B And C1617C

Courtesy of FORD MOTOR CO.

Fig 345: Identifying Connector C1617A, C1617B And C1617C

Courtesy of FORD MOTOR CO.

Fig 346: Identifying Connector C1617I, C1617E, C1617F, C1617H High Current Battery Junction Box (BJB)

Courtesy of FORD MOTOR CO.

Fig 347: Identifying Connector C1617I, C1617E, C1617F, C1617H High Current Battery Junction Box (BJB)

Courtesy of FORD MOTOR CO.

Fig 348: Identifying Connector C1617I, C1617E, C1617F, C1617H High Current Battery Junction Box (BJB)

Courtesy of FORD MOTOR CO.

Fig 349: Identifying Connector C1617I, C1617E, C1617F, C1617H High Current Battery Junction Box (BJB)

Courtesy of FORD MOTOR CO.

Fig 350: Identifying Connector C1617K High Current Battery Junction Box (BJB)

Courtesy of FORD MOTOR CO.

Fig 351: Identifying Connector C1620B Battery Fuse Assembly

Courtesy of FORD MOTOR CO.

Fig 352: Identifying Connector C1631 Universal Heated Oxygen Sensor (H2OS) #11

Courtesy of FORD MOTOR CO.

Fig 353: Identifying Connector C1648 Variable Camshaft Timing 11 (VCT11) Solenoid

Courtesy of FORD MOTOR CO.

Fig 354: Identifying Connector C1651 Active Grille Shutter

Courtesy of FORD MOTOR CO.

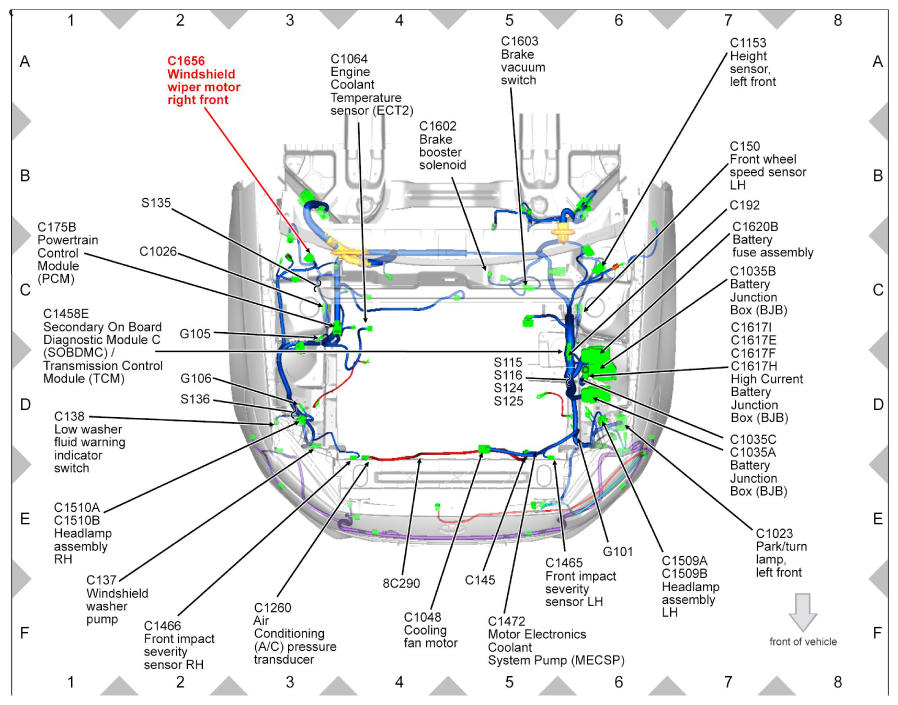

Fig 355: Identifying Connector C1655 Windshield Wiper Motor, Left Front

Courtesy of FORD MOTOR CO.

Fig 356: Identifying Connector C1656 Windshield Wiper Motor Right Front

Courtesy of FORD MOTOR CO.

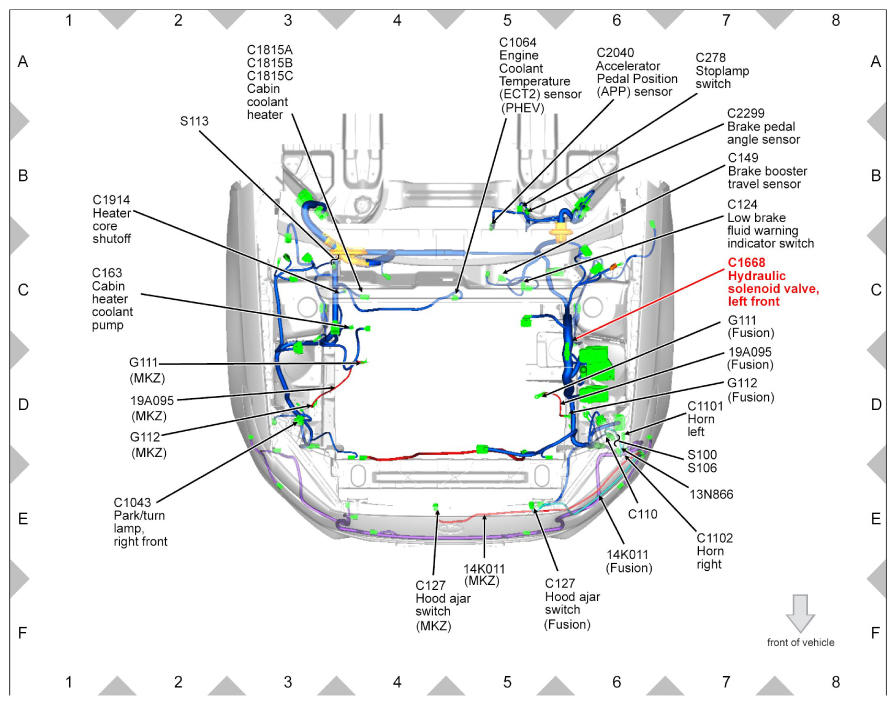

Fig 357: Identifying Connector C1668 Hydraulic Solenoid Valve, Left Front

Courtesy of FORD MOTOR CO.

Fig 358: Identifying Connector C1669 Hydraulic Solenoid Valve Right Front

Courtesy of FORD MOTOR CO.

Fig 359: Identifying Connector C1693 Transmission Range Control Module (TRCM)

Courtesy of FORD MOTOR CO.

Fig 360: Identifying Connector C1717 Transmission Fluid Pump

Courtesy of FORD MOTOR CO.

Fig 361: Identifying Connector C1730 Coil On Plug (COP) 1

Courtesy of FORD MOTOR CO.

Fig 362: Identifying Connector C1731 Coil On Plug (COP) 2

Courtesy of FORD MOTOR CO.

Fig 363: Identifying Connector C1732 Coil On Plug (COP) 3

Courtesy of FORD MOTOR CO.

Fig 364: Identifying Connector C1733 Coil On Plug (COP) 4

Courtesy of FORD MOTOR CO.

Fig 365: Identifying Connector C1806 Charge Port Light Ring

Courtesy of FORD MOTOR CO.

Fig 366: Identifying Connector C1807 Charge Port

Courtesy of FORD MOTOR CO.

Fig 367: Identifying Connector C1812 Electric Motor Coolant Pump

Courtesy of FORD MOTOR CO.

Fig 368: Identifying Connector C1815A, C1815B, C1815C Cabin Coolant Heater

Courtesy of FORD MOTOR CO.

Fig 369: Identifying Connector C1815A, C1815B, C1815C Cabin Coolant Heater

Courtesy of FORD MOTOR CO.

Fig 370: Identifying Connector C1815A, C1815B, C1815C Cabin Coolant Heater

Courtesy of FORD MOTOR CO.

Fig 371: Identifying Connector C1824

Courtesy of FORD MOTOR CO.

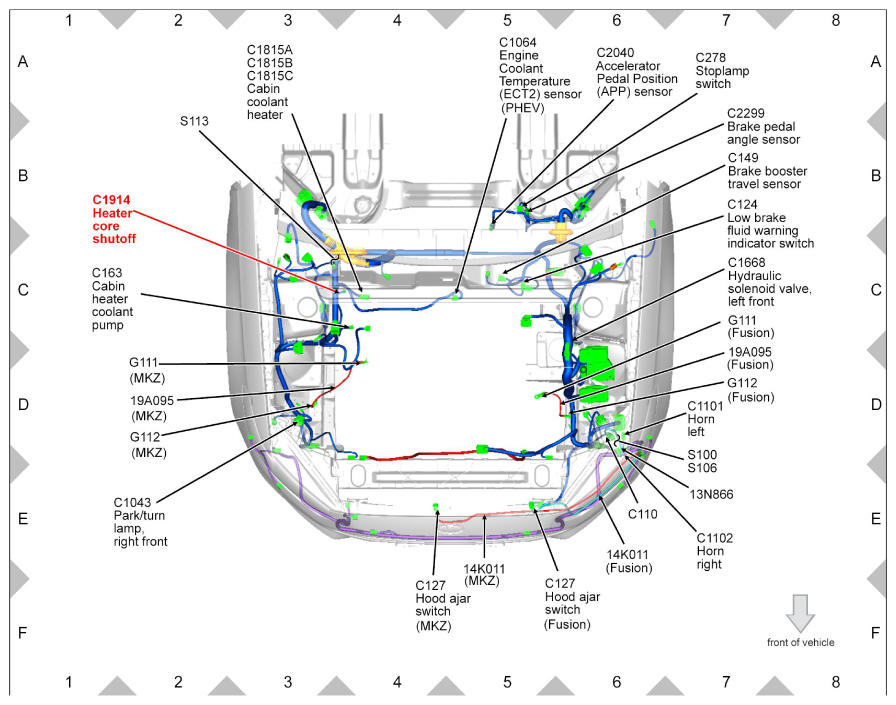

Fig 372: Identifying Connector C1914 Heater Core Shutoff

Courtesy of FORD MOTOR CO.

Fig 373: Identifying Connector C2004 Blower Motor

Courtesy of FORD MOTOR CO.

Fig 374: Identifying Connector C2015 Parking Brake Switch

Courtesy of FORD MOTOR CO.

Fig 375: Identifying Connector C2040 Accelerator Pedal Position (APP) Sensor

Courtesy of FORD MOTOR CO.

Fig 376: Identifying Connector C2091 Driver Temperature Door Actuator

Courtesy of FORD MOTOR CO.

Fig 377: Identifying Connector C2092 Passenger Temperature Door Actuator

Courtesy of FORD MOTOR CO.

Fig 378: Identifying Connector C2099 Passenger Airbag Deactivation (PAD) Switch

Courtesy of FORD MOTOR CO.

Fig 379: Identifying Connector C2114 Instrument Panel Console Switch Assembly

Courtesy of FORD MOTOR CO.

Fig 380: Identifying Connector C2123 Front Control/Display Interface Module (FCDIM)

Courtesy of FORD MOTOR CO.

Fig 381: Identifying Connector C2129 Headlamp Control Module (HCM)

Courtesy of FORD MOTOR CO.

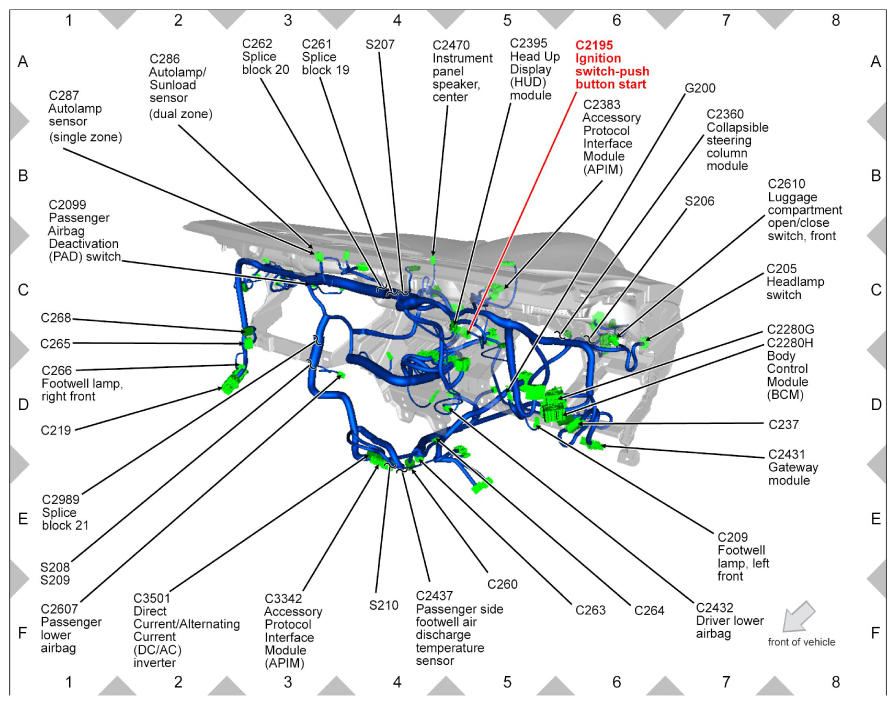

Fig 382: Identifying Connector C2195 Ignition Switch-Push Button Start

Courtesy of FORD MOTOR CO.

Fig 383: Identifying Connector C2198 Splice Block 24

Courtesy of FORD MOTOR CO.

Fig 384: Identifying Connector C2199 Splice Block 25

Courtesy of FORD MOTOR CO.

Fig 385: Identifying Connector C2200 Splice Block 26

Courtesy of FORD MOTOR CO.

Fig 386: Identifying Connector C2251 Air Conditioning Control Module (ACCM)

Courtesy of FORD MOTOR CO.

Fig 387: Identifying Connector C2280A, C2280B, C2280C Body Control Module (BCM)

Courtesy of FORD MOTOR CO.

Fig 388: Identifying Connector C2280A, C2280B, C2280C Body Control Module (BCM)

Courtesy of FORD MOTOR CO.

Fig 389: Identifying Connector C2280A, C2280B, C2280C Body Control Module (BCM)

Courtesy of FORD MOTOR CO.

Fig 390: Identifying Connector C2280D Body Control Module (BCM)

Courtesy of FORD MOTOR CO.

Fig 391: Identifying Connector C2280E Body Control Module (BCM)

Courtesy of FORD MOTOR CO.

Fig 392: Identifying Connector C2280F Body Control Module (BCM)

Courtesy of FORD MOTOR CO.

Fig 393: Identifying Connector C2280G (Fusion)

Courtesy of FORD MOTOR CO.

Fig 394: Identifying Connector C2280G (MKZ)

Courtesy of FORD MOTOR CO.

Fig 395: Identifying Connector C2280H Body Control Module (BCM) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 396: Identifying Connector C2280H Body Control Module (BCM) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 397: Identifying Connector C2299 Brake Pedal Angle Sensor

Courtesy of FORD MOTOR CO.

Fig 398: Identifying Connector C2360 Collapsible Steering Column Module (Fusion)

Courtesy of FORD MOTOR CO.

Fig 399: Identifying Connector C2360 Collapsible Steering Column Module (MKZ)

Courtesy of FORD MOTOR CO.

Fig 400: Identifying Connector C2365 Splice Block 27

Courtesy of FORD MOTOR CO.

Fig 401: Identifying Connector C2366 Steering Wheel Switch, LH Lower

Courtesy of FORD MOTOR CO.

Fig 402: Identifying Connector C2367 Steering Wheel Switch, RH Lower

Courtesy of FORD MOTOR CO.

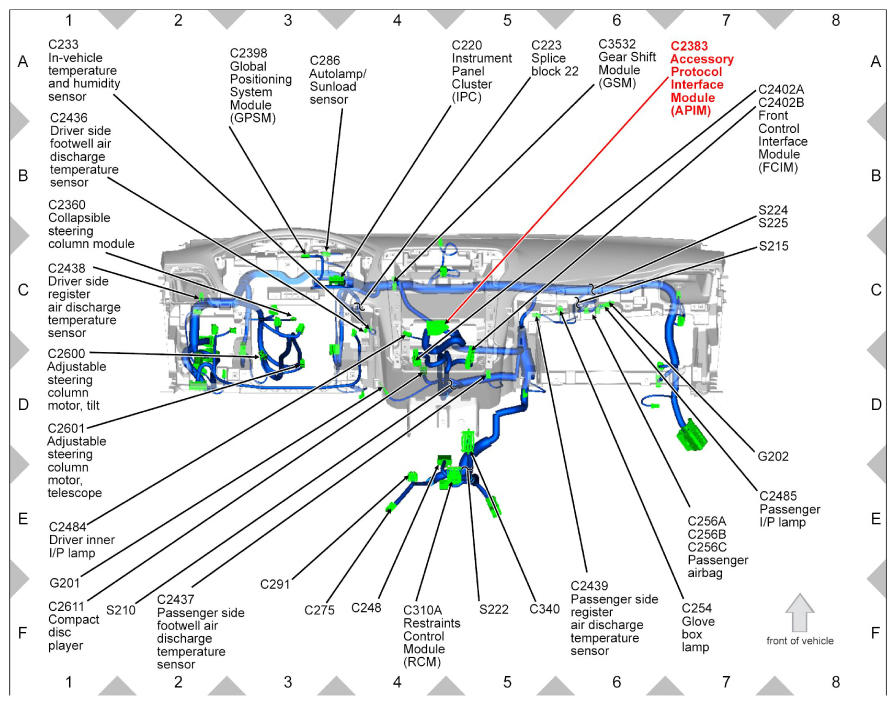

Fig 403: Identifying Connector C2383 Accessory Protocol Interface Module (APIM) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 404: Identifying Connector C2383 Accessory Protocol Interface Module (APIM) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 405: Identifying Connector C2395 Head Up Display (HUD) Module (Fusion)

Courtesy of FORD MOTOR CO.

Fig 406: Identifying Connector C2395 Head Up Display (HUD) Module (MKZ)

Courtesy of FORD MOTOR CO.

Fig 407: Identifying Connector C2398 Global Positioning System Module (GPSM) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 408: Identifying Connector C2398 Global Positioning System Module (GPSM) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 409: Identifying Connector C2402A (Fusion)

Courtesy of FORD MOTOR CO.

Fig 410: Identifying Connector C2402A (MKZ)

Courtesy of FORD MOTOR CO.

Fig 411: Identifying Connector C2402B Front Control Interface Module (FCIM) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 412: Identifying Connector C2402B Front Control Interface Module (FCIM) (MKZ)

Courtesy of FORD MOTOR CO.

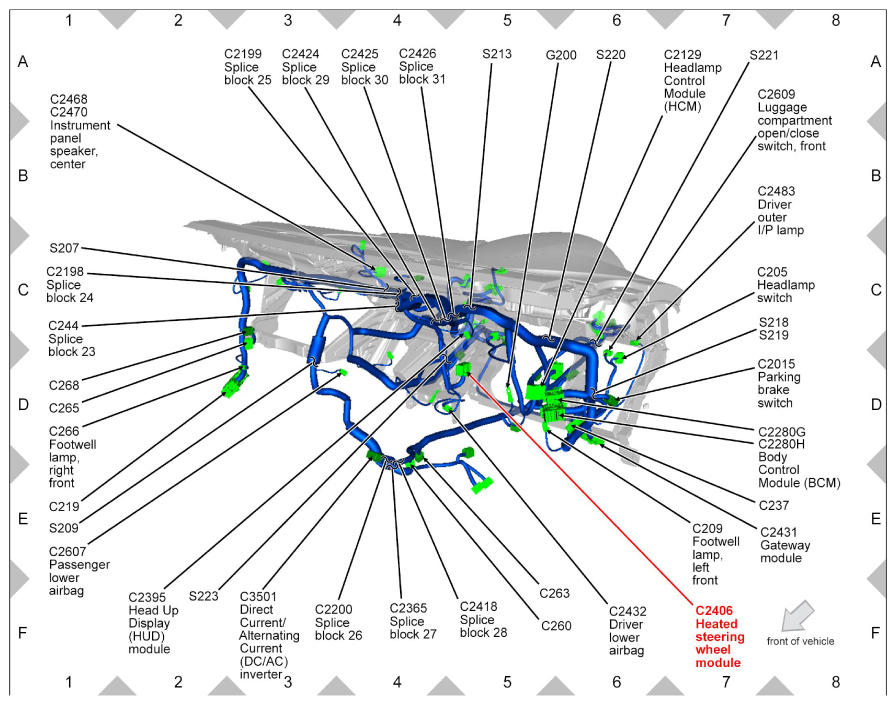

Fig 413: Identifying Connector C2406 Heated Steering Wheel Module

Courtesy of FORD MOTOR CO.

Fig 414: Identifying Connector C2414A (Fusion)

Courtesy of FORD MOTOR CO.

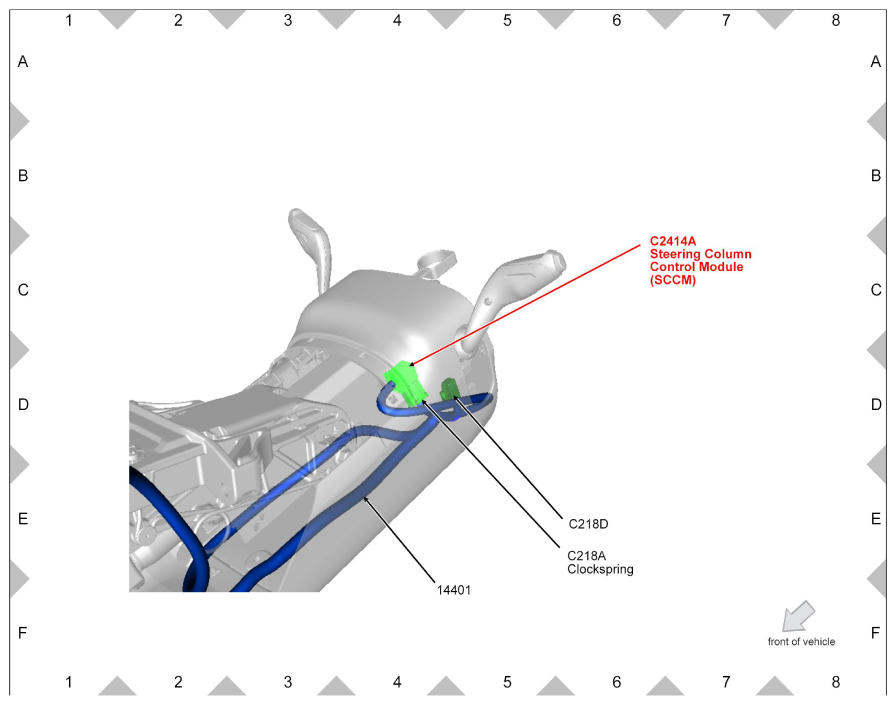

Fig 415: Identifying Connector C2414A Steering Column Control Module (SCCM) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 416: Identifying Connector C2414D Steering Column Control Module (SCCM)

Courtesy of FORD MOTOR CO.

Fig 417: Identifying Connector C2418 Splice Block 28

Courtesy of FORD MOTOR CO.

Fig 418: Identifying Connector C2424 Splice Block 29

Courtesy of FORD MOTOR CO.

Fig 419: Identifying Connector C2425 Splice Block 30

Courtesy of FORD MOTOR CO.

Fig 420: Identifying Connector C2426 Splice Block 31

Courtesy of FORD MOTOR CO.

Fig 421: Identifying Connector C2431 Gateway Module (Fusion)

Courtesy of FORD MOTOR CO.

Fig 422: Identifying Connector C2431 Gateway Module (MKZ)

Courtesy of FORD MOTOR CO.

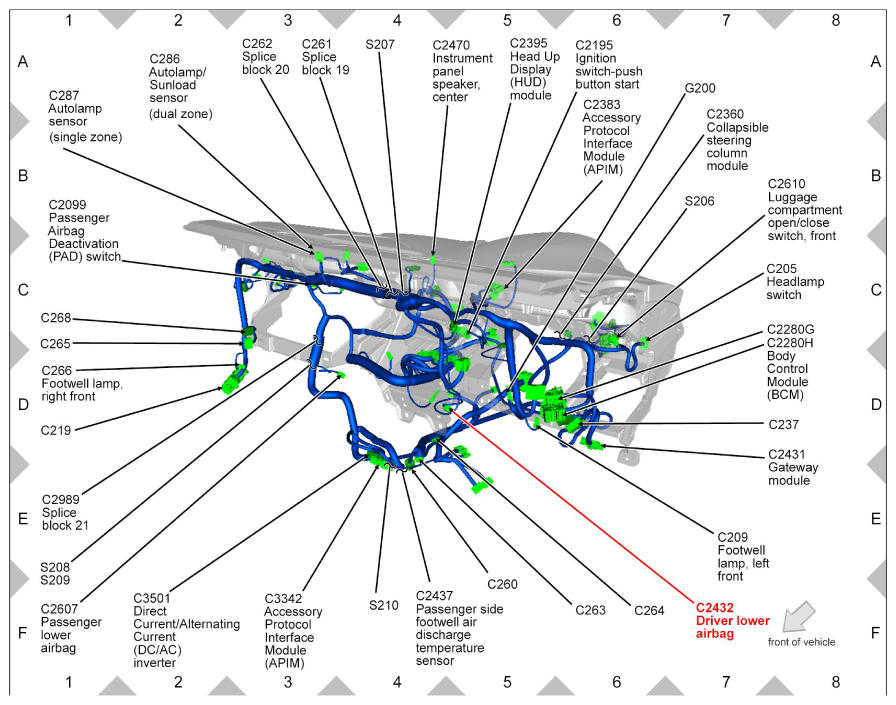

Fig 423: Identifying Connector C2432 Driver Lower Airbag (Fusion)

Courtesy of FORD MOTOR CO.

Fig 424: Identifying Connector C2432 Driver Lower Airbag (MKZ)

Courtesy of FORD MOTOR CO.

Fig 425: Identifying Connector C2436 Driver Side Footwell Air Discharge Temperature Sensor (Fusion)

Courtesy of FORD MOTOR CO.

Fig 426: Identifying Connector C2436 Driver Side Footwell Air Discharge Temperature Sensor (MKZ)

Courtesy of FORD MOTOR CO.

Fig 427: Identifying Connector C2437 Passenger Side Footwell Air Discharge Temperature Sensor (Fusion)

Courtesy of FORD MOTOR CO.

Fig 428: Identifying Connector C2437 Passenger Side Footwell Air Discharge Temperature Sensor (MKZ)

Courtesy of FORD MOTOR CO.

Fig 429: Identifying Connector C2438 Driver Side Register Air Discharge Temperature Sensor (Fusion)

Courtesy of FORD MOTOR CO.

Fig 430: Identifying Connector C2438 Driver Side Register Air Discharge Temperature Sensor (MKZ)

Courtesy of FORD MOTOR CO.

Fig 431: Identifying Connector C2439 Passenger Side Register Air Discharge Temperature Sensor (Fusion)

Courtesy of FORD MOTOR CO.

Fig 432: Identifying Connector C2439 Passenger Side Register Air Discharge Temperature Sensor (MKZ)

Courtesy of FORD MOTOR CO.

Fig 433: Identifying Connector C2443 Splice Block 15

Courtesy of FORD MOTOR CO.

Fig 434: Identifying Connector C2444 Splice Block 16

Courtesy of FORD MOTOR CO.

Fig 435: Identifying Connector C2445 Splice Block 17

Courtesy of FORD MOTOR CO.

Fig 436: Identifying Connector C2446 Splice Block 6

Courtesy of FORD MOTOR CO.

Fig 437: Identifying Connector C2447 Splice Block 18

Courtesy of FORD MOTOR CO.

Fig 438: Identifying Connector C2468 And C2470 Instrument Panel Speaker, Center (MKZ)

Courtesy of FORD MOTOR CO.

Fig 439: Identifying Connector C2470 Instrument Panel Speaker, Center (Fusion)

Courtesy of FORD MOTOR CO.

Fig 440: Identifying Connector C2468 And C2470 Instrument Panel Speaker, Center (MKZ)

Courtesy of FORD MOTOR CO.

Fig 441: Identifying Connector C2480 Hazard Flasher Switch

Courtesy of FORD MOTOR CO.

Fig 442: Identifying Connector C2481 Splice Block 8

Courtesy of FORD MOTOR CO.

Fig 443: Identifying Connector C2482 Global Positioning System Module (GPSM)

Courtesy of FORD MOTOR CO.

Fig 444: Identifying Connector C2483 Driver Outer I/P Lamp

Courtesy of FORD MOTOR CO.

Fig 445: Identifying Connector C2484 Driver Inner I/P Lamp

Courtesy of FORD MOTOR CO.

Fig 446: Identifying Connector C2485 Passenger I/P Lamp

Courtesy of FORD MOTOR CO.

Fig 447: Identifying Connector C2486 Splice Block 35

Courtesy of FORD MOTOR CO.

Fig 448: Identifying Connector C2490 Steering Wheel Switch, Left

Courtesy of FORD MOTOR CO.

Fig 449: Identifying Connector C2491 Steering Wheel Switch, Right

Courtesy of FORD MOTOR CO.

Fig 450: Identifying Connector C2600 Adjustable Steering Column Motor, Tilt

Courtesy of FORD MOTOR CO.

Fig 451: Identifying Connector C2601 Adjustable Steering Column Motor, Telescope

Courtesy of FORD MOTOR CO.

Fig 452: Identifying Connector C2607 Passenger Lower Airbag (Fusion)

Courtesy of FORD MOTOR CO.

Fig 453: Identifying Connector C2607 Passenger Lower Airbag (MKZ)

Courtesy of FORD MOTOR CO.

Fig 454: Identifying Connector C2609 Luggage Compartment Open/Close Switch, Front

Courtesy of FORD MOTOR CO.

Fig 455: Identifying Connector C2610 Luggage Compartment Open/Close Switch, Front

Courtesy of FORD MOTOR CO.

Fig 456: Identifying Connector C2611 Compact Disc Player

Courtesy of FORD MOTOR CO.

Fig 457: Identifying Connector C2989 Splice Block 21

Courtesy of FORD MOTOR CO.

Fig 458: Identifying Connector C2998 Steering Wheel Switch, LH Upper

Courtesy of FORD MOTOR CO.

Fig 459: Identifying Connector C2999 Steering Wheel Switch, RH Upper

Courtesy of FORD MOTOR CO.

Fig 460: Identifying Connector C3034 Seat Backrest Blower Motor, Driver Side

Courtesy of FORD MOTOR CO.

Fig 461: Identifying Connector C3035 Seat Cushion Blower Motor, Driver Side

Courtesy of FORD MOTOR CO.

Fig 462: Identifying Connector C3039 Seat Backrest Blower Motor, Passenger Side

Courtesy of FORD MOTOR CO.

Fig 463: Identifying Connector C3040 Seat Cushion Blower Motor, Passenger Side

Courtesy of FORD MOTOR CO.

Fig 464: Identifying Connector C3047

Courtesy of FORD MOTOR CO.

Fig 465: Identifying Connector C3047 (MKZ)

Courtesy of FORD MOTOR CO.

Fig 466: Identifying Connector C3050 (Fusion)

Courtesy of FORD MOTOR CO.

Fig 467: Identifying Connector C3050 (MKZ)

Courtesy of FORD MOTOR CO.

Fig 468: Identifying Connector C3050 (MKZ)

Courtesy of FORD MOTOR CO.

Fig 469: Identifying Connector C3051 (Fusion)

Courtesy of FORD MOTOR CO.

Fig 470: Identifying Connector C3051 (MKZ)

Courtesy of FORD MOTOR CO.

Fig 471: Identifying Connector C3052

Courtesy of FORD MOTOR CO.

Fig 472: Identifying Connector C3053

Courtesy of FORD MOTOR CO.

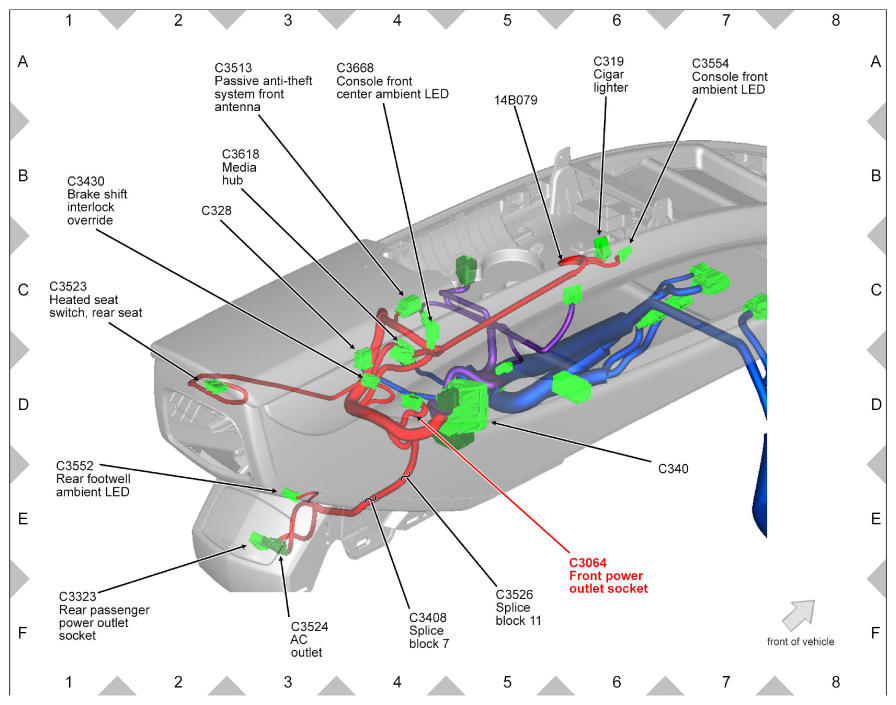

Fig 473: Identifying Connector C3064 Front Power Outlet Socket (Fusion)

Courtesy of FORD MOTOR CO.

Fig 474: Identifying Connector C3064 Front Power Outlet Socket (MKZ)

Courtesy of FORD MOTOR CO.

Fig 475: Identifying Connector C3065 Safety Belt Anchor Pretensioner, Driver

Courtesy of FORD MOTOR CO.

Fig 476: Identifying Connector C3066 Safety Belt Anchor Pretensioner, Passenger

Courtesy of FORD MOTOR CO.

Fig 477: Identifying Connector C3067 Fuel Door Ajar Sensor

Courtesy of FORD MOTOR CO.

Fig 478: Identifying Connector C3074 Passenger Seat Front Height Motor

Courtesy of FORD MOTOR CO.

Fig 479: Identifying Connector C3123 Fuel Tank Pressure (FTP) Sensor (Fusion)

Courtesy of FORD MOTOR CO.

Fig 480: Identifying Connector C3123 Fuel Tank Pressure (FTP) Sensor (MKZ)

Courtesy of FORD MOTOR CO.

Fig 481: Identifying Connector C3127 Fuel Pump Assembly (Fusion)

Courtesy of FORD MOTOR CO.

Fig 482: Identifying Connector C3127 Fuel Pump (FP) Assembly (MKZ)

Courtesy of FORD MOTOR CO.

Fig 483: Identifying Connector C3133

Courtesy of FORD MOTOR CO.

Fig 484: Identifying Connector C3133 (Fusion)

Courtesy of FORD MOTOR CO.

Fig 485: Identifying Connector C3134

Courtesy of FORD MOTOR CO.

Fig 486: Identifying Connector C3167 Seat Cushion Heater Mat, Left Rear

Courtesy of FORD MOTOR CO.

Fig 487: Identifying Connector C3169 Seat Cushion Heater Mat, Right Rear

Courtesy of FORD MOTOR CO.

Fig 488: Identifying Connector C3187 Driver Seat Recliner Motor

Courtesy of FORD MOTOR CO.

Fig 489: Identifying Connector C3189 Passenger Seat Recliner Motor

Courtesy of FORD MOTOR CO.

Fig 490: Identifying Connector C3201 Safety Belt Buckle, Driver

Courtesy of FORD MOTOR CO.

Fig 491: Identifying Connector C3202 Safety Belt Load Limiting Retractor, Passenger

Courtesy of FORD MOTOR CO.

Fig 492: Identifying Connector C3205

Courtesy of FORD MOTOR CO.

Fig 493: Identifying Connector C3206

Courtesy of FORD MOTOR CO.

Fig 494: Identifying Connector C3215 Lumbar Motor, Driver Seat

Courtesy of FORD MOTOR CO.

Fig 495: Identifying Connector C3216 Lumbar Motor, Passenger Seat

Courtesy of FORD MOTOR CO.

Fig 496: Identifying Connector C3240 Seat Position Sensor, Passenger

Courtesy of FORD MOTOR CO.

Fig 497: Identifying Connector C3248 Side Impact Sensor LH C-Pillar (Fusion)

Courtesy of FORD MOTOR CO.

Fig 498: Identifying Connector C3248 Side Impact Sensor LH C-Pillar (MKZ)

Courtesy of FORD MOTOR CO.

Fig 499: Identifying Connector C3249 Side Impact Sensor RH C-Pillar (Fusion)

Courtesy of FORD MOTOR CO.

Fig 500: Identifying Connector C3249 Side Impact Sensor RH C-Pillar (MKZ)

Courtesy of FORD MOTOR CO.

Fig 501: Identifying Connector C3250 Footwell Lamp, RH

Courtesy of FORD MOTOR CO.

Fig 502: Identifying Connector C3251 Footwell Lamp, LH

Courtesy of FORD MOTOR CO.

Fig 503: Identifying Connector C3255 Fuel Tank Isolation Valve

Courtesy of FORD MOTOR CO.

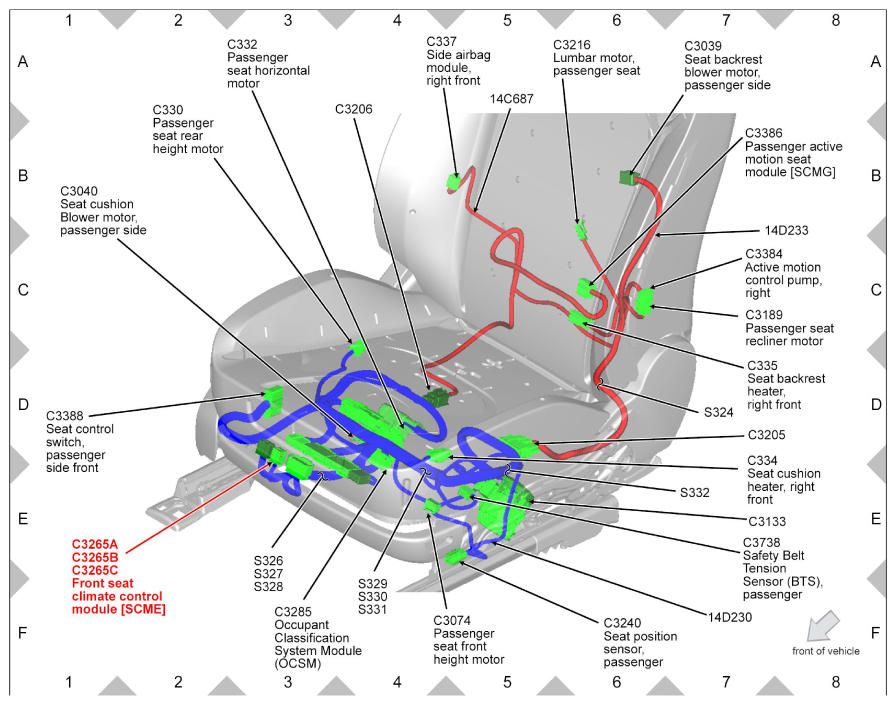

Fig 504: Identifying Connector C3265A, C3265B, C3265C Front Seat Climate Control Module (SCME)

Courtesy of FORD MOTOR CO.

Fig 505: Identifying Connector C3265A, C3265B, C3265C Front Seat Climate Control Module (SCME)

Courtesy of FORD MOTOR CO.

Fig 506: Identifying Connector C3265A, C3265B, C3265C Front Seat Climate Control Module (SCME)

Courtesy of FORD MOTOR CO.

Fig 507: Identifying Connector C3285 Occupant Classification System Module (OCSM)

Courtesy of FORD MOTOR CO.

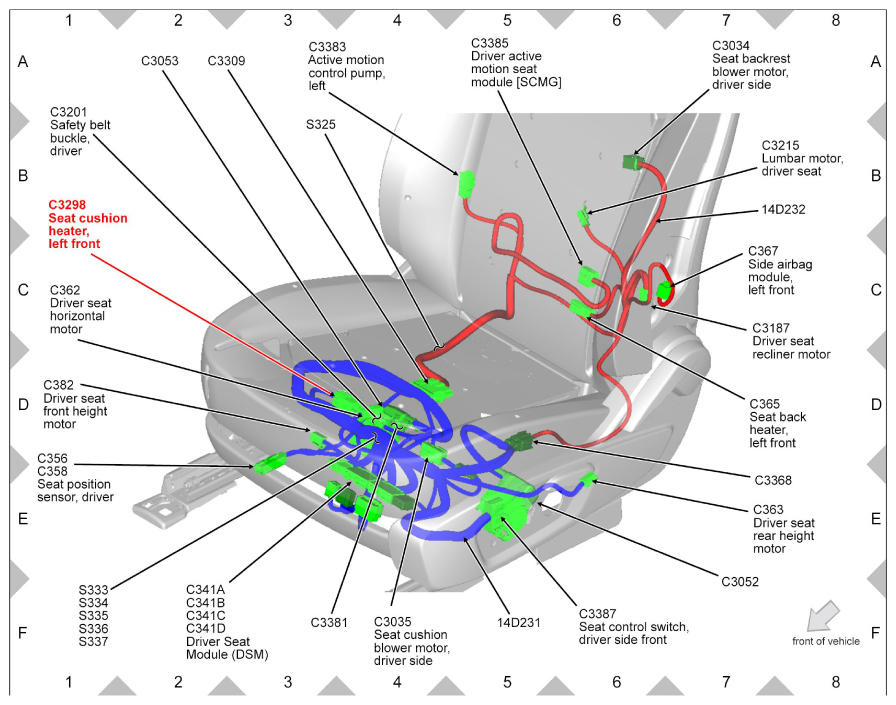

Fig 508: Identifying Connector C3298 Seat Cushion Heater, Left Front

Courtesy of FORD MOTOR CO.

Fig 509: Identifying Connector C3304A And C3304B Heated Seat Module, Rear

Courtesy of FORD MOTOR CO.

Fig 510: Identifying Connector C3304A And C3304B Heated Seat Module, Rear

Courtesy of FORD MOTOR CO.

Fig 511: Identifying Connector C3309

Courtesy of FORD MOTOR CO.

Fig 512: Identifying Connector C3312 Audio Input Jack

Courtesy of FORD MOTOR CO.

Fig 513: Identifying Connector C3321 Driver Side Air Curtain Module (Fusion)

Courtesy of FORD MOTOR CO.

Fig 514: Identifying Connector C3321 Driver Side Air Curtain Module (MKZ)

Courtesy of FORD MOTOR CO.

Fig 515: Identifying Connector C3323 Rear Passenger Power Outlet Socket (Fusion)

Courtesy of FORD MOTOR CO.

Fig 516: Identifying Connector C3323 Rear Passenger Power Outlet Socket (MKZ)

Courtesy of FORD MOTOR CO.

Fig 517: Identifying Connector C3329 Passenger Side Air Curtain Module (Fusion)

Courtesy of FORD MOTOR CO.

Fig 518: Identifying Connector C3329 Passenger Side Air Curtain Module (MKZ)

Courtesy of FORD MOTOR CO.

Fig 519: Identifying Connector C3342 Accessory Protocol Interface Module (APIM)

Courtesy of FORD MOTOR CO.

Fig 520: Identifying Connector C3368

Courtesy of FORD MOTOR CO.

Fig 521: Identifying Connector C3381

Courtesy of FORD MOTOR CO.

Fig 522: Identifying Connector C3383 Active Motion Control Pump, Left

Courtesy of FORD MOTOR CO.

Fig 523: Identifying Connector C3384 Active Motion Control Pump, Right

Courtesy of FORD MOTOR CO.

Fig 524: Identifying Connector C3385 Driver Active Motion Seat Module (SCMG)

Courtesy of FORD MOTOR CO.

Fig 525: Identifying Connector C3386 Passenger Active Motion Seat Module (SCMG)

Courtesy of FORD MOTOR CO.

Fig 526: Identifying Connector C3387 Seat Control Switch, Driver Side Front

Courtesy of FORD MOTOR CO.

Fig 527: Identifying Connector C3388 Seat Control Switch, Passenger Side Front

Courtesy of FORD MOTOR CO.

Fig 528: Identifying Connector C3408 Splice Block 7 (Fusion)

Courtesy of FORD MOTOR CO.

Fig 529: Identifying Connector C3408 Splice Block 7 (MKZ)

Courtesy of FORD MOTOR CO.

Fig 530: Identifying Connector C3429 AC Outlet

Courtesy of FORD MOTOR CO.

Fig 531: Identifying Connector C3430 Brake Shift Interlock Override

Courtesy of FORD MOTOR CO.

Fig 532: Identifying Connector C3460 Splice Block 60 (Fusion)

Courtesy of FORD MOTOR CO.

Fig 533: Identifying Connector C3460 Splice Block 60 (MKZ)

Courtesy of FORD MOTOR CO.

Fig 534: Identifying Connector C3461 Splice Block 61

Courtesy of FORD MOTOR CO.

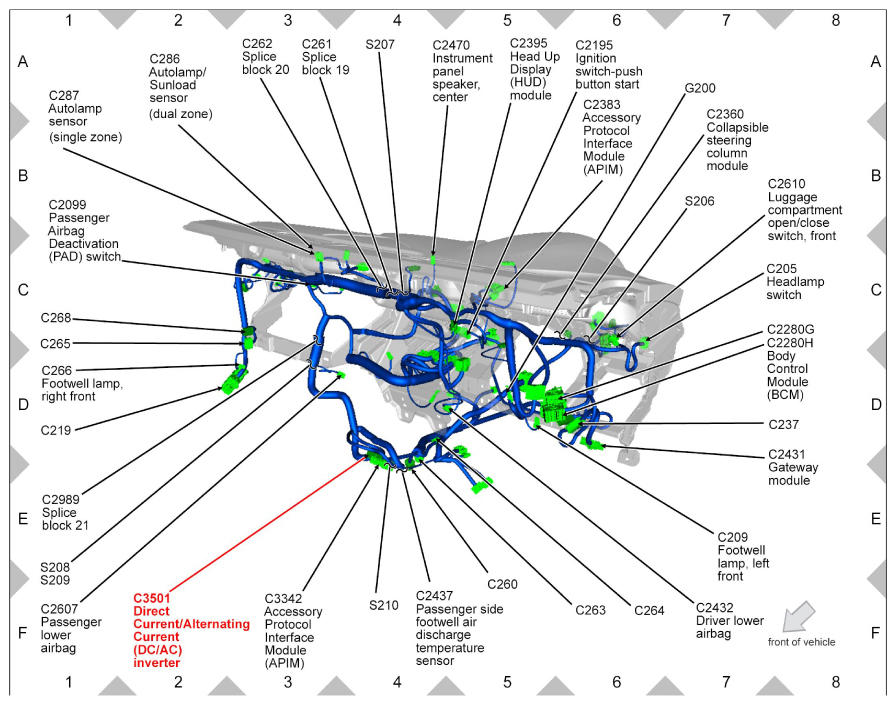

Fig 535: Identifying Connector C3501 Direct Current/Alternating Current (DC/AC) Inverter (Fusion)

Courtesy of FORD MOTOR CO.

Fig 536: Identifying Connector C3501 Direct Current/Alternating Current (DC/AC) Inverter (MKZ)

Courtesy of FORD MOTOR CO.

Fig 537: Identifying Connector C3513 Passive Anti-Theft System Front Antenna (Fusion)

Courtesy of FORD MOTOR CO.

Fig 538: Identifying Connector C3513 Passive Anti-Theft System Front Antenna (MKZ)

Courtesy of FORD MOTOR CO.

Fig 539: Identifying Connector C3523 Heated Seat Switch, Rear Seat (Fusion)

Courtesy of FORD MOTOR CO.

Fig 540: Identifying Connector C3523 Heated Seat Switch, Rear Seat (MKZ)

Courtesy of FORD MOTOR CO.

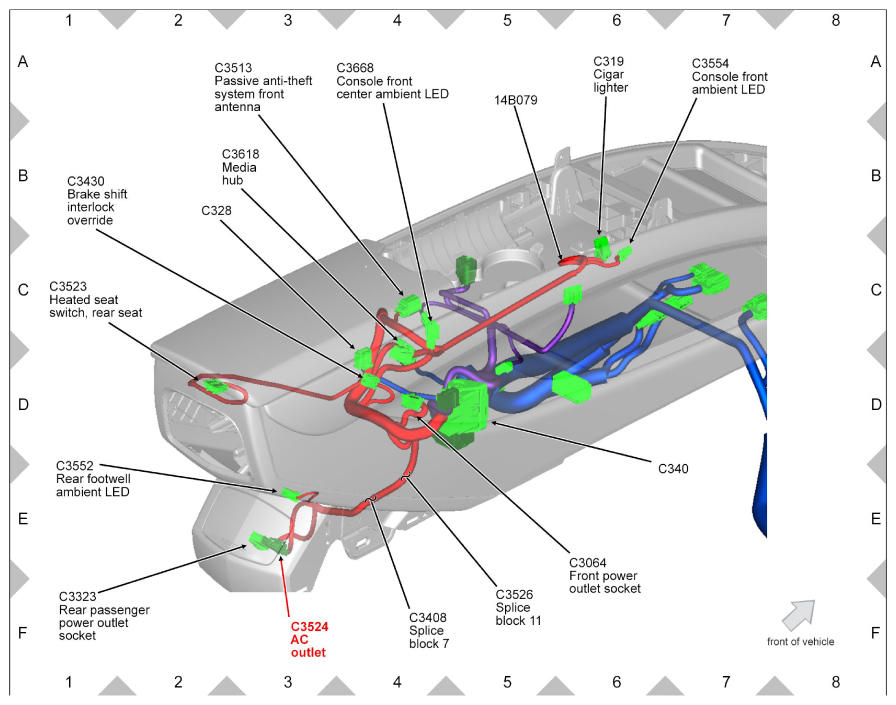

Fig 541: Identifying Connector C3524 AC Outlet

Courtesy of FORD MOTOR CO.

Fig 542: Identifying Connector C3526 Splice Block 11

Courtesy of FORD MOTOR CO.

Fig 543: Identifying Connector C3527 Splice Block 12

Courtesy of FORD MOTOR CO.

Fig 544: Identifying Connector C3529 Parking Brake Actuator Motor (Fusion)

Courtesy of FORD MOTOR CO.

Fig 545: Identifying Connector C3529 Parking Brake Actuator Motor (MKZ)

Courtesy of FORD MOTOR CO.

Fig 546: Identifying Connector C3531 Selector Lever Assembly

Courtesy of FORD MOTOR CO.

Fig 547: Identifying Connector C3532 Gear Shift Module (GSM)

Courtesy of FORD MOTOR CO.

Fig 548: Identifying Connector C3533 Splice Block 33

Courtesy of FORD MOTOR CO.

Fig 549: Identifying Connector C3534 Splice Block 34

Courtesy of FORD MOTOR CO.

Fig 550: Identifying Connector C3535 Splice Block 36

Courtesy of FORD MOTOR CO.

Fig 551: Identifying Connector C3536 Splice Block 37

Courtesy of FORD MOTOR CO.

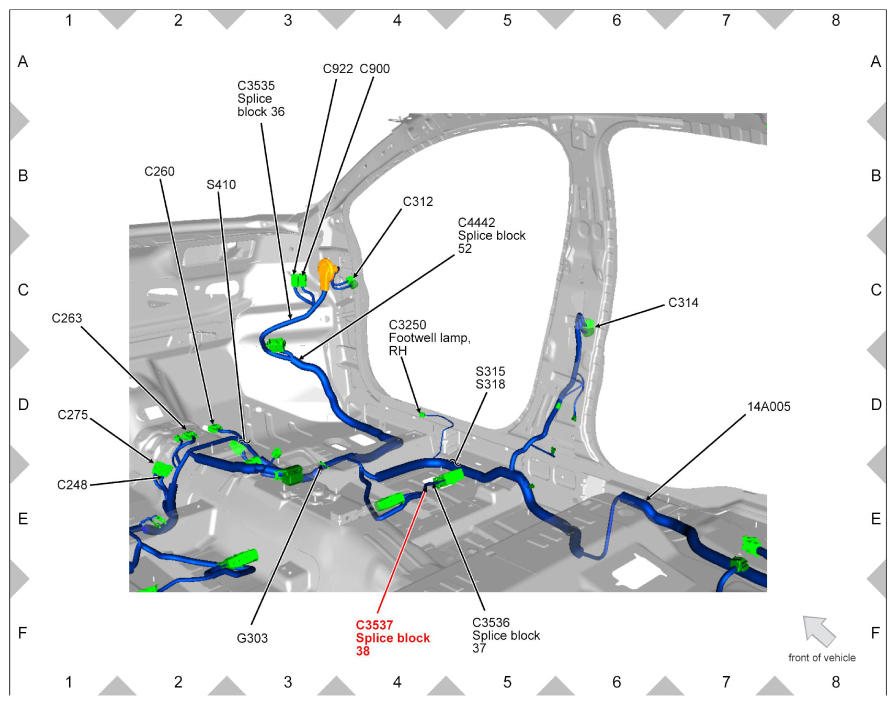

Fig 552: Identifying Connector C3537 Splice Block 38

Courtesy of FORD MOTOR CO.

Fig 553: Identifying Connector C3538 Splice Block 46

Courtesy of FORD MOTOR CO.

Fig 554: Identifying Connector C3539 Splice Block 47

Courtesy of FORD MOTOR CO.

Fig 555: Identifying Connector C3540 Splice Block 48

Courtesy of FORD MOTOR CO.

Fig 556: Identifying Connector C3541 Splice Block 49

Courtesy of FORD MOTOR CO.

Fig 557: Identifying Connector C3542 Splice Block 50

Courtesy of FORD MOTOR CO.

Fig 558: Identifying Connector C3543 Splice Block 51

Courtesy of FORD MOTOR CO.

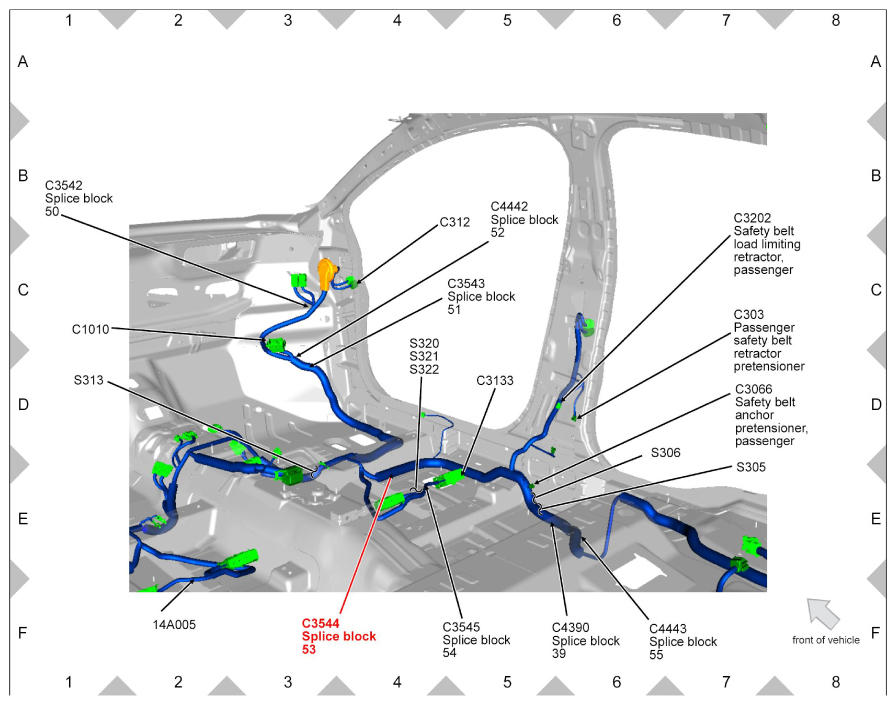

Fig 559: Identifying Connector C3544 Splice Block 53

Courtesy of FORD MOTOR CO.

Fig 560: Identifying Connector C3545 Splice Block 54

Courtesy of FORD MOTOR CO.

Fig 561: Identifying Connector C3546 Seat Backrest Heater Mat, Left Rear

Courtesy of FORD MOTOR CO.

Fig 562: Identifying Connector C3547 Seat Backrest Heater Mat, Right Rear

Courtesy of FORD MOTOR CO.

Fig 563: Identifying Connector C3551 Parking Brake Actuator Motor

Courtesy of FORD MOTOR CO.

Fig 564: Identifying Connector C3552 Rear Footwell Ambient Led (Fusion)

Courtesy of FORD MOTOR CO.

Fig 565: Identifying Connector C3552 Rear Footwell Ambient Led (MKZ)

Courtesy of FORD MOTOR CO.

Fig 566: Identifying Connector C3553 Media Bin Ambient Led

Courtesy of FORD MOTOR CO.

Fig 567: Identifying Connector C3554 Console Front Ambient Led

Courtesy of FORD MOTOR CO.

Fig 568: Identifying Connector C3554 Console Front Ambient Led

Courtesy of FORD MOTOR CO.

Fig 569: Identifying Connector C3555 Console Front Center Ambient Led

Courtesy of FORD MOTOR CO.

Fig 570: Identifying Connector C3618 Media Hub

Courtesy of FORD MOTOR CO.

Fig 571: Identifying Connector C3618 Media Hub

Courtesy of FORD MOTOR CO.

Fig 572: Identifying Connector C3644 Safety Belt Inflator, 2nd Row, Left

Courtesy of FORD MOTOR CO.

Fig 573: Identifying Connector C3645 Safety Belt Inflator, 2nd Row, Right

Courtesy of FORD MOTOR CO.

Fig 574: Identifying Connector C3646 Safety Belt Buckle Assembly, 2nd Row

Courtesy of FORD MOTOR CO.

Fig 575: Identifying Connector C3653 Height Sensor, Left Rear (Fusion)

Courtesy of FORD MOTOR CO.

Fig 576: Identifying Connector C3653 Height Sensor, Left Rear (MKZ)

Courtesy of FORD MOTOR CO.

Fig 577: Identifying Connector C3654 Height Sensor, Right Rear (Fusion)

Courtesy of FORD MOTOR CO.

Fig 578: Identifying Connector C3654 Height Sensor, Right Rear (MKZ)

Courtesy of FORD MOTOR CO.

Fig 579: Identifying Connector C3655 Hydraulic Solenoid Valve, Left Rear (Fusion)

Courtesy of FORD MOTOR CO.

Fig 580: Identifying Connector C3655 Hydraulic Solenoid Valve, Left Rear (MKZ)

Courtesy of FORD MOTOR CO.

Fig 581: Identifying Connector C3656 Hydraulic Solenoid Valve, Right Rear (Fusion)

Courtesy of FORD MOTOR CO.

Fig 582: Identifying Connector C3656 Hydraulic Solenoid Valve, Right Rear (MKZ)

Courtesy of FORD MOTOR CO.

Fig 583: Identifying Connector C3668 Console Front Center Ambient Led

Courtesy of FORD MOTOR CO.

Fig 584: Identifying Connector C3738 Safety Belt Tension Sensor (BTS), Passenger

Courtesy of FORD MOTOR CO.

Fig 585: Identifying Connector C3809 Evaporative Emission (EVAP) Leak Detection Control Module (Fusion)

Courtesy of FORD MOTOR CO.

Fig 586: Identifying Connector C3809 Evaporative Emission (EVAP) Leak Detection Control Module (MKZ)

Courtesy of FORD MOTOR CO.

Fig 587: Identifying Connector C4000

Courtesy of FORD MOTOR CO.

Fig 588: Identifying Connector C4001

Courtesy of FORD MOTOR CO.

Fig 589: Identifying Connector C4002

Courtesy of FORD MOTOR CO.

Fig 590: Identifying Connector C4009 Rear Outer Parking Aid Sensor LH (Fusion)

Courtesy of FORD MOTOR CO.

Fig 591: Identifying Connector C4009 Rear Outer Parking Aid Sensor LH (MKZ)

Courtesy of FORD MOTOR CO.

Fig 592: Identifying Connector C4010 Rear Inner Parking Aid Sensor LH/Center (Fusion)

Courtesy of FORD MOTOR CO.

Fig 593: Identifying Connector C4010 Rear Outer Parking Aid Sensor LH/Center (MKZ)

Courtesy of FORD MOTOR CO.

Fig 594: Identifying Connector C4011 Rear Outer Parking Aid Sensor RH (Fusion)

Courtesy of FORD MOTOR CO.

Fig 595: Identifying Connector C4011 Rear Outer Parking Aid Sensor RH (MKZ)

Courtesy of FORD MOTOR CO.

Fig 596: Identifying Connector C4012 Rear Inner Parking Aid Sensor RH

Courtesy of FORD MOTOR CO.

Fig 597: Identifying Connector C4046 License Plate Lamp

Courtesy of FORD MOTOR CO.

Fig 598: Identifying Connector C4068 Subwoofer, Left

Courtesy of FORD MOTOR CO.

Fig 599: Identifying Connector C4069 Subwoofer, Right

Courtesy of FORD MOTOR CO.

Fig 600: Identifying Connector C4070A Battery

Courtesy of FORD MOTOR CO.

Fig 601: Identifying Connector C4070B

Courtesy of FORD MOTOR CO.

Fig 602: Identifying Connector C4082 Intelligent Access (IA) Antenna, Liftgate

Courtesy of FORD MOTOR CO.

Fig 603: Identifying Connector C4174A

Courtesy of FORD MOTOR CO.

Fig 604: Identifying Connector C4174B Rear Gate Trunk Module (RGTM)

Courtesy of FORD MOTOR CO.

Fig 605: Identifying Connector C4186 Power Decklid Chime

Courtesy of FORD MOTOR CO.

Fig 606: Identifying Connector C4194 Audio Unit Antenna

Courtesy of FORD MOTOR CO.

Fig 607: Identifying Connector C4199

Courtesy of FORD MOTOR CO.

Fig 608: Identifying Connector C4228 Rear Inner Parking Aid Sensor RH

Courtesy of FORD MOTOR CO.

Fig 609: Identifying Connector C4236A High Voltage Battery Junction Box

Courtesy of FORD MOTOR CO.

Fig 610: Identifying Connector C4236B

Courtesy of FORD MOTOR CO.

Fig 611: Identifying Connector C4236C

Courtesy of FORD MOTOR CO.

Fig 612: Identifying Connector C4236D

Courtesy of FORD MOTOR CO.

Fig 613: Identifying Connector C4236E High Voltage Battery Junction Box

Courtesy of FORD MOTOR CO.

Fig 614: Identifying Connector C4237A And C4237B (Fusion)

Courtesy of FORD MOTOR CO.

Fig 615: Identifying Connector C4237A Battery Energy Control Module (BECM) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 616: Identifying Connector C4237A And C4237B Fusion)

Courtesy of FORD MOTOR CO.

Fig 617: Identifying Connector C4237B (MKZ)

Courtesy of FORD MOTOR CO.

Fig 618: Identifying Connector C4237C

Courtesy of FORD MOTOR CO.

Fig 619: Identifying Connector C4237D Battery Energy Control Module (BECM)

Courtesy of FORD MOTOR CO.

Fig 620: Identifying Connector C4287 Evaporative Emission (EVAP) Vapor Blocking Valve

Courtesy of FORD MOTOR CO.

Fig 621: Identifying Connector C4326A

Courtesy of FORD MOTOR CO.

Fig 622: Identifying Connector C4326B

Courtesy of FORD MOTOR CO.

Fig 623: Identifying Connector C4326C Audio Digital Signal Processing (DSP) Module

Courtesy of FORD MOTOR CO.

Fig 624: Identifying Connector C4332 Power Luggage Compartment Lid Motor

Courtesy of FORD MOTOR CO.

Fig 625: Identifying Connector C4333 Luggage Compartment Lid Rear Control Switch

Courtesy of FORD MOTOR CO.

Fig 626: Identifying Connector C4339 Luggage Compartment Lid Power Striker Motor

Courtesy of FORD MOTOR CO.

Fig 627: Identifying Connector C4347 Active Torque Control Coupling (ATCC) Solenoid (Fusion)

Courtesy of FORD MOTOR CO.

Fig 628: Identifying Connector C4347 Active Torque Control Coupling (ATCC) Solenoid (MKZ)

Courtesy of FORD MOTOR CO.

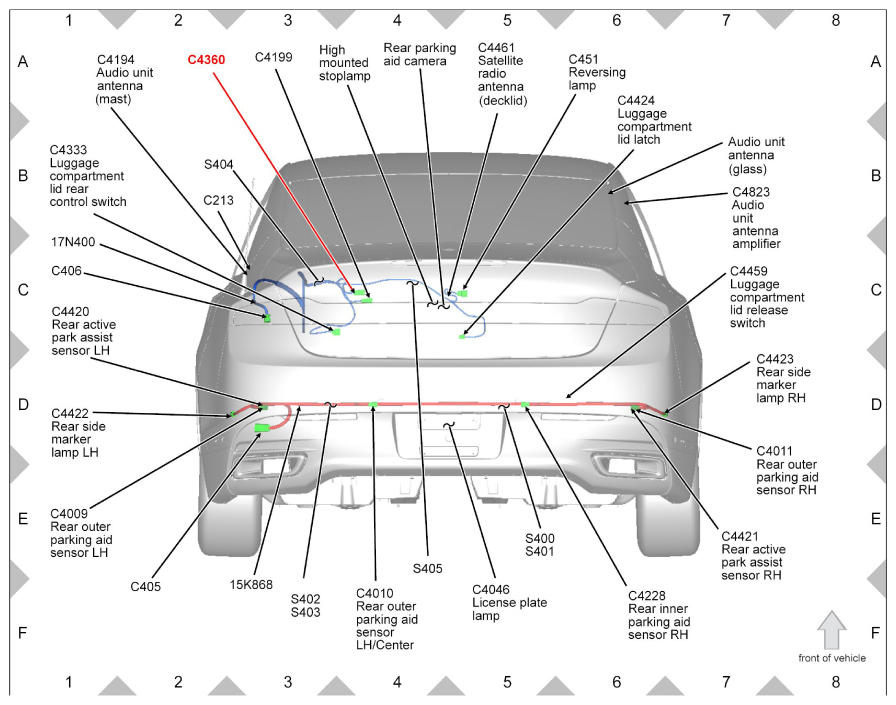

Fig 629: Identifying Connector C4360 (Fusion)

Courtesy of FORD MOTOR CO.

Fig 630: Identifying Connector C4360 (MKZ)

Courtesy of FORD MOTOR CO.

Fig 631: Identifying Connector C4369 Side Obstacle Detection Control Module - Left (SODL-L) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 632: Identifying Connector C4369 Side Obstacle Detection Control Module - Left (SOD-L) (MKZ)

Courtesy of FORD MOTOR CO.

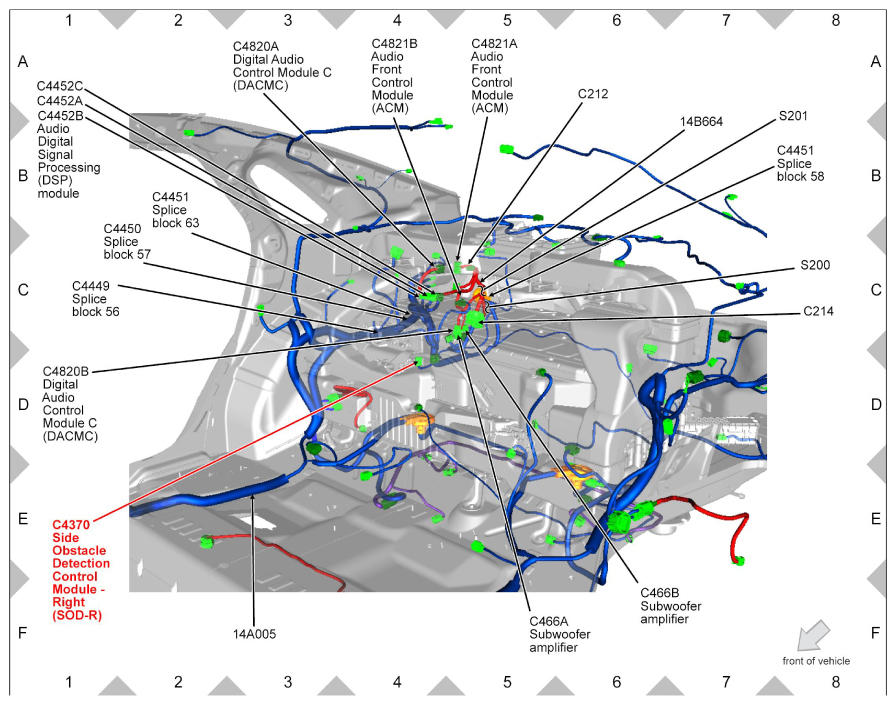

Fig 633: Identifying Connector C4370 Side Obstacle Detection Control Module - Right (SOD-R) (Fusion)

Courtesy of FORD MOTOR CO.

Fig 634: Identifying Connector C4370 Side Obstacle Detection Control Module - Right (SOD-R) (MKZ)

Courtesy of FORD MOTOR CO.

Fig 635: Identifying Connector C4371 Splice Block 32

Courtesy of FORD MOTOR CO.

Fig 636: Identifying Connector C4379 All Wheel Drive (AWD) Relay Module

Courtesy of FORD MOTOR CO.

Fig 637: Identifying Connector C4390 Splice Block 39

Courtesy of FORD MOTOR CO.

Fig 638: Identifying Connector C4393 Splice Block 64

Courtesy of FORD MOTOR CO.

Fig 639: Identifying Connector C4394 Splice Block 40

Courtesy of FORD MOTOR CO.

Fig 640: Identifying Connector C4395 Splice Block 41

Courtesy of FORD MOTOR CO.

Fig 641: Identifying Connector C4396C And C4396D Vehicle Dynamics Module (VDM)

Courtesy of FORD MOTOR CO.

Fig 642: Identifying Connector C4396C And C4396D Vehicle Dynamics Module (VDM)

Courtesy of FORD MOTOR CO.

Fig 643: Identifying Connector C4420 Rear Active Park Assist Sensor LH

Courtesy of FORD MOTOR CO.

Fig 644: Identifying Connector C4421 Rear Active Park Assist Sensor RH

Courtesy of FORD MOTOR CO.

Fig 645: Identifying Connector C4422 Rear Side Marker Lamp LH

Courtesy of FORD MOTOR CO.

Fig 646: Identifying Connector C4423 Rear Side Marker Lamp RH

Courtesy of FORD MOTOR CO.

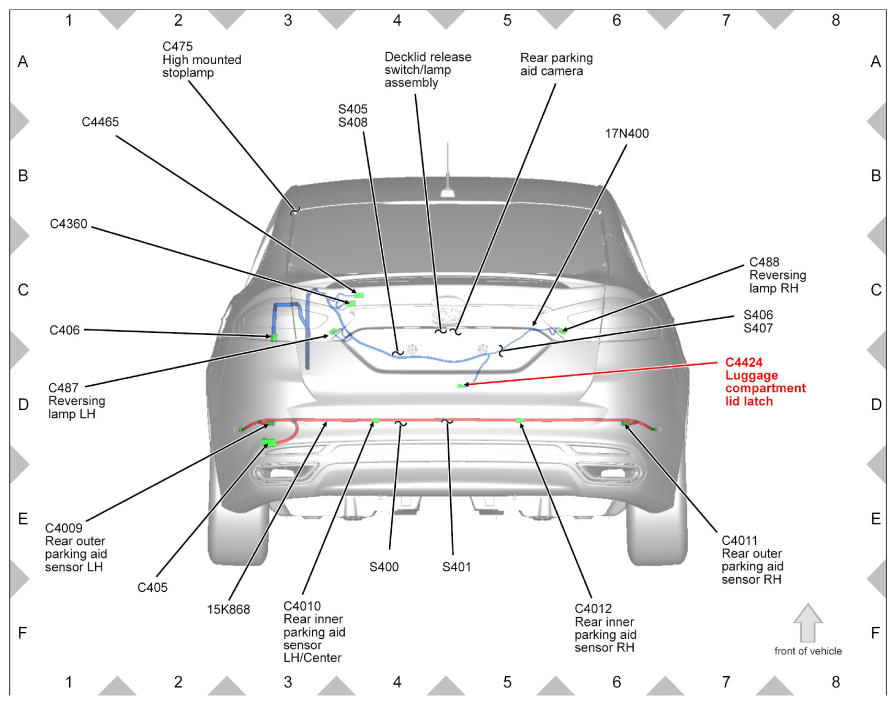

Fig 647: Identifying Connector C4424 Luggage Compartment Lid Latch (Fusion)

Courtesy of FORD MOTOR CO.

Fig 648: Identifying Connector C4424 Luggage Compartment Lid Latch (MKZ)

Courtesy of FORD MOTOR CO.

Fig 649: Identifying Connector C4433 Battery Monitoring Sensor (Fusion)

Courtesy of FORD MOTOR CO.

Fig 650: Identifying Connector C4433 Battery Monitoring Sensor (MKZ)

Courtesy of FORD MOTOR CO.

Fig 651: Identifying Connector C4434 High Voltage Battery Cooling Fan (Fusion)

Courtesy of FORD MOTOR CO.

Fig 652: Identifying Connector C4434 High Voltage Battery Cooling Fan (MKZ)

Courtesy of FORD MOTOR CO.

Fig 653: Identifying Connector C4435 High Voltage Charger Cooling Fan

Courtesy of FORD MOTOR CO.

Fig 654: Identifying Connector C4436 Speaker, Center Parcel Shelf (Fusion)

Courtesy of FORD MOTOR CO.

Fig 655: Identifying Connector C4436 Speaker, Center Parcel Shelf (MKZ)

Courtesy of FORD MOTOR CO.

Fig 656: Identifying Connector C4437 Splice Block 47

Courtesy of FORD MOTOR CO.

Fig 657: Identifying Connector C4438 Splice Block 43

Courtesy of FORD MOTOR CO.

Fig 658: Identifying Connector C4440 Splice Block 44

Courtesy of FORD MOTOR CO.

Fig 659: Identifying Connector C4441 Splice Block 45

Courtesy of FORD MOTOR CO.

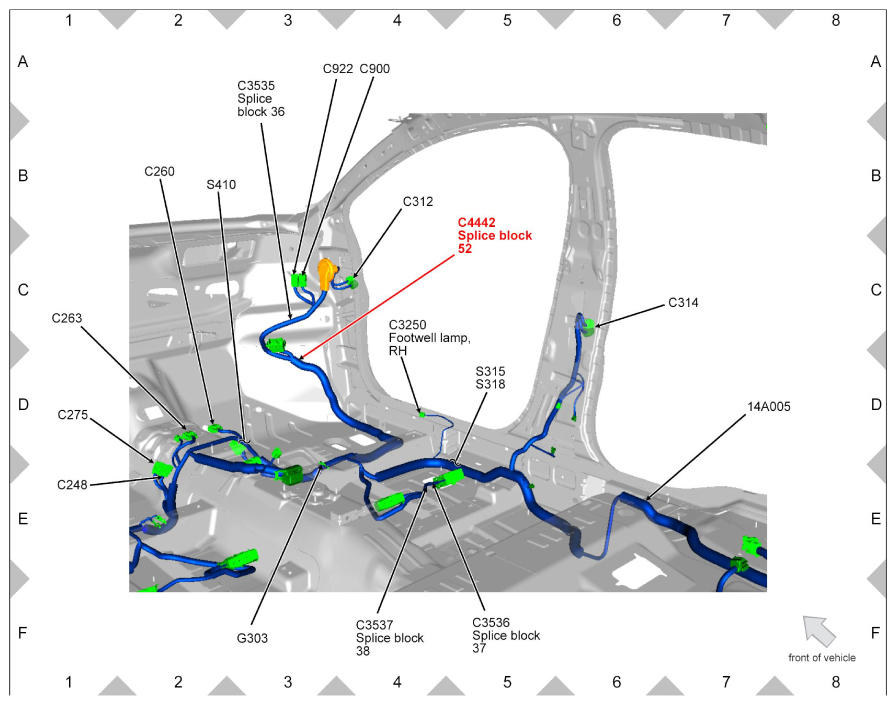

Fig 660: Identifying Connector C4442 Splice Block 52

Courtesy of FORD MOTOR CO.

Fig 661: Identifying Connector C4443 Splice Block 55

Courtesy of FORD MOTOR CO.

Fig 662: Identifying Connector C4443 Splice Block 55 (MKZ)

Courtesy of FORD MOTOR CO.

Fig 663: Identifying Connector C4445

Courtesy of FORD MOTOR CO.

Fig 664: Identifying Connector C4446 Subwoofer, Right

Courtesy of FORD MOTOR CO.

Fig 665: Identifying Connector C4447

Courtesy of FORD MOTOR CO.

Fig 666: Identifying Connector C4448 Subwoofer, Left

Courtesy of FORD MOTOR CO.

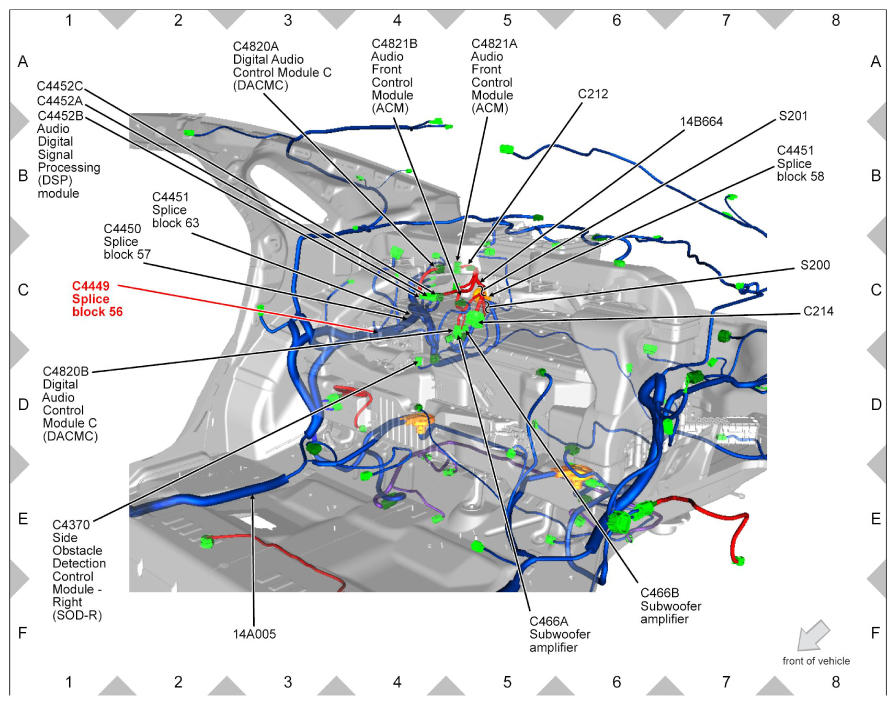

Fig 667: Identifying Connector C4449 Splice Block 56

Courtesy of FORD MOTOR CO.

Fig 668: Identifying Connector C4450 Splice Block 57

Courtesy of FORD MOTOR CO.

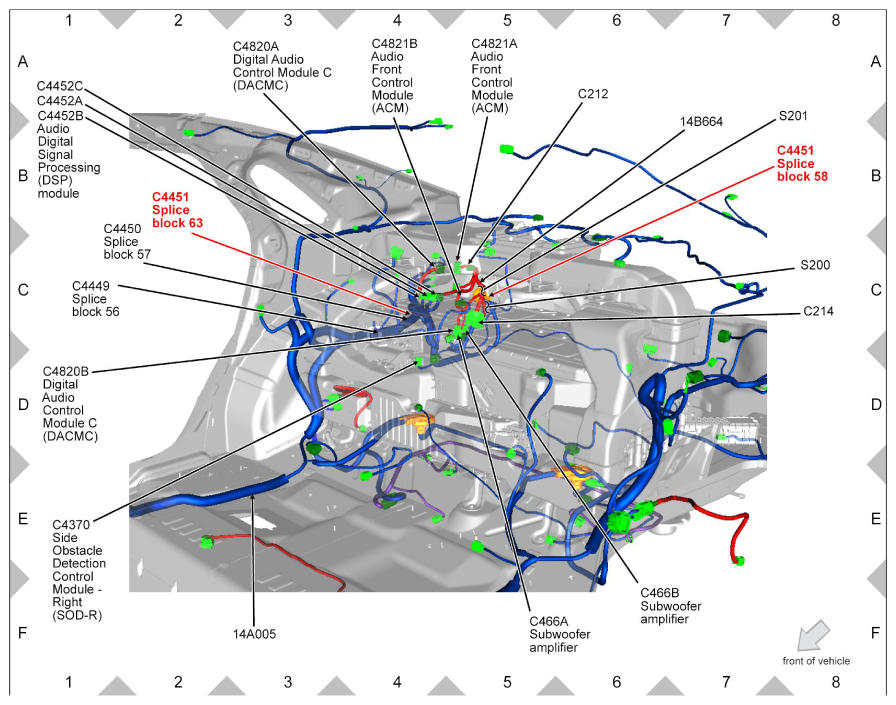

Fig 669: Identifying Connector C4451 Splice Block 63 And 58

Courtesy of FORD MOTOR CO.

Fig 670: Identifying Connector C4452A

Courtesy of FORD MOTOR CO.

Fig 671: Identifying Connector C4452B Audio Digital Signal Processing (DSP) Module

Courtesy of FORD MOTOR CO.

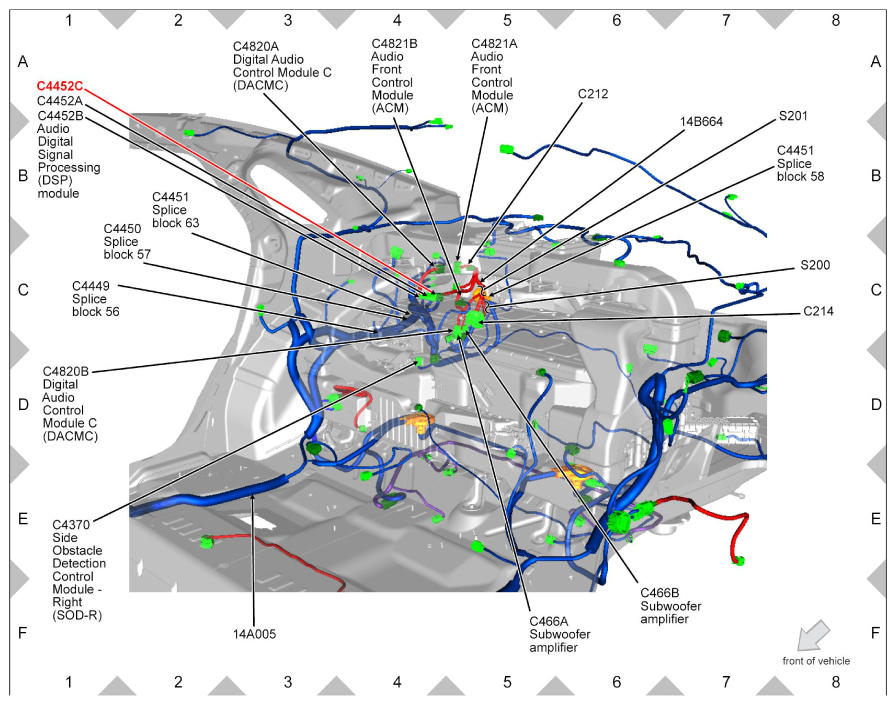

Fig 672: Identifying Connector C4452C

Courtesy of FORD MOTOR CO.

Fig 673: Identifying Connector C4453A DC/DC Converter Module

Courtesy of FORD MOTOR CO.

Fig 674: Identifying Connector C4453B DC/DC Converter Module

Courtesy of FORD MOTOR CO.

Fig 675: Identifying Connector C4453B And C4453C DC/DC Converter Module

Courtesy of FORD MOTOR CO.

Fig 676: Identifying Connector C4453D DC/DC Converter Module

Courtesy of FORD MOTOR CO.

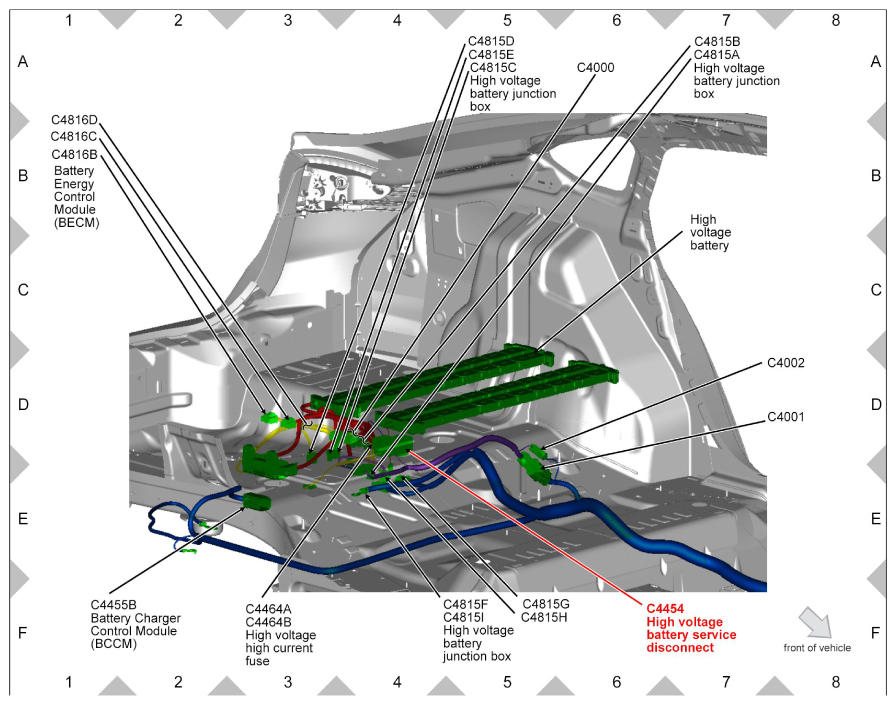

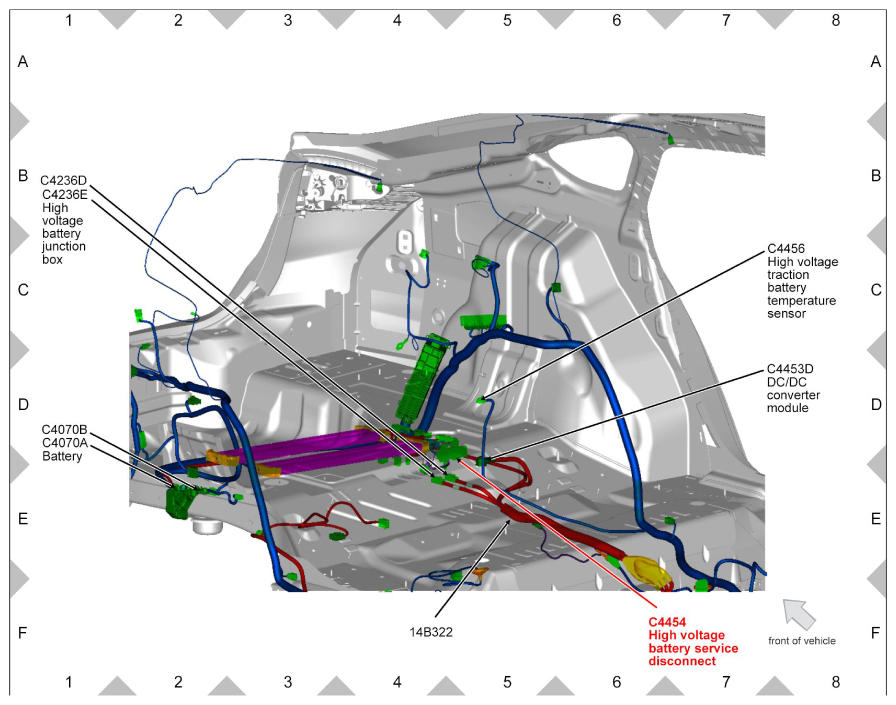

Fig 677: Identifying Connector C4454 High Voltage Battery Service Disconnect (HEV)

Courtesy of FORD MOTOR CO.

Fig 678: Identifying Connector C4454 High Voltage Battery Service Disconnect (PHEV)

Courtesy of FORD MOTOR CO.

Fig 679: Identifying Connector C4454A Battery Charger Control Module (BCCM)

Courtesy of FORD MOTOR CO.

Fig 680: Identifying Connector C4455B Battery Charger Control Module (BCCM)

Courtesy of FORD MOTOR CO.

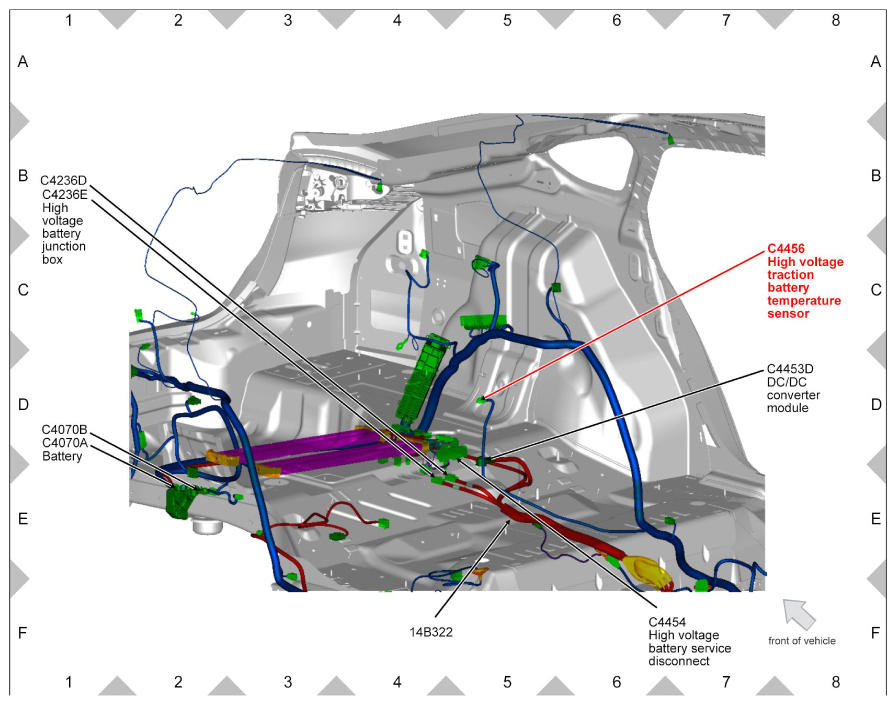

Fig 681: Identifying Connector C4456 High Voltage Traction Battery Temperature Sensor

Courtesy of FORD MOTOR CO.

Fig 682: Identifying Connector C4457 Charger Cooling Actuator

Courtesy of FORD MOTOR CO.

Fig 683: Identifying Connector C4458 Radio Transceiver Module (RTM)

Courtesy of FORD MOTOR CO.

Fig 684: Identifying Connector C4459 Luggage Compartment Lid Release Switch

Courtesy of FORD MOTOR CO.

Fig 685: Identifying Connector C4461 Satellite Radio Antenna

Courtesy of FORD MOTOR CO.

Fig 686: Identifying Connector C4464A C4464B High Voltage High Current Fuse

Courtesy of FORD MOTOR CO.

Fig 687: Identifying Connector C4464A C4464B High Voltage High Current Fuse

Courtesy of FORD MOTOR CO.

Fig 688: Identifying Connector C4465

Courtesy of FORD MOTOR CO.

Fig 689: Identifying Connector C4803 Telematic Control Unit Module (TCU)

Courtesy of FORD MOTOR CO.

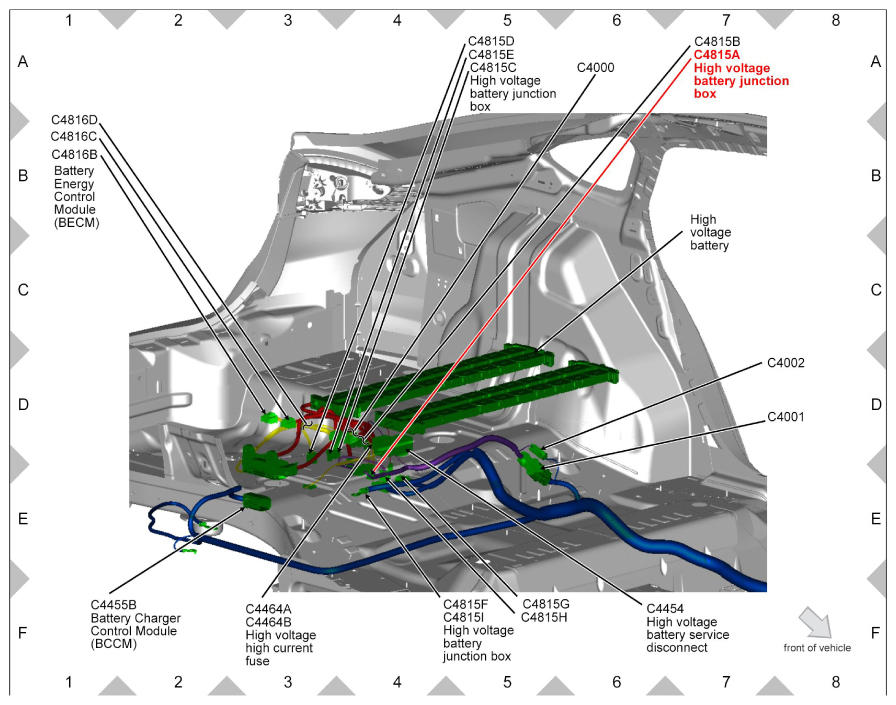

Fig 690: Identifying Connector C4815A High Voltage Battery Junction Box

Courtesy of FORD MOTOR CO.

Fig 691: Identifying Connector C4815B

Courtesy of FORD MOTOR CO.

Fig 692: Identifying Connector C4815C High Voltage Battery Junction Box

Courtesy of FORD MOTOR CO.

Fig 693: Identifying Connector C4815D

Courtesy of FORD MOTOR CO.

Fig 694: Identifying Connector C4815E

Courtesy of FORD MOTOR CO.

Fig 695: Identifying Connector C4815F C4815I High Voltage Battery Junction Box

Courtesy of FORD MOTOR CO.

Fig 696: Identifying Connector C4815G

Courtesy of FORD MOTOR CO.

Fig 697: Identifying Connector C4815H

Courtesy of FORD MOTOR CO.

Fig 698: Identifying Connector C4815F C4815I High Voltage Battery Junction Box

Courtesy of FORD MOTOR CO.

Fig 699: Identifying Connector C4816A And C4816B

Courtesy of FORD MOTOR CO.

Fig 700: Identifying Connector C4816A And C4816B

Courtesy of FORD MOTOR CO.

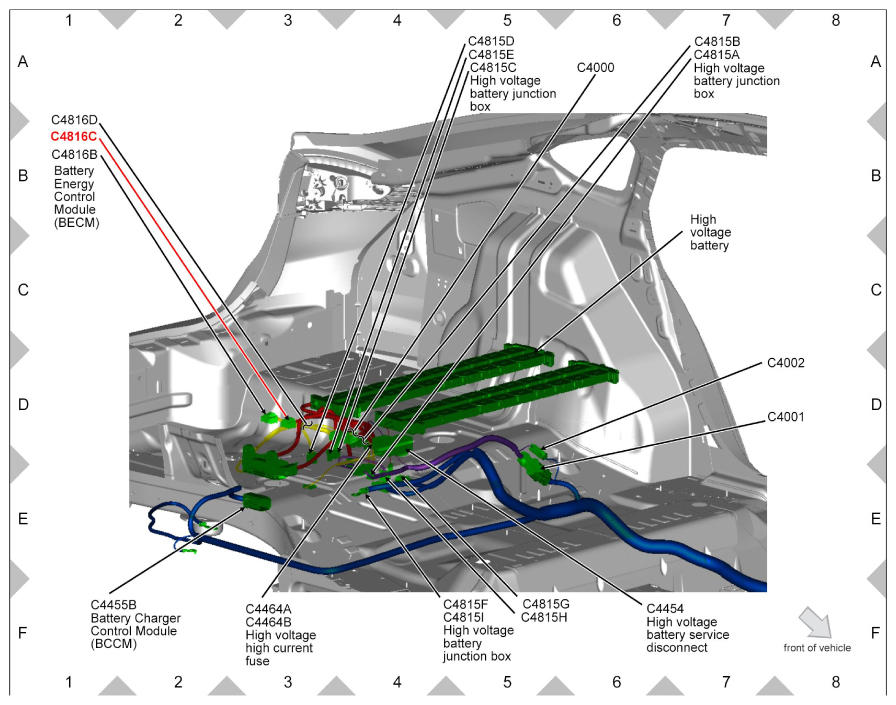

Fig 701: Identifying Connector C4816C

Courtesy of FORD MOTOR CO.

Fig 702: Identifying Connector C4816D

Courtesy of FORD MOTOR CO.

Fig 703: Identifying Connector C4817 Keyless Entry Rear Antenna

Courtesy of FORD MOTOR CO.

Fig 704: Identifying Connector C4820A And C4820B Digital Audio Control Module (DACMC)

Courtesy of FORD MOTOR CO.

Fig 705: Identifying Connector C4820A Digital Audio Control Module C (DACMC)

Courtesy of FORD MOTOR CO.

Fig 706: Identifying Connector C4820A C4820B Digital Audio Control Module (DACMC)

Courtesy of FORD MOTOR CO.

Fig 707: Identifying Connector C4820B Digital Audio Control Module C (DACMC)

Courtesy of FORD MOTOR CO.

Fig 708: Identifying Connector C4821A Audio Front Control Module (ACM)

Courtesy of FORD MOTOR CO.

Fig 709: Identifying Connector C4821B Audio Front Control Module (ACM)

Courtesy of FORD MOTOR CO.

Fig 710: Identifying Connector C4823 Audio Unit Antenna Amplifier

Courtesy of FORD MOTOR CO.

Fig 711: Identifying Connector C4824 Power Striker Module

Courtesy of FORD MOTOR CO.

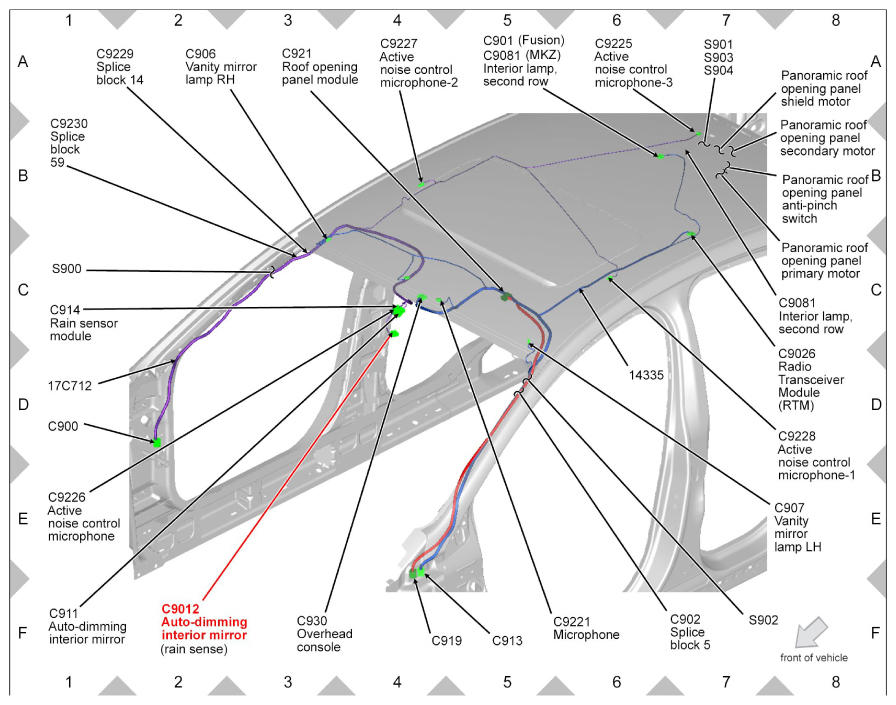

Fig 712: Identifying Connector C9012 Auto-Dimming Interior Mirror (Rain Sense)

Courtesy of FORD MOTOR CO.

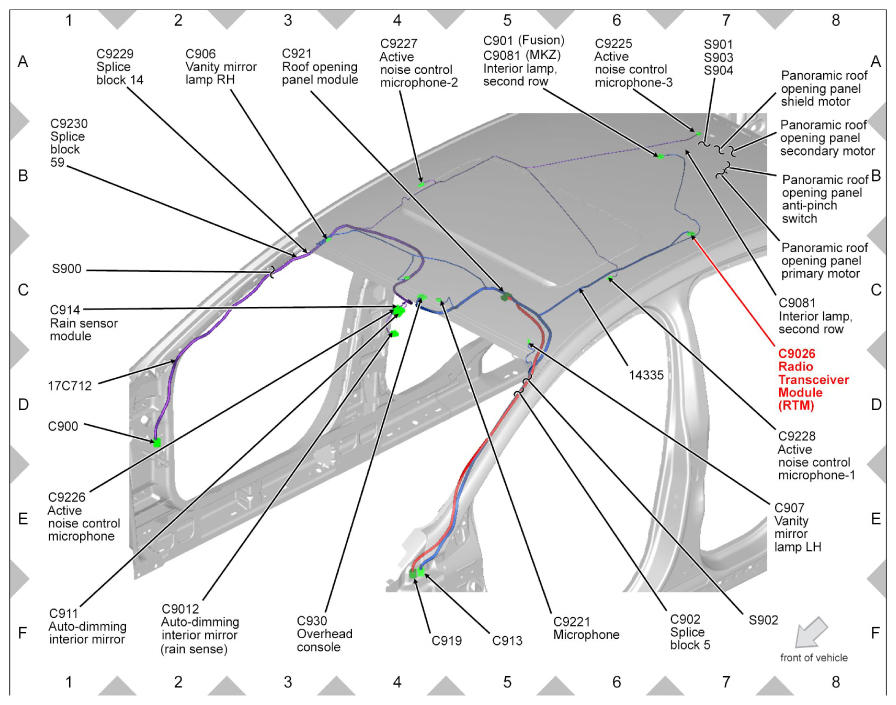

Fig 713: Identifying Connector C9026 Radio Transceiver Module (RTM)

Courtesy of FORD MOTOR CO.

Fig 714: Identifying Connector C9081 Interior Lamp, Second Row

Courtesy of FORD MOTOR CO.

Fig 715: Identifying Connector C9082 Audio Unit Antenna

Courtesy of FORD MOTOR CO.

Fig 716: Identifying Connector C9084 Rear Window Blind Module (Fusion)

Courtesy of FORD MOTOR CO.

Fig 717: Identifying Connector C9084 Rear Window Blind Module (MKZ)

Courtesy of FORD MOTOR CO.

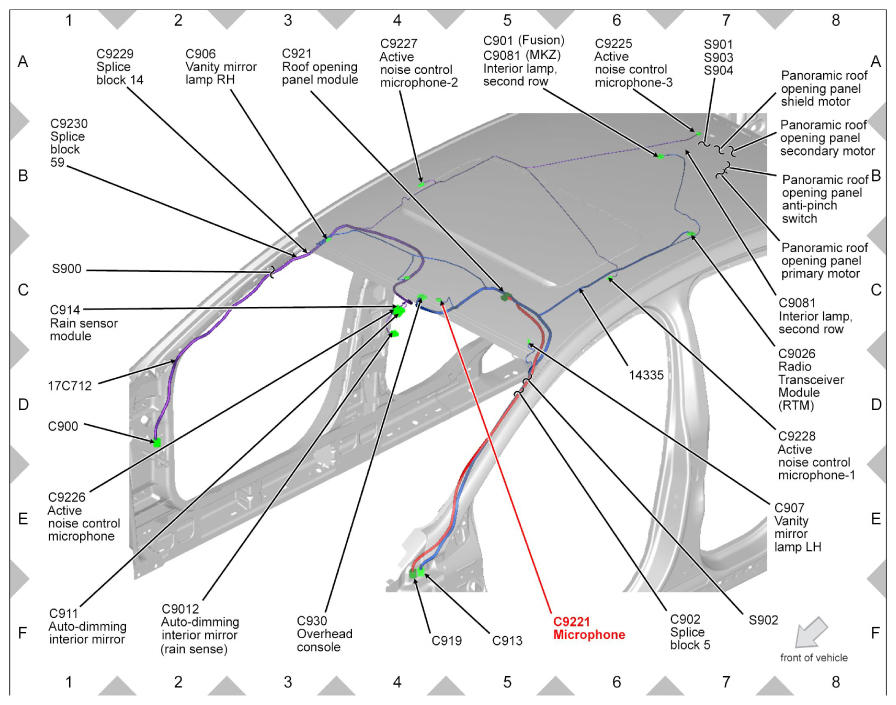

Fig 718: Identifying Connector C9221 Microphone

Courtesy of FORD MOTOR CO.

Fig 719: Identifying Connector C9225 Active Noise Control Microphone-3

Courtesy of FORD MOTOR CO.

Fig 720: Identifying Connector C9226 Active Noise Control Microphone

Courtesy of FORD MOTOR CO.

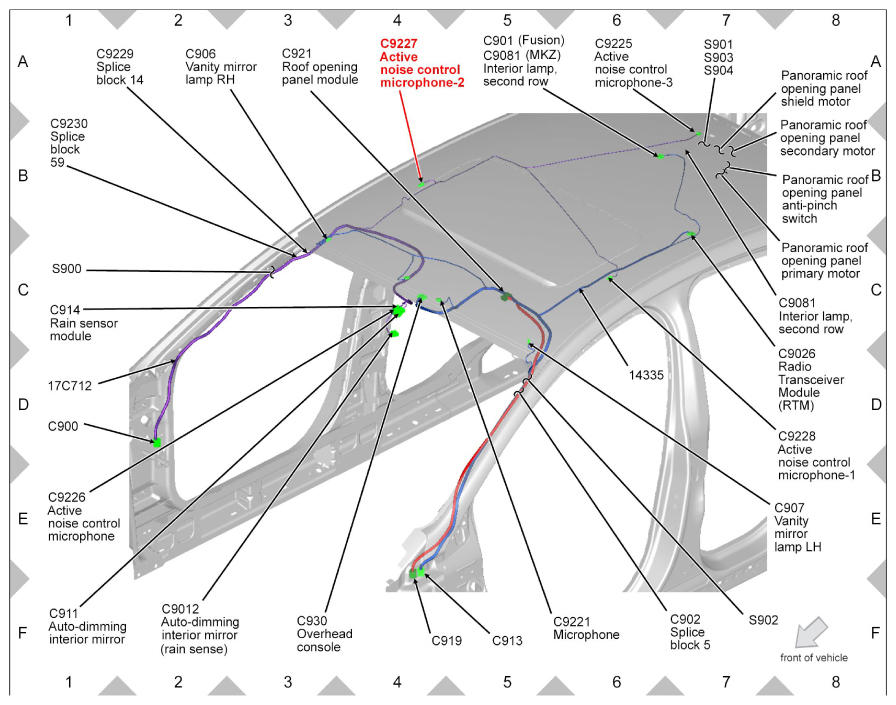

Fig 721: Identifying Connector C9227 Active Noise Control Microphone-2

Courtesy of FORD MOTOR CO.

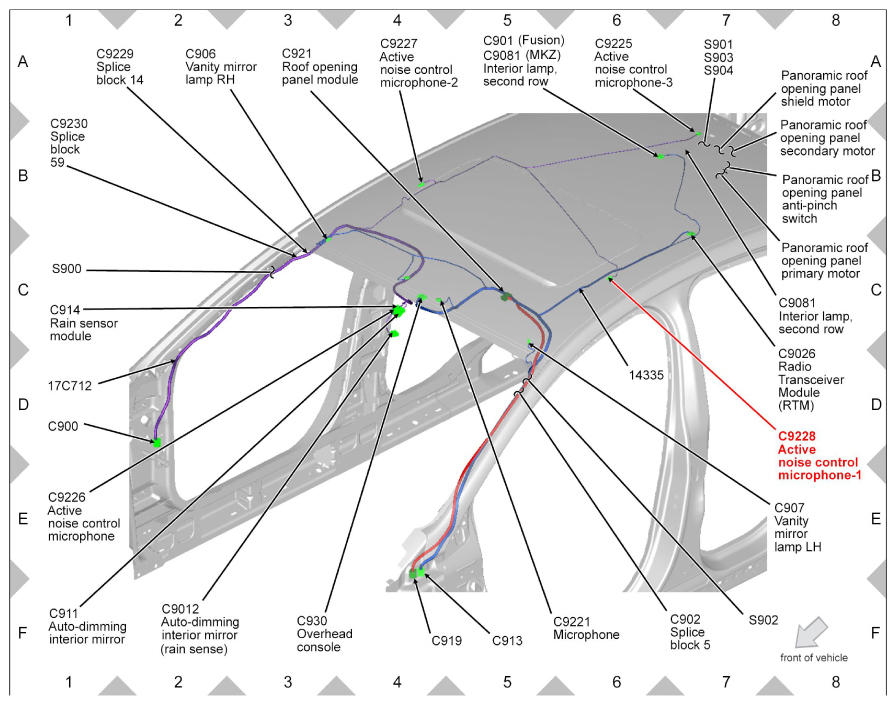

Fig 722: Identifying Connector C9228 Active Noise Control Microphone-1

Courtesy of FORD MOTOR CO.

Fig 723: Identifying Connector C9229 Splice Block 14

Courtesy of FORD MOTOR CO.

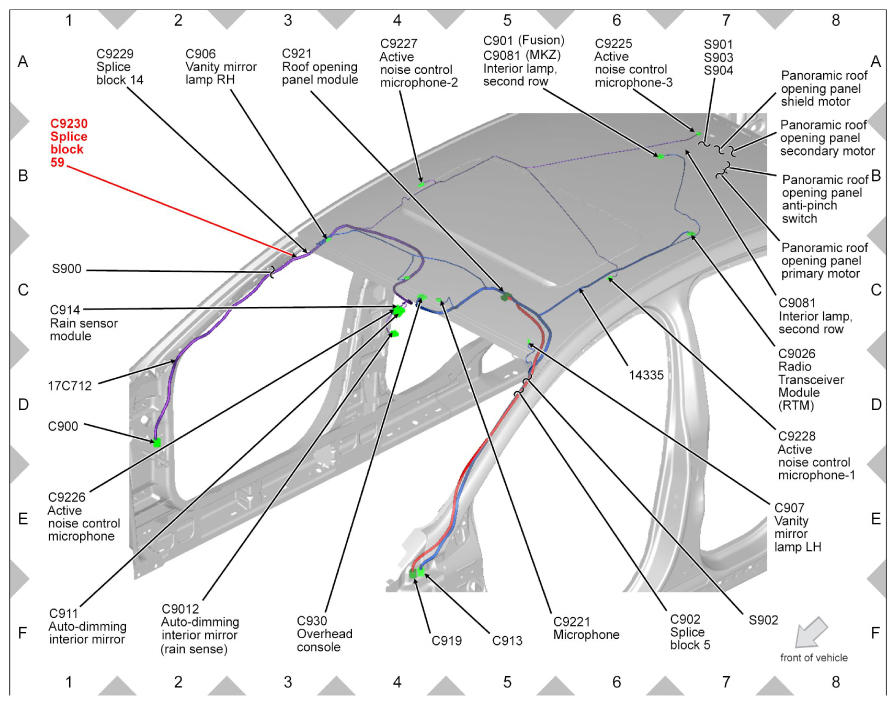

Fig 724: Identifying Connector C9230 Splice Block 59

Courtesy of FORD MOTOR CO.
