Seat Position Sensor: Service and Repair

Seat Position Sensor

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. WARNING: Before beginning any service procedure. Failure to follow this instruction may result in serious personal injury.

Refer to: Health and Safety Precautions. Service Precautions

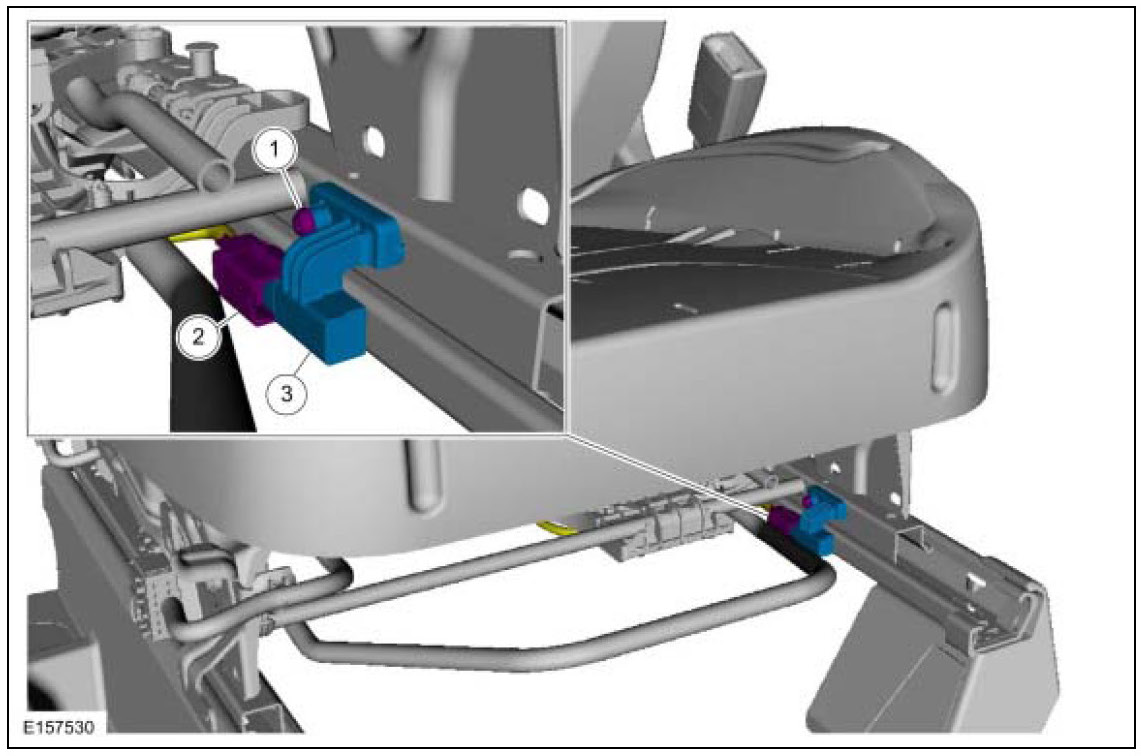

2. NOTE: RH seat shown, LH seat similar.

Torque: 0.9 Nm







Installation

1. To install, reverse the removal procedure.
