Wipers an Washers: MKZ

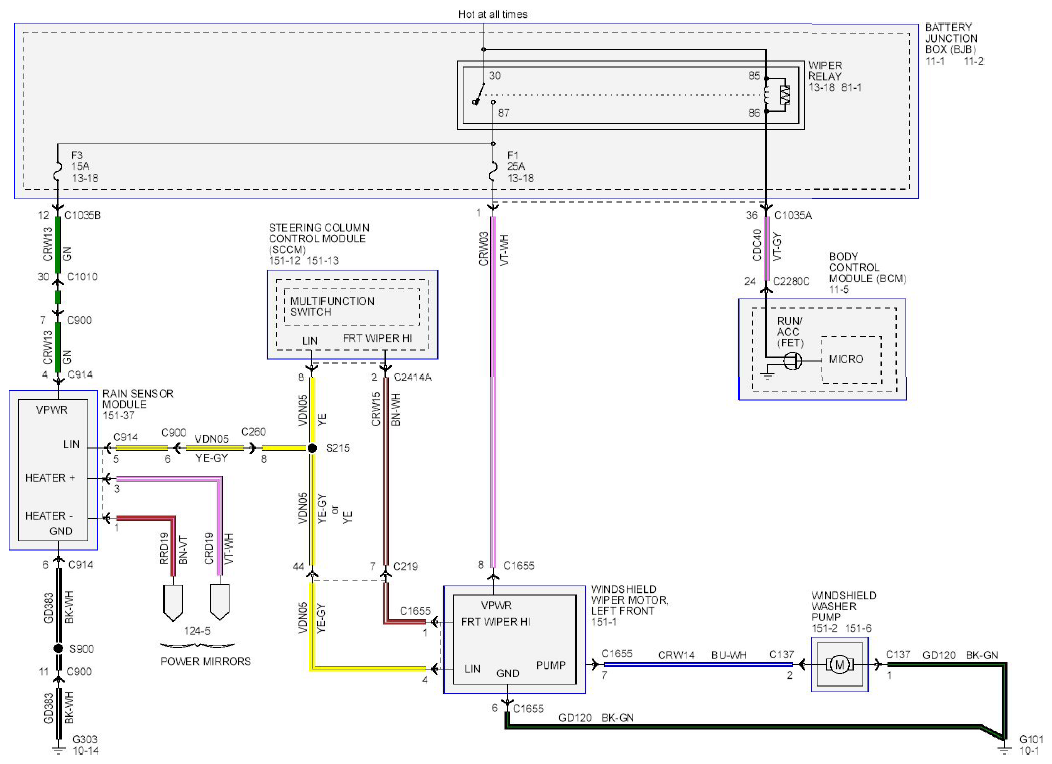

Fig 1: Wipers And Washers Wiring Diagram - MKZ

G08754188

Courtesy of FORD MOTOR CO.
