Turn Signal_Stop_Hazard Lamps
>>
Led Headlamps
Led Headlamps

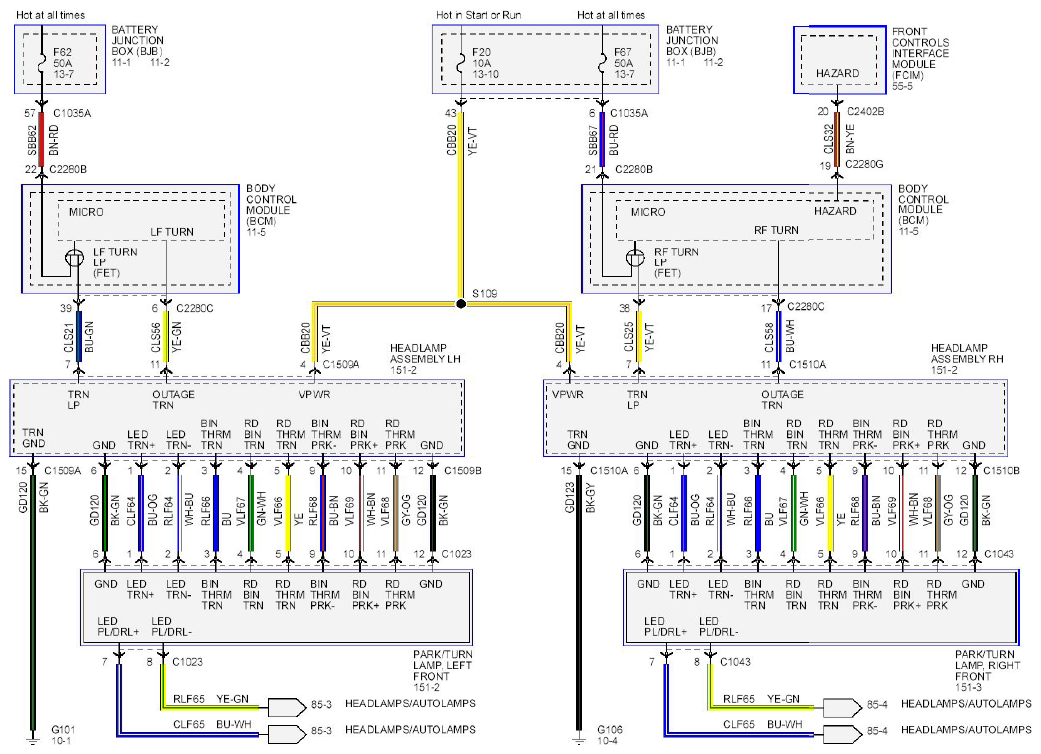

Fig 1: Turn Signal/Stop/Hazard Lamps Wiring Diagram - LED Headlamps
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
