Turn Signal_Stop_Hazard Lamps
>>
Halogen Headlamps
Halogen Headlamps

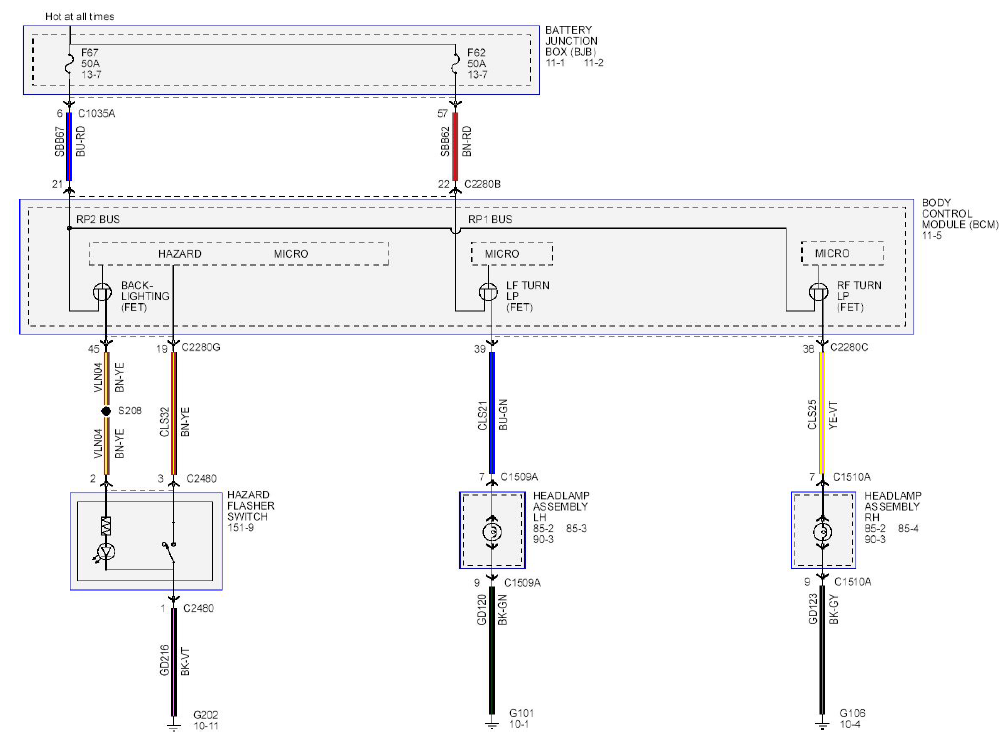

Fig 1: Turn Signal/Stop/Hazard Lamps Wiring Diagram - Halogen Headlamps
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
