Rear Inflatable Safety Belts

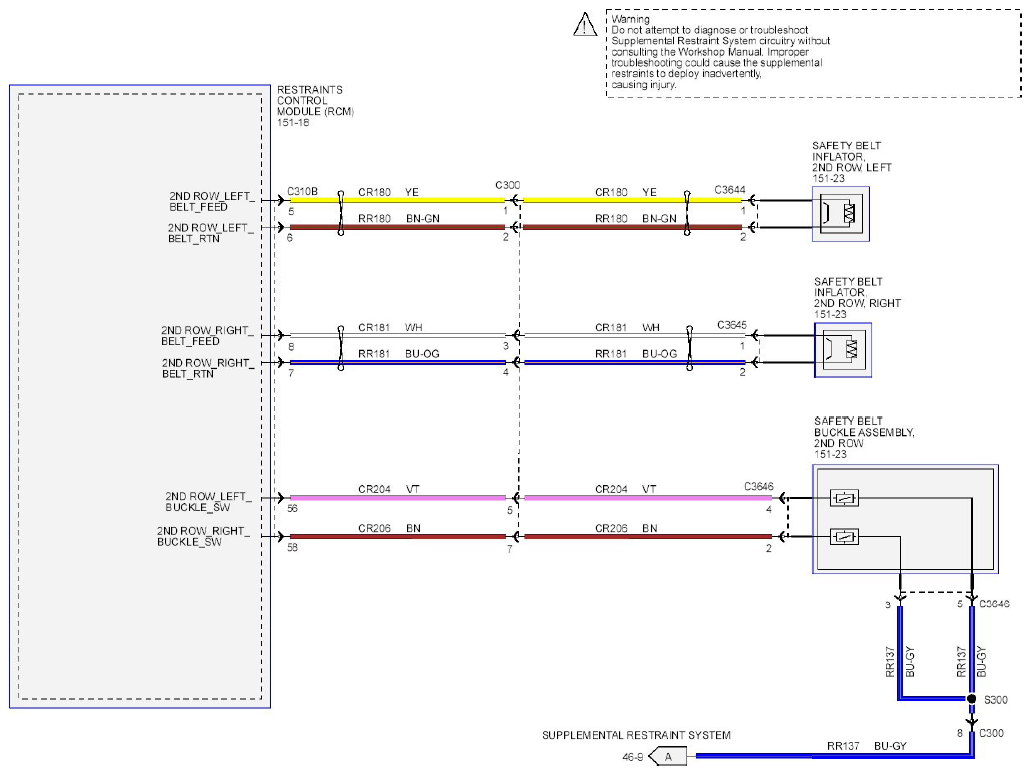

Fig 1: Supplemental Restraint System Wiring Diagram - Rear Inflatable Safety Belts
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
