Shift Interlock: MKZ

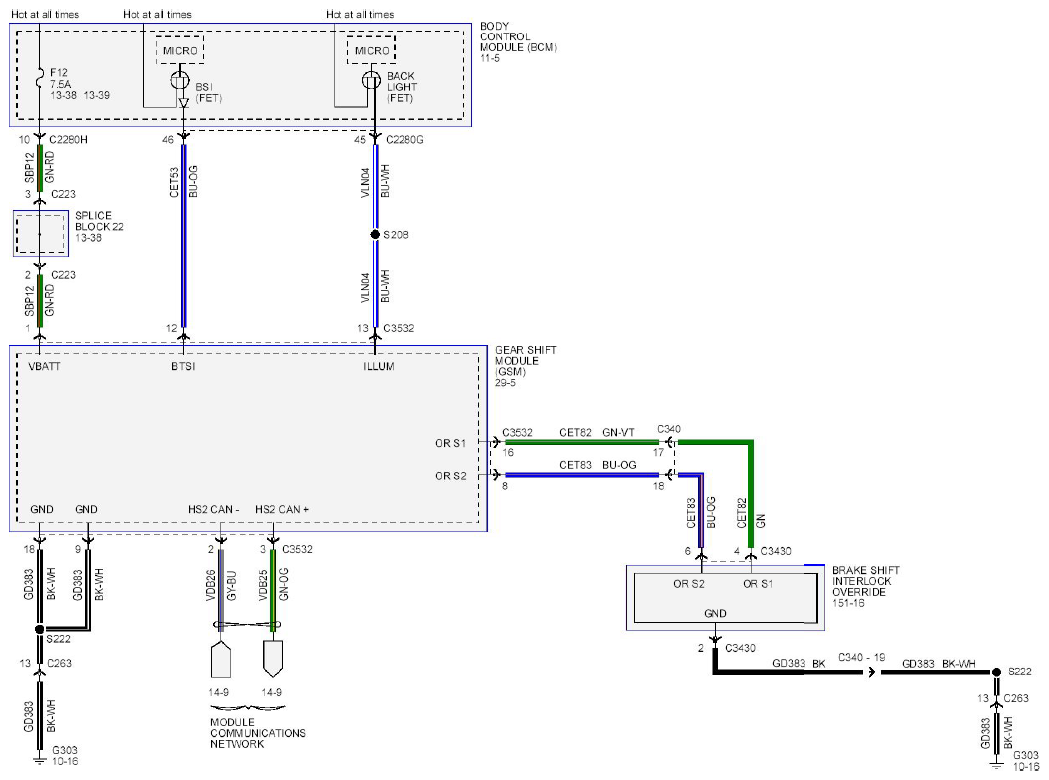

Fig 1: Shift Interlock Wiring Diagram - MKZ
G08754155Courtesy of FORD MOTOR CO.
