OEM Wiring Diagrams -- (Hybrid)
>>
Roof Opening Panel
>>
Without Panoramic Roof
Without Panoramic Roof

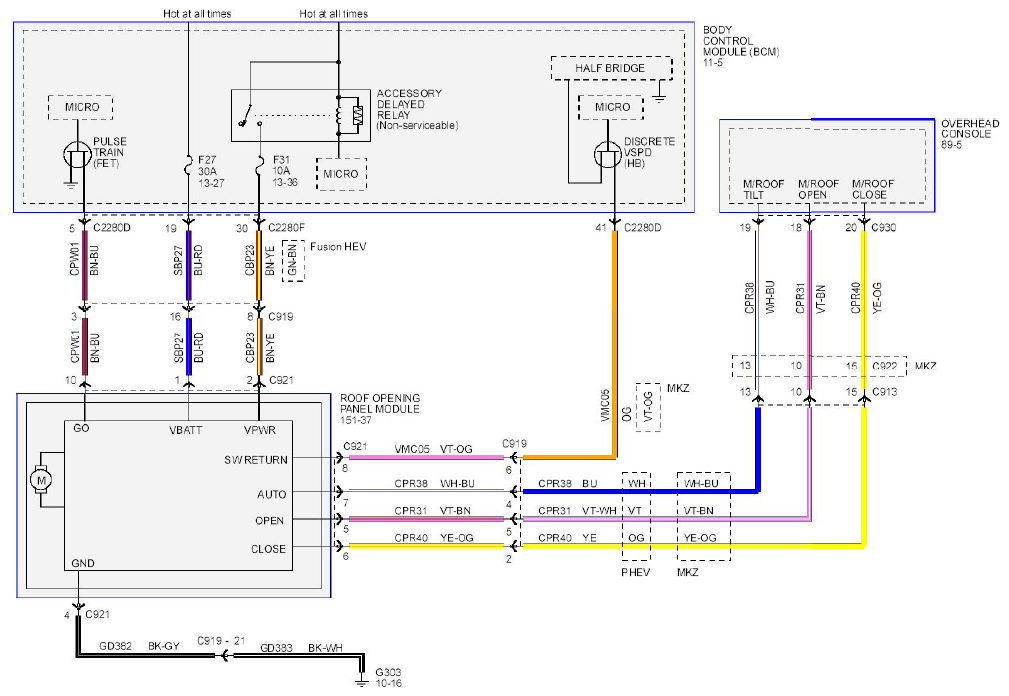

Fig 1: Roof Opening Panel Wiring Diagram - Without Panoramic Roof
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
