Fusion Energi Titanium
>>
Repair and Diagnosis
>>
Electrical
>>
Motors, Switches, Relays
>>
OEM Wiring Diagrams -- (Hybrid)
>>
Roof Opening Panel
>>
Panoramic Roof
Panoramic Roof

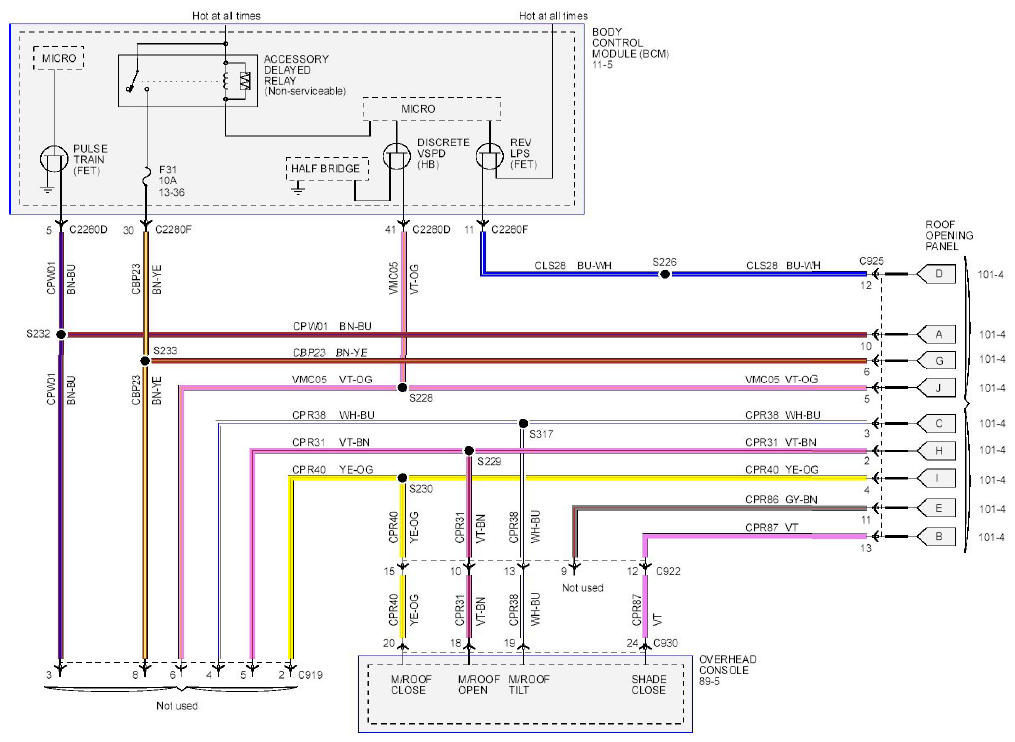

Fig 1: Roof Opening Panel Wiring Diagram - Panoramic Roof (1 Of 2)
Courtesy of FORD MOTOR CO.

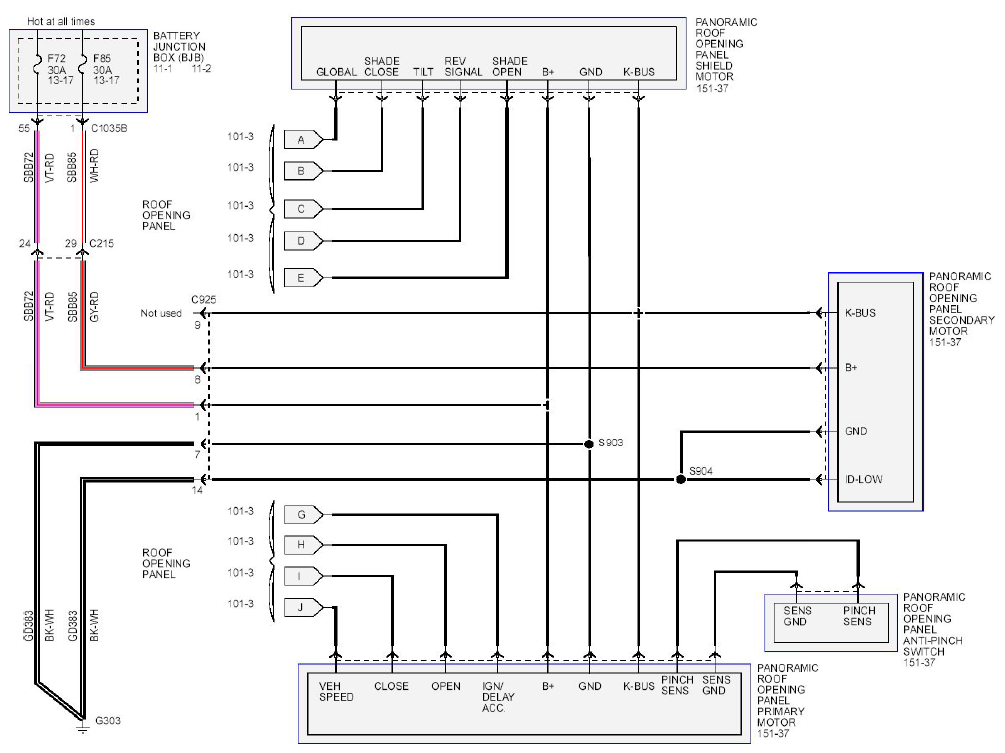

Fig 2: Roof Opening Panel Wiring Diagram - Panoramic Roof (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
