Reversing Lamps: MKZ

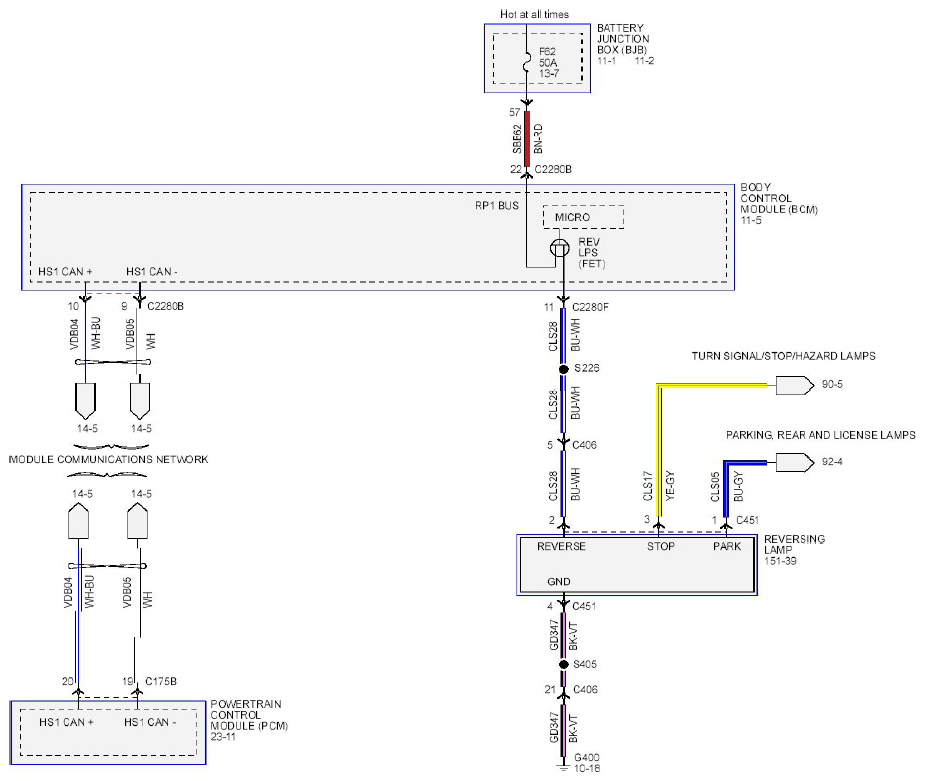

Fig 1: Reversing Lamps Wiring Diagram - MKZ

G08754217

Courtesy of FORD MOTOR CO.
