Reversing Lamps: Fusion

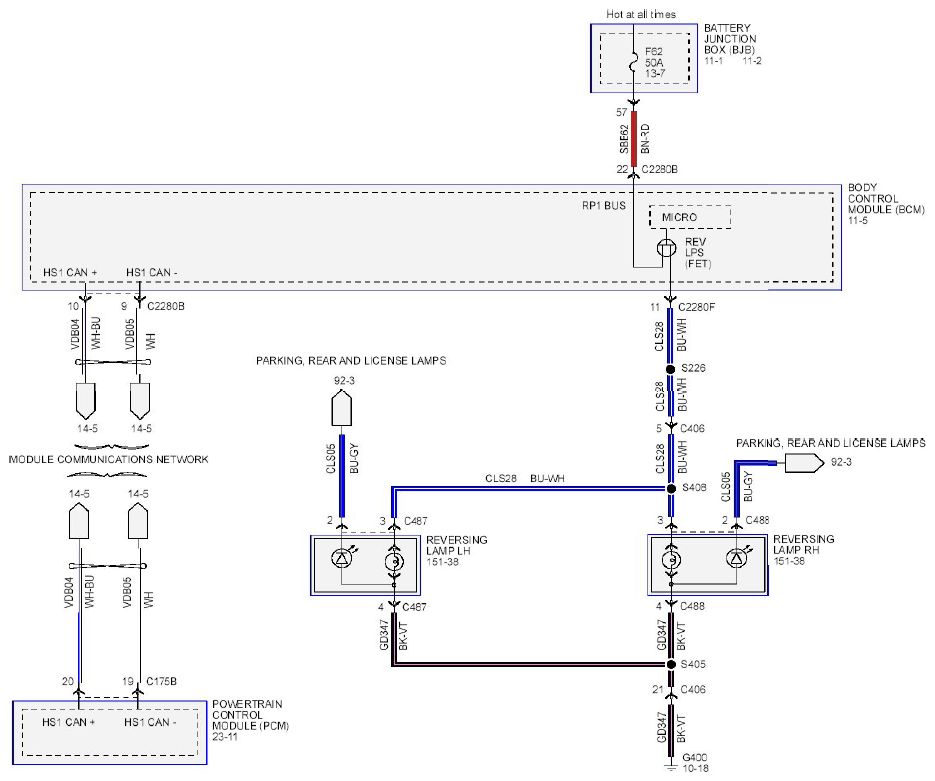

Fig 1: Reversing Lamps Wiring Diagram - Fusion
G08754216Courtesy of FORD MOTOR CO.
