Power Sunshade
>>
MKZ
>>
Without Panoramic Roof
Without Panoramic Roof

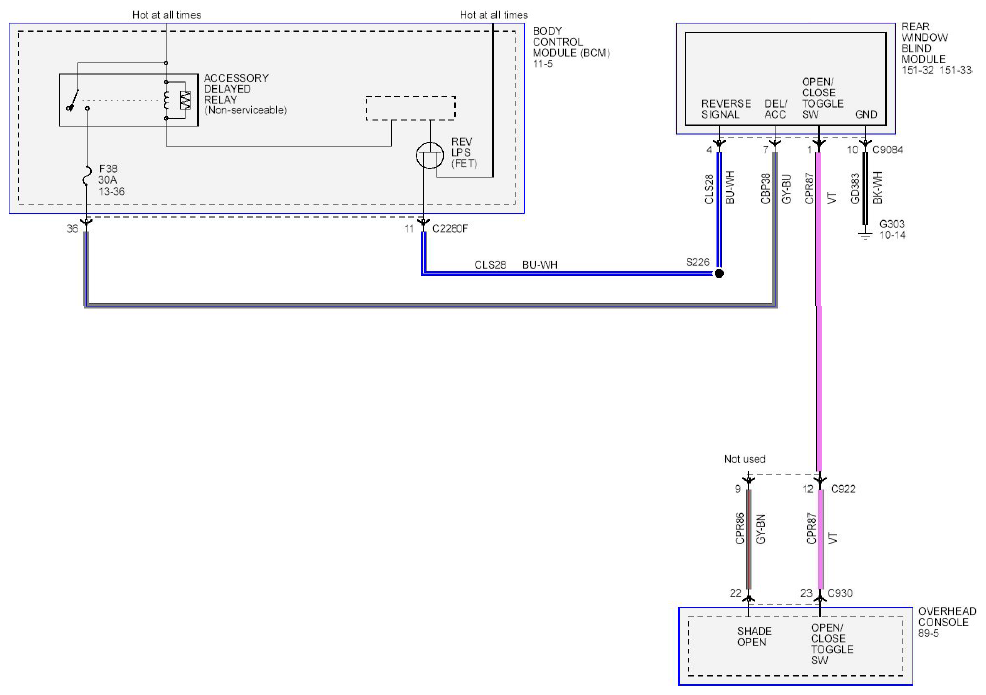

Fig 1: Power Sunshade Wiring Diagram - MKZ, Without Panoramic Roof
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
