10-Way Power Seat - Passenger
10-Way Power Seat - Passenger

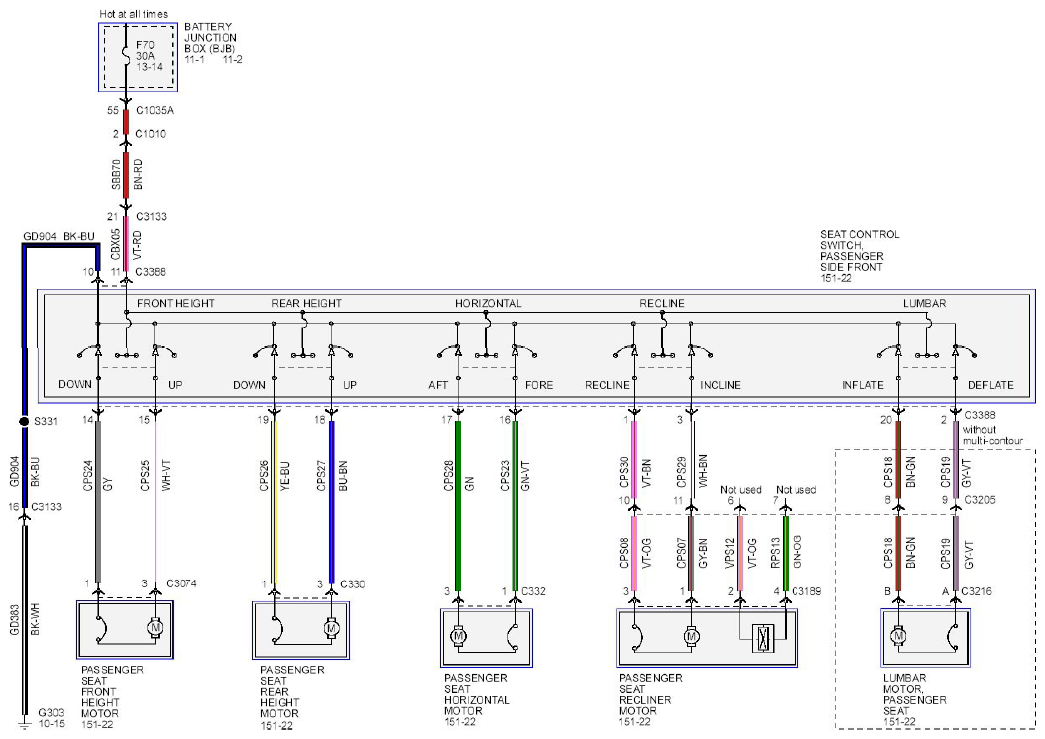

Fig 1: Power Seats Wiring Diagram - MKZ, 10-Way Power Seat (Passenger)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
