OEM Wiring Diagrams -- (Hybrid)
>>
Power Mirrors
>>
Without Rain Sense
Without Rain Sense

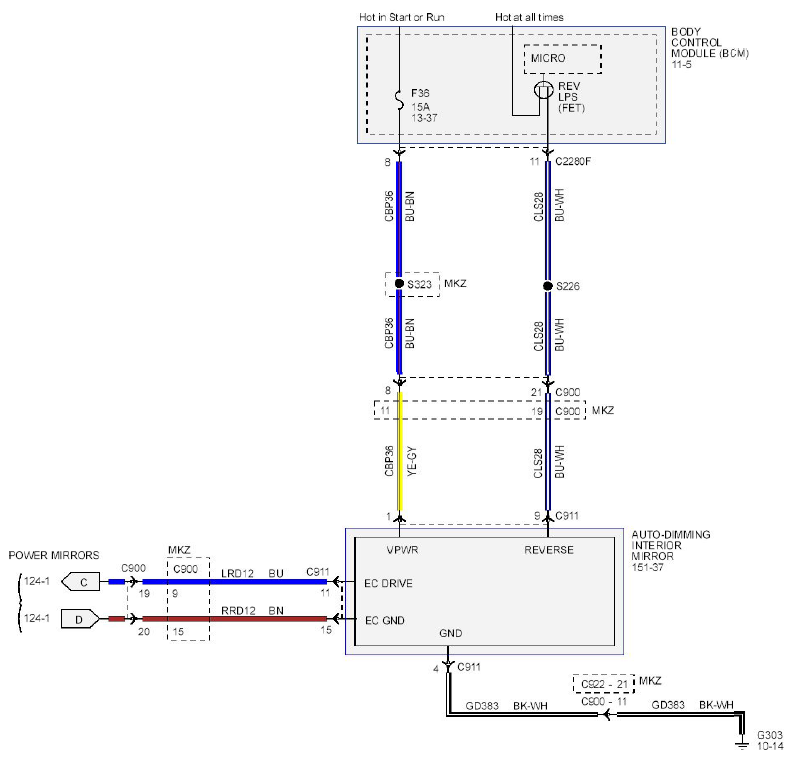

Fig 1: Power Mirrors Wiring Diagram - Without Rain Sense
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
