OEM Wiring Diagrams -- (Hybrid)
>>
Power Mirrors
>>
Rain Sense
Rain Sense

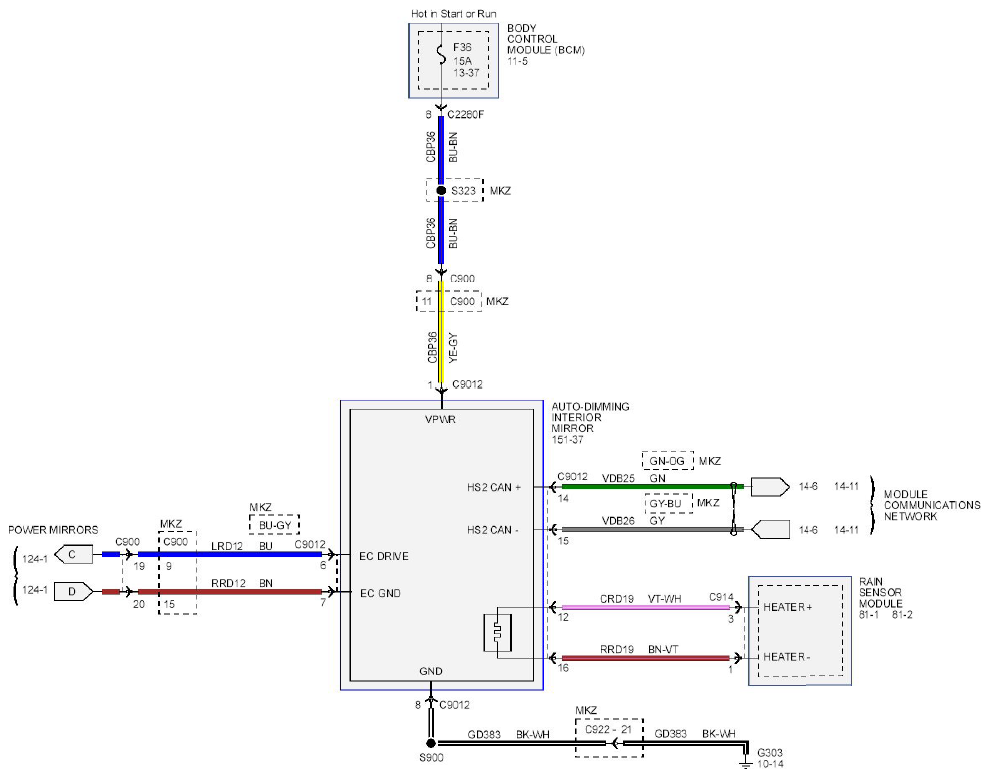

Fig 1: Power Mirrors Wiring Diagram - Rain Sense
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
