Fusion Energi Titanium
>>
Repair and Diagnosis
>>
Electrical
>>
Motors, Switches, Relays
>>
OEM Wiring Diagrams -- (Hybrid)
>>
Power Distribution_BCM
>>
Mega Fuses F2, F3, F5, F6, F8, Midi
Mega Fuses F2, F3, F5, F6, F8, Midi

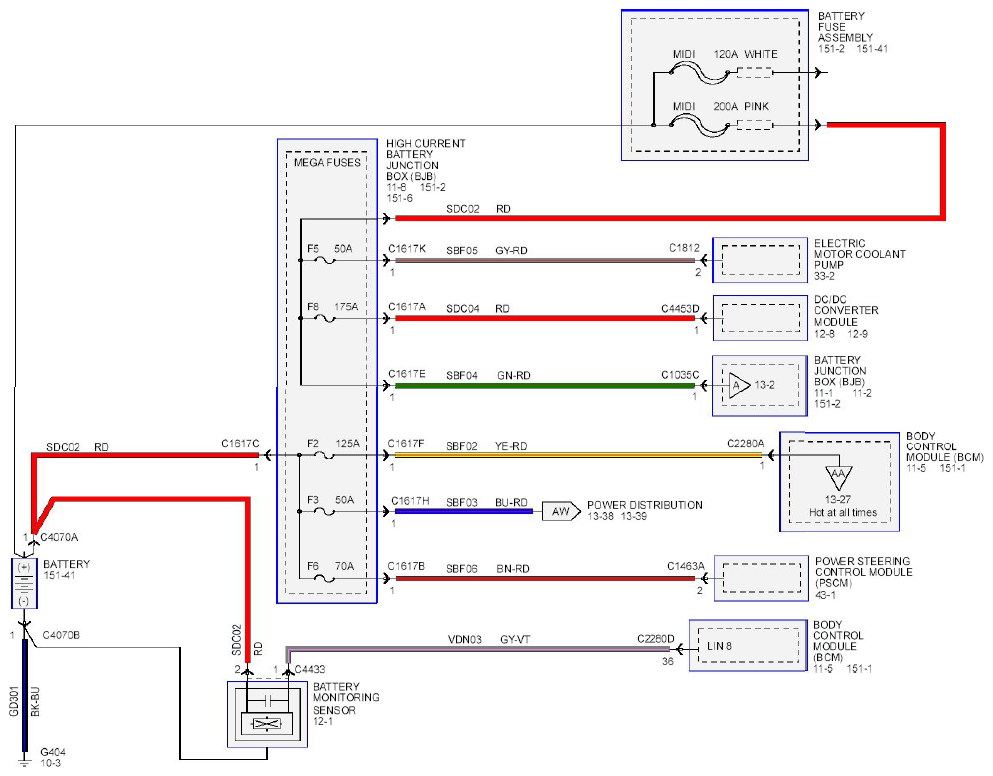

Fig 1: BCM Power Distribution Wiring Diagram - Mega Fuses F2, F3, F5, F6, F8, MIDI
Courtesy of FORD MOTOR CO.
