Ford
>>
2013
>>
Fusion Energi Titanium
>>
Repair and Diagnosis
>>
Electrical
>>
Motors, Switches, Relays
>>
OEM Wiring Diagrams -- (Hybrid)
>>
Power Distribution_BCM
>>
F65, F72, F73, F77, F80, F81, F85
F65, F72, F73, F77, F80, F81, F85

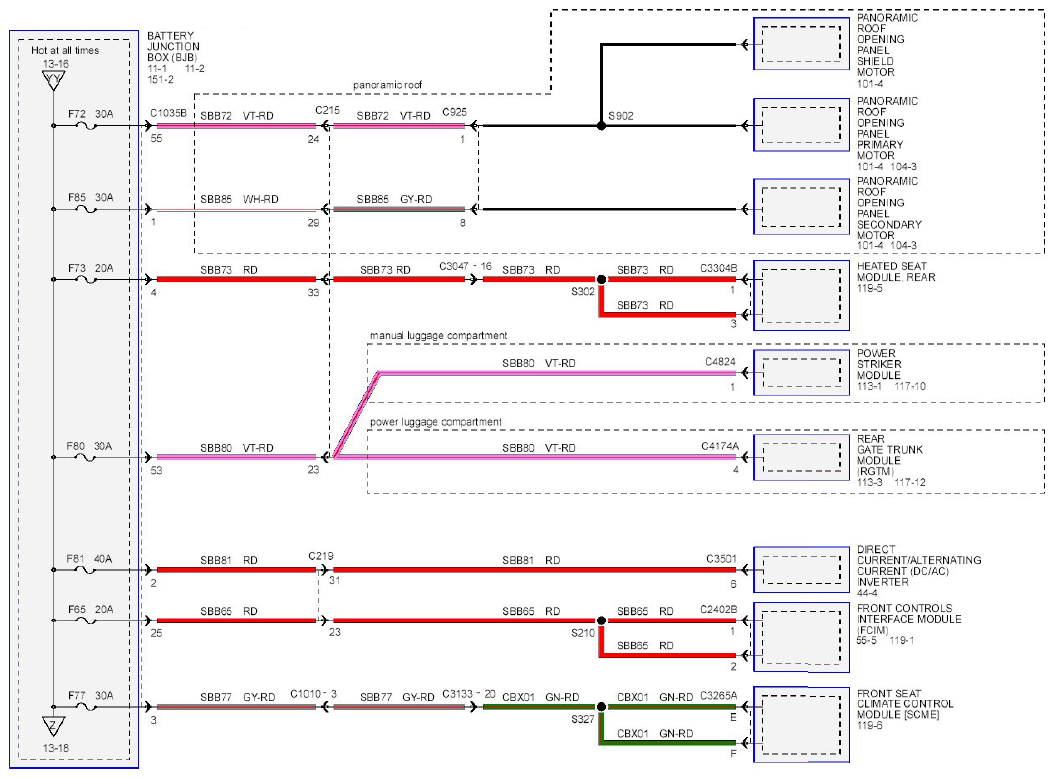

Fig 1: BCM Power Distribution Wiring Diagram - F65, F72, F73, F77, F80, F81, F85
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
