Fusion Energi Titanium
>>
Repair and Diagnosis
>>
Electrical
>>
Motors, Switches, Relays
>>
OEM Wiring Diagrams -- (Hybrid)
>>
Power Distribution_BCM
>>
F3, F15, F16
F3, F15, F16

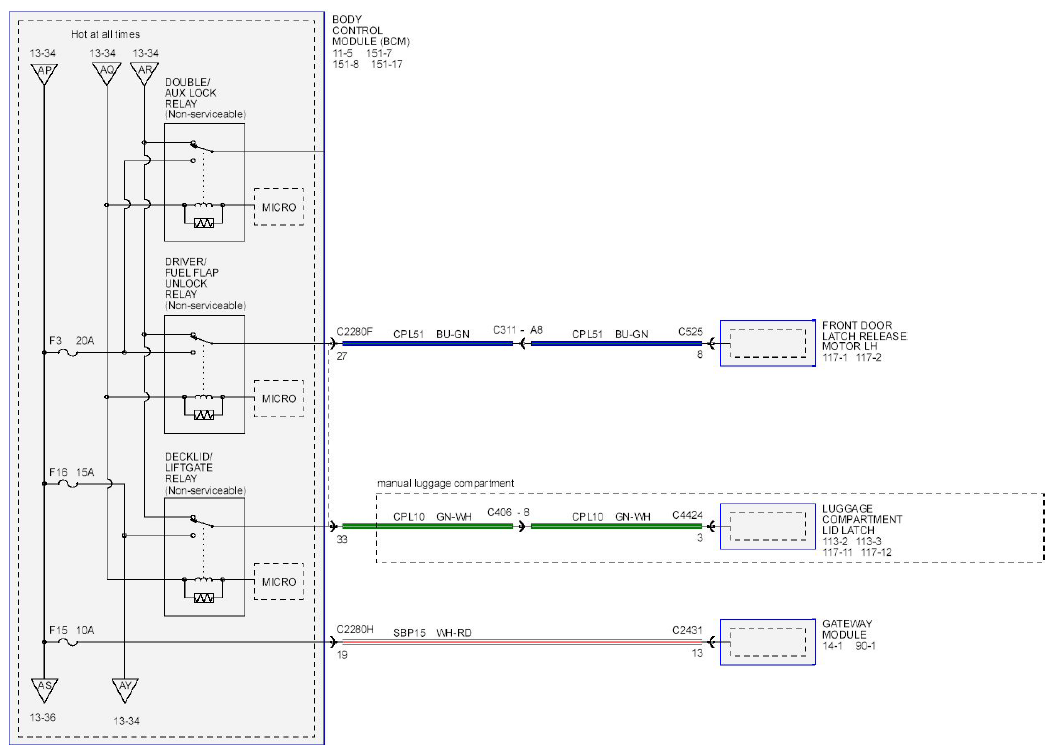

Fig 1: BCM Power Distribution Wiring Diagram - F3, F15, F16
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
