Fusion Energi Titanium
>>
Repair and Diagnosis
>>
Electrical
>>
Motors, Switches, Relays
>>
OEM Wiring Diagrams -- (Hybrid)
>>
Power Distribution_BCM
>>
F20, F21, F31, F34, F35, F38
F20, F21, F31, F34, F35, F38

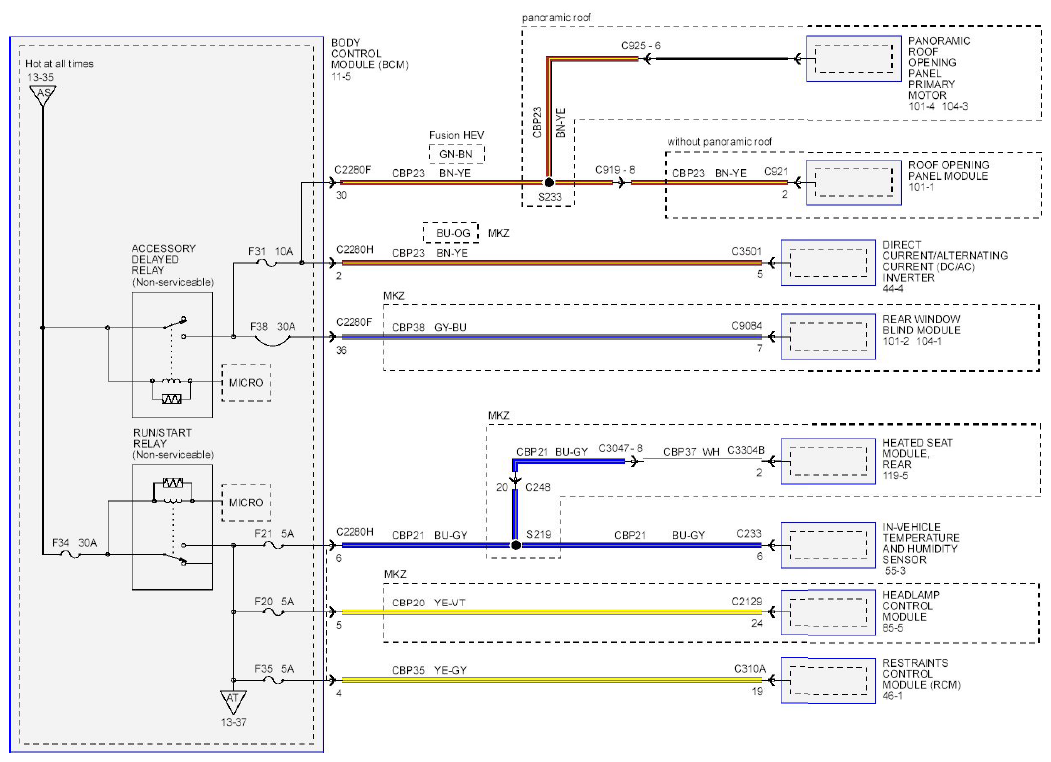

Fig 1: BCM Power Distribution Wiring Diagram - F20, F21, F31, F34, F35, F38
